1550 nm single-frequency laser module
1550 nm Single-frequency lasers are based on external cavity designs; they have advantages such as ultra-shrink width, low wavelength temperature sensitivity, low RIN and high output light power. High performance 1550 nm single-frequency lasers are well suited for applications such as fibre-optic sensing, light communication, laser radar and high precision measurements. Customized services can be provided according to the needs of clients; and corresponding technical support is provided. Single-
Save to Favorites
Overview
Specifications

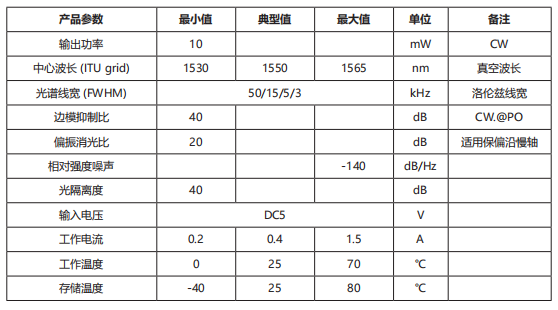

| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; notes |
| Central wavelength | 1530; 1550; 1565; nm; vacuum wavelength |
| spectral width | 50/15/5/3; kHz; Lorenz wide |
| Border Model Impression Ratio | 40; dB; CW.@PO |
| Distortion of light | 20; dB; application coverage slow Axis |
| Light isolation | 40; dB |
| Enter voltage | DC5; V |
Applications
Datasheet
Supplier Information
Related Products
-
10G DFB Distributed Feedback Laser
Laser Modules & Systems
Hchiptech
Working temperature: -40–85 °C Output Power: Min 6.9 mW，typical 9 mW（T=25°C，Ith+30mA）
-
A word
Laser Modules & Systems
Gan-semi
-
1550 nm PZT narrow-line wide laser
Laser Modules & Systems
Ovlink
Central wavelength: 1550.12nm Lorenz's wide: ≤300Hz (customable) Size: ≤1KHz (customable)
PZT FM ultra narrow-wire lasers are external cavity feedback using high Q quality factors; ultra low phase noise is achieved by self-injecting locking; and ultra narrow line wide laser output; encapsulation sizes are small; power consumption is lower; environmental disturbance resistance is better; it is widely applied to fibre-optic sensors; dry communications; compact laser radar; quantum technology, etc. Very narrow line width; very low to 1Hz resistant to environmental interference Very low long-term frequency drift Low phase intensity (RIN) noise Stabilization of single-frequency work Non-jumping Small size low power PZT band bandwidth up to 100 kHz wavelengths (1 μm, C-band; L-band)
-
1550 nm high power mono-frequency continuous fibre-optic laser
Laser Modules & Systems
Ovlink
Central wavelength: typ: 1550 2nm Width: typ: ≤ 300kHz
The laser uses the MOPA technology system; takes full advantage of the technological advantages of fibre-optic laser noise suppression and pre-magnification; obtains a high power output while maintaining the maximum beam mass, the high oscillation distillation ratio, the high optical noise ratio; and is the ideal light source for successive Doppler laser wind radars. Typical applications are on-board wind radars, short-range dry wind radars. Nationally manufactured equipment Human eye safety wavelength 1550 nm single frequency, single luminum, full fibre-optic structure 100kHz volume laser width wide working temperature range
-
905 nm 50 W FP Fabry–Pérot Laser
Laser Modules & Systems
Hchiptech
Peak Output Power: 50 W Emission Wavelength: 895–915 nm, typical 905 nm
