100W Picosecond Green Fiber Laser
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| M² Beam quality | ＜1.3 |
| Average Output Power | ＞100 |
| Power adjustment Range | 0~100 % |
| Max Pulse energy | 125 μJ |
| Frequency Adjustment range | 1~800 kHz |
| Pulse width | 10 ps |
| Output Power Instability | ＜5 |
| Center wavelength | 515 nm |
| Polarization direction | Linear polarization (vertical) |
| High-Reflection Resistance Status | Yes |
| Beam diameter | 1±0.2 mm |
| Spot roundness | ≥90 ％ |
| Cooling method | Water cooling |
| Supply voltage | 48 V |
| Max Power consumption | <3000 W |
| Supply current | >30 A |
| Recommended Power Supply Power | ≥3000 W |
| Operating temperature Range | 0~40 ℃ |
| Storage temperature Range | -10~60 ℃ |

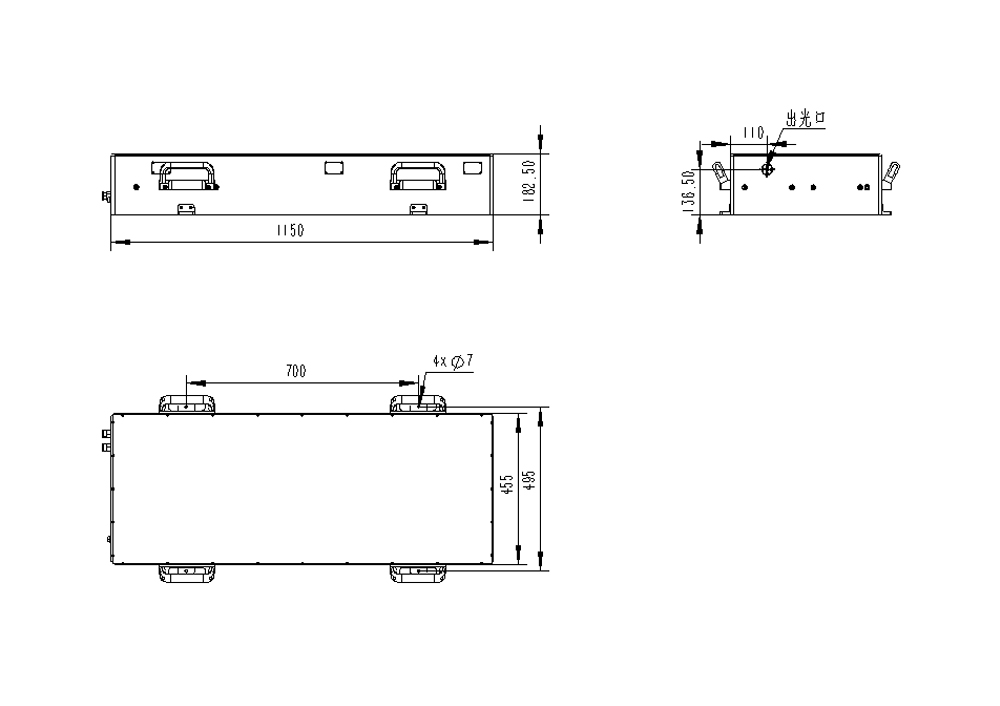

| Laser Dimensions | 1150 mm × 515 mm × 182 mm |
| Weight | 90 kg |
