100W Subnanosecond Infrared Laser
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| M² Beam quality | ＜1.6 |
| Average Output Power | ＞100 |
| Power adjustment Range | 0~100 % |
| Max Pulse energy | 1 mJ |
| Frequency Adjustment range | 1-4000 kHz |
| Pulse width | 0.5-500 ns |
| Output Power Instability | <5 % |
| Center wavelength | 1064 nm |
| Spectral width @3dB | <15 nm |
| Polarization direction | Any |
| High-Reflection Resistance Status | Yes |
| Beam diameter | 7.0±0.5 mm |
| Output Armored Cable Length | 2 m |
| Red Aiming Beam Function | Yes |
| Chassis Cooling method | Air cooling |
| Output head Cooling method | Water cooling |
| Supply voltage | 24 V |
| Max Power consumption | <450 W |
| Supply current | >18 A |
| Recommended Power Supply Power | ≥600 W |
| Operating temperature Range | 0~40 ℃ |
| Storage temperature Range | -10~60 ℃ |

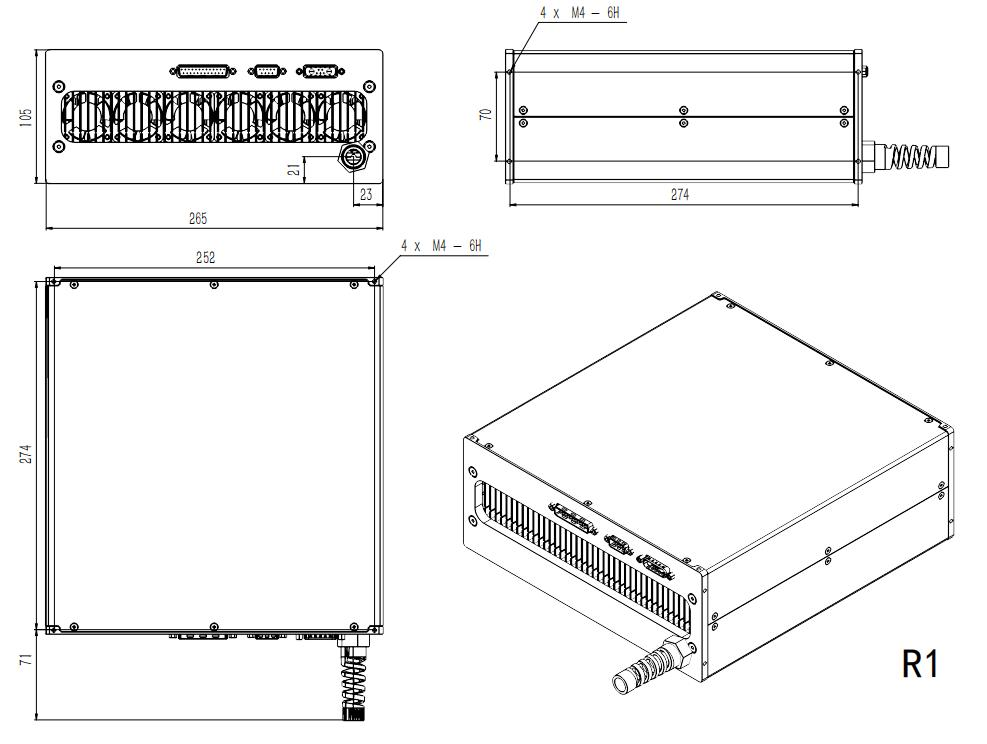

| Chassis Dimensions | 280 mm × 265 mm × 105 mm |

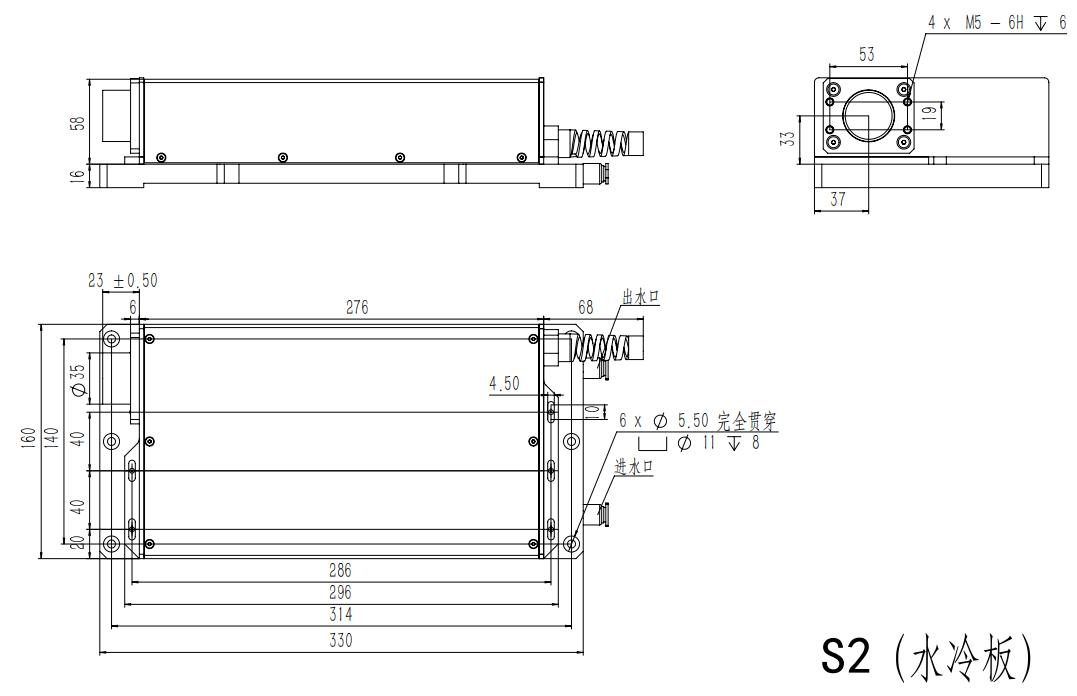

| Output head Dimensions | 330 mm × 160 mm × 74 mm |
| Chassis Weight | 6 kg |
| Output head Weight | 5.2 kg |
Applications
Key Features
Datasheet
