100W Femtosecond Infrared Laser
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| M² Beam quality | ＜1.3 |
| Average Output Power | ＞100 |
| Power adjustment Range | 0~100 % |
| Max Pulse energy | 200 μJ |
| Frequency Adjustment range | 1~1000 kHz |
| Pulse width | <400 fs |
| Output Power Instability | ＜3 |
| Center wavelength | 1030 nm |
| Polarization direction | Vertical |
| Spectral width @3dB | 7 nm |
| Beam diameter | 3.0±0.3 mm |
| Spot roundness | ≥90 ％ |
| Cooling method | Water cooling |
| Supply voltage | 48 V |
| Max Power consumption | 1500 W |
| Supply current | 30 A |
| Recommended Power Supply Power | 1500 W |
| Operating temperature Range | 15~35 ℃ |
| Storage temperature Range | -10~50 ℃ |

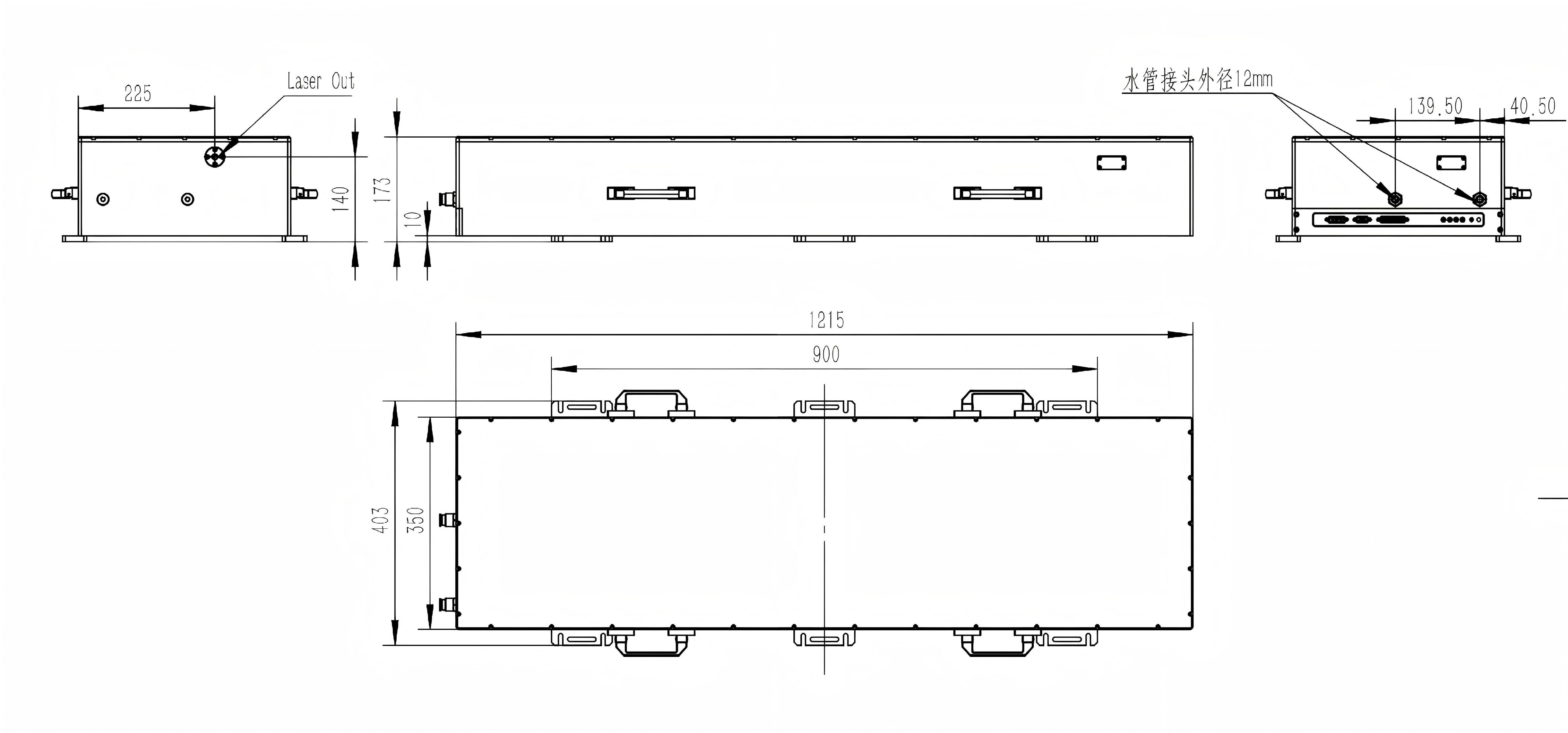

| Laser Dimensions | 1215 mm × 350 mm × 173 mm |
Applications
Key Features
Datasheet
