8-channel high-speed photometer
High-speed photopower is based on excellent performance parameters; it is showing strong competition in the field of light communications. Its sampling time can be submariseconds; it combines large-capacity data cache mechanisms; it allows rapid capture and storage of big photopower data; dynamic measurement ranges covering -65dBm to +7dBm; precision ±0.001dB; whether it is a weak light signal or a strong light signal; it can be measured with stability and high accuracy. In addition, the equipme
Save to Favorites
Overview

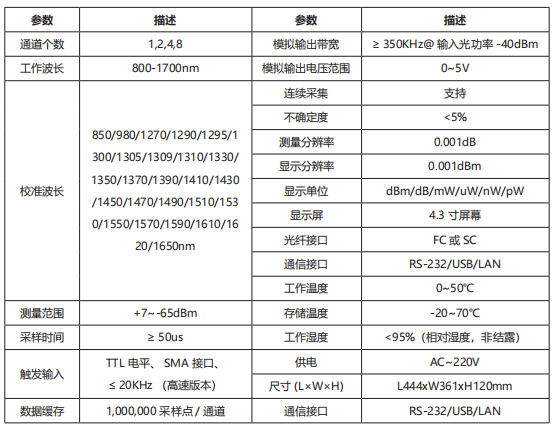

Specifications
| Parameter | Value |
|---|---|
| Number of channels | 1,2,4,8; simulated output bandwidth; ≥350KHz@input photopower -40dBm |
| Work wavelength | 800-1700 nm; simulated output voltage range; 0~5V |
| Calibration wavelength | 850/980/1270/1290/1295/1 300/1305/13009/1310/1330/1370/1390/1430/1450/1470/1490/1553 0/1550/1570/1590/1610/16 20/1650 nm; continuous collection; support |
| Sample Time | ≥50us; Work humidity; < 95% (relative humidity, not condensed) |
| Trigger Input | TTL level, SMA interface, ≤20KHz (high-speed version); power; AC~220V |
| Data cache | 1,000,000 sampling points/channels; communications interface; RS-232/USB/LAN |
Applications
Datasheet
