Power Meter
This compact, powerful power meter switches between measurement and beam transmission by in-place rotation. Current is converted to absolute power. Its 10mmX10mm active area covers 6-1100nm, with dark current ≤5pA for sensitive detection down to 20pW. Fast response, a broad operating range (-10°C to 40°C) and compatibility with various vacuum/atmosphere environments suit absolute-power measurement, photon-flux calibration and bandpass-fraction analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Conversion Mode | Current Converted to Absolute Power |
| Active Area | 10 mm x 10 mm |
| Wavelength Window [(6nm-50nm No Reflection Loss)] | 6nm - 1100 nm(6nm-50nm No Reflection Loss) |
| Photo Curent Range | 15 pA-10 mA |
| Accuracy of Detection | ~5% |
| Operating Temperature Range | - 10°C to 40°C |
| Dark Current [(0 V,20°C)] | ≤5 pA (0 V,20°C) |
Key Features
Datasheet
Supplier Information
Related Products
-

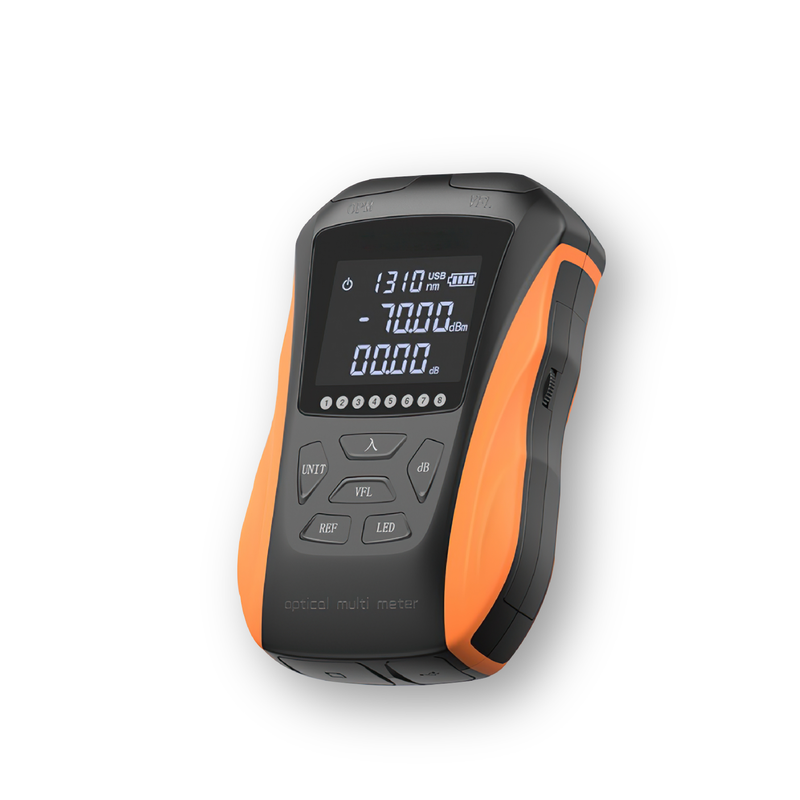

Optical Power
Optical Power Meters
Lifo-fj
Wavelength Range: 800~1700 Measurement Range: -70~+3，-70~+10，-50~+26 Standard Wavelength: 850，980，1300，1310，1490，1550，1625
-

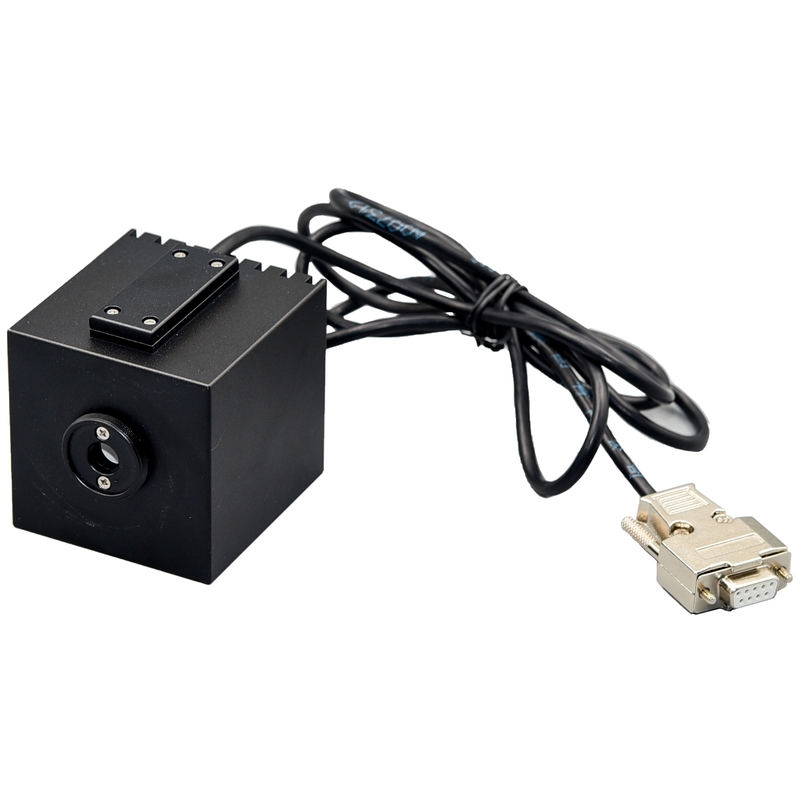

Optical power meter series PMS-9016-6010
