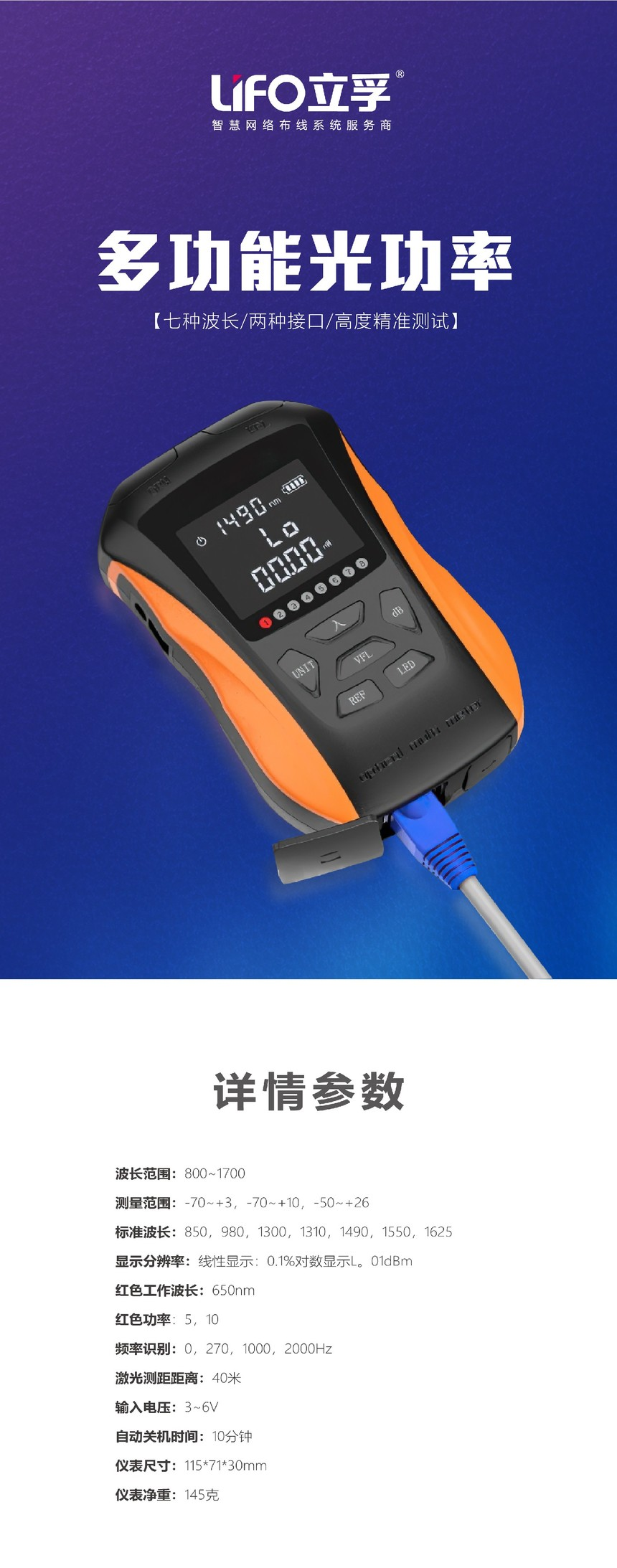

Optical Power
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 800~1700 |
| Measurement Range | -70~+3，-70~+10，-50~+26 |
| Standard Wavelength | 850，980，1300，1310，1490，1550，1625 |
| Display Resolution [Linear Display] | 0.1% |
| Red Operating wavelength | 650nm |
| Red Power | 5，10 |
| Frequency Identification | 0，270，1000，2000Hz |
| Laser Ranging Distance | 40 m |
| Input Voltage | 3~6V |
| Automatic Shutdown Time | 10 minutes |
| Instrument Dimensions | 115 mm × 71 mm × 30 mm |
| Instrument Net Weight | 145 Grams |
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Power Meter
Optical Power Meters
Lumi-universe
Conversion Mode: Current Converted to Absolute Power Active Area: 10 mm x 10 mm Wavelength Window [(6nm-50nm No Reflection Loss)]: 6nm - 1100 nm(6nm-50nm No Reflection Loss)
This compact, powerful power meter switches between measurement and beam transmission by in-place rotation. Current is converted to absolute power. Its 10mmX10mm active area covers 6-1100nm, with dark current ≤5pA for sensitive detection down to 20pW. Fast response, a broad operating range (-10°C to 40°C) and compatibility with various vacuum/atmosphere environments suit absolute-power measurement, photon-flux calibration and bandpass-fraction analysis.
-
Optical power meter series PMS-9016-6010
Optical Power Meters
Max-ray
Detector Type: InGaAs Photodiode Integrating sphere (yes/no): No Operating Wavelength: typical:900~1650 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-
Optical power meter series PMS-4011-2040
Optical Power Meters
Max-ray
Detector Type: Si Photodiode Integrating sphere (yes/no): Yes Operating Wavelength: typical:400~1100 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-
Multi-Channel Optical Power Meter
Optical Power Meters
Hltoptical
Operating wavelength [Unlabelled range alternatives;no detector/material/model mapping supplied]: 600~1100 or800~1700 Measurement range: -70~+20 dBm Uncertainty: ±3 %
Multi-Channel Optical Power Meter in fiber optic system provides both absolute and relative power measurement functions.Photodiodes with InGaSn and large active area are used to implement precise power measurement in multiple wavebands.OEM is available.
