Multi-Channel Optical Power Meter
Multi-Channel Optical Power Meter in fiber optic system provides both absolute and relative power measurement functions.Photodiodes with InGaSn and large active area are used to implement precise power measurement in multiple wavebands.OEM is available.
Save to Favorites
Overview

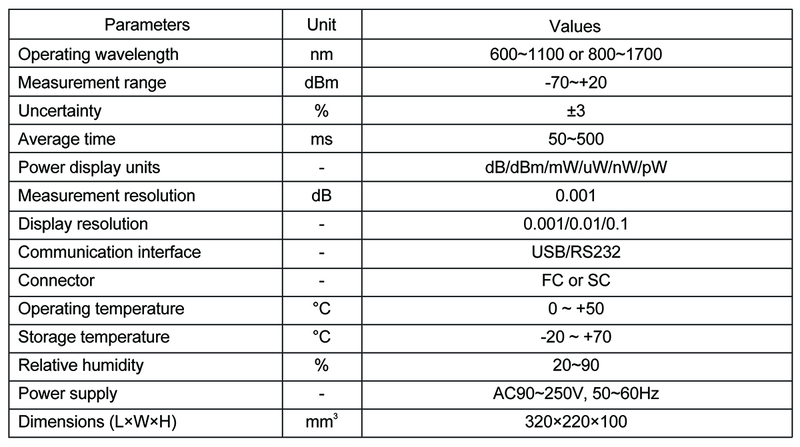

Specifications
| Parameter | Value |
|---|---|
| 工作波长 [未标注的范围备选项；未提供探测器/材料/Model对应关系] | 600~1100 or800~1700 |
| 量程 | -70~+20 dBm |
| 不Confirm度 | ±3 % |
| 平均时间 | 50~500 ms |
| 功率显示单位 | dB/dBm/mW/µW/nW/pW |
| 测量分辨率 | 0.001 dB |
| 显示分辨率 [未给出单位或与功率显示模式的对应关系] | 0.001/0.01/0.1 |
| 通信接口 | USB/RS232 |
| 连接器 | FC or SC |
| 工作温度 | 0~+50 °C |
| 储存温度 | -20~+70 °C |
| 相对湿度 | 20~90 % |
| 电源 | AC90~250V,50~60Hz |
| 外形尺寸(L×W×H) | 320×220×100 |
