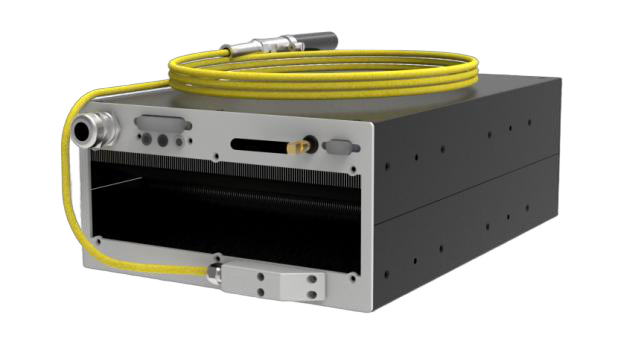

BFL-ACW15S-2 Storm Series Fiber Laser
The BWT Storm Series fiber laser BFL-ACW15S-2 adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its simple and compact appearance design provides greater freedom, better rationality and higher integration for laser equipment design. This air-cooled laser features excellent beam quality, and the laser beam can be focused close to the diffraction limit to achieve precision processing. It offers both continuous wave (CW) and modulated pulse working modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed in a rugged housing. It can process various steels, aluminum and nickel-based alloys, titanium alloys, alumina ceramics and more.
Save to Favorites
Overview

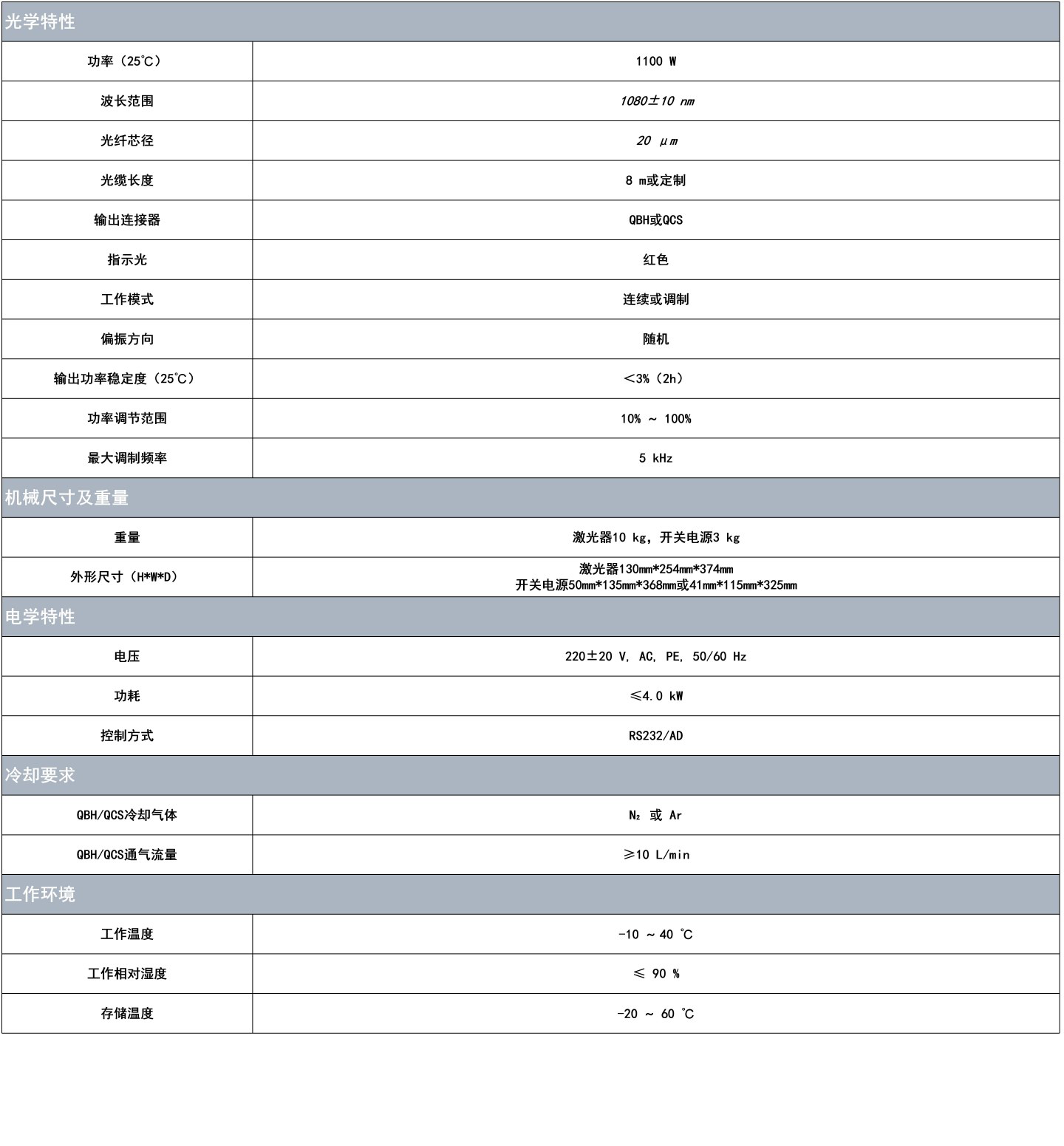

Specifications
| Parameter | Value |
|---|---|
| Power (25°C) | 1100W |
| Fiber Core Diameter | 20μm |
| Output Connector | QBH or QCS |
| Pilot Light | Red |
| Operating Mode | CW or Modulated |
| Polarization Direction | Random |
| Output Power Stability (25°C) | <3% (2h) |
| Power Adjustment Range | 10%~100% |
| Maximum Modulation Frequency | 5kHz |

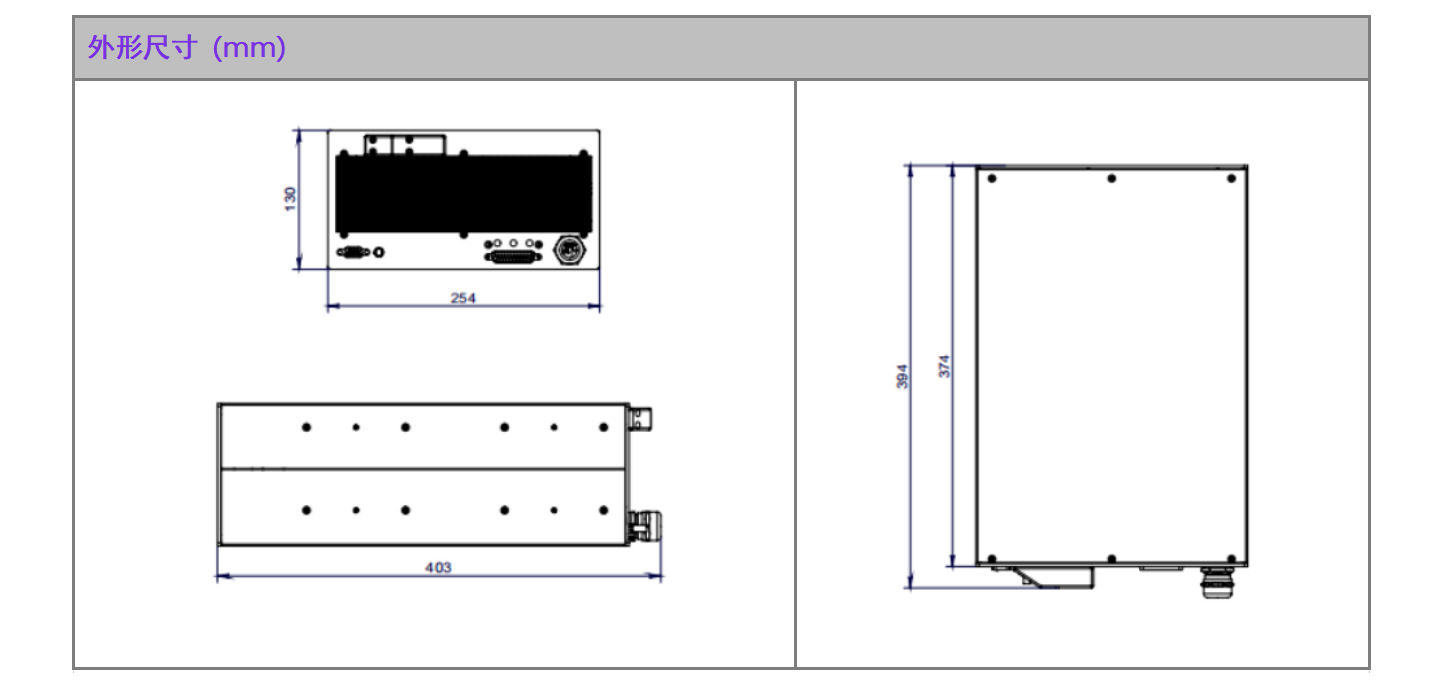

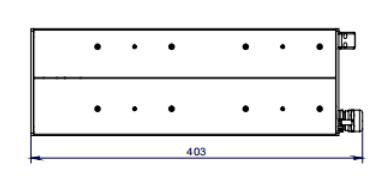

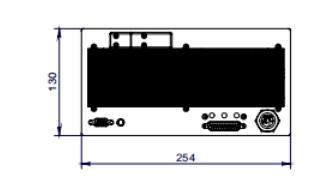

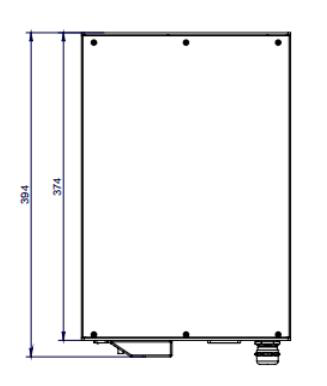

| Weight | Laser: 10kg; Switching Power Supply: 3kg |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | ≤4.0kW |
| Control Mode | RS232/AD |
| QBH/QCS Cooling Gas | N₂ or Ar |
| QBH/QCS Gas Flow Rate | ≥10L/min |
| Storage Temperature | -20~60℃ |
