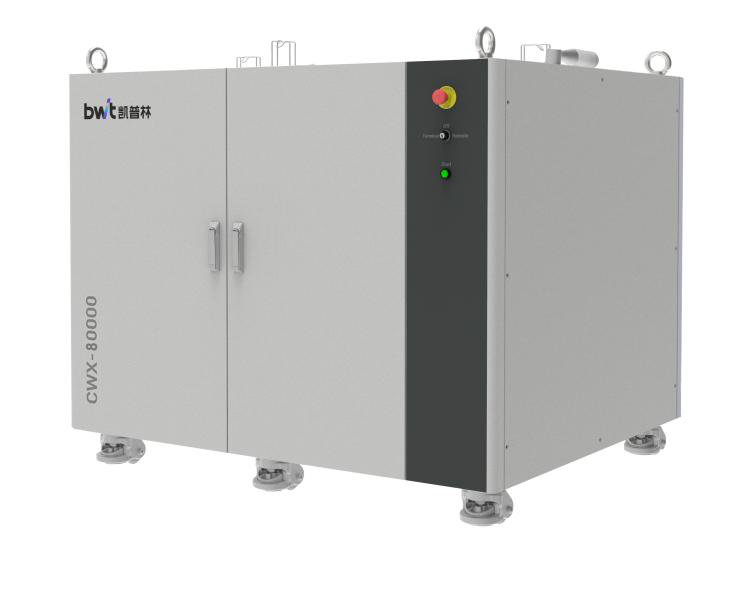

CWX-80000 Thunder 80kW Fiber Laser
The CWX-80000 Thunder 80kW fiber laser is a high-power industrial laser source for precision material processing. It provides 80000W output at 1080±10nm through a 150μm fiber core and QF/QF-D connector, with red indicator light, continuous or modulated operation, 10%-100% power adjustment and up to 5kHz modulation. BWT states that the beam can be focused close to the diffraction limit, while the modular all-fiber design packages the optical and electrical components in a rugged sealed cabinet for harsh industrial environments.
Save to Favorites
Overview

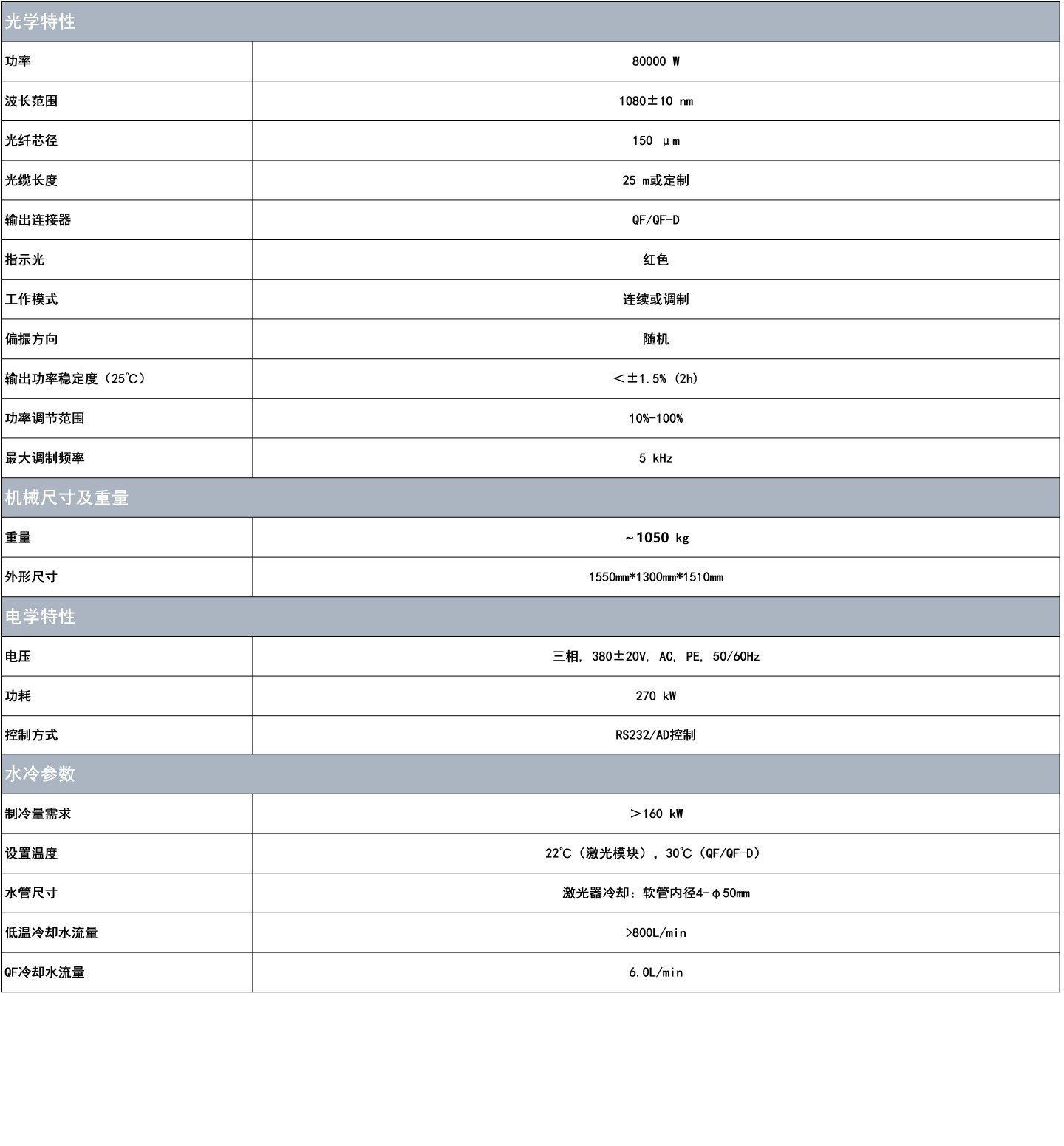

Specifications
| Parameter | Value |
|---|---|
| Power | 80000W |
| Fiber Core Diameter | 150μm |
| Optical Cable Length | 25 m or custom length |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~1050kg |

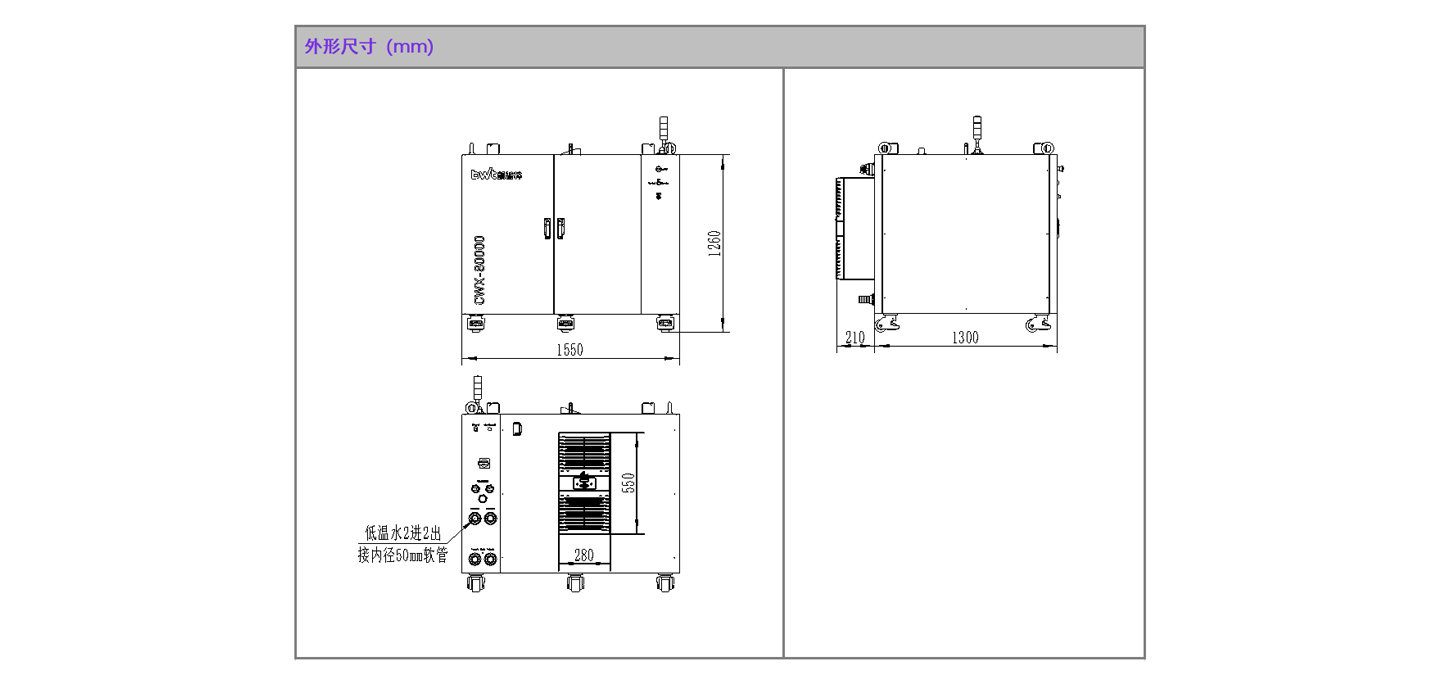

| Overall Dimensions | 1550mm*1300mm*1510mm |
| Power Consumption | 270kW |
| Cooling Capacity Requirement | >160kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size (Inner Diameter) | Laser cooling: hose ID 4-φ50 mm |
| Low-Temperature Water Interface | 2 inlets and 2 outlets, for connection to hoses with 50 mm ID |
| Low-Temperature Cooling Water Flow | >800L/min |
| QF/QF-D Cooling Water Flow | 6.0L/min |
