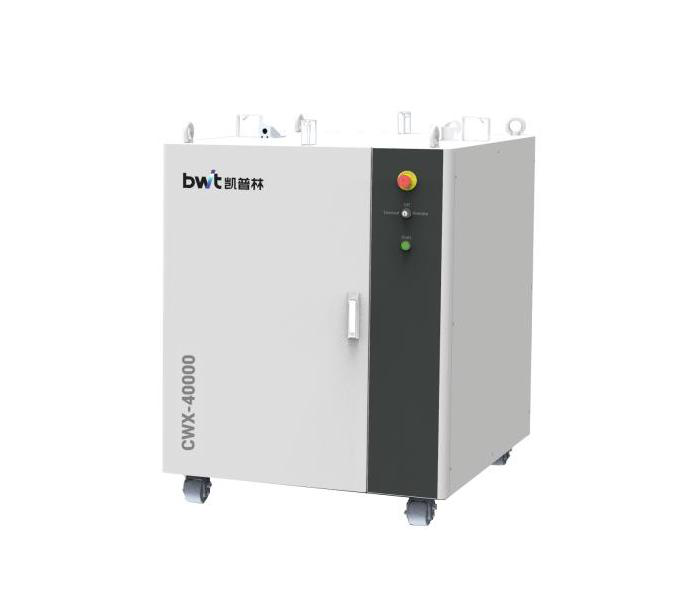

Thunder 40kW Fiber Laser CWX-40000
The BWT Thunder 40kW fiber laser CWX-40000 delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous-wave (CW) and modulated operating modes, which greatly reduce the heat-affected zone during processing. Featuring reliable performance and a modular all-fiber design, all optical and electronic components are sealed inside a rugged enclosure that can withstand harsh industrial application conditions. It is widely used for processing various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics.
Save to Favorites
Overview

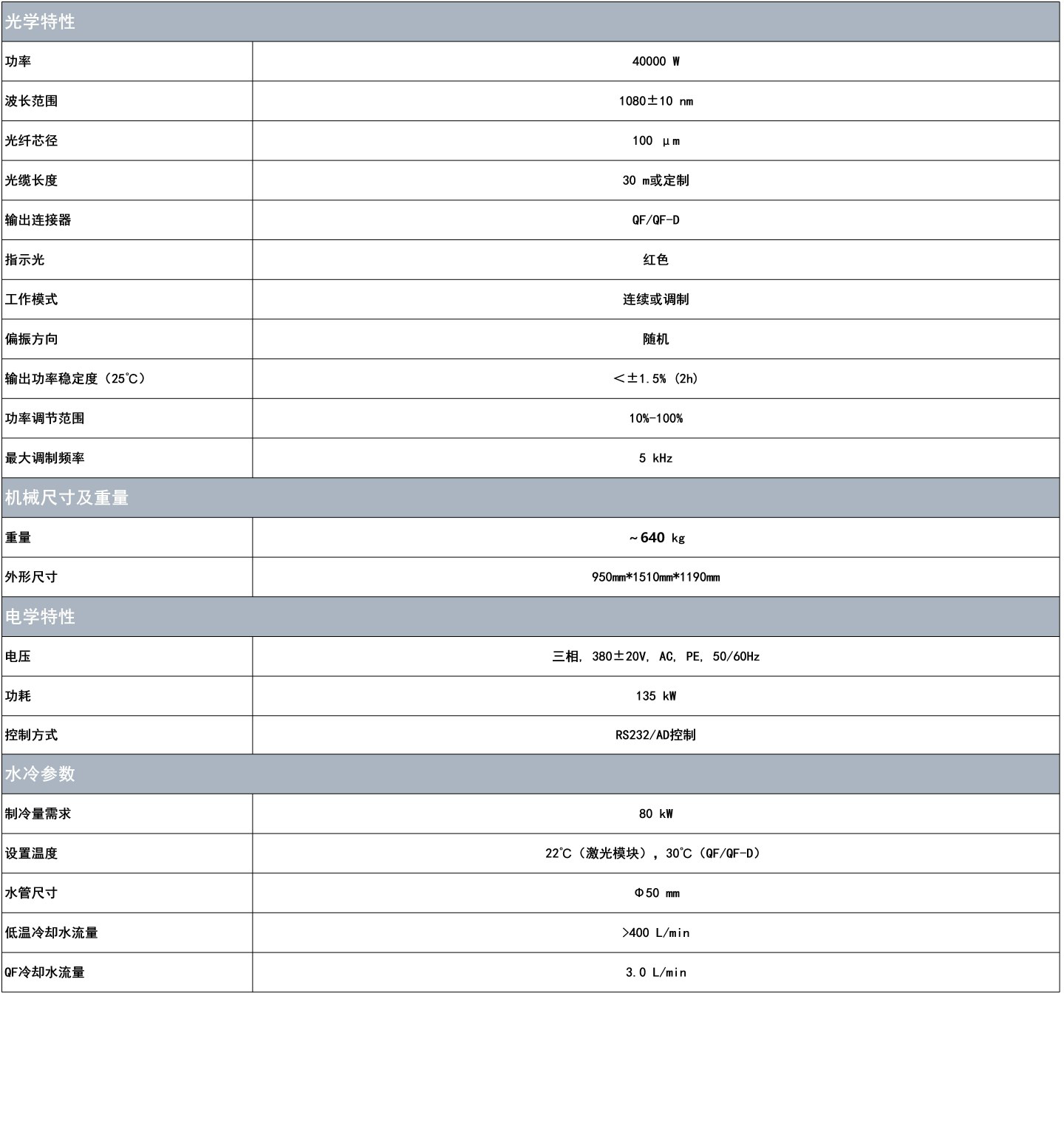

Specifications
| Parameter | Value |
|---|---|
| Power | 40000W |
| Fiber Core Diameter | 100μm |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Operating Mode | CW or Modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~640kg |

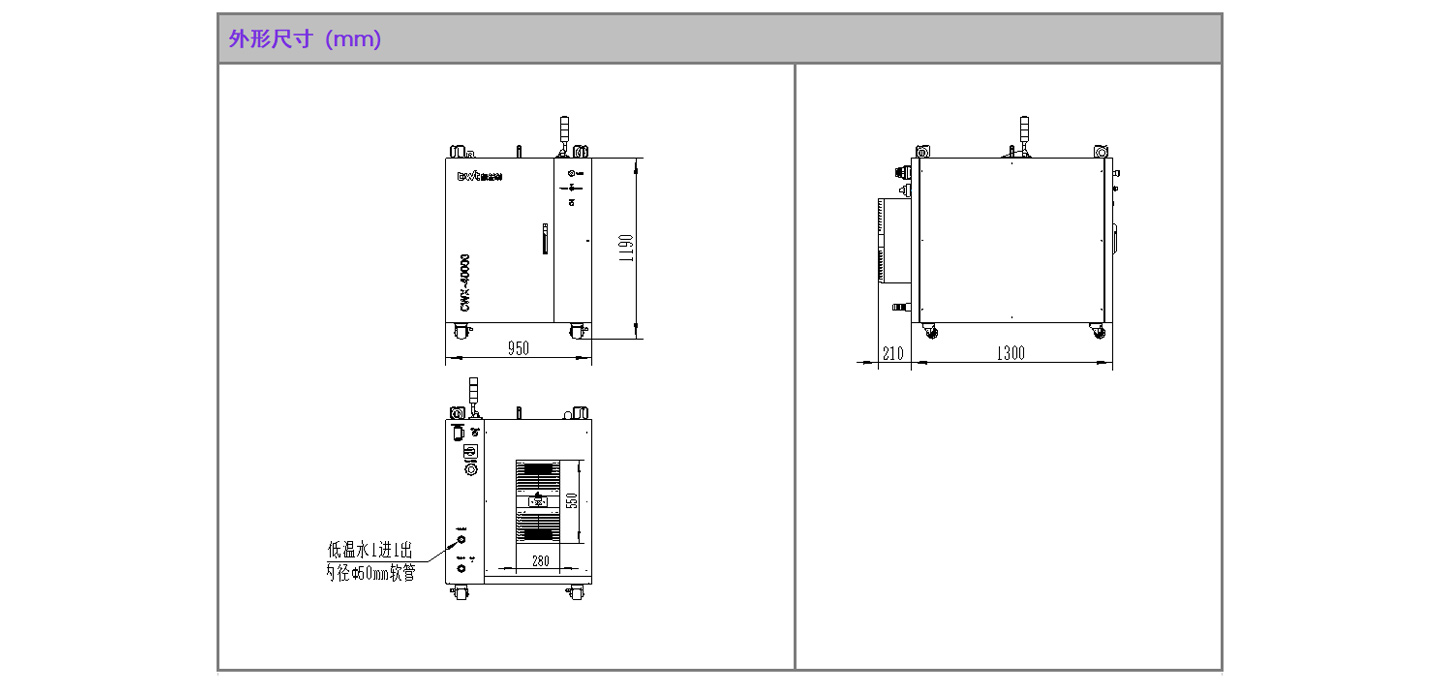

| Dimensions | 950mm×1510mm×1190mm |
| Power Consumption | 135kW |
| Control Mode | RS232/AD Control |
| Cooling Capacity Requirement | 80kW |
| Set Temperature | 22°C (laser module), 30°C (QF/QF-D) |
| Water Pipe Diameter | Φ50mm |
| High Temperature (QF) Cooling Water Flow | 3.0L/min |
