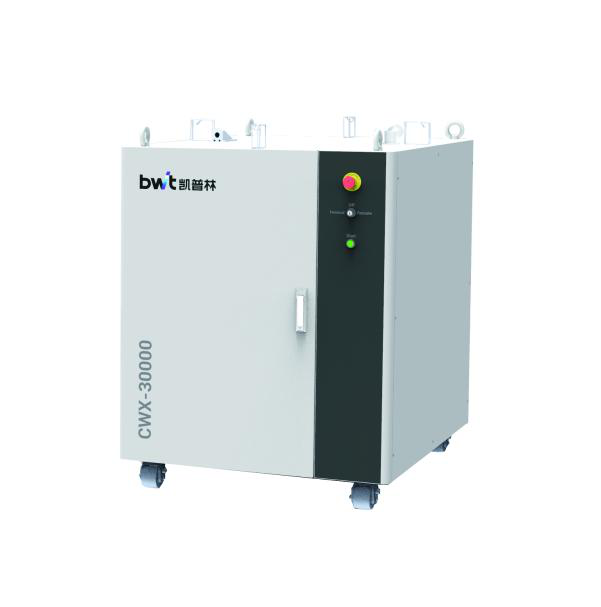

Thunder 30kW Fiber Laser CWX-30000
The BWT Thunder 30kW Fiber Laser (CWX-30000) delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous wave (CW) and modulated operation modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure that can withstand harsh industrial application conditions. The product is widely used in laser cutting, laser welding and laser drilling, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics and more. BWT also has a professional laser application engineering team dedicated to providing high-quality laser system solutions.
Save to Favorites
Overview

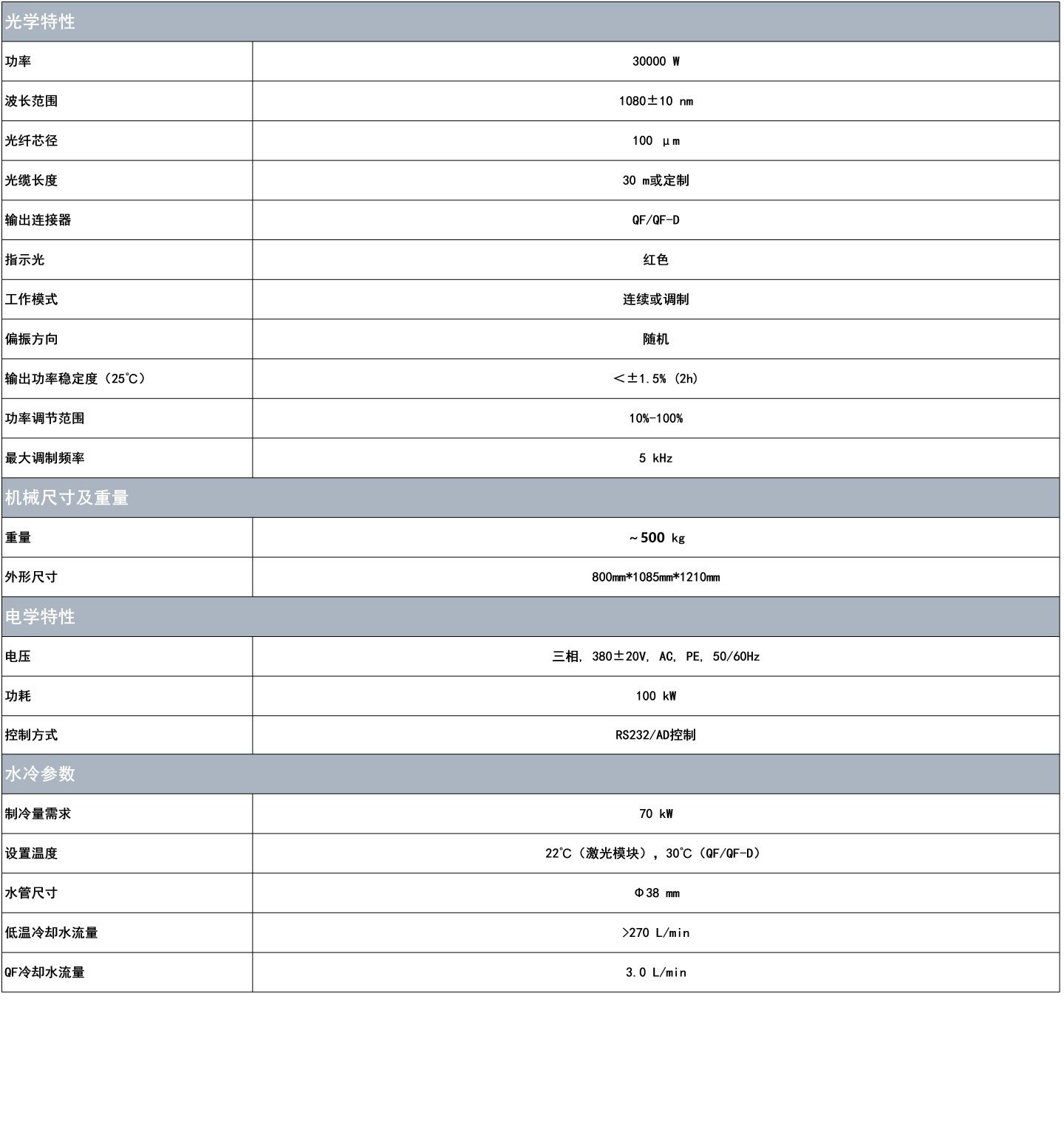

Specifications
| Parameter | Value |
|---|---|
| Power | 30000W |
| Fiber Core Diameter | 100μm |
| Output Connector | QF/QF-D |
| Pilot Beam | Red |
| Operation Mode | CW or Modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~500kg |

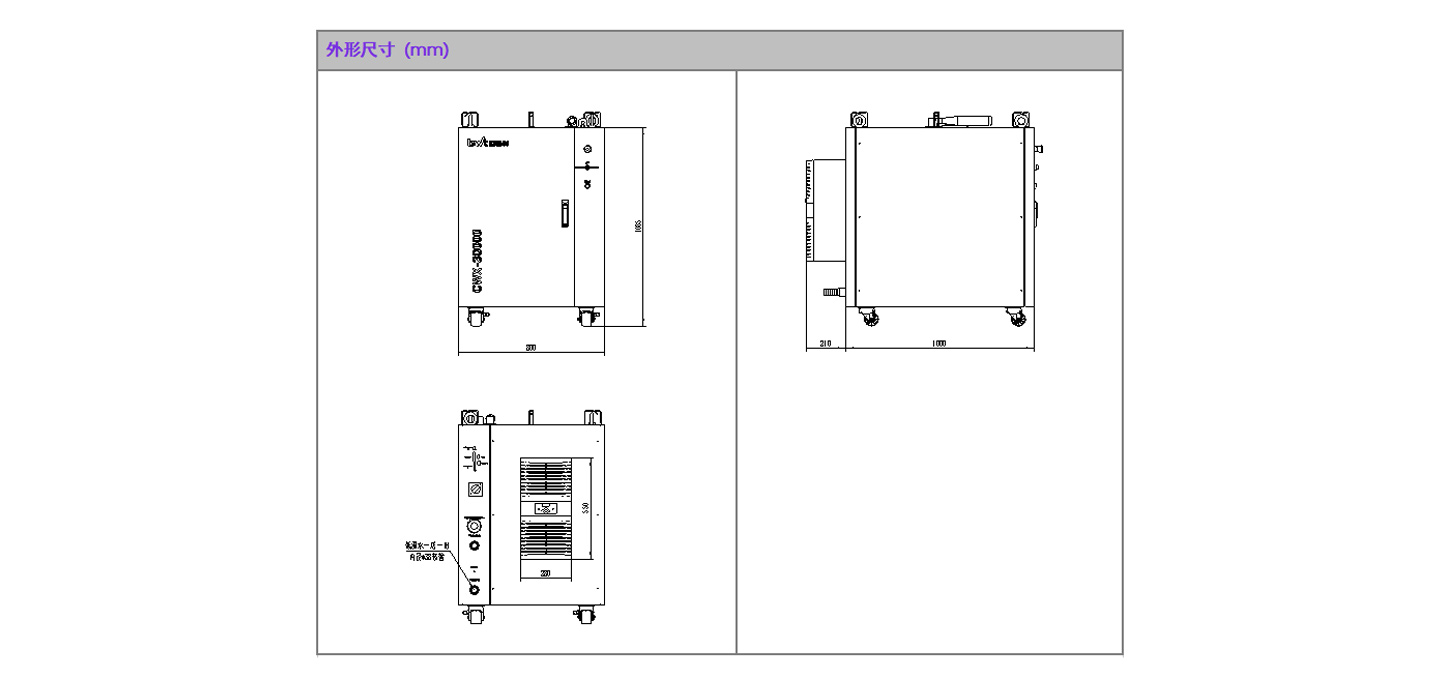

| Dimensions | 800mm*1085mm*1210mm |
| Power Consumption | 100kW |
| Cooling Capacity Requirement | 70kW |
| Set Temperature | 22℃ (Laser Module), 30℃ (QF/QF-D) |
| Water Pipe Size | Φ38mm |
| Low-Temperature Cooling Water Flow | >270L/min |
| QF Cooling Water Flow | 3.0L/min |
