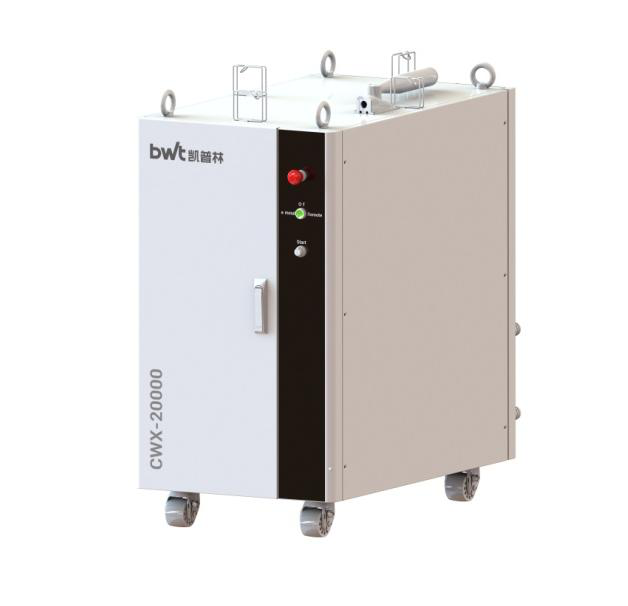

CWX-20000 Thunder 20kW Fiber Laser
The BWT Thunder 20kW fiber laser (CWX-20000) delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous wave (CW) and modulated working modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed in a rugged enclosure that can withstand harsh industrial conditions. The product is widely used in laser cutting, laser welding and laser drilling, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, and more. BWT also has professional laser application engineers dedicated to providing customers with high-quality laser system solutions.
Save to Favorites
Overview

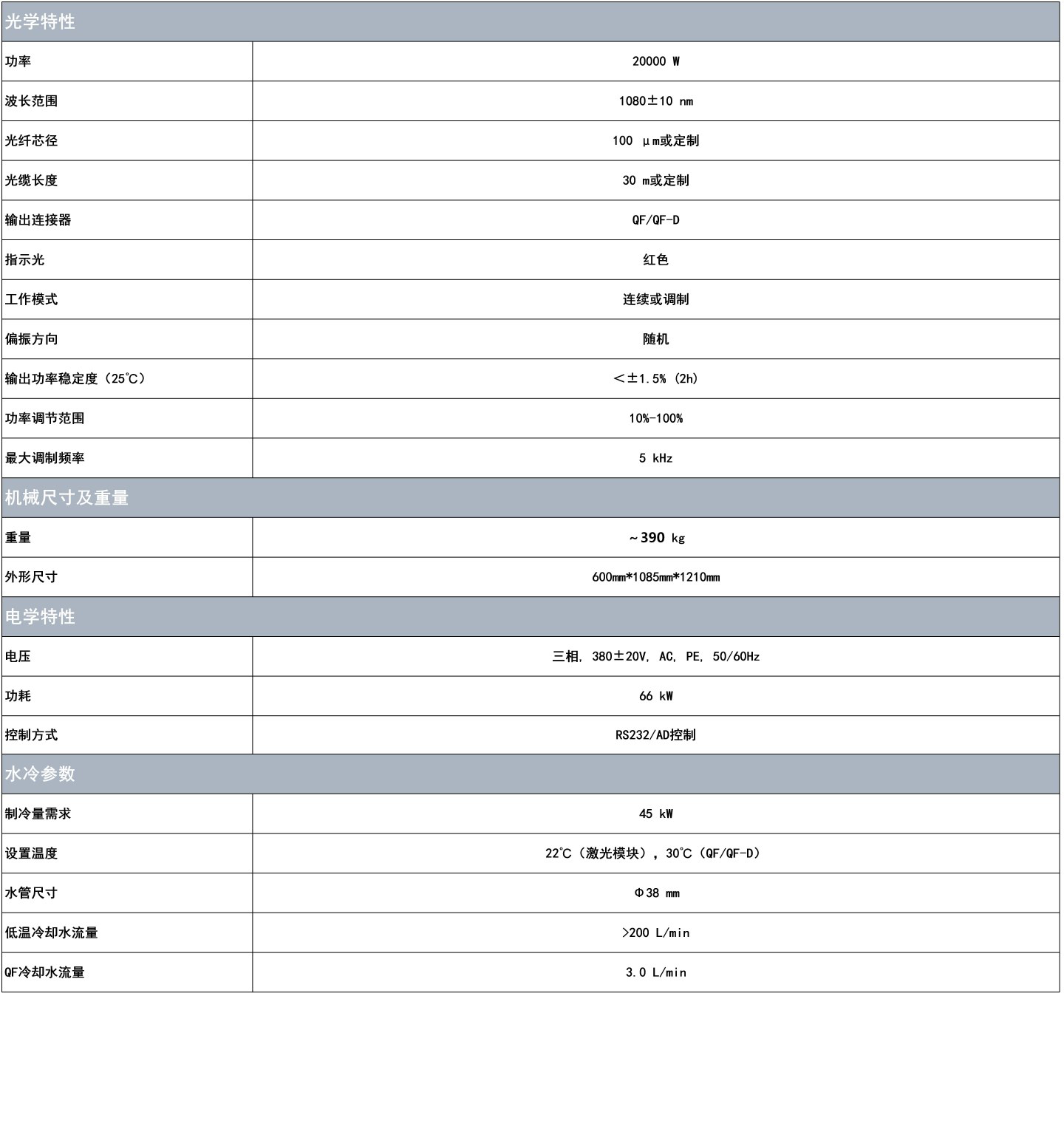

Specifications
| Parameter | Value |
|---|---|
| Power | 20000W |
| Output Connector | QF/QF-D |
| Pilot Beam | Red |
| Operation Mode | CW or Modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~390kg |

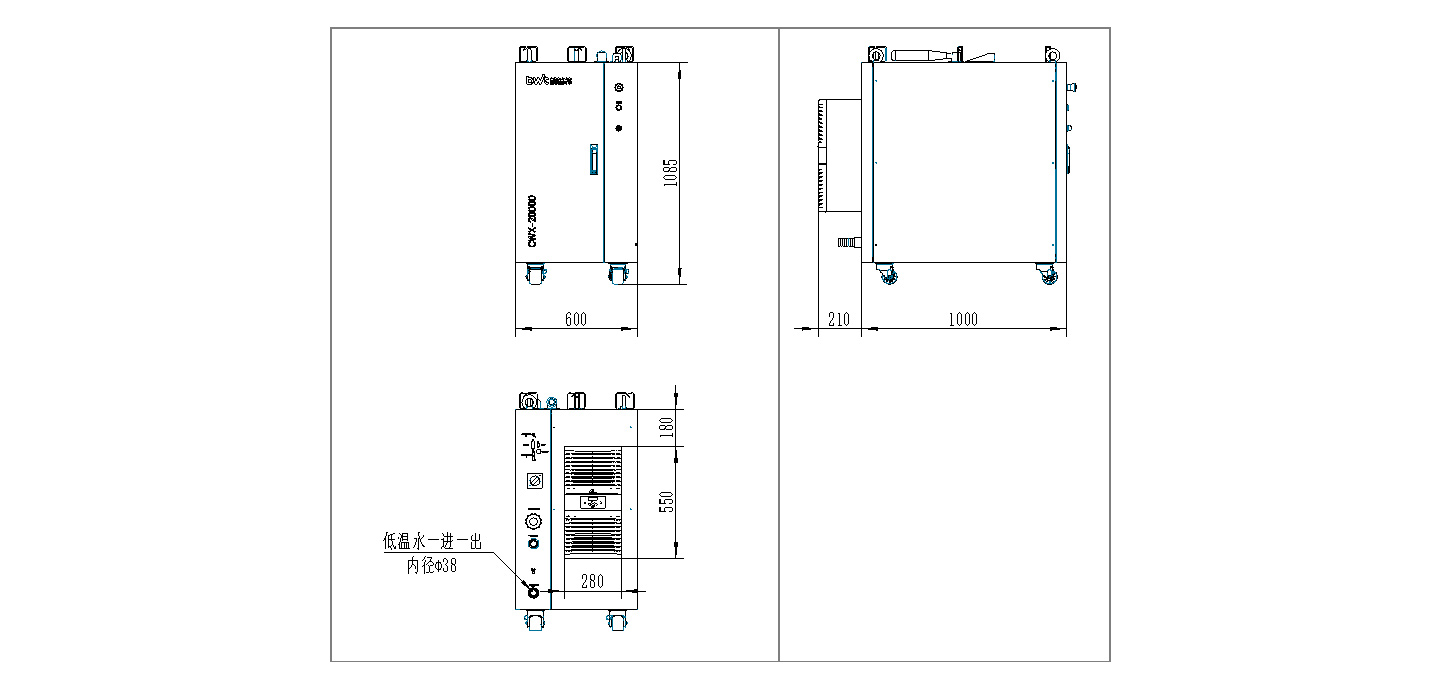

| Dimensions (W×H×D) | 600mm*1085mm*1210mm |
| Power Consumption | 66kW |
| Control Mode | RS232/AD Control |
| Cooling Capacity Requirement | 45kW |
| Set Temperature | 22°C (Laser Module), 30°C (QF/QF-D) |
| Water Pipe Diameter | Φ38mm |
| Low-Temperature Cooling Water Flow | >200L/min |
| QF Cooling Water Flow | 3.0L/min |
