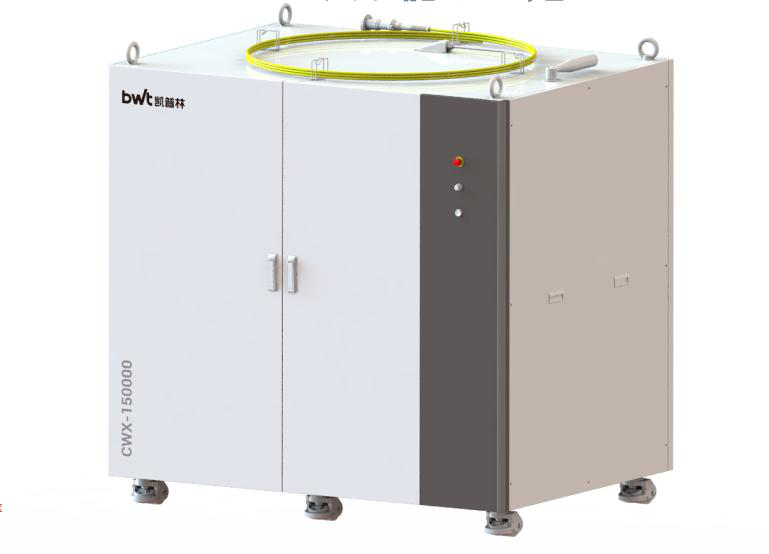

CWX-150000 Thunder 150kW Fiber Laser
The CWX-150000 Thunder 150kW fiber laser is an ultra-high-power industrial laser source designed for precision processing with excellent beam quality that can be focused close to the diffraction limit. It supports continuous and modulated operating modes to help reduce the heat-affected zone, and uses a reliable modular all-fiber architecture with optical devices sealed in a robust cabinet for harsh industrial conditions.
Save to Favorites
Overview
Specifications

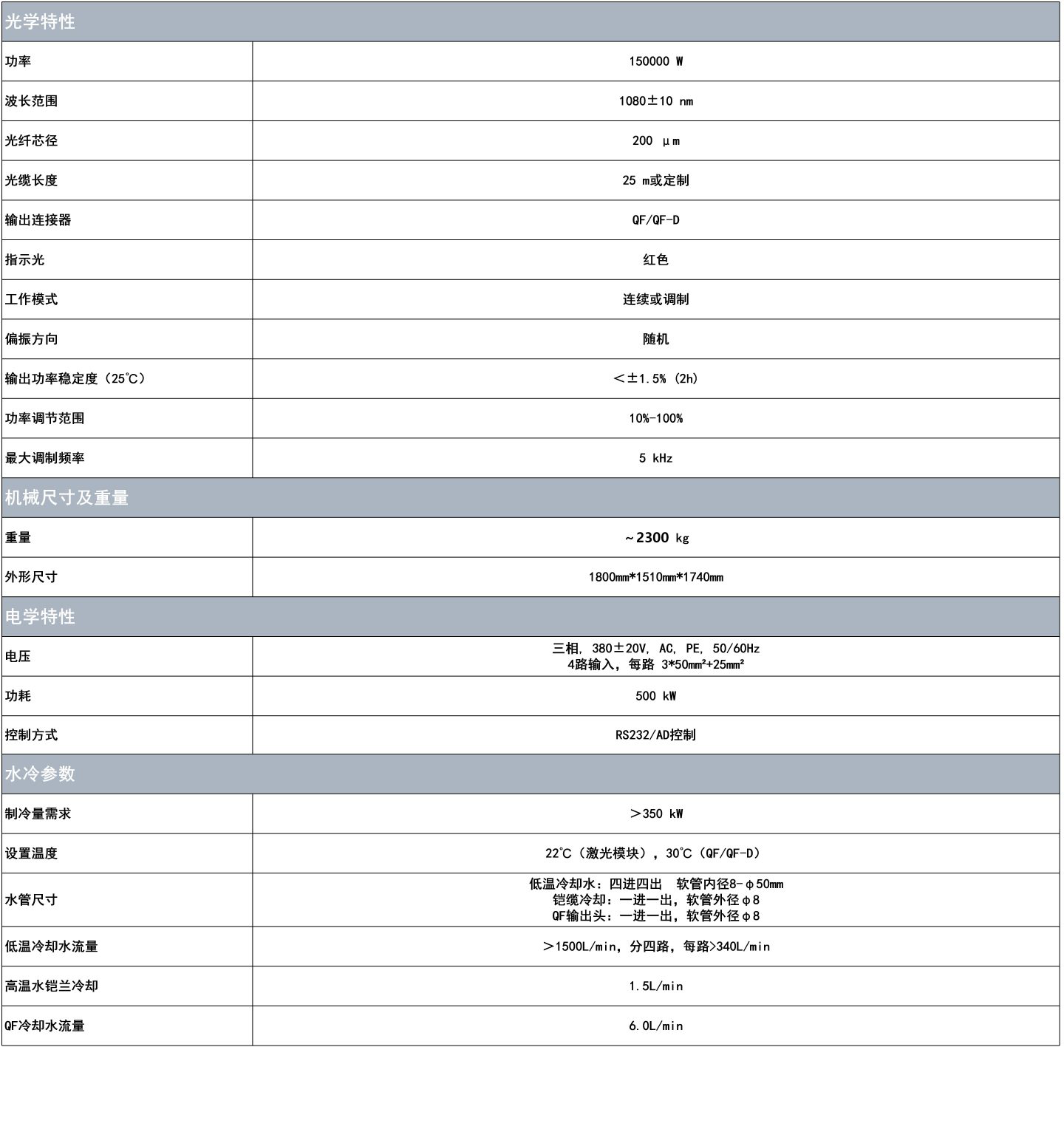

| Parameter | Value |
|---|---|
| Power | 150000W |
| Fiber Core Diameter | 200μm |
| Fiber Cable Length | 25 m or custom length |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Operating Mode | Continuous or modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~2300kg |

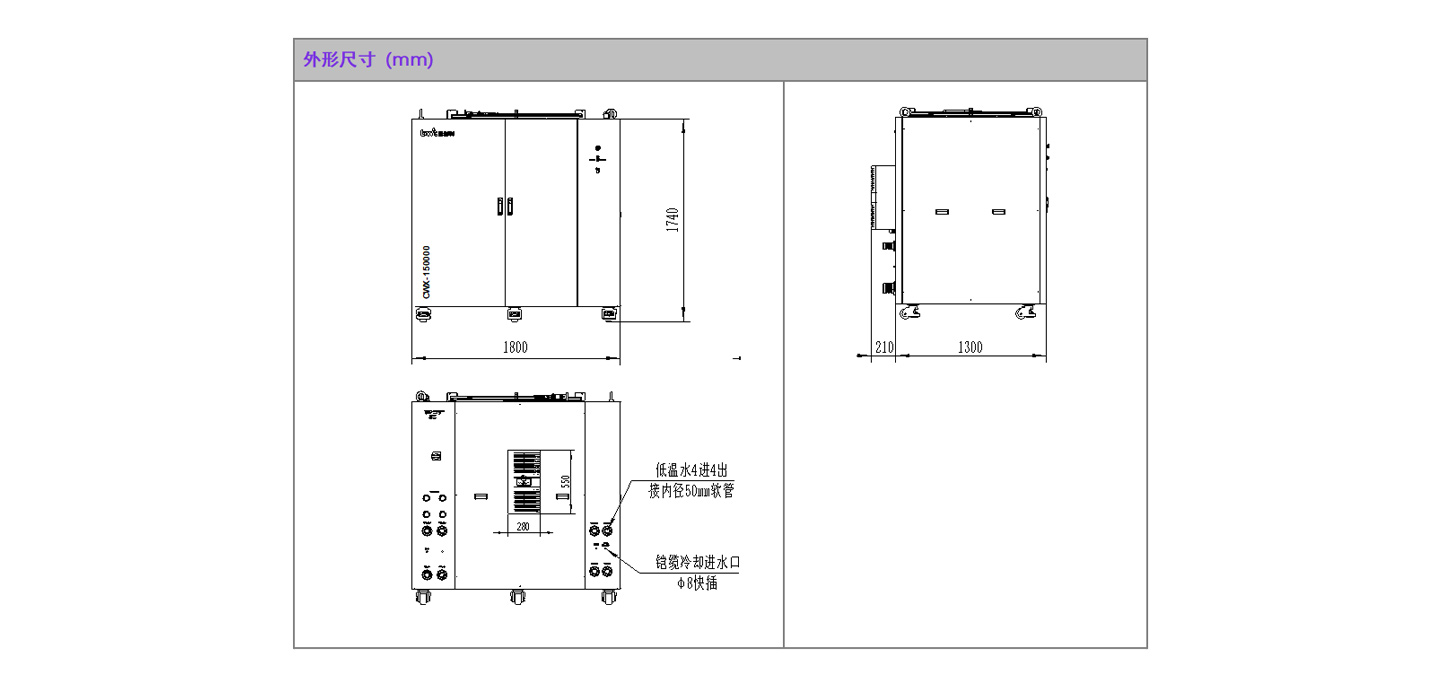

| Overall Dimensions | 1800mm*1510mm*1740mm |
| Side Dimension Breakdown | 210mm+1300mm |
| Power Consumption | 500kW |
| Control Mode | RS232/AD control |
| Cooling Capacity Requirement | >350kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Low-Temperature Cooling Water Pipe Size | 4 inlets and 4 outlets, hose ID 8-φ50 mm |
| Armored Cable Cooling Water Pipe Size | 1 inlet and 1 outlet, hose OD φ8 |
| QF Output Head Water Pipe Size | 1 inlet and 1 outlet, hose OD φ8 |
| Low-Temperature Water Interface | 4 inlets and 4 outlets, for connection to hoses with 50 mm ID |
| Armored Cable Cooling Water Inlet | φ8 push-fit connector |
| Low-Temperature Cooling Water Flow | >1500 L/min, split into 4 circuits, each >340 L/min |
| High-Temperature Water Armored Cable Cooling | 1.5L/min |
| QF Cooling Water Flow | 6.0L/min |
