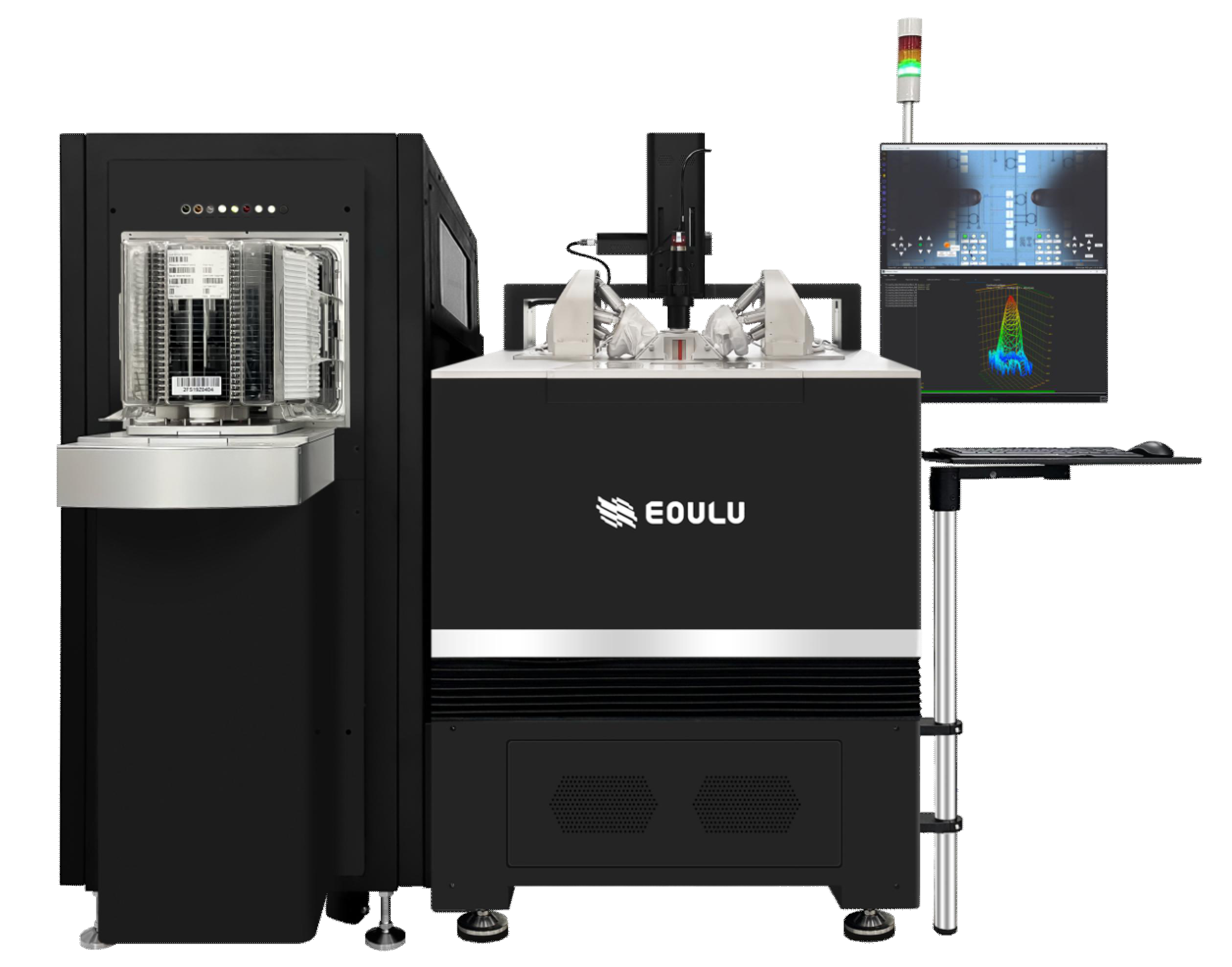

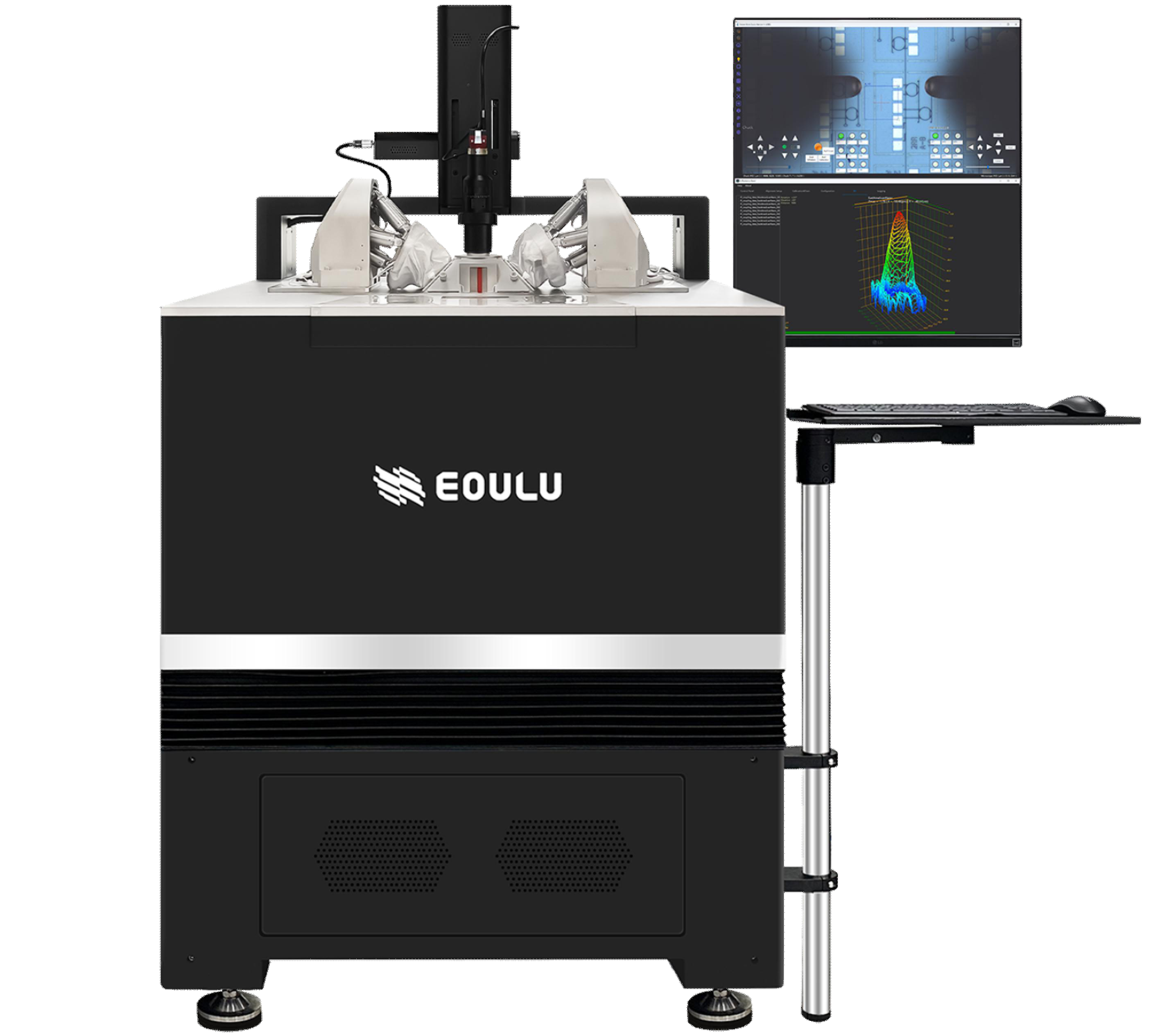

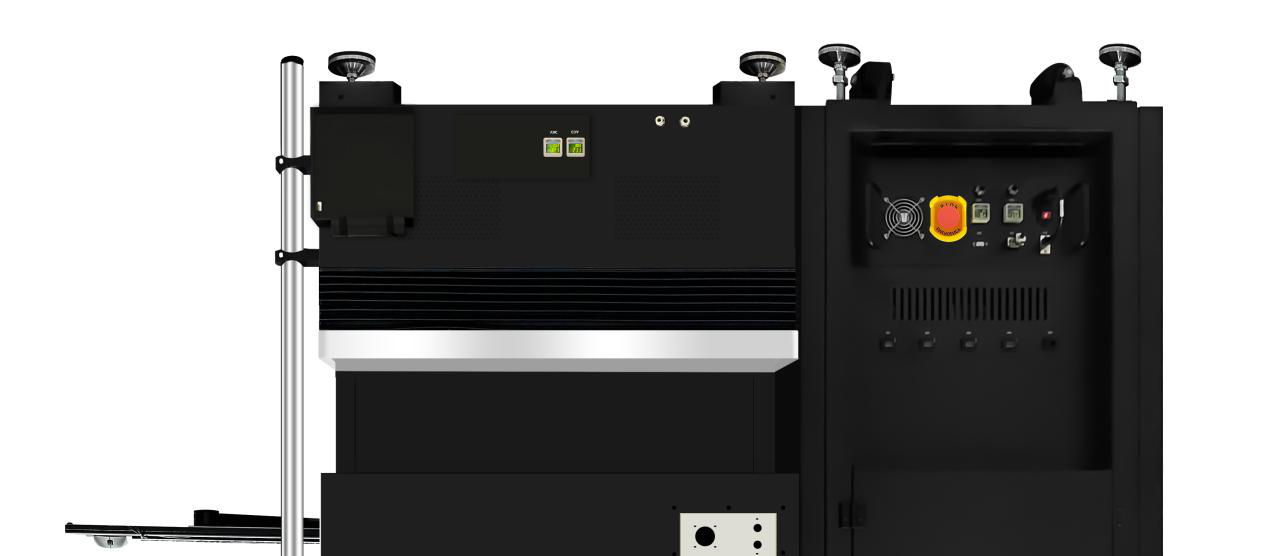

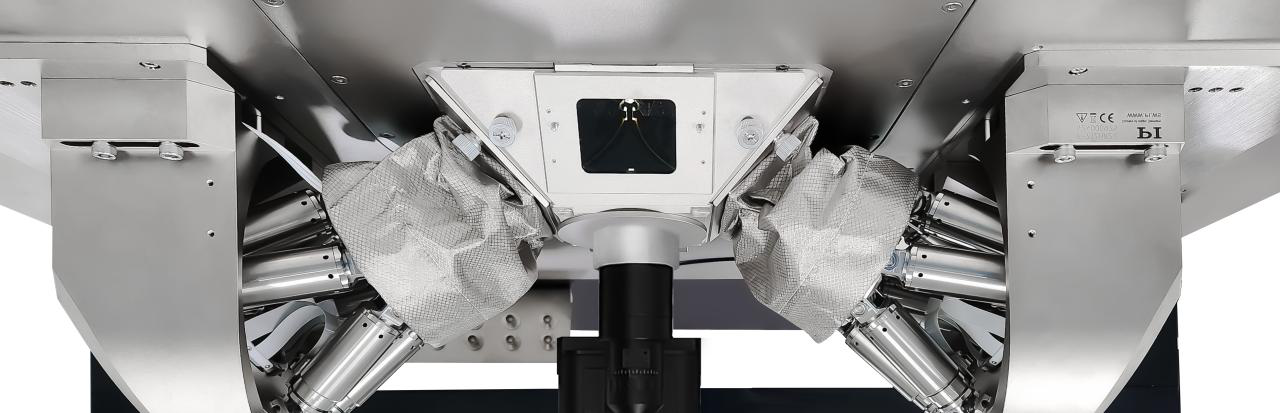

F1 Silicon Probe Platform System
The world's first fully digital silicon probe platform system, designed with proprietary intellectual property rights, offering high precision and efficiency.
Save to Favorites
Overview
Specifications

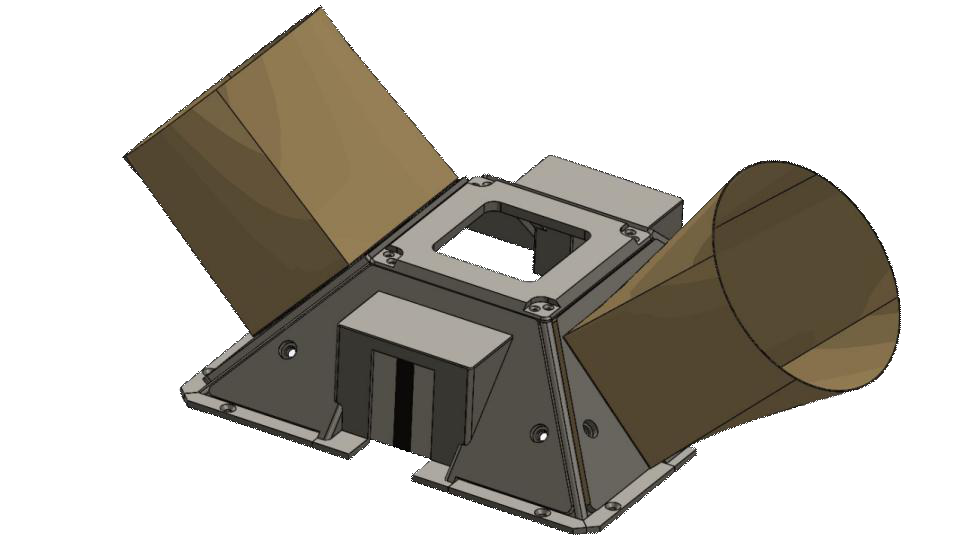

| Parameter | Value |
|---|---|
| Travel X-axis | 301mm |
| Travel Y-axis | 301mm |
| Travel Z-axis | 2-10mm |
| Travel Theta axis | 10° |
| Positioning Accuracy X-axis | ≤0.05μm |
| Positioning Accuracy Y-axis | ≤0.05μm |
| Positioning Accuracy Z-axis | ≤1μm |
| Positioning Accuracy Theta axis | ±0.003° |
| Speed X-axis | ≥50mm/s |
| Speed Y-axis | ≥50mm/s |
| Speed Z-axis | ≥20mm/s |
| Maximum Speed X-axis | 150mm/s |
| Maximum Speed Y-axis | 150mm/s |
| Maximum Speed Z-axis | 35mm/s |
| Wafer Horizontal Positioning Capability | 100μm |
| Mapping Stability Average Time Minimum | <500ms |
| Mapping Stability Average Time Typical | <1s |
| Mapping Stability Average Time Maximum | <3s |
| XY Position Stability Minimum | 0.02μm |
| XY Position Stability Typical | 0.038μm |
| XY Position Stability Maximum | 1.5μm |
| Z Position Stability Minimum | 0.65μm |
| Z Position Stability Typical | 3.5μm |
| Z Position Stability Maximum | 15μm |
| Optical Shielding | ≥150dB |
| EM Shielding | ≥20dB 0.5-20GHz (typical) |
| Spectral Noise Level | ≤-150dBVrms/rtHz (≤1MHz) |
| System AC Noise | ≤15mVp-p (≤1GHz) |
| Vertical Anti-Vibration Frequency | 2.5-2.7Hz |
| Horizontal Anti-Vibration Frequency | 2.0-4.5Hz |
| Vertical Damping | 6%-20% |
| Horizontal Damping | 5%-6% |

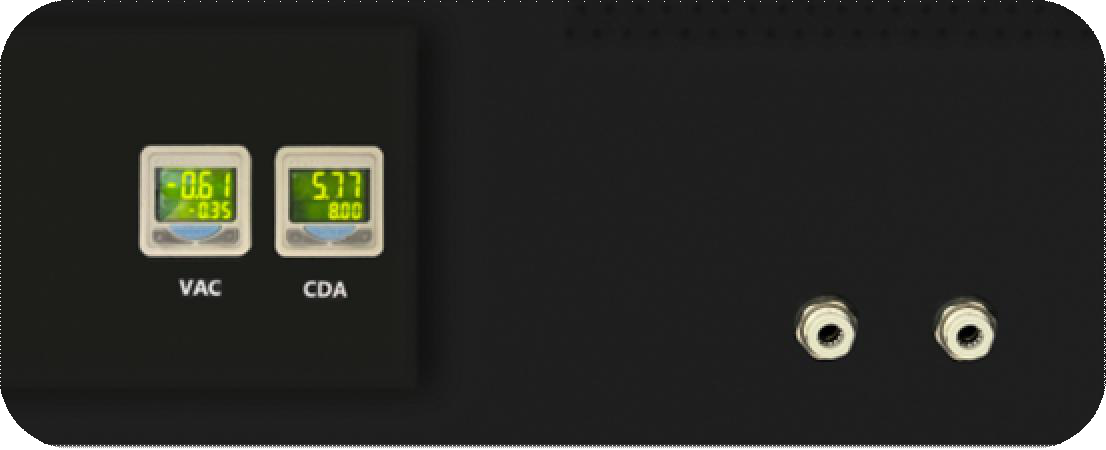

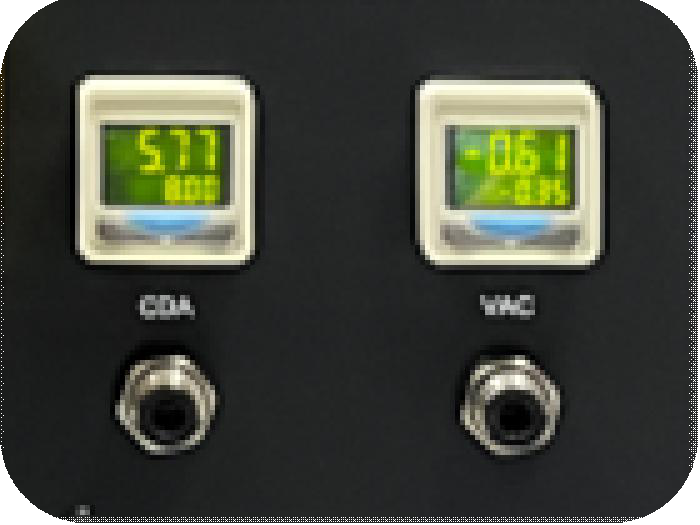

| Air Supply Pressure | 0.3-0.5MPa |
| Maximum Load | 1600kg |
| Damping Efficiency | 5%-6% |
| Response Time to External Impact | <1s |
| Anti-Vibration Level | VC-C |

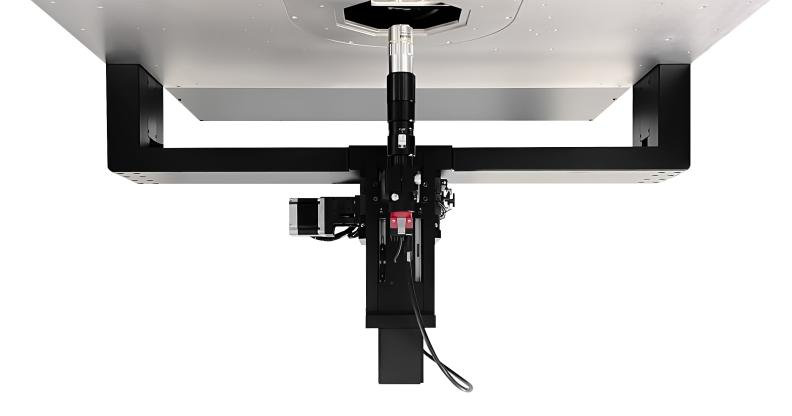

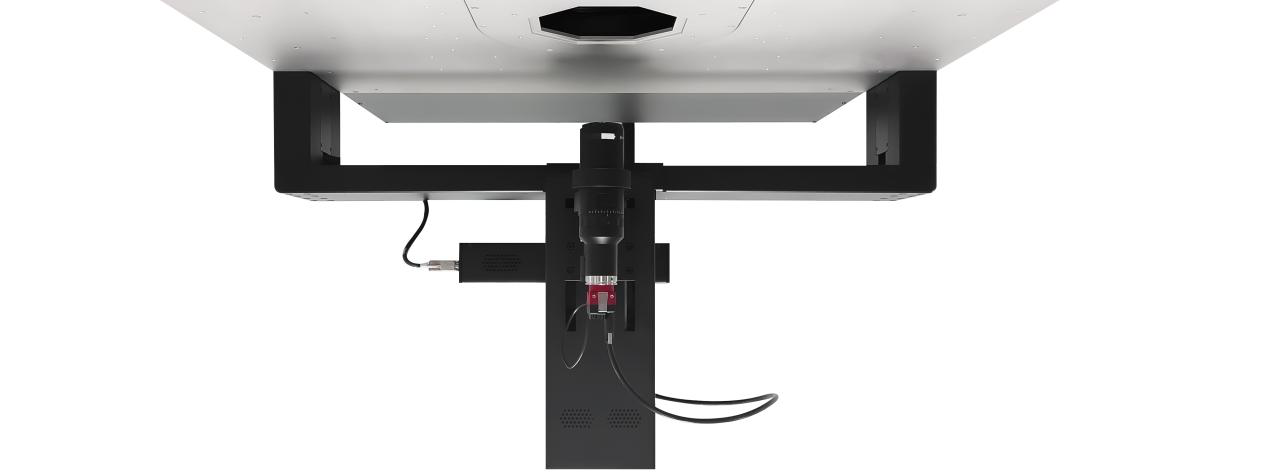

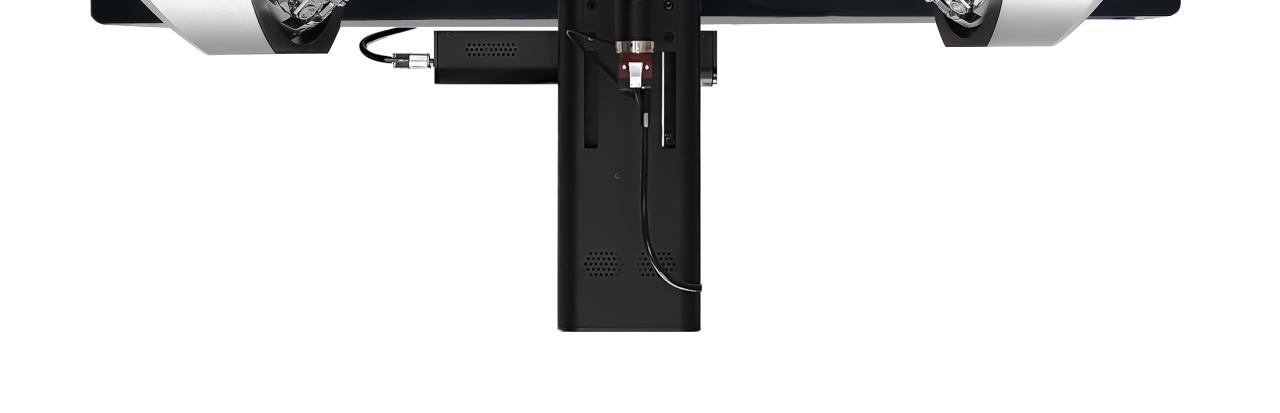

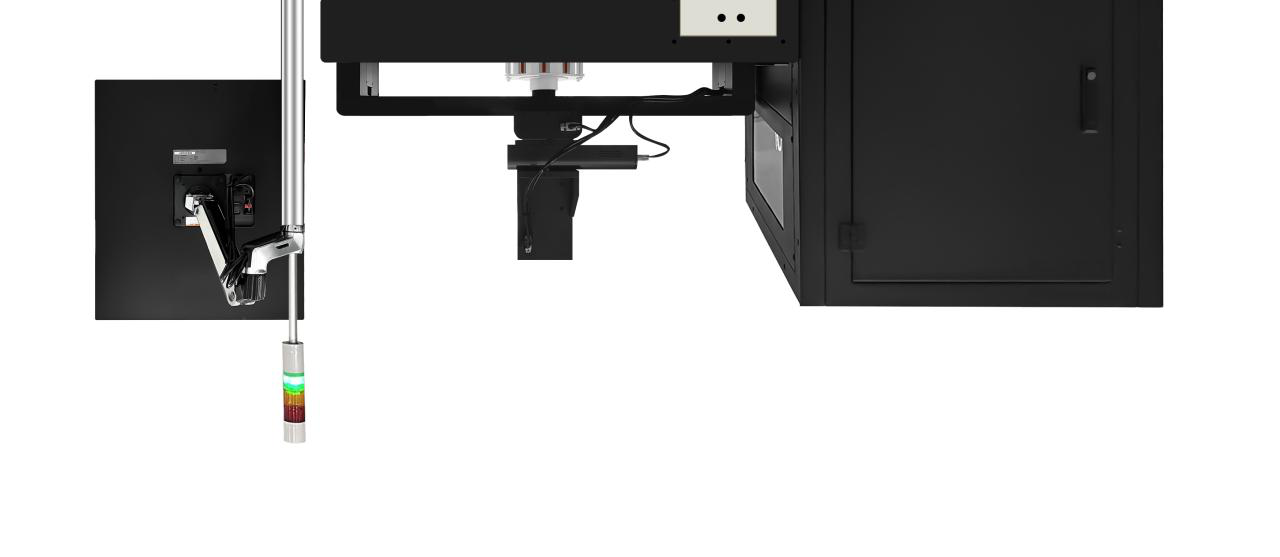

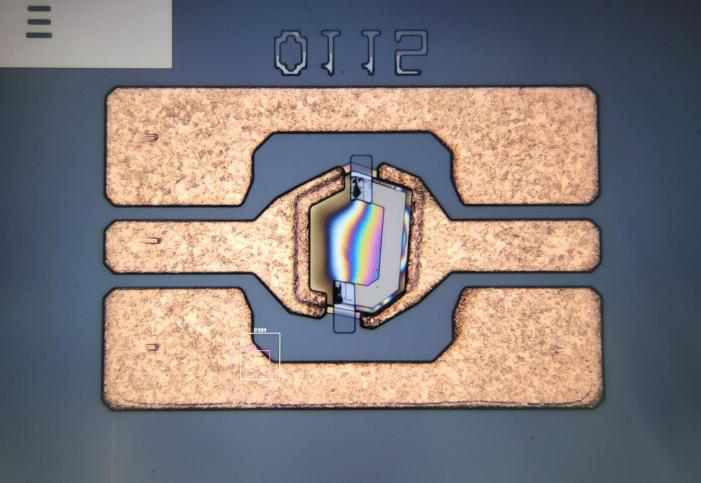

| Microscope Travel X-axis | 50mm |
| Microscope Travel Y-axis | 50mm |
| Microscope Travel Z-axis | 90mm |
| Microscope Maximum Positioning Accuracy X-axis | ±2μm |
| Microscope Maximum Positioning Accuracy Y-axis | ±2μm |
| Microscope Maximum Positioning Accuracy Z-axis | ±2μm |
| Microscope Speed X-axis | 60mm/s |
| Microscope Speed Y-axis | 60mm/s |
| Microscope Speed Z-axis | 120mm/s |
| Microscope Magnification Typical Value | 225x |
| Microscope Typical Optical Resolution | 3.0μm |
| Microscope High Resolution Optical Resolution | 1.5μm |

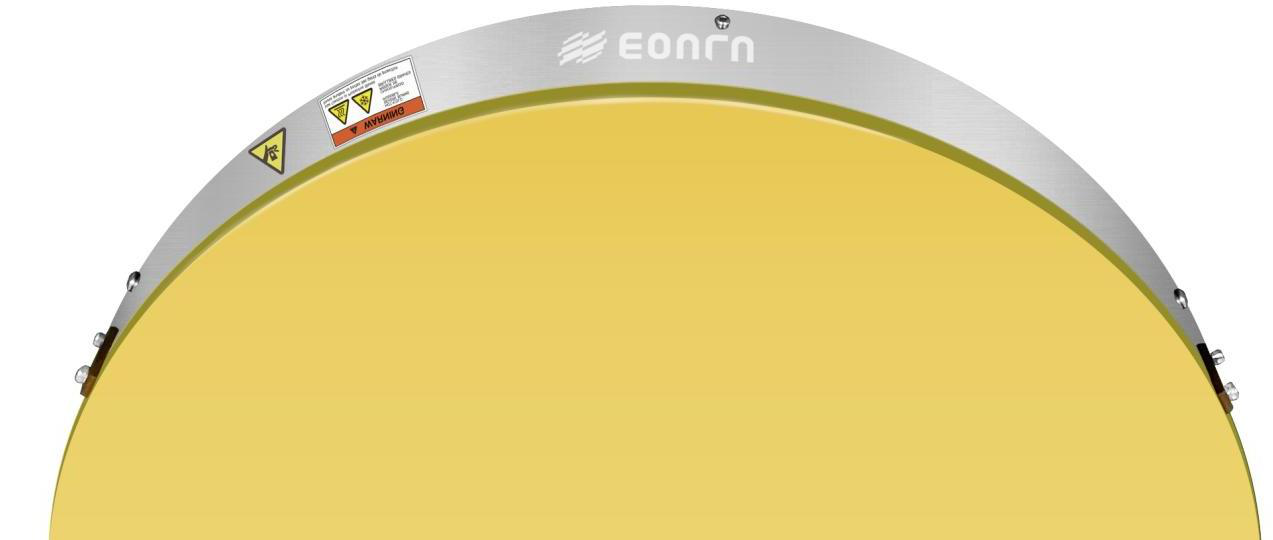

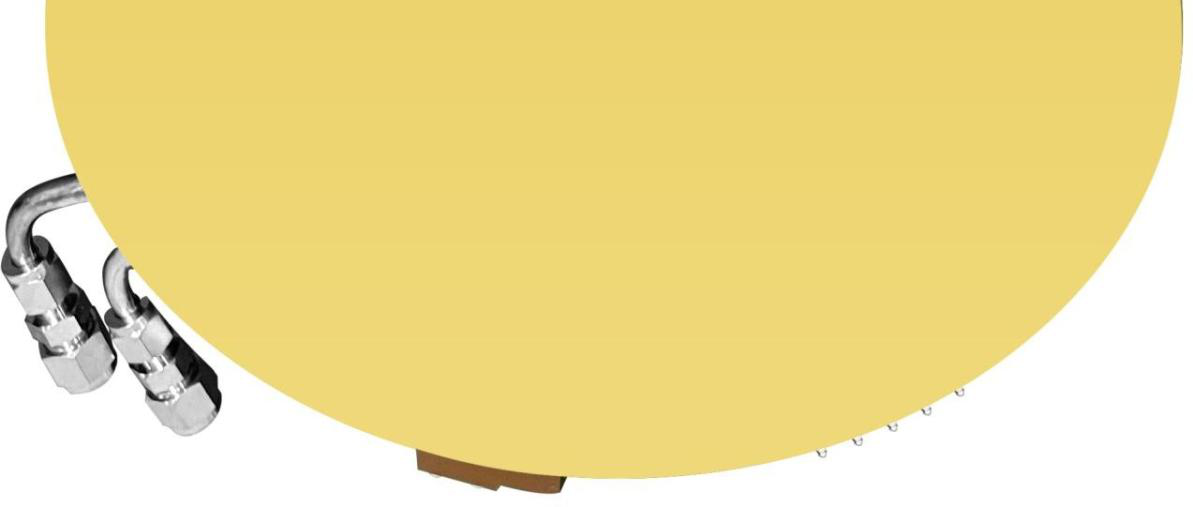

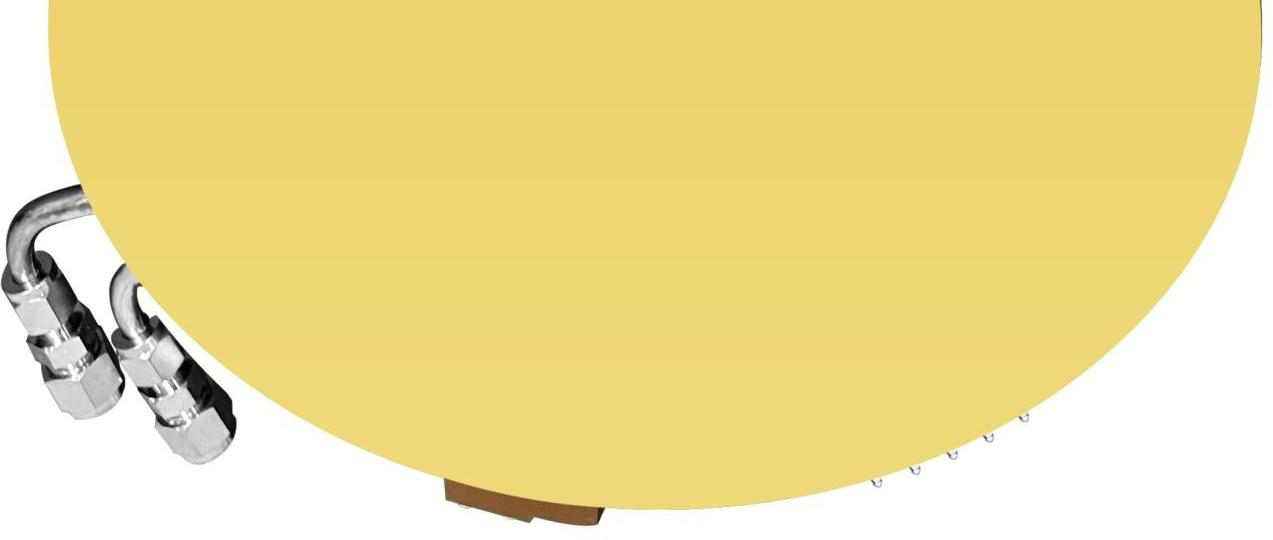

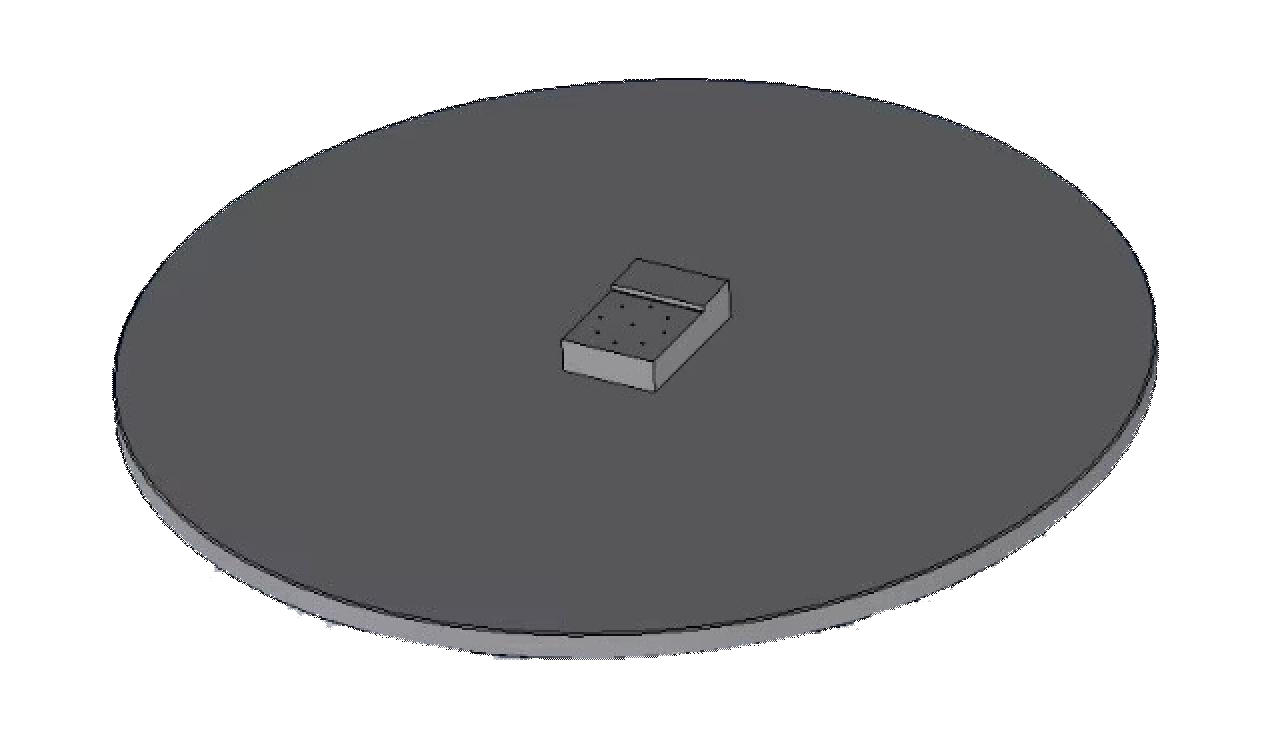

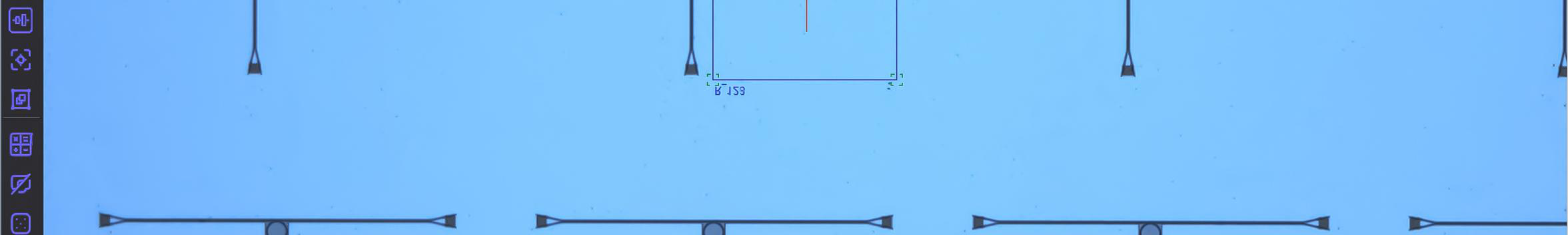

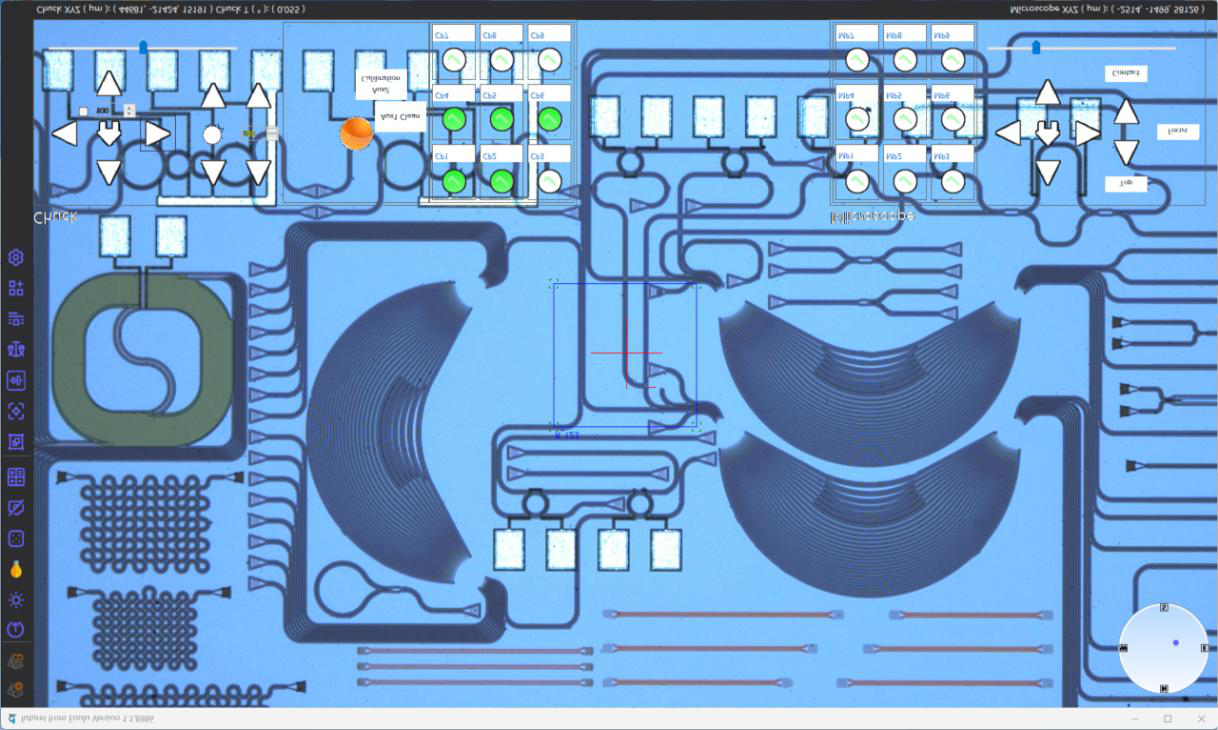

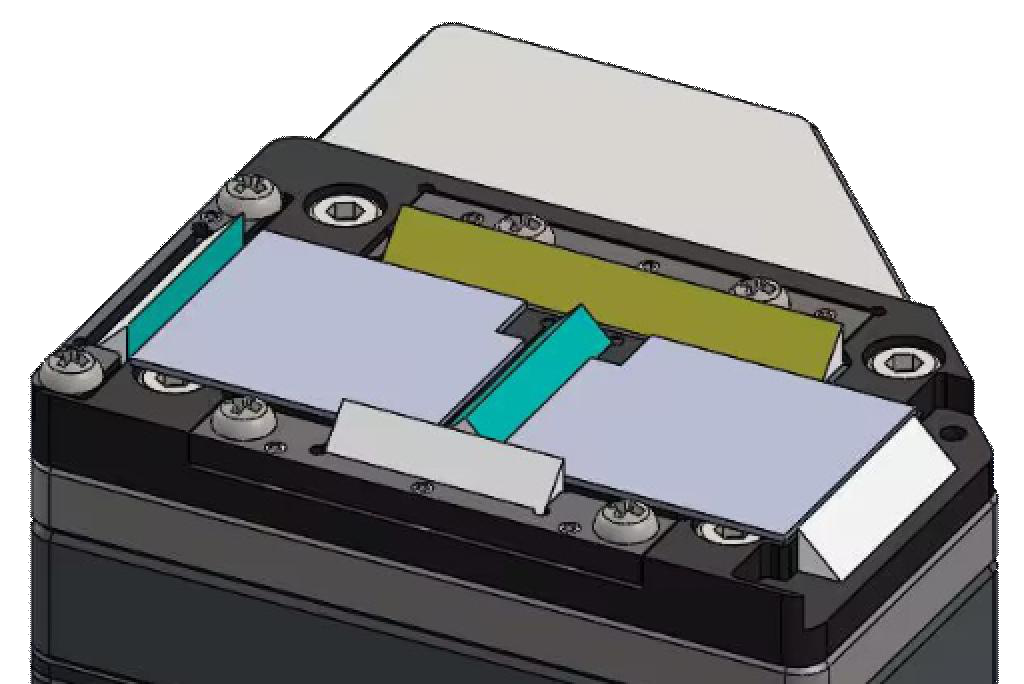

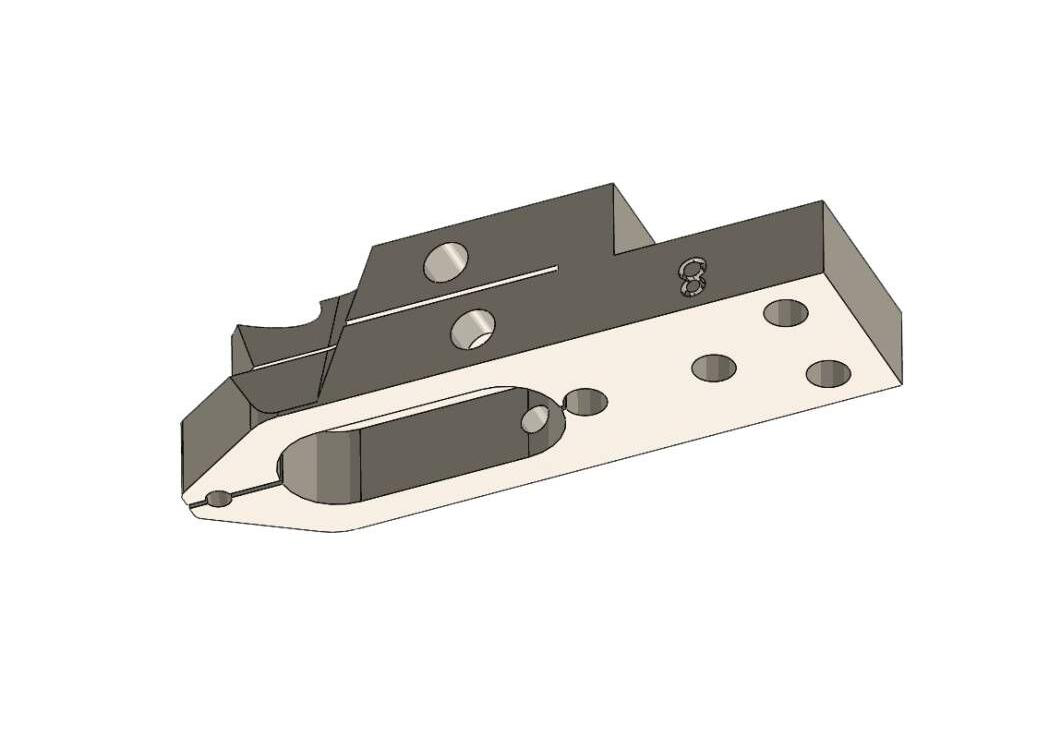

| Chuck Temperature Range 8-inch | -60°C to 300°C |
| Chuck Temperature Range 12-inch | -60°C to 300°C |
| Chuck Temperature Stability 8-inch | ±1°C |
| Chuck Temperature Stability 12-inch | ±1°C |
| Chuck Temperature Resolution 8-inch | 0.1°C |
| Chuck Temperature Resolution 12-inch | 0.1°C |
| Chuck High Temperature Current 8-inch | ≤132A |
| Chuck High Temperature Current 12-inch | ≤231A |
| Chuck High Temperature Voltage 8-inch | ≤30A |
| Chuck High Temperature Voltage 12-inch | ≤42A |
| Chuck Maximum Heating Power 8-inch | 5.5kW |
| Chuck Maximum Heating Power 12-inch | 12.5kW |
| Chuck Maximum Cooling Speed | 5m/s |
| Chuck Maximum Air Supply Pressure | 4bar |
| Chuck Maximum Voltage | 10000V |
| Chuck Maximum Current | 800A |
| Control Software Function AutoZ | Included |
| Control Software Function High AutoZ | Optional |
| Control Software Function Dual Interface | Microscope and Chuck Movement |
| High Precision Dual-Side Fiber Alignment System Active Axes | X,Y,Z,6X,6Y,6Z |
| High Precision Dual-Side Fiber Alignment System Travel Range | ±6.5,±16,±8.5mm |
| High Precision Dual-Side Fiber Alignment System Positioning Accuracy | 0.1μm |
| High Precision Dual-Side Fiber Alignment System Maximum Speed | 10mm/s |
| High Precision Dual-Side Fiber Alignment System Alignment Time | <5s |
| Six-Axis Controller Input Voltage Range | -5V to 5V |
| Six-Axis Controller ADC Resolution | 16bit |
| Six-Axis Controller Bandwidth | 5kHz |
| Six-Axis Controller Input Impedance | 15kohm |
| Six-Axis Controller Interface | BNC |
| Six-Axis Controller Processor | Intel Atom Dual Core (1.8GHz) |
| Six-Axis Controller User Software | futureC |
| Six-Axis Controller Operating Temperature Range | 5°C to 40°C |
| Six-Axis Controller Weight | 2.8kg |
| Six-Axis Positioner Active Axes | X,Y,Z,6X,6Y,6Z |
| Six-Axis Positioner Travel Range | ±17,±16,±6.5mm |
| Six-Axis Positioner Positioning Accuracy | 0.1μm |
| Six-Axis Positioner Maximum Speed | 10mm/s |
| Six-Axis Positioner Operating Temperature Range | 0°C to 50°C |
| Six-Axis Positioner Weight | 2.2kg |
| Nano Positioner Active Axes | X |
| Nano Positioner Active Axes | Y |
| Nano Positioner Active Axes | Z |
| Nano Positioner Open Loop Travel | 120μm/axis |
| Nano Positioner Closed Loop Travel | 100μm/axis |
| Nano Positioner Minimum Step | 2.5nm |
| Nano Positioner Linearity Error | 2% |
| Nano Positioner Alignment Time | <5s |
| Nano Positioner Operating Temperature Range | -20°C to 80°C |
| Nano Positioner Dimensions | 40x40x40mm |
| Nano Positioner Weight | 0.32kg |
| Nano Positioner Sensor Type | Optical Position Sensor |
| Nano Positioner Drive Type | PICMA® P-885.50 |
| Nano Positioner Capacitance | 1.5μF/axis |
| Nano Positioner Dynamic Operating Current Coefficient | 1.9μA/(Hz×μm) |

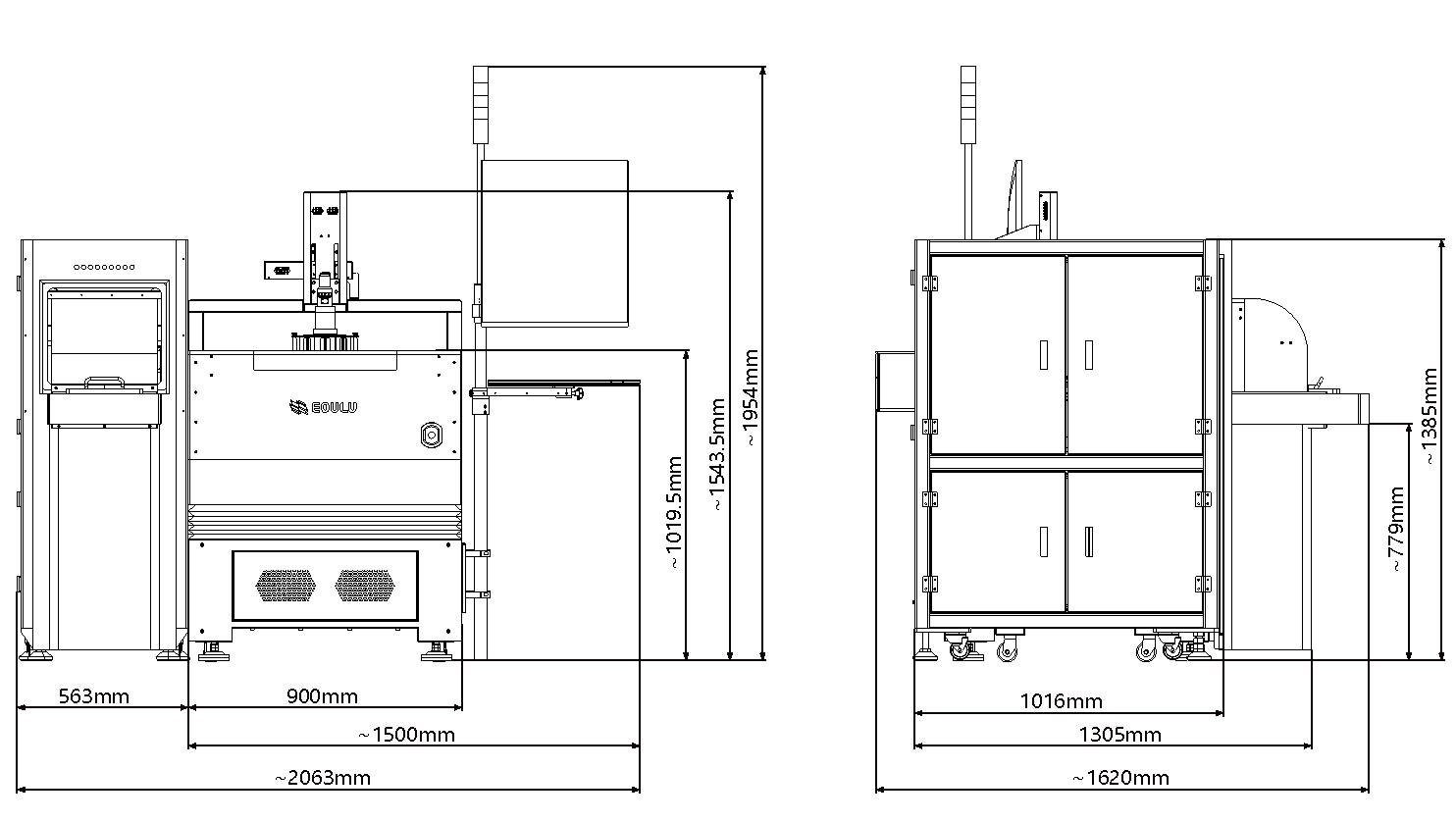

| Dimensions and Weight Typical Dimensions | ~1500x1115x1543.5mm |
| Dimensions and Weight Maximum External Dimensions | ~1750x1485x1613.5mm |
| Dimensions and Weight Main Unit Weight | ~850kg |
| Dimensions and Weight High-Low Temperature Controller Weight | ~180kg |
| Dimensions and Weight Robot Arm Weight | ~345kg |
