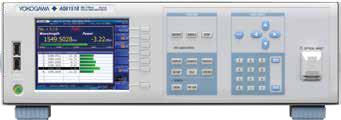

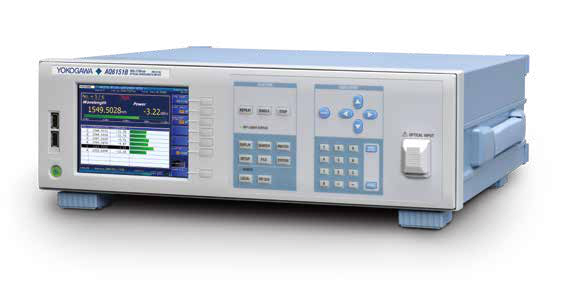

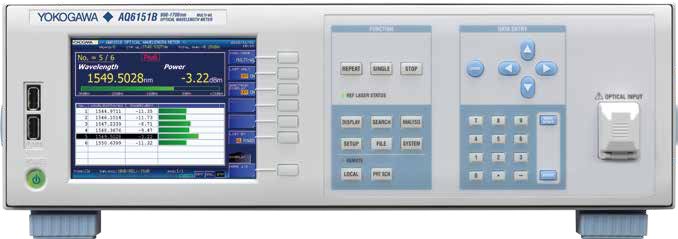

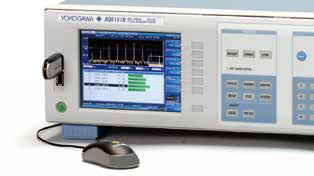

AQ6150 Series Optical Wavelength Meter
The AQ6150 series optical wavelength meter is designed for precise and reliable wavelength measurement, offering high-speed measurement capabilities and advanced features for optical communication applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range AQ6150B Standard | 1270-1650nm |
| Wavelength Range AQ6150B Expanded | 1200-1700nm |
| Wavelength Range AQ6150B Wide | 900-1700nm |
| Wavelength Range AQ6151B Standard | 1270-1650nm |
| Wavelength Range AQ6151B Expanded | 1200-1700nm |
| Wavelength Range AQ6151B Wide | 900-1700nm |
| Wavelength Accuracy AQ6150B Standard | ±0.7ppm |
| Wavelength Accuracy AQ6150B Expanded | ±0.7ppm |
| Wavelength Accuracy AQ6150B Wide | ±0.7ppm |
| Wavelength Accuracy AQ6151B Standard | ±0.2ppm |
| Wavelength Accuracy AQ6151B Expanded | ±0.2ppm |
| Wavelength Accuracy AQ6151B Wide | ±0.2ppm |
| Maximum Number of Wavelengths | 1024 |
| Minimum Input Power AQ6150B Standard | -40dBm |
| Minimum Input Power AQ6150B Expanded | -30dBm |
| Minimum Input Power AQ6150B Wide | -30dBm |
| Minimum Input Power AQ6151B Standard | -40dBm |
| Minimum Input Power AQ6151B Expanded | -30dBm |
| Minimum Input Power AQ6151B Wide | -30dBm |
| Maximum Input Power | +10dBm |
| Maximum Safe Input Power | +18dBm |
| Resolution | 0.0001nm |
| Display | 5.7-inch color LCD (640x480 pixels) |
| Data Storage | 256MB |

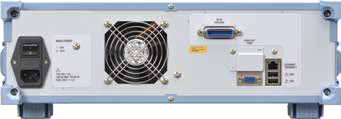

| Interface | GP-IB, ETHERNET, USB, VGA output |
| Optical Connector | FC/PC, SC/PC, AQ9441 communication adapter |
| Operating Temperature | 10-30°C |
| Storage Temperature | -10-50°C |
| Humidity | 20-85% RH (non-condensing) |
| Dimensions and Weight | 426(W)x132(H)x459(D)mm, 11kg |
| Power | 100-240VAC, 50/60Hz, 100VA |
