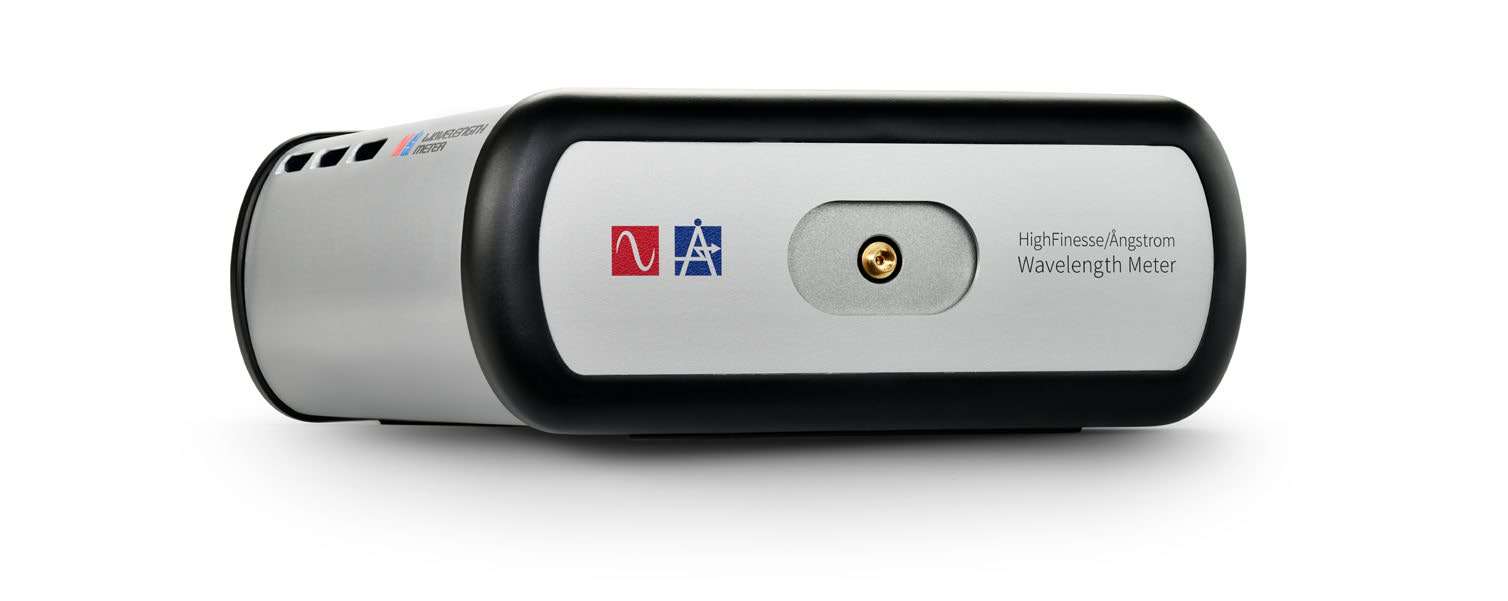

WS8-2 Wavelength Meter
The WS8-2 is the most accurate solution for wavelength monitoring and control with an absolute accuracy of 2 MHz and a wavelength deviation sensitivity down to 0.1 MHz. It comes with the photonic crystal fiber technology enabling multichannel operation in the spectral range of the wavelength meter.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Available Measurement Range | 330–1180nm |
| Absolute Accuracy (330–375nm) | 10MHz |
| Absolute Accuracy (375–1180nm) | 2MHz |
| Quick Coupling Accuracy (50μm Multi Mode Fiber) | 100MHz |
| Wavelength Deviation Sensitivity/Measurement Resolution | 0.1MHz |
| Measurement Speed | 1000Hz |
| Required Minimum Input Energy and Power | 0.08–60μJ or μW |
| FSR of the Fizeau Interferometers (Fine/Wide Mode) | 2GHz/20GHz |
| Calibration | SLR-780 HeNe or any well-known laser source Δν<1MHz |
| Recommended Calibration Period | ≤2minutes |
| Warm-up Time | >30minutes, or until ambient equilibrium |
| Dimensions (L×W×H) | 383×255×110mm |
| Weight | 8.0kg |
| Interface | High-speed USB 3.0 connection |
| External Trigger | Lemo with adapter to BNC |
| Power Supply | <4.5W, power provided directly via USB cable |
