Photonics Source provides 7 products. Download datasheets, request quotes, and compare function, price, and availability.
-

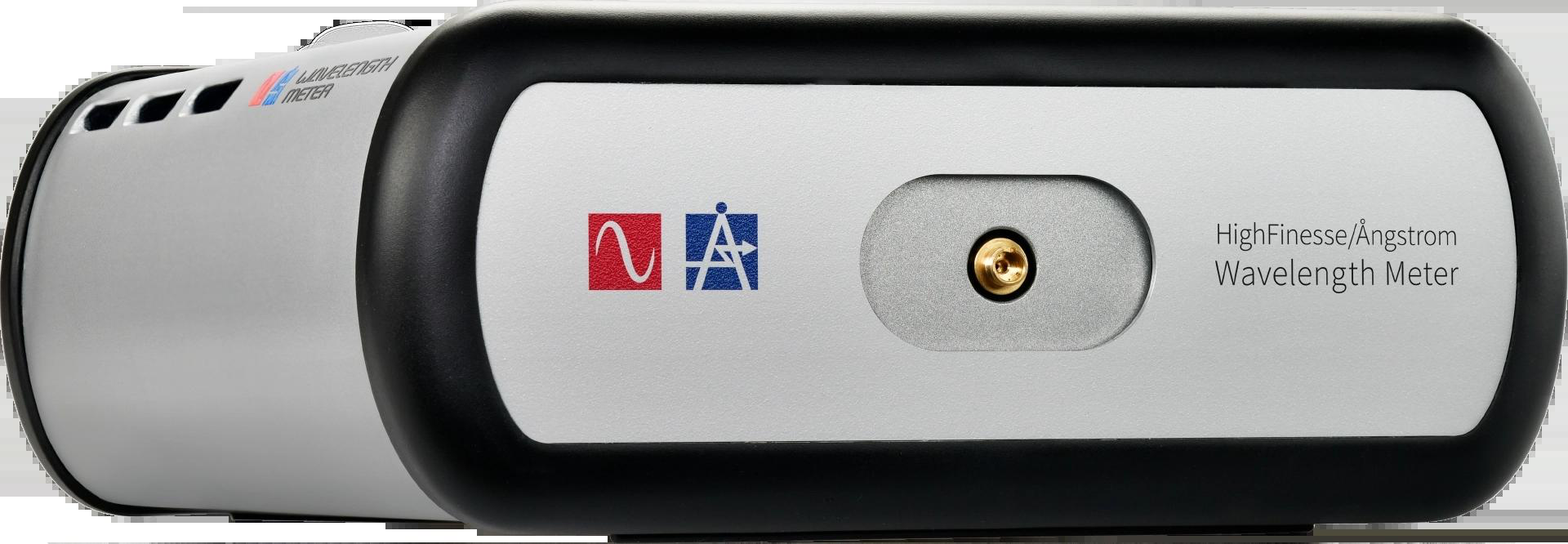

WS8-2 Wavelength Meter
Available Measurement Range: 330–1180nm Absolute Accuracy (330–375nm): 10MHz Absolute Accuracy (375–1180nm): 2MHz Quick Coupling Accuracy (50μm Multi Mode Fiber): 100MHz Wavelength Deviation Sensitivity/Measurement Resolution: 0.1MHz -
WR8-2 Wavelength Meter
Available Measurement Range: 330–1180nm Absolute Accuracy 330–375nm: 10MHz Absolute Accuracy 375–1180nm: 2MHz Quick Coupling Accuracy: 100MHz Wavelength Deviation Sensitivity/Measurement Resolution: 0.1MHz -

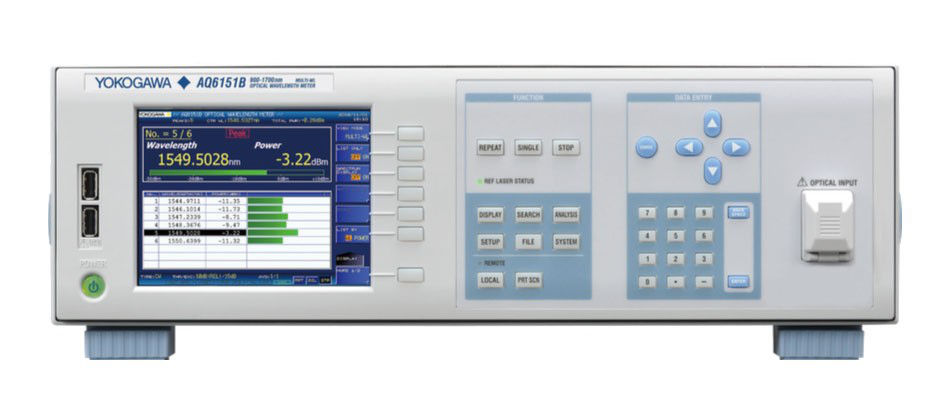

AQ6150 Series Optical Wavelength Meter
Wavelength Range AQ6150B Standard: 1270-1650nm Wavelength Range AQ6150B Expanded: 1200-1700nm Wavelength Range AQ6150B Wide: 900-1700nm Wavelength Range AQ6151B Standard: 1270-1650nm Wavelength Range AQ6151B Expanded: 1200-1700nm -

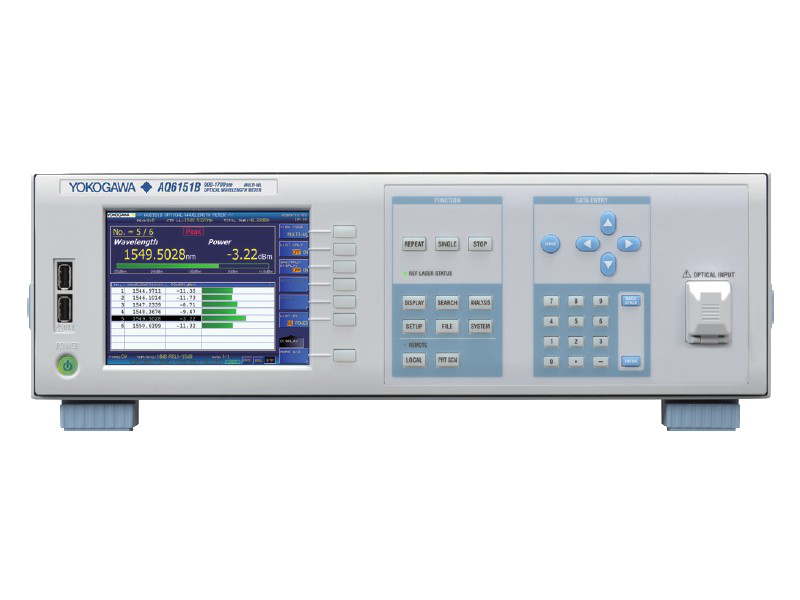

AQ6151B Optical Wavelength Meter
Wavelength Range Standard (-12): 1270 to 1650nm Wavelength Range Extended (-22): 1200 to 1700nm Wavelength Range Wide Range (-32): 900 to 1700nm Wavelength Accuracy Standard (-12): ±0.2ppm (±0.3pm at 1550nm, update rate: Normal), ±0.5ppm (±0.8pm at 1550nm, update rate: Fast) Wavelength Accuracy Extended (-22): ±0.2ppm (±0.3pm at 1550nm, update rate: Normal), ±0.5ppm (±0.8pm at 1550nm, update rate: Fast) -
WF6 Series Wavelength Meter
Available Measurement Ranges (QE≥60%): 380-1064nm, 530-1064nm, 980-1650nm, 1400-2600nm Absolute Accuracy: 600MHz, 200MHz, 200MHz, 60MHz Quick Coupling Accuracy: 600MHz, 600MHz, 600MHz, Singlemode fibers only Wavelength Deviation Sensitivity: 20MHz, 8MHz, 4MHz, 40MHz Exposure Times: 3-3300μs, 3-3300μs, 6-9500μs, 12-90μs -

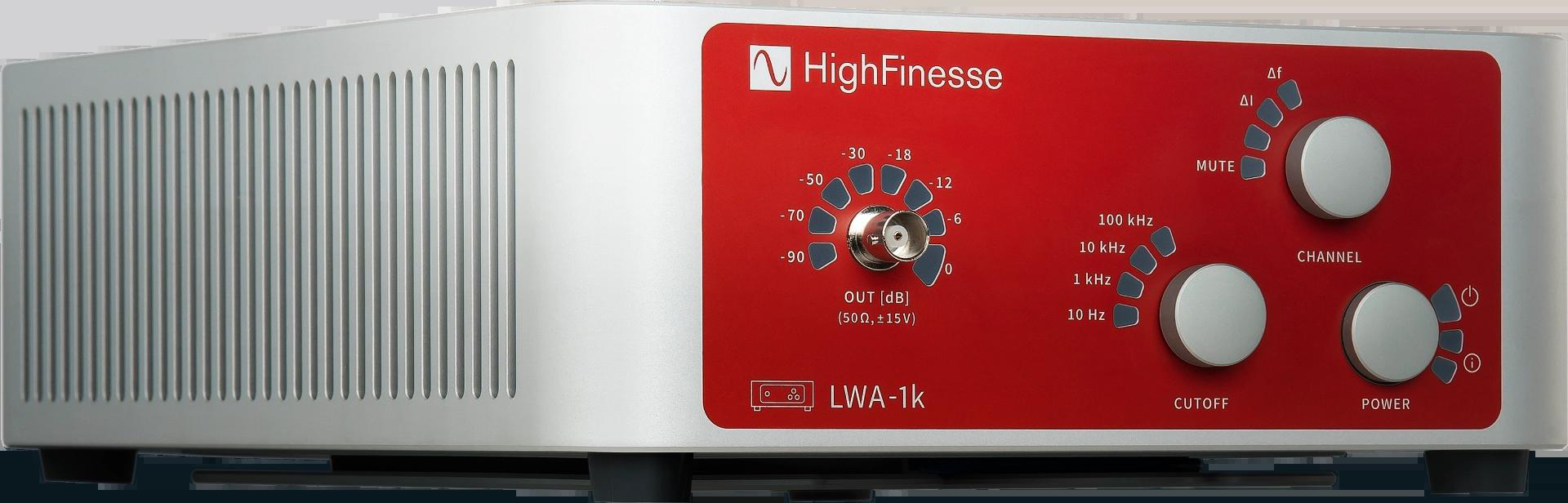

Linewidth Analyzer LWA Series
Wavelength Range LWA-1k 780: 760-1064nm Wavelength Range LWA-1k 1550: 1530-1625nm Wavelength Range LWA-10k VIS: 450-1064nm Wavelength Range LWA-10k NIR: 1064-1625nm Input Power Range LWA-1k 780: 1-15mW -
Laser Spectrum Analyzer (LSA Series)
Measurement Range LSA 2R VIS: 330–1180nm Measurement Range LSA Standard/UV: 330–1180nm, 192–1180nm, 192–800nm Measurement Range LSA VIS/IR-I: 330–1750nm Measurement Range LSA IR-II: 1000–2250nm, 500–1000nm Absolute Accuracy LSA 2R: 2pm (330–420nm), 3GHz (420–1180nm)
