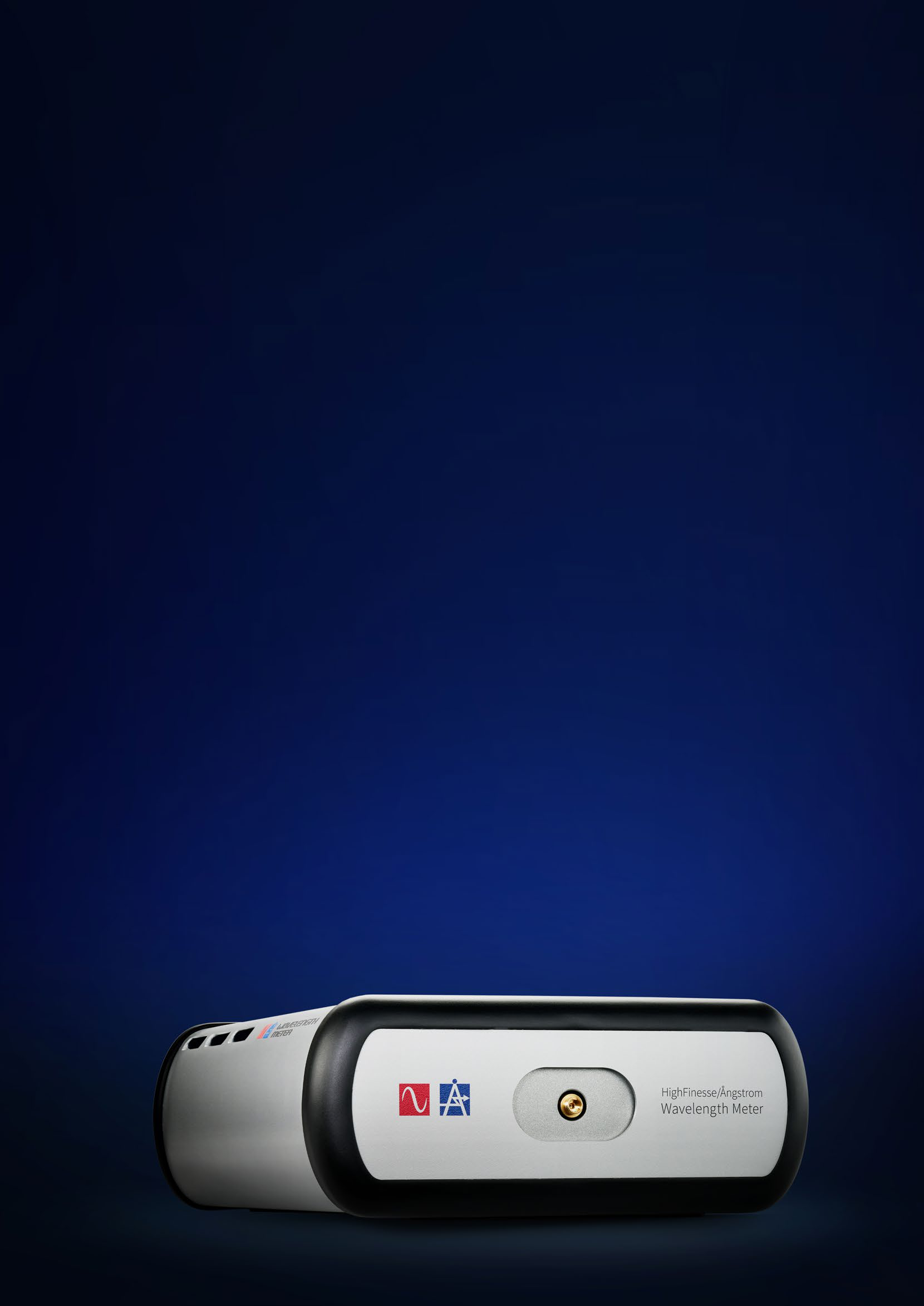

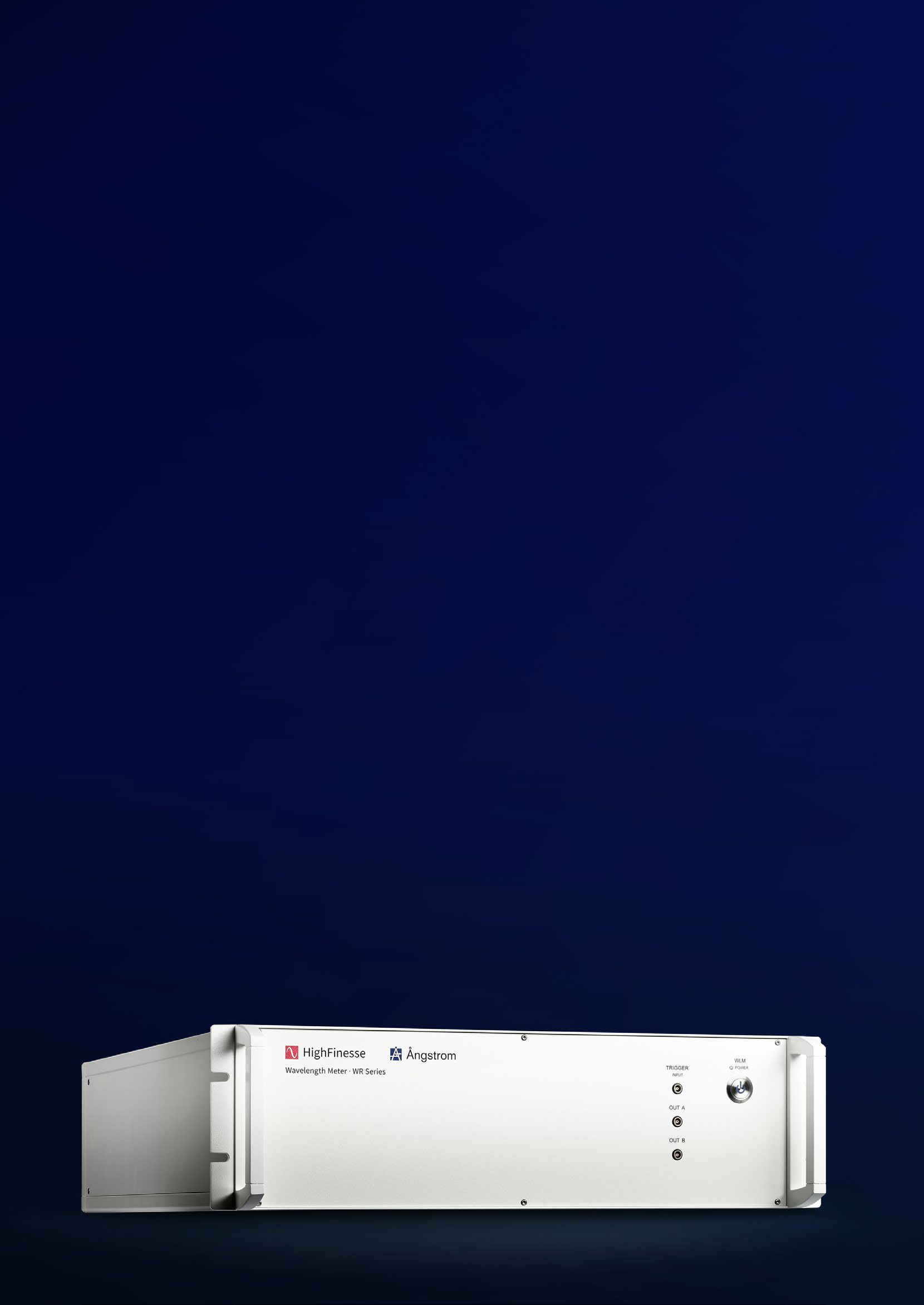

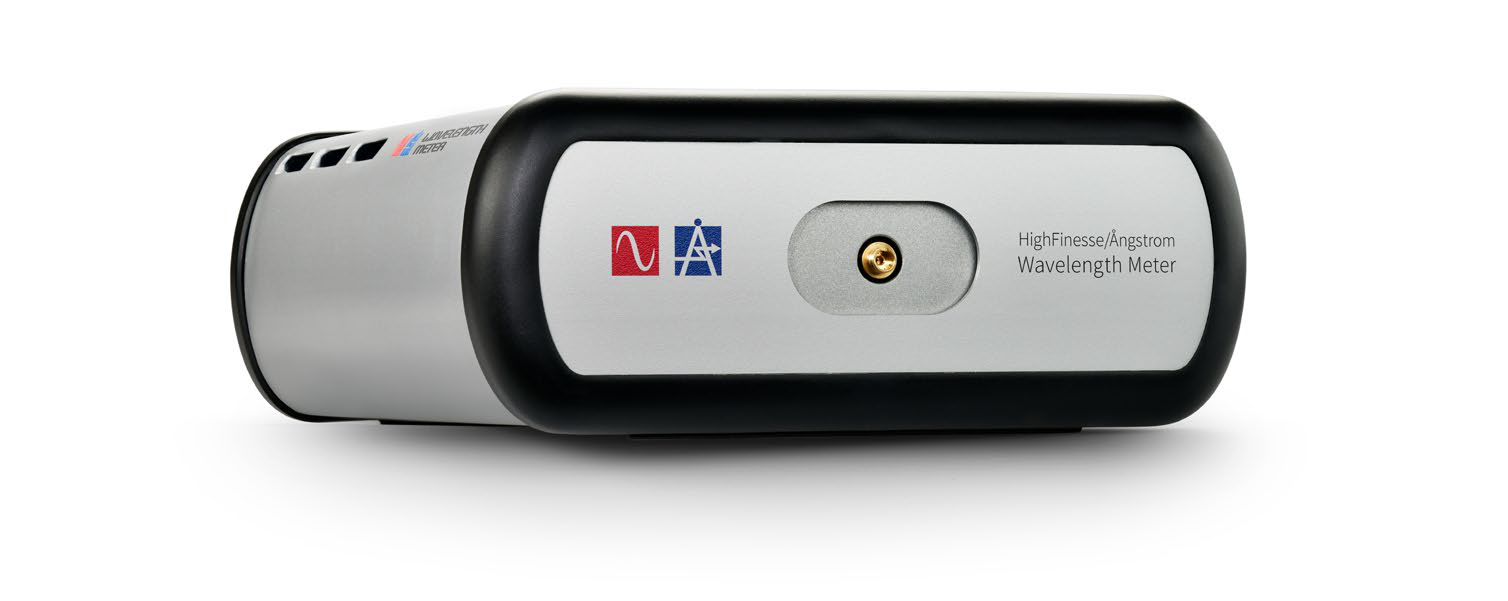

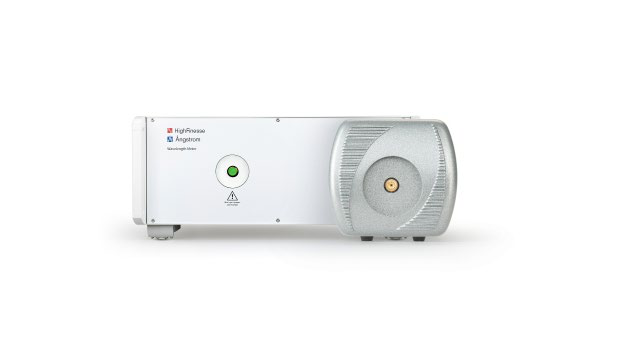

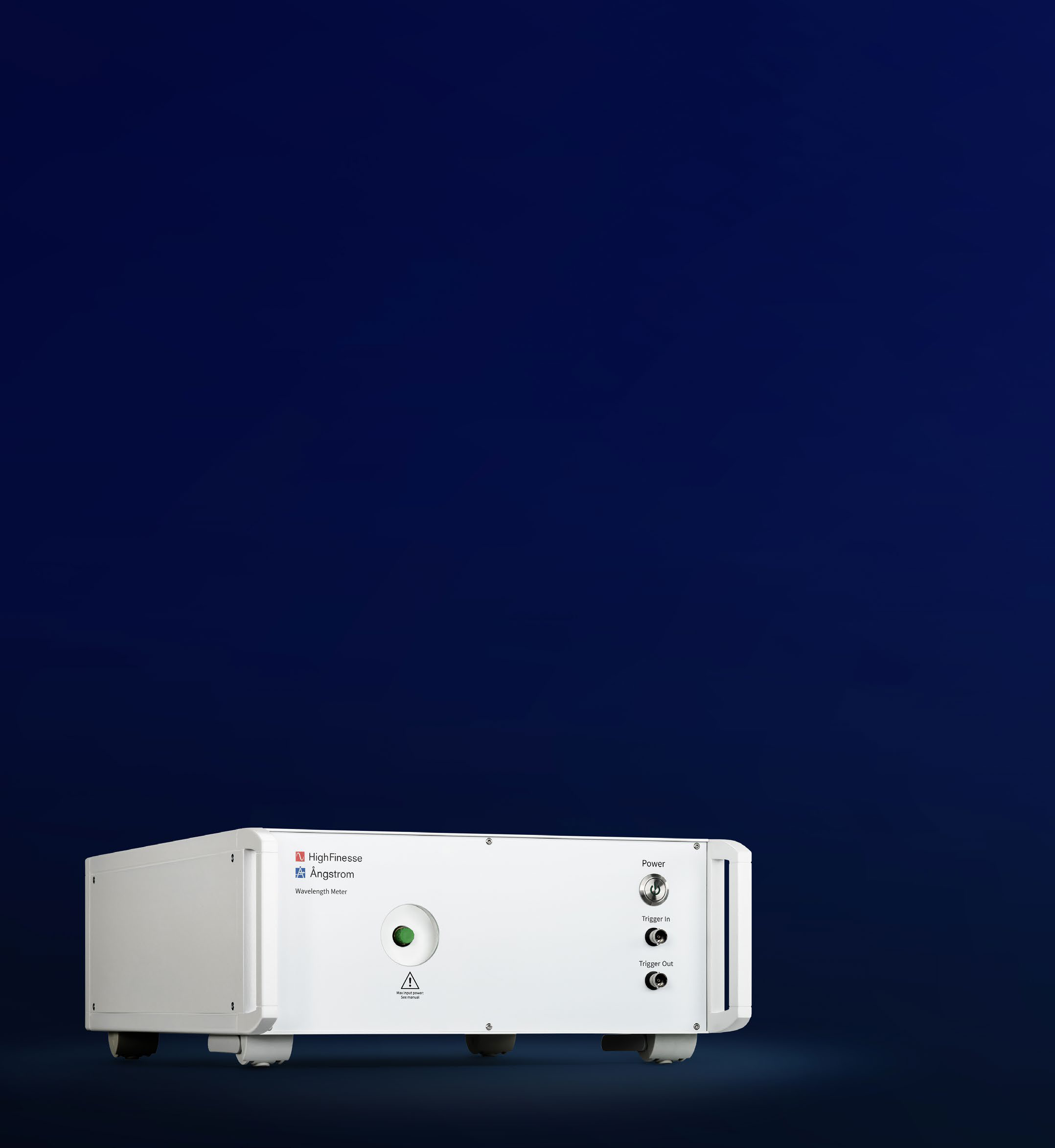

WF6 Series Wavelength Meter
The WF6 Series Wavelength Meter offers ultra-high measurement rates and precision for monitoring ultrafast wavelength dynamics. It is ideal for pulsed and continuous laser measurements, providing unrivaled accuracy and speed.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Available Measurement Ranges (QE≥60%) | 380-1064nm, 530-1064nm, 980-1650nm, 1400-2600nm |
| Absolute Accuracy | 600MHz, 200MHz, 200MHz, 60MHz |
| Quick Coupling Accuracy | 600MHz, 600MHz, 600MHz, Singlemode fibers only |
| Wavelength Deviation Sensitivity | 20MHz, 8MHz, 4MHz, 40MHz |
| Exposure Times | 3-3300μs, 3-3300μs, 6-9500μs, 12-90μs |
| Measurement Rate | 300-24000Hz, 300-24000Hz, 100-76000Hz, 100-32000Hz |
| Live Calculation Speed | 24000Hz, 24000Hz, 28000Hz, 20000Hz |
| Live Calculation Latency | ≥33.6-0.7ms, ≥33.6-0.7ms, ≥100.3-0.4ms, 10ms-150μs |
| Required Minimum Input Energy and Power | 100μW@3μs exposure time/0.29nJ@532nm, 100μW@3μs exposure time/0.29nJ@532nm, 1mW@6μs exposure time/6nJ@1532nm, 100μW@24μs/2.4nJ@1532nm and 100μW@24μs/2.4nJ@2327nm |

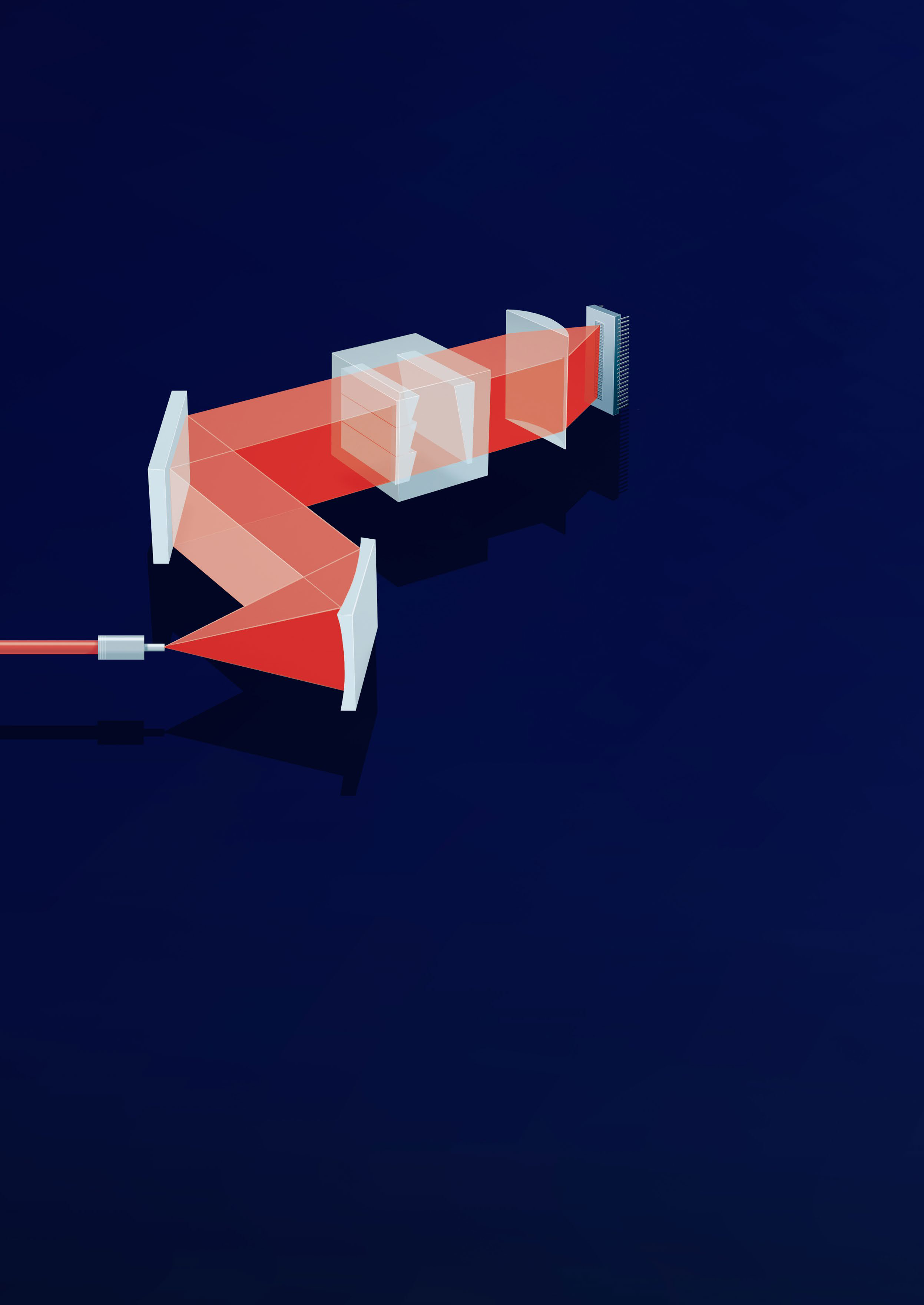

| Fizeau Interferometers (FSR) | 16GHz/100GHz, 16GHz, 16GHz, 8GHz/16GHz |

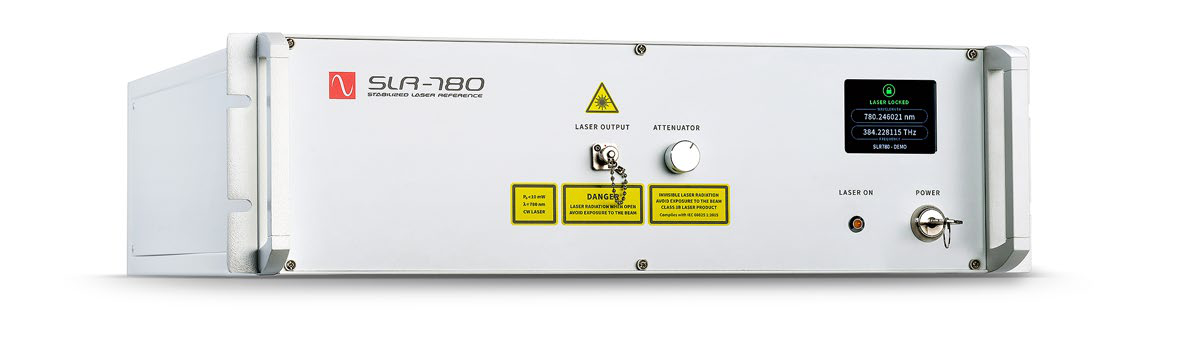

| Calibration | Stabilized HeNe laser or any other well-known laser source Δν<150MHz, Stabilized HeNe laser or any other well-known laser source Δν<40MHz, A well-known laser source (e.g., SLR1532) Δν<40MHz, A well-known laser source (e.g., SLR1532) Δν<10MHz |
| Recommended Calibration Period | 1 month, 1 month, 1 month, 1 day |
| Warm-Up Time | 30min, 30min, 30min, 30min |

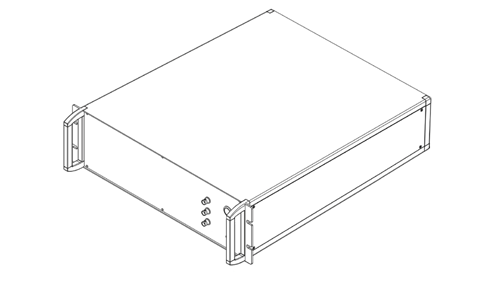

| Dimensions | 432×144×144mm, 432×144×144mm, 432×144×144mm, 436×342×133mm |
| Weight | 3.5kg, 3.5kg, 3.5kg, 3.5kg |
| Interface | USB2.0 and GbE, USB2.0 and GbE, USB2.0 and Camera Link, GbE |
| Power Supply | External 12V, External 12V, External 12V, 100-240V, 50-60Hz |
