CTL (Continuously Tunable Laser)
The CTL is a high-performance continuously tunable laser designed for precision applications requiring mode-hop-free tuning, high resolution, and low noise. It is ideal for quantum technology and advanced optical measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CTL Model | 780, 900, 950, 1050, 1320, 1470, 1500, 1550, 1650 |
| 波长范围[nm][$]Wavelength Range (nm) | 750-790, 880-940, 920-990, 1010-1100, 1290-1350, 1420-1530, 1460-1570, 1510-1630, 1620-1750 |
| 绝对精度[nm][$]Absolute Accuracy (nm) | <90, <100, <110, <130, <140, <150 |
| 相对精度[pm][$]Relative Accuracy (pm) | <10 |

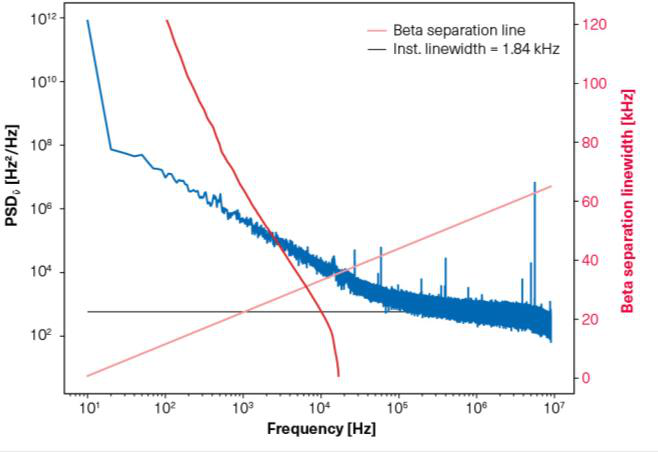

| 瞬时线宽[kHz][$]Typical Instantaneous Linewidth (kHz) | 0.3, <0.5, <1, <0.5, <1, <0.3, <1, <1 |
| 最大功率[mW][$]Max Power (mW) | >70, >40, >64, >72, >40, >30, >37, >32 |
| 最大扫描速度[nm/s][$]Max Scan Speed (nm/s) | 10 |
| 最小电机步进[pm][$]Smallest Motor Step (pm) | 0.3, 0.4, 0.4 |
| 压电扫描[GHz][$]Piezo Scan (GHz) | 70, 55, 45, 38, 35, 33, 28 |
| 压电步进[kHz][$]Piezo Step Size (kHz) | <10 |
| Output Isolation | Alignment-free multi-stage broadband isolators included |
