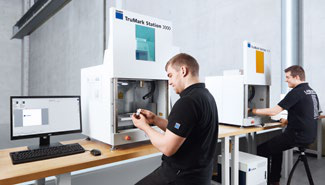

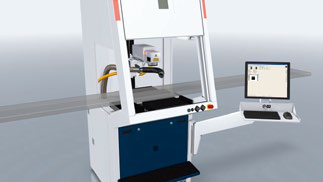

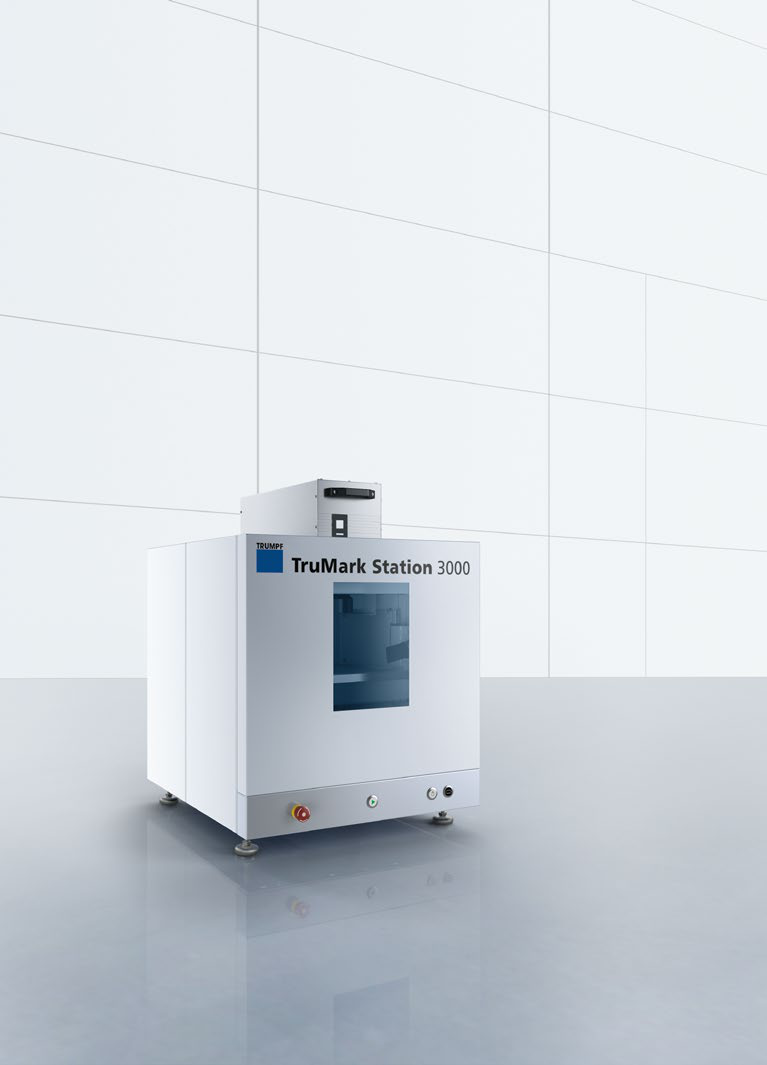

TruMark Station 3000
The compact marking cube for small and medium-sized batches, designed for simplicity and user-friendliness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (W×D×H) | 625×730×672/1092mm |
| Weight (without laser, supply unit) | 82kg |
| Electrical Connection (Voltage) | 120/230V |
| Electrical Connection (Frequency) | 50/60Hz |
| Electrical Connection (Amperage) | 16A at 230V, 20A at 120V |
| Max. Power Consumption | 1300W |
| Max. workpiece dimensions (W×H×D) | 450×350×200mm |
| Max. workpiece weight | 12kg |
| Available axes | 2 |
| Max. travel | 200mm |
| Max. traveling speed | 3.75m/min |

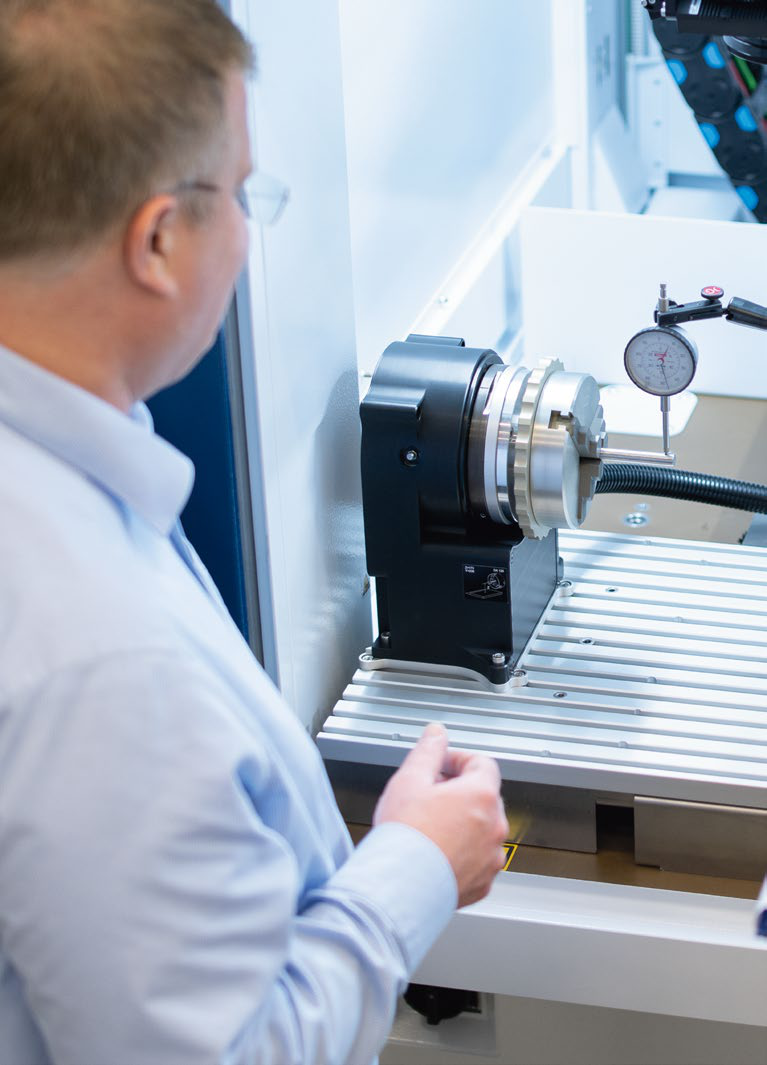

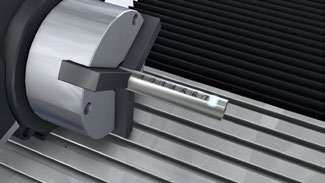

| Rotational axis | 65mm |
| Door | Motorized |
| Extractor | Integrated |
| Extractor | external possible |
| Laser safety class | 1 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

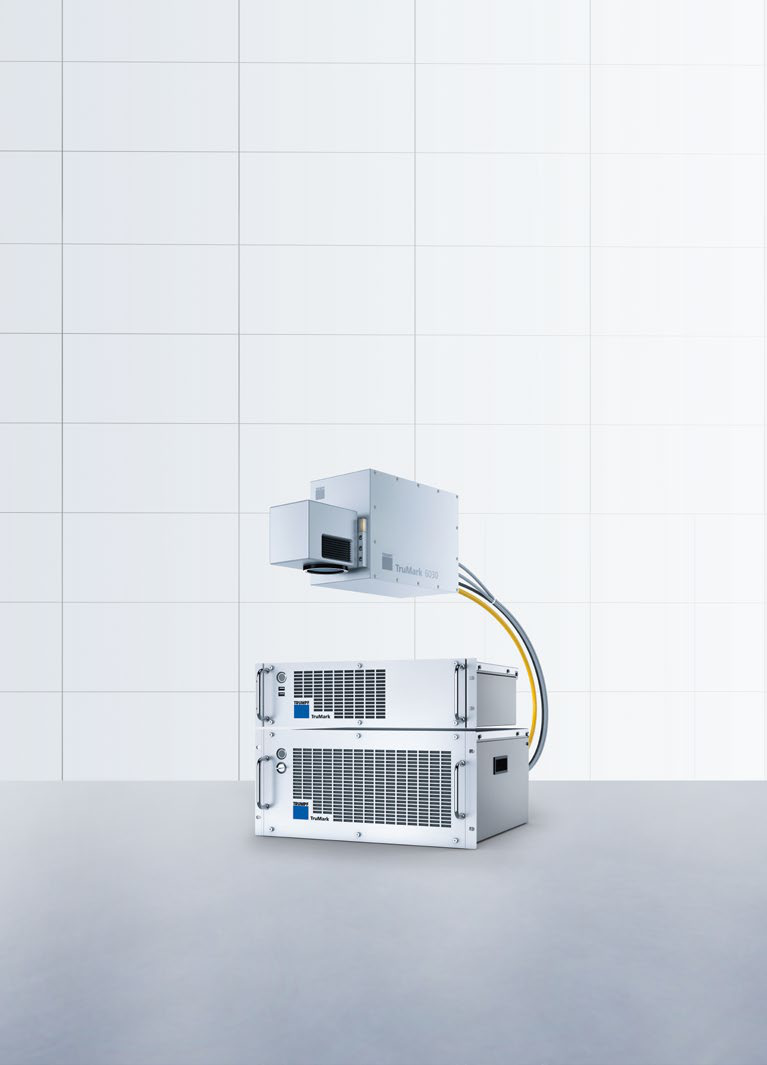

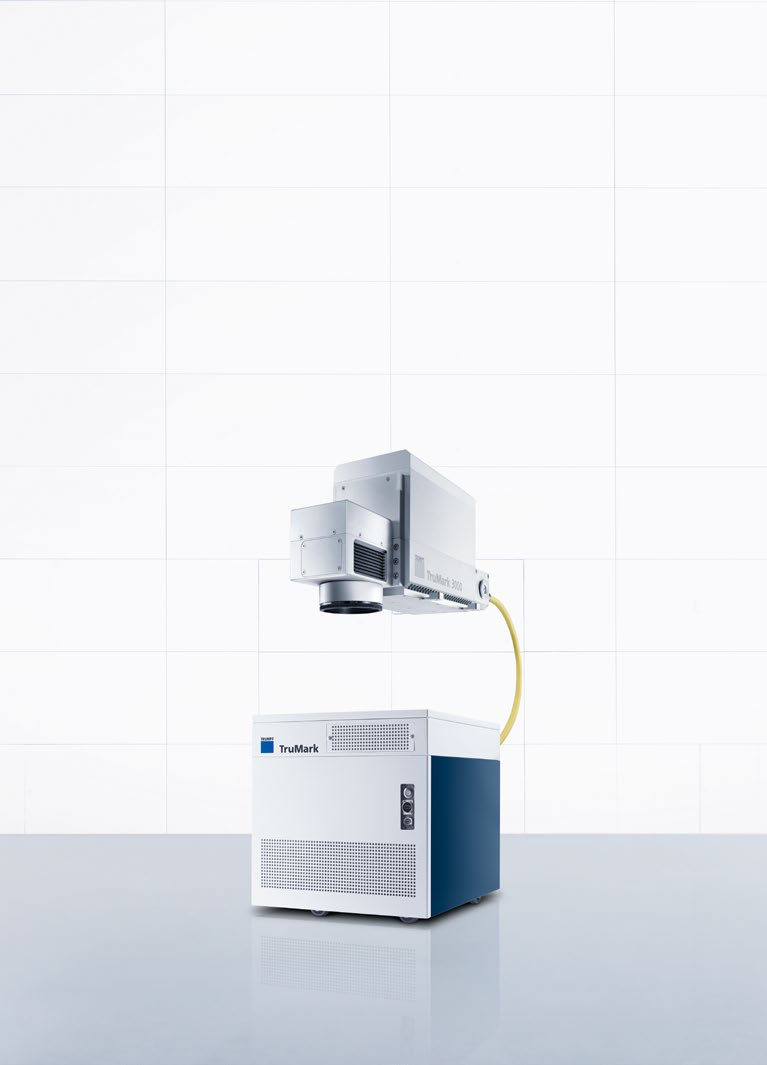

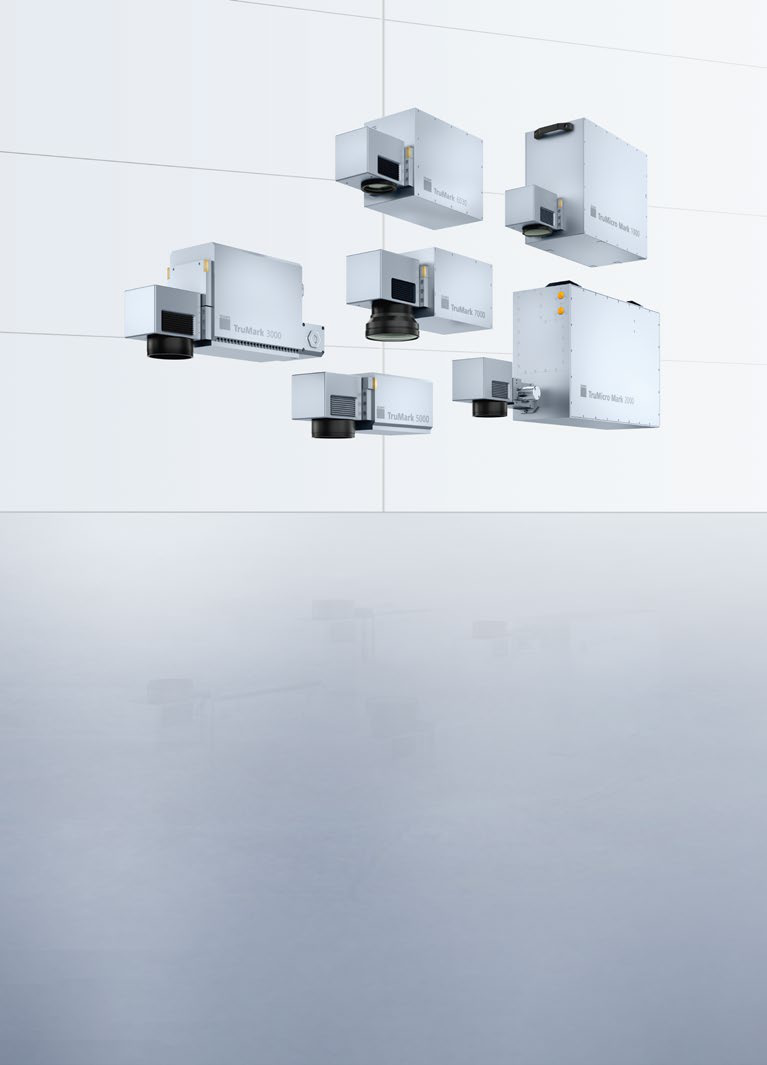

TruMark Series
