TA-SHG pro

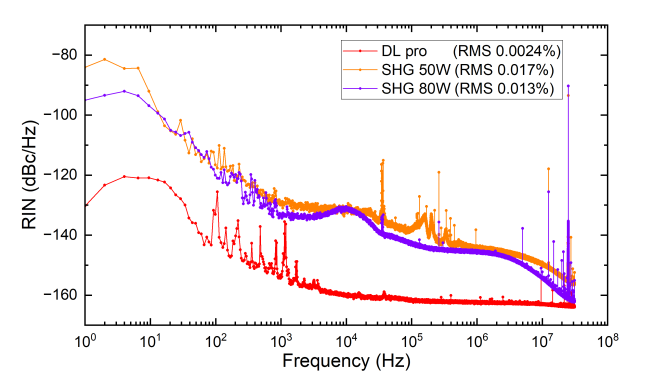

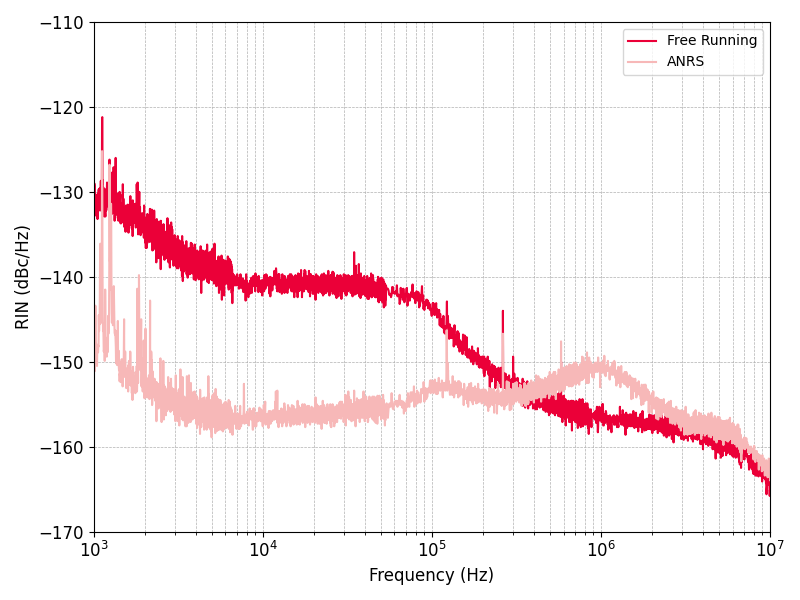

The TA-SHG pro is a high-performance frequency-doubled diode laser system designed for applications requiring tunable wavelengths and high output power. It features advanced noise reduction and stability technologies.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 330-780nm |
| Output Power | Up to 2500mW |
| Coarse Tuning Range | Up to 30nm |
| Continuous Scan Range | >20GHz (up to 50GHz possible) |

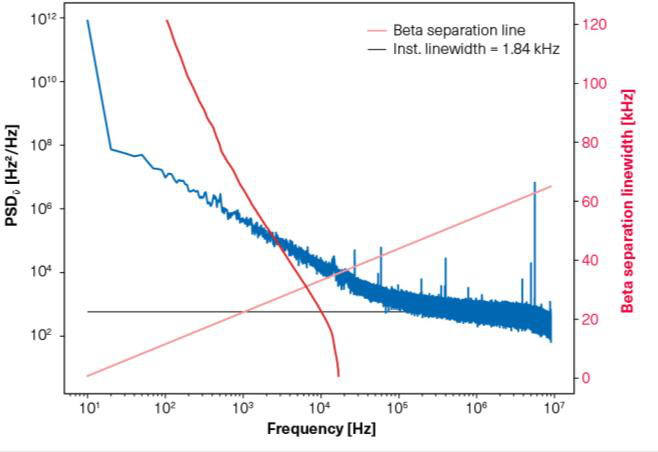

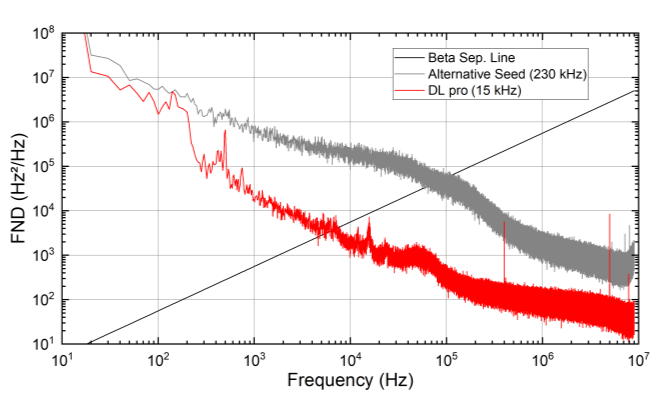

| Typical Linewidth | 20-120kHz |
| Fiber Coupling | Available for ≥369nm |
Applications
Key Features
Datasheet
Supplier Information
