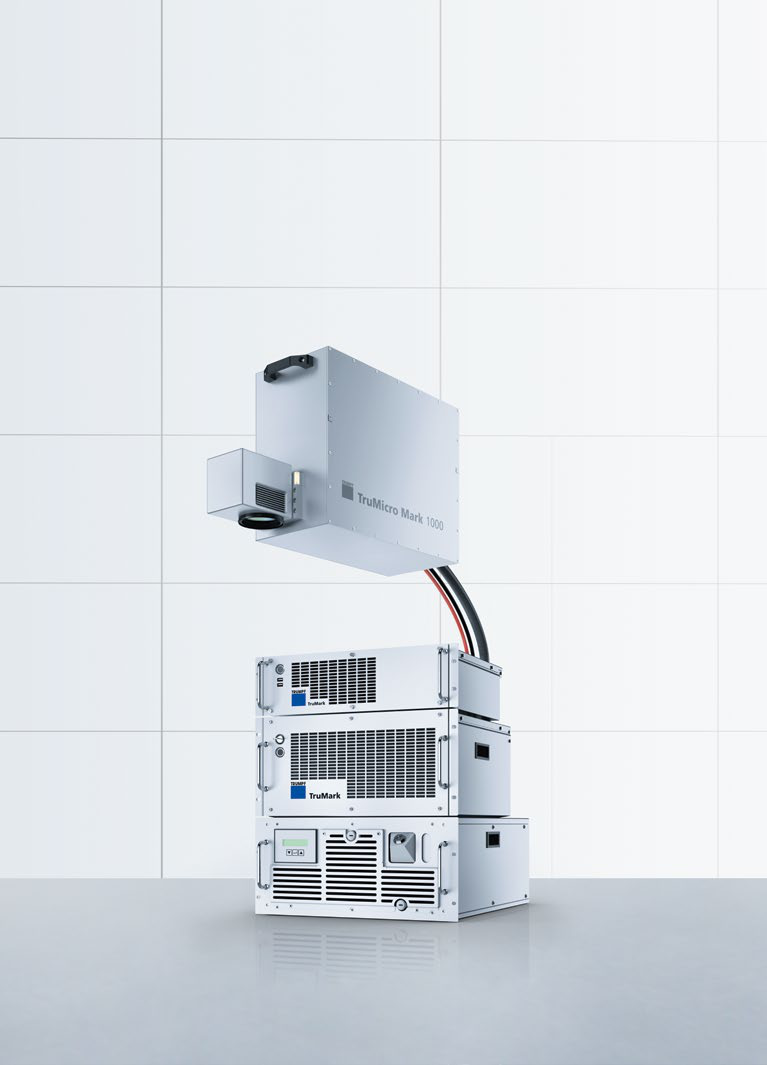

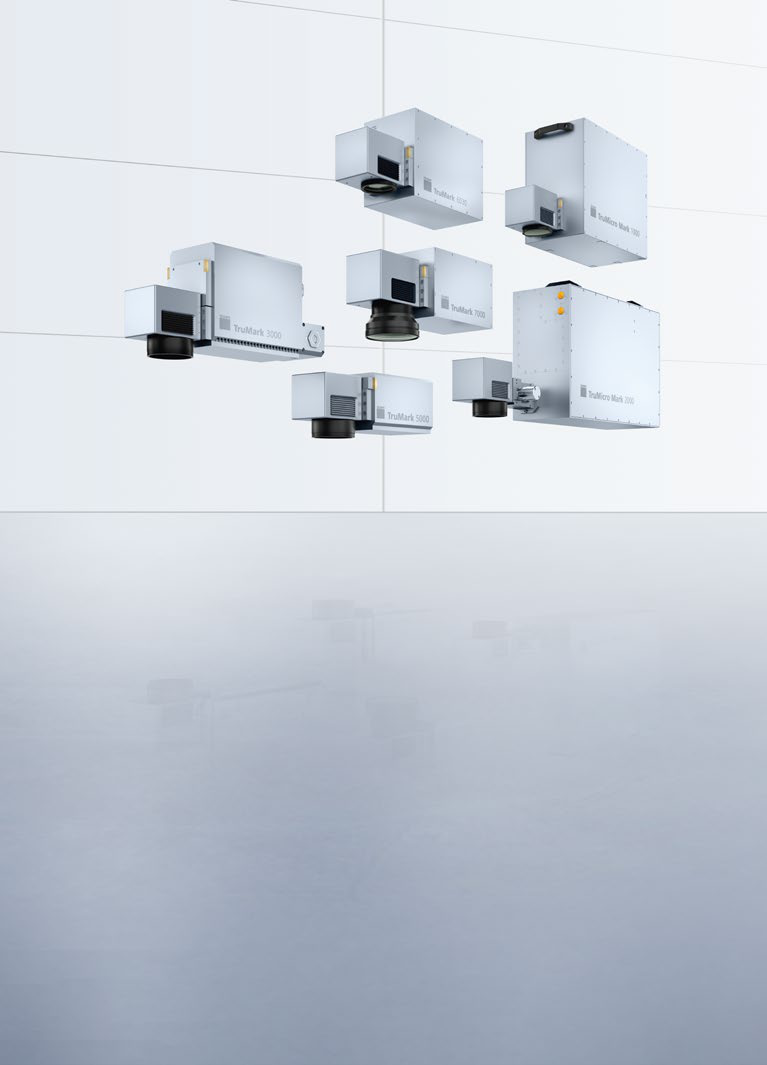

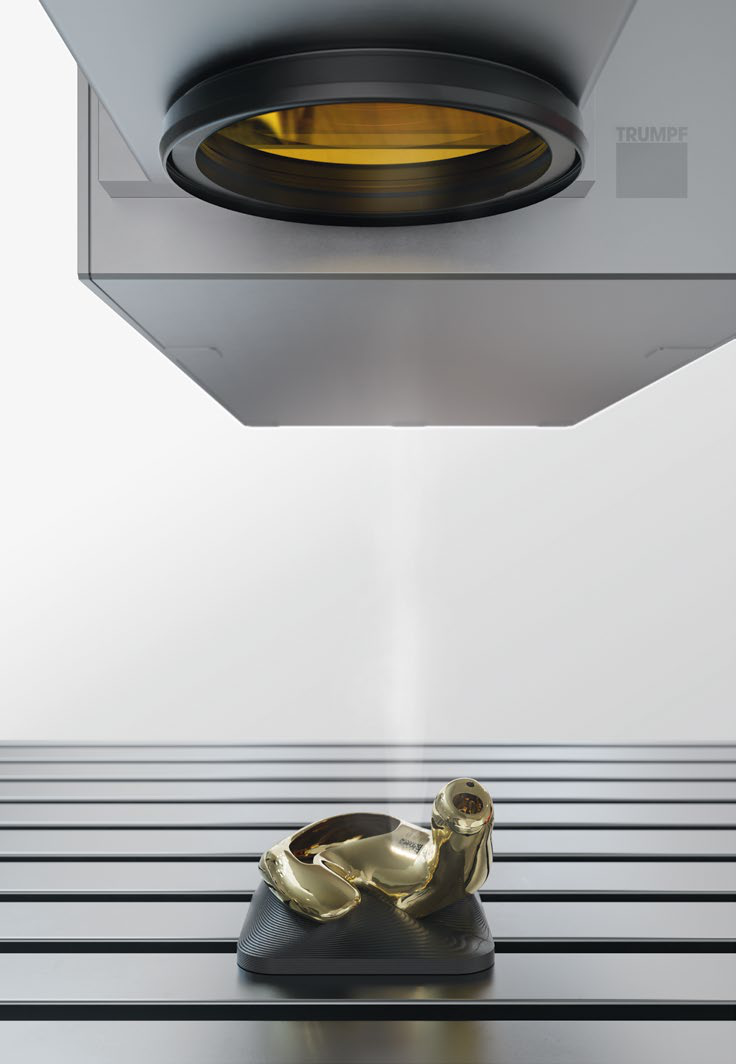

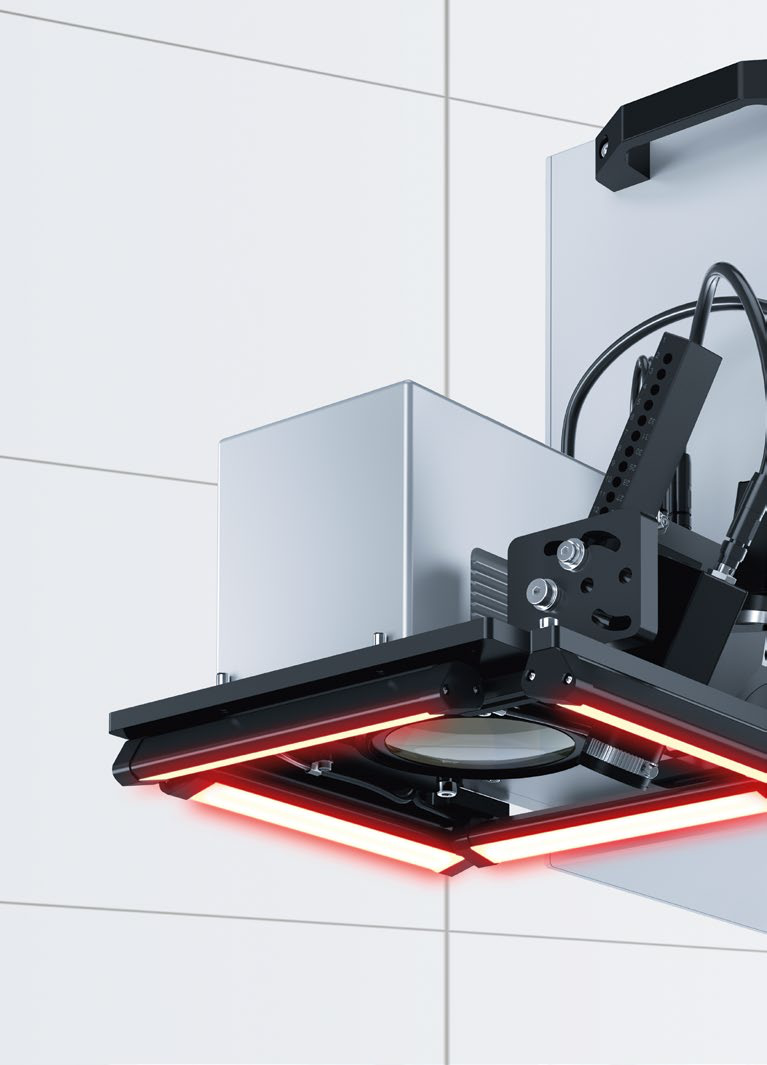

TruMark Series
TruMark Series offers innovative laser marking solutions tailored for diverse industries, ensuring precision, reliability, and efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Beam Quality (M²) | <1.3 |
| Average Power of Beam Source (W) | 12-200 |
| Wavelength (nm) | 355-1064 |
| Pulse Duration | fs-ns |
| Pulse Repetition Frequency (kHz) | 1-4000 |
| Min. Focal Diameter (μm) | 15-50 |
| Max. Internal Focus Position Control (mm) | ±40-±60 |
| Max. Marking Field Size (mm²) | 110x110-330x330 |
| Standard Marking Field Size (mm²) | 80x80-285x285 |
| Line Voltage (V) | 90-264 |
| Power Consumption (kW) | 0.6-1.6 |
| Line Frequency (Hz) | 50/60 |
| Protection Class | IP54 |
| Permitted Ambient Temperature (°C) | 15-40 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

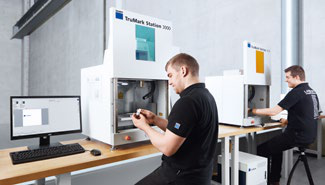

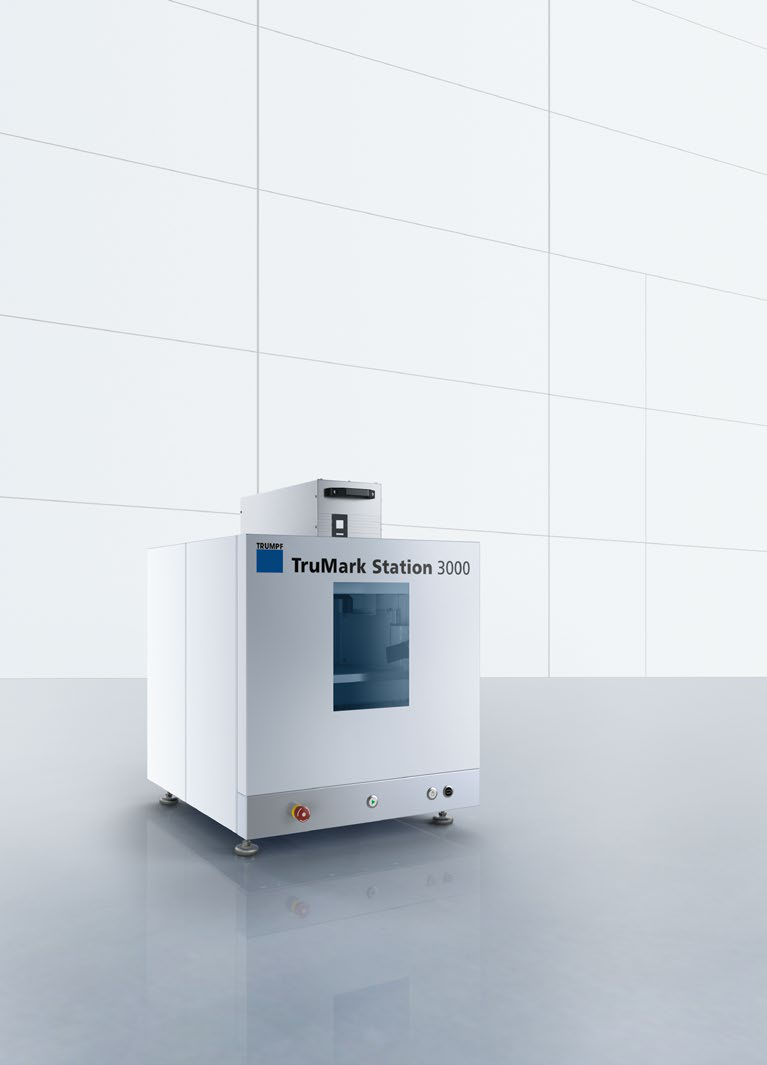

TruMark Station 3000
