Cryogenic Probe Station
A high-precision cryogenic probe station designed for temperature control and vibration isolation in optical and electronic testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

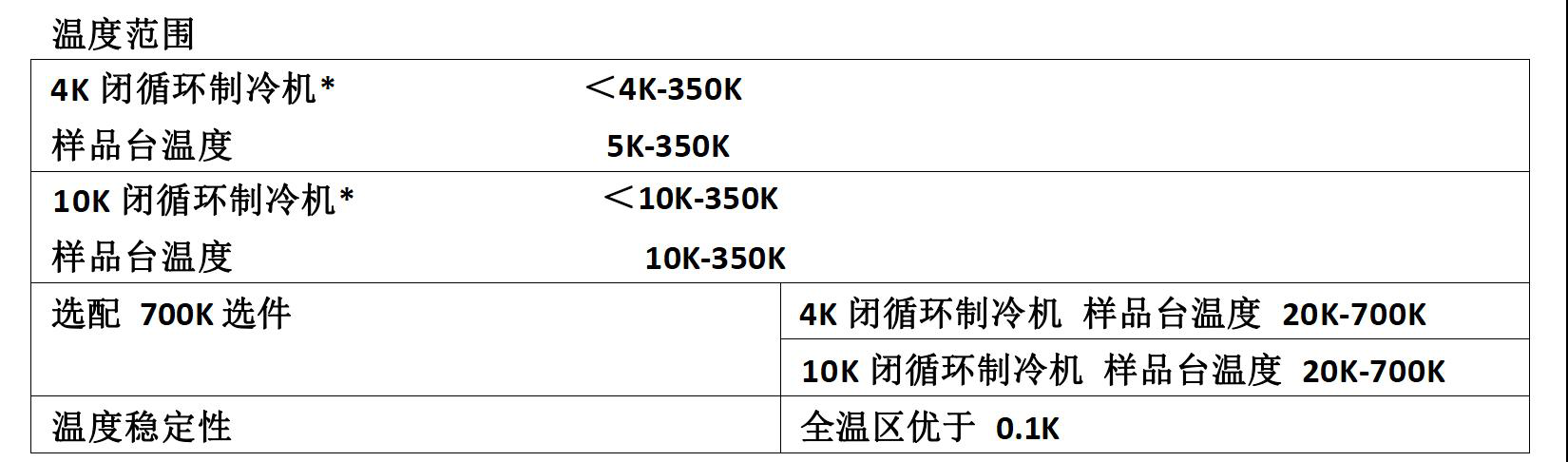

| Temperature Range 4K Cryogenic Refrigerator | <4K-350K |
| Sample Stage Temperature 4K Cryogenic Refrigerator | 5K-350K |
| Temperature Range 10K Cryogenic Refrigerator | <10K-350K |
| Sample Stage Temperature 10K Cryogenic Refrigerator | 10K-350K |
| Optional 700K Component | 20K-700K |
| Temperature Stability | <0.1K |

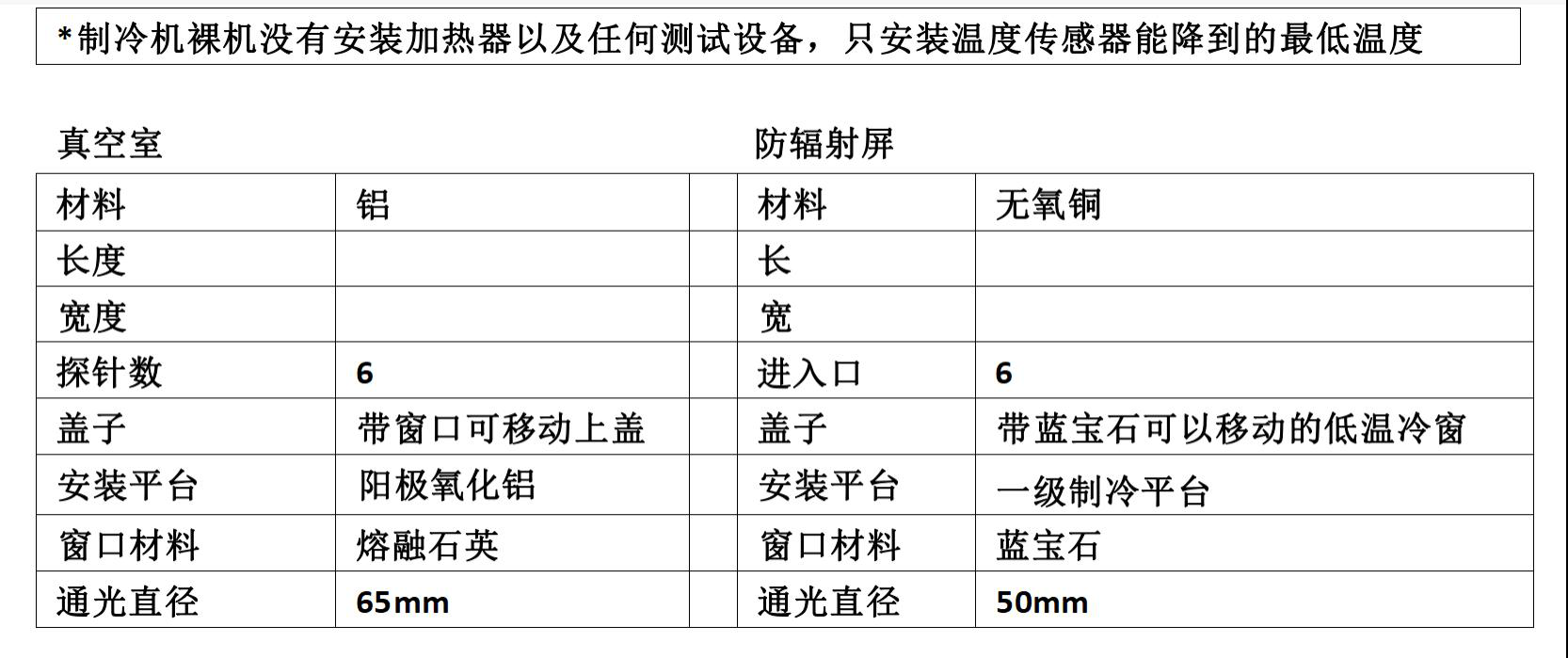

| Vacuum Chamber Material | Aluminum |
| Vacuum Chamber Length | Undefined |
| Vacuum Chamber Width | Undefined |
| Number of Probes | 6 |
| Vacuum Chamber Cover | Movable cover with window |
| Vacuum Chamber Installation Platform | Anodized aluminum |
| Vacuum Chamber Window Material | Fused quartz |
| Vacuum Chamber Optical Diameter | 65mm |
| Radiation Shield Material | Oxygen-free copper |
| Radiation Shield Entrance | 6 |
| Radiation Shield Cover | Movable low-temperature window with sapphire |
| Radiation Shield Installation Platform | Primary cryogenic platform |
| Radiation Shield Window Material | Sapphire |
| Radiation Shield Optical Diameter | 50mm |

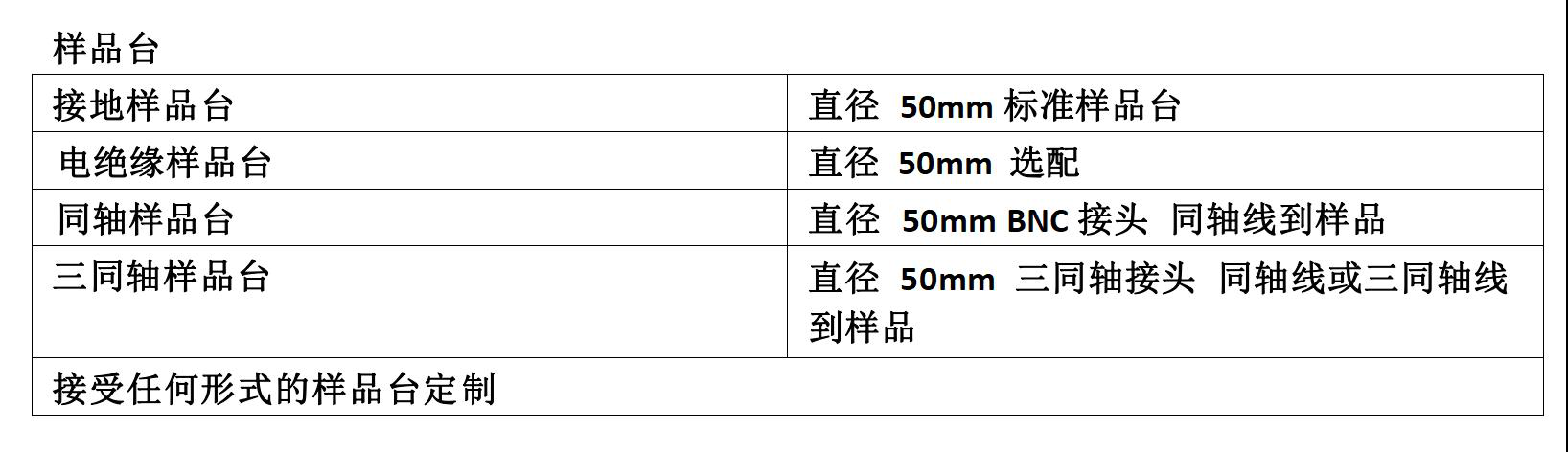

| Grounded Sample Stage Diameter | 50mm |
| Electrically Insulated Sample Stage Diameter | 50mm |
| Coaxial Sample Stage Diameter | 50mm |
| Tri-coaxial Sample Stage Diameter | 50mm |

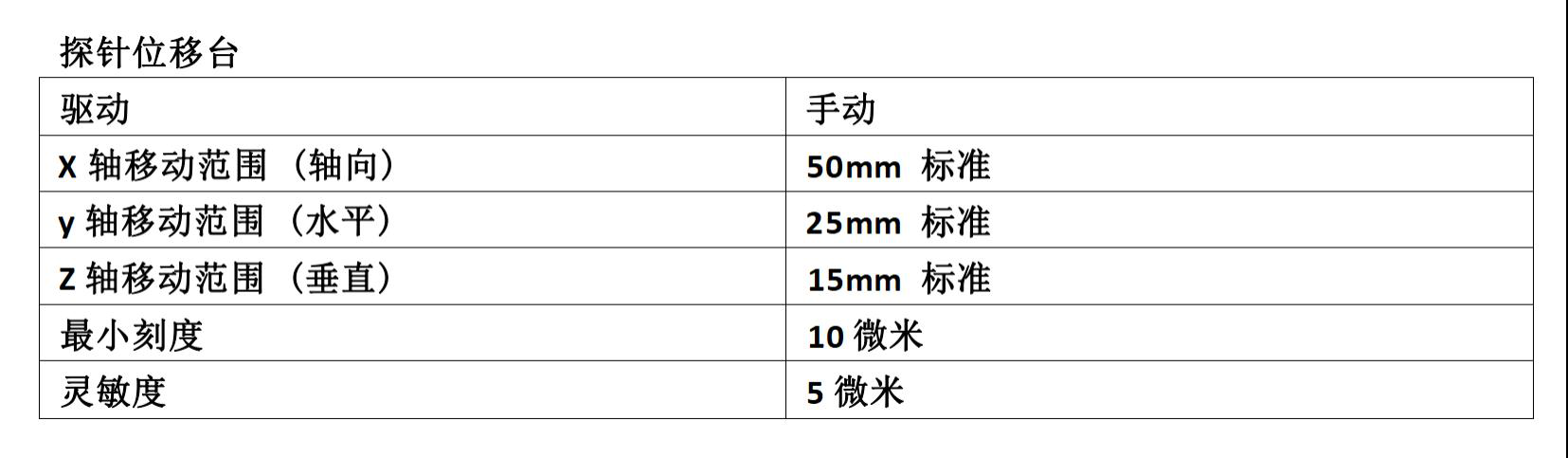

| Probe Positioning Stage Drive | Manual |
| Probe Positioning Stage X-axis Movement Range | 50mm |
| Probe Positioning Stage Y-axis Movement Range | 25mm |
| Probe Positioning Stage Z-axis Movement Range | 15mm |
| Probe Positioning Stage Minimum Scale | 10μm |
| Probe Positioning Stage Sensitivity | 5μm |

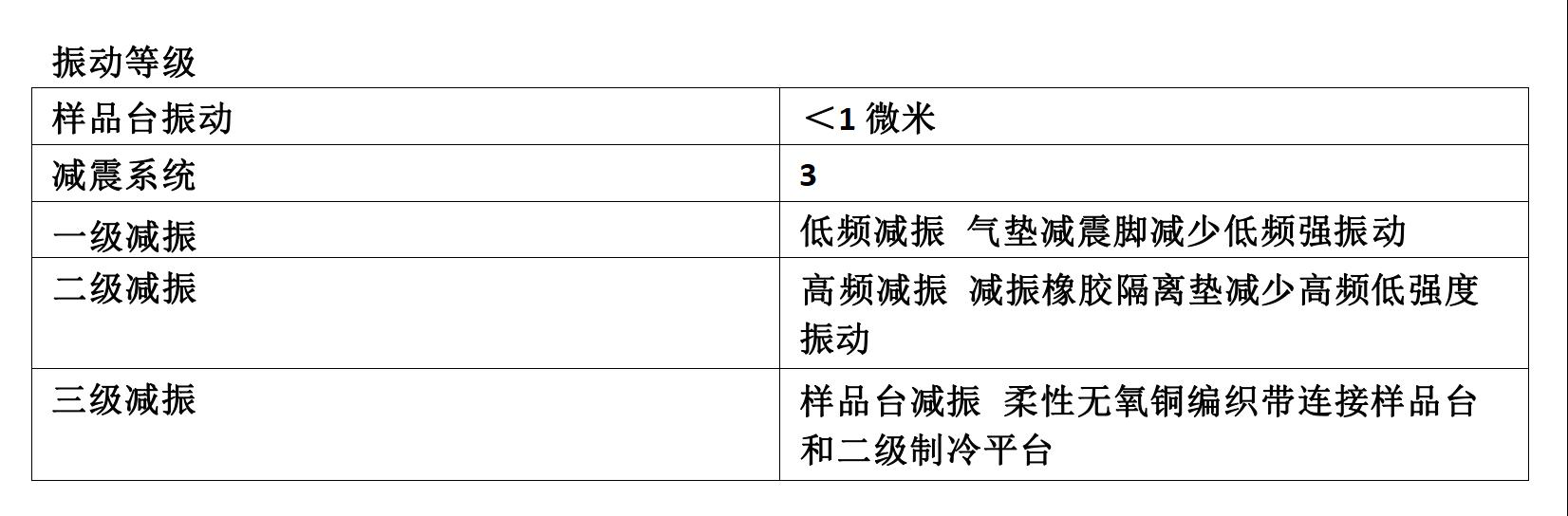

| Vibration Level Sample Stage Vibration | <1μm |
| Damping System | 3 |
| Primary Damping | Low-frequency damping with air cushion |
| Secondary Damping | High-frequency damping with rubber isolation |
| Tertiary Damping | Flexible oxygen-free copper woven band |

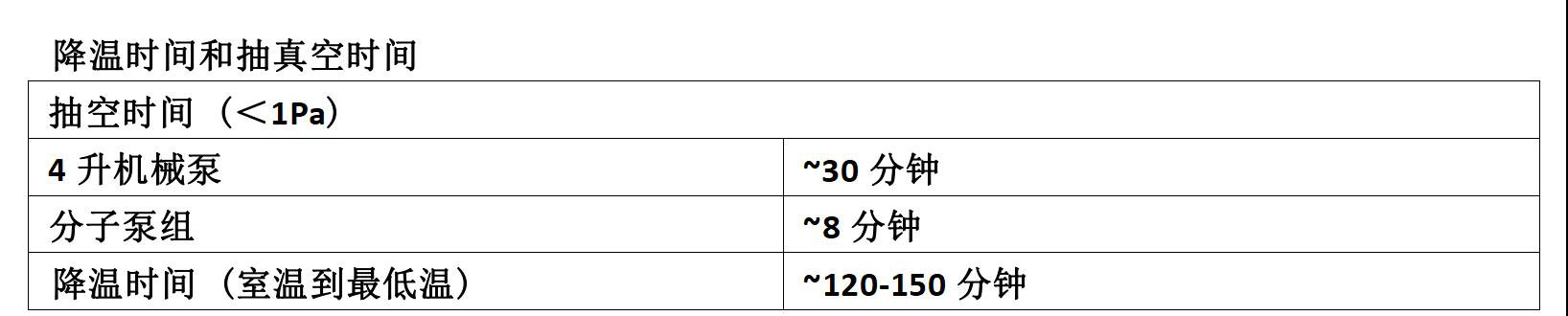

| Vacuum Time Mechanical Pump | ~30min |
| Vacuum Time Molecular Pump | ~8min |
| Cooling Time | ~120-150min |

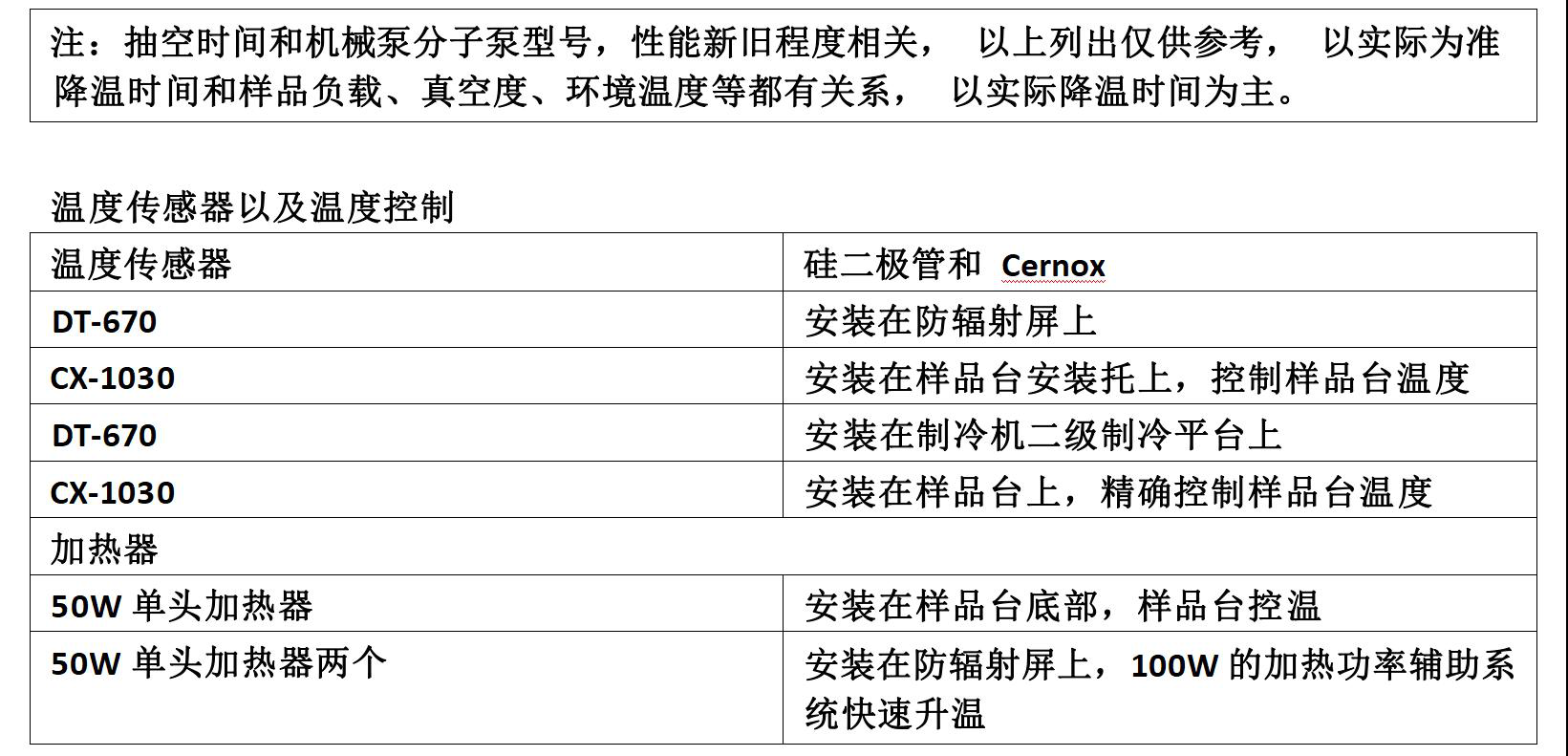

| Temperature Sensor DT-670 | Silicon diode and Cernox |
| Temperature Sensor CX-1030 | Installed on radiation shield |
| Heater 50W Single Head | Installed at sample stage bottom |
| Heater 50W Dual Head | Installed on radiation shield |
