LH Series Electromagnets
The LH series electromagnets are designed for generating stable and adjustable magnetic fields, suitable for various scientific and industrial applications.
Save to Favorites
Overview

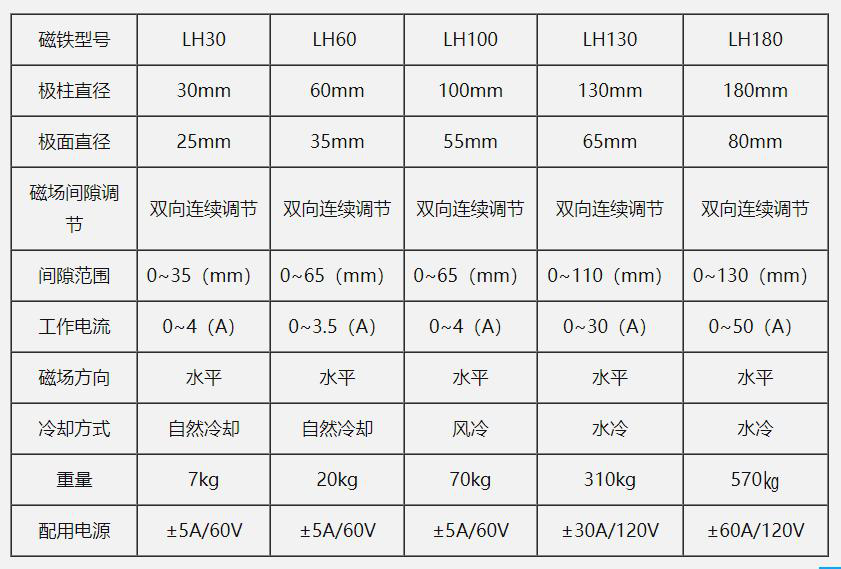

Specifications
| Parameter | Value |
|---|---|
| Magnet Model | LH30, LH60, LH100, LH130, LH180 |
| Pole Diameter | 30mm, 60mm, 100mm, 130mm, 180mm |
| Pole Face Diameter | 25mm, 35mm, 55mm, 65mm, 80mm |
| Magnetic Gap Adjustment | Dual-direction continuous adjustment |
| Gap Range | 0~35mm, 0~65mm, 0~65mm, 0~110mm, 0~130mm |
| Operating Current | 0~4A, 0~3.5A, 0~4A, 0~30A, 0~50A |
| Magnetic Field Direction | Horizontal |
| Cooling Method | Natural air cooling |
| Cooling Method | Air cooling |
| Cooling Method | Water cooling |
| Weight | 7kg, 20kg, 70kg, 310kg, 570kg |
| Power Supply | ±5A/60V, ±5A/60V, ±5A/60V, ±30A/120V, ±60A/120V |
