Cryocon26C Temperature Control System
Cryocon26C is a high-precision temperature control system designed for advanced cryogenic applications, featuring exceptional stability and accuracy.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

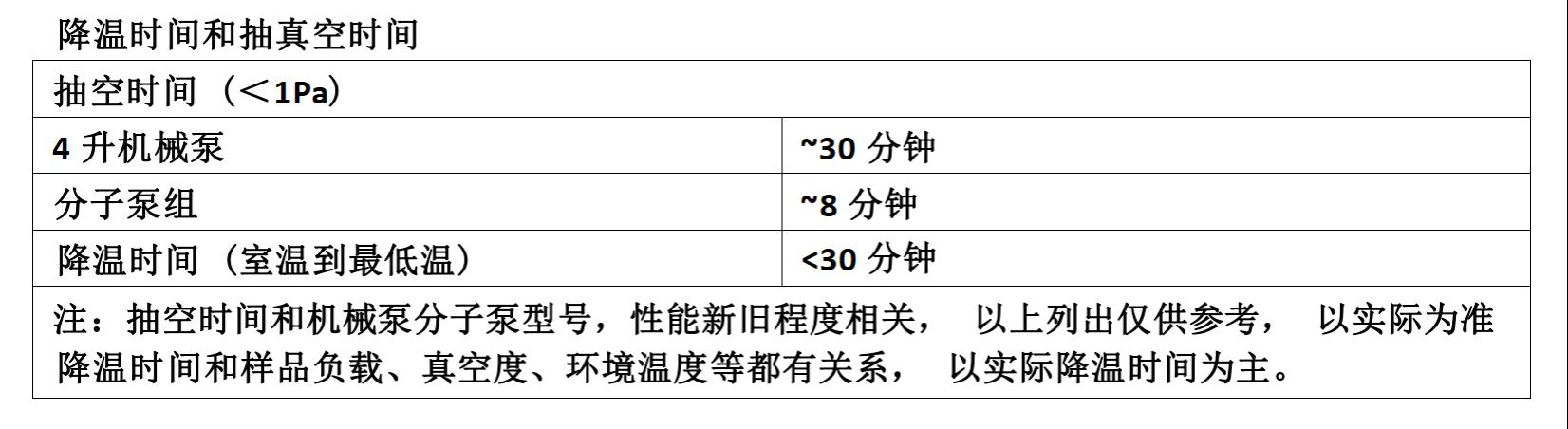

| Vacuum Time (<1Pa) 4升机械泵 | ~30分钟 |
| Vacuum Time (<1Pa) 分子泵组 | ~8分钟 |
| Cooling Time (Room Temperature to Minimum Low Temperature) | <30分钟 |

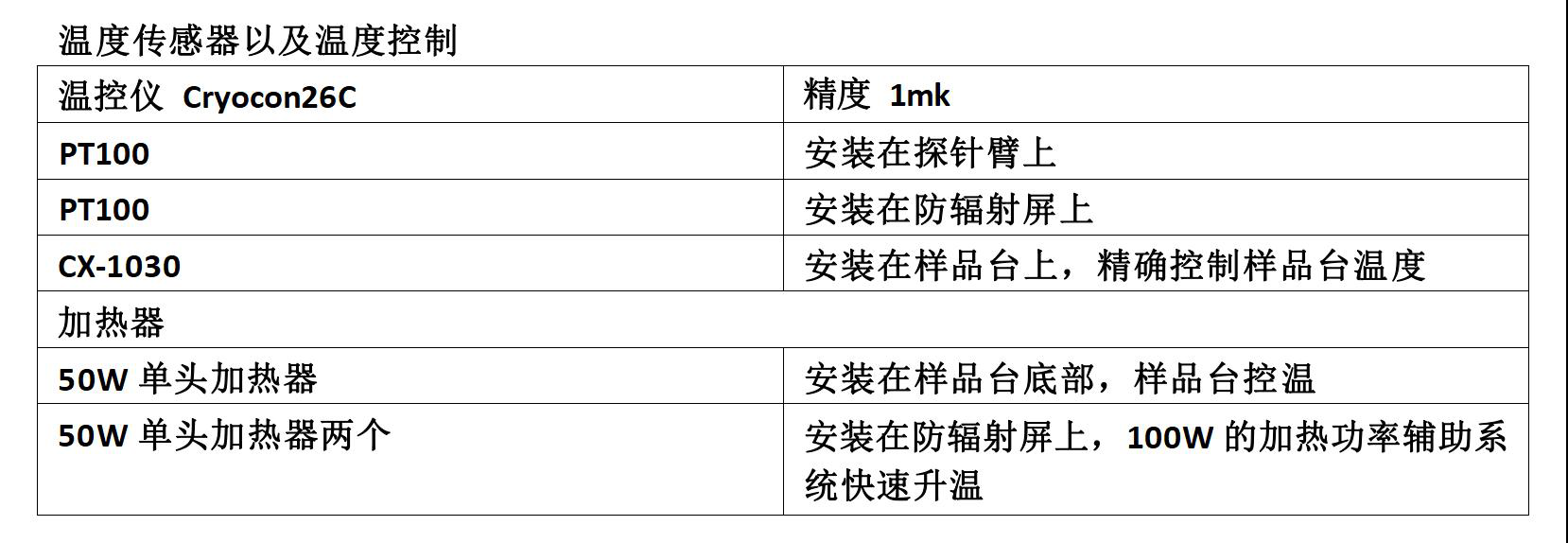

| Temperature Controller | Cryocon26C |
| Accuracy | 1mk |
| PT100 Installation Position Probe Needle | 探针磨上 |
| PT100 Installation Position Radiation Shield | 防辐射屏上 |
| CX-1030 Installation Position Sample Stage | 样品台上 |
| Heater | 50W单头加热器 |
| Heater Installation Position Sample Stage Base | 样品台底部 |
| Heater Installation Position Radiation Shield | 防辐射屏上 |
| Heating Power | 100W |

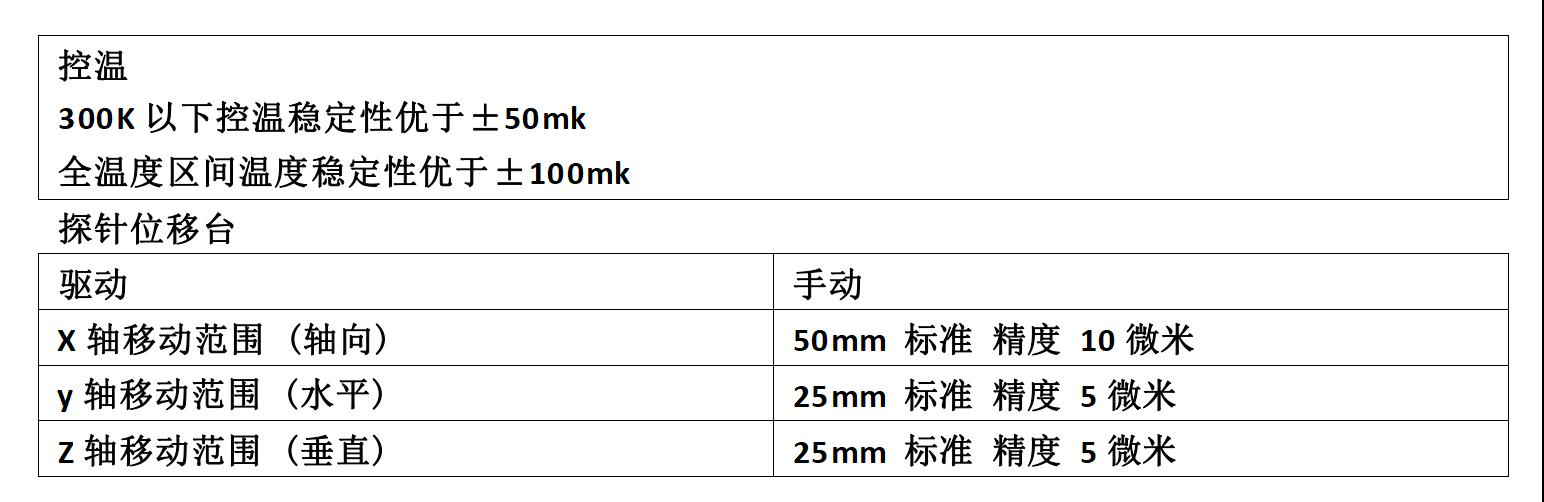

| Temperature Stability (<300K) | ±50mk |
| Temperature Stability (Full Range) | ±100mk |
| X-Axis Movement Range (Axial) | 50mm 标准 精度10微米 |
| Y-Axis Movement Range (Horizontal) | 25mm 标准 精度5微米 |
| Z-Axis Movement Range (Vertical) | 25mm 标准 精度5微米 |
