Cryogenic Probe Station
A high-precision cryogenic probe station designed for advanced scientific research and testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

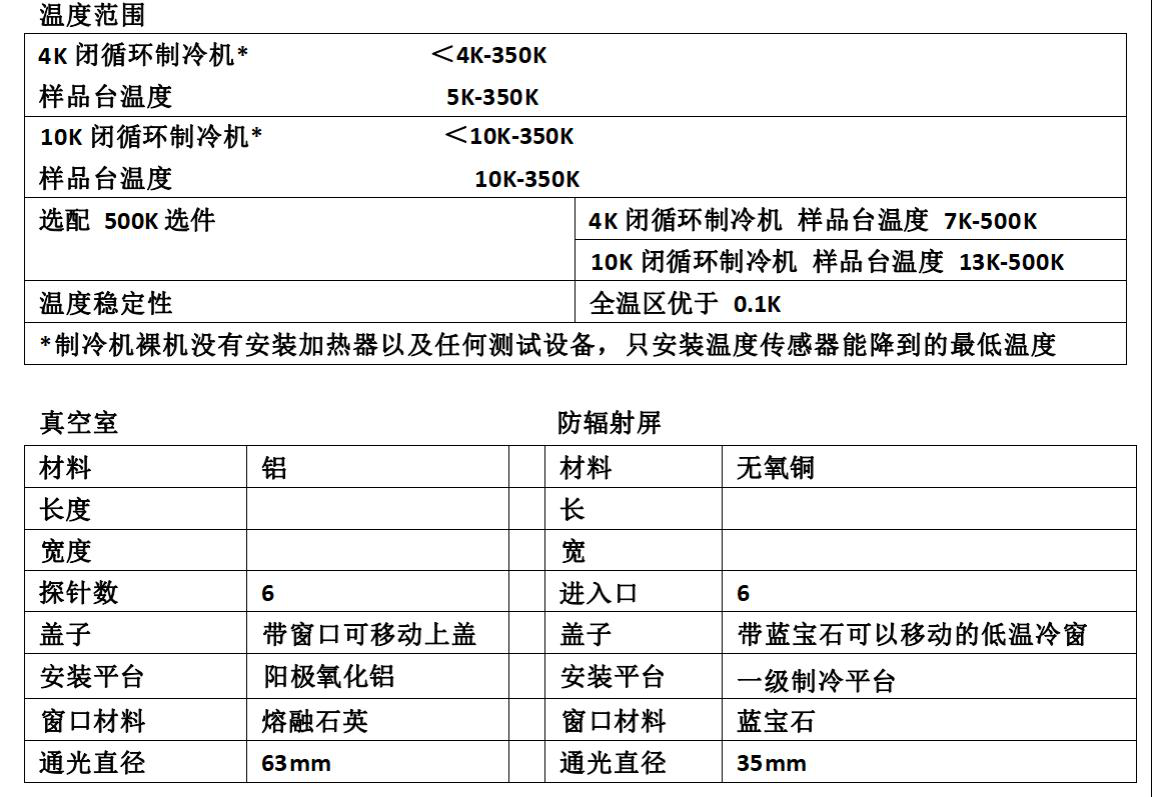

| Temperature Range 4K闭循环制冷机样品台温度 | <4K-350K |
| Temperature Range 10K闭循环制冷机样品台温度 | <10K-350K |
| Temperature Stability | ±0.1K |
| Vacuum Chamber Material | Aluminum |
| Vacuum Chamber Probe Count | 6 |
| Vacuum Chamber Cover | Movable cover with window |
| Vacuum Chamber Window Material | Quartz |
| Vacuum Chamber Optical Diameter | 63mm |
| Radiation Shield Material | Oxygen-free copper |
| Radiation Shield Probe Count | 6 |
| Radiation Shield Cover | Movable low-temperature window with sapphire |
| Radiation Shield Window Material | Sapphire |
| Radiation Shield Optical Diameter | 35mm |

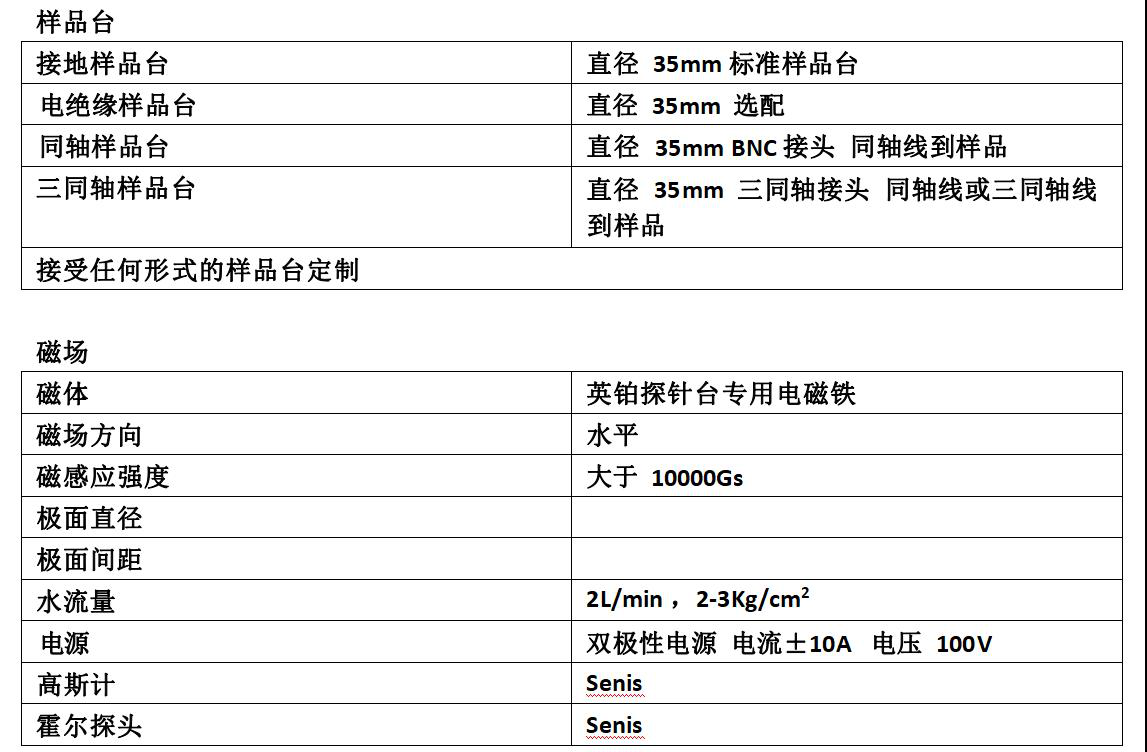

| Grounded Sample Stage Diameter | 35mm |
| Insulated Sample Stage Diameter | 35mm |
| Coaxial Sample Stage Diameter | 35mm |
| Tri-coaxial Sample Stage Diameter | 35mm |
| Magnet | Electromagnet for probe station |
| Magnetic Field Direction | Horizontal |
| Magnetic Induction Intensity | >10000Gs |
| Pole Face Diameter | 50mm |
| Pole Face Distance | 2L/min, 2-3kg/cm² |
| Power Supply | Dual-polarity power supply, 10A, 100V |

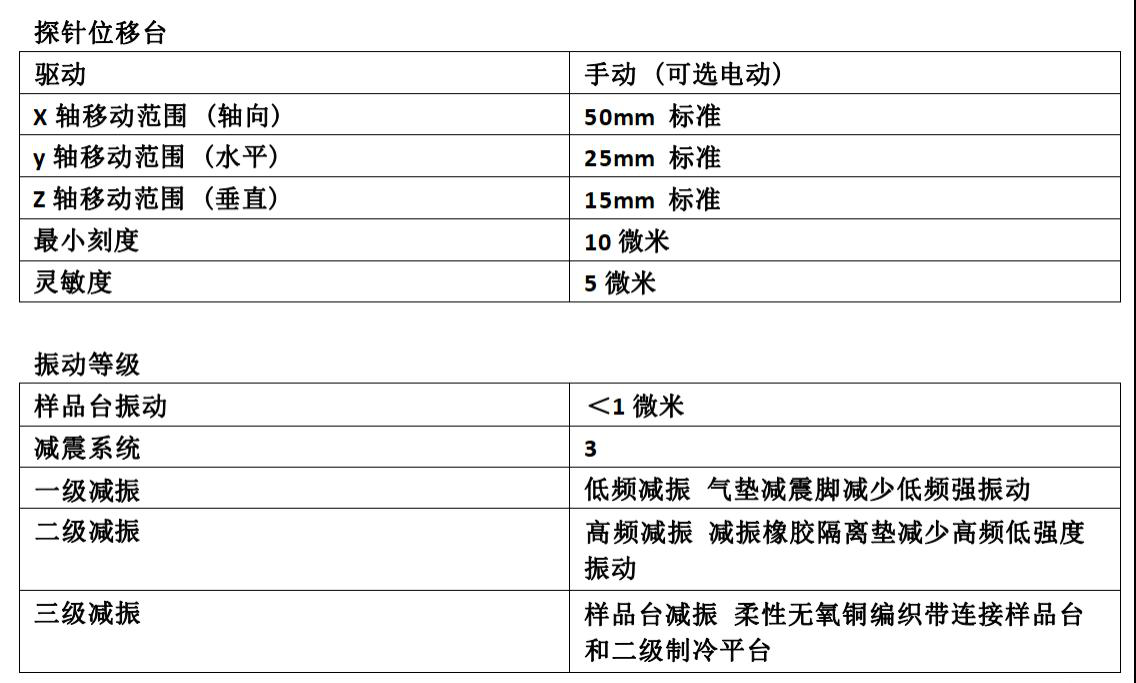

| Probe Positioning Stage Drive | Manual (optional electric) |
| Probe Positioning Stage X-axis Movement Range | 50mm |
| Probe Positioning Stage Y-axis Movement Range | 25mm |
| Probe Positioning Stage Z-axis Movement Range | 15mm |
| Probe Positioning Stage Minimum Scale | 10μm |
| Probe Positioning Stage Sensitivity | 5μm |
| Sample Stage Vibration | <1μm |
| Damping System | 3 levels |

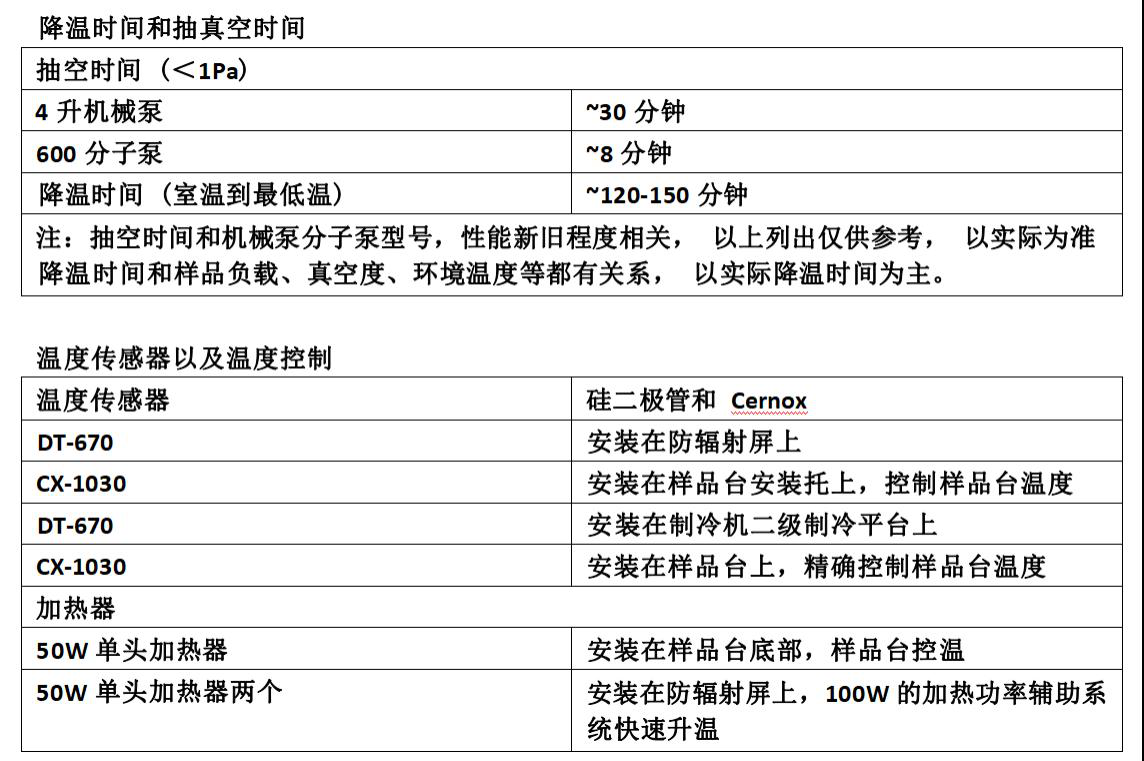

| Vacuum Pumping Time (4L Mechanical Pump) | ~30min |
| Vacuum Pumping Time (600 Molecular Pump) | ~8min |
| Cooling Time | ~120-150min |
| Temperature Sensor | Silicon diode and Cernox |
| Heater | 50W single-head heater |

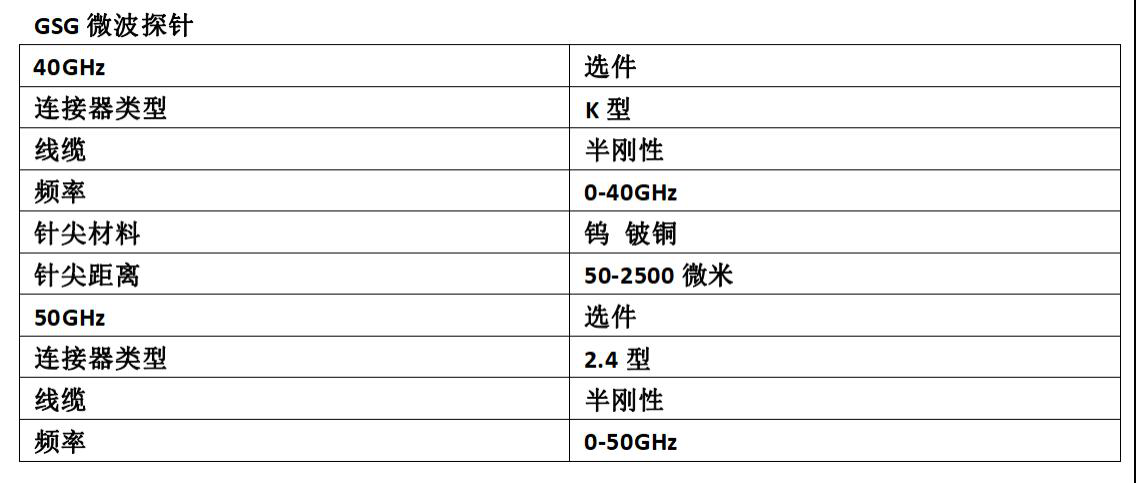

| GSG Microwave Probe 40GHz Connector Type | K-type |
| GSG Microwave Probe 40GHz Frequency | 0-40GHz |
| GSG Microwave Probe 40GHz Tip Material | Tungsten |
| GSG Microwave Probe 40GHz Tip Material | beryllium copper |
| GSG Microwave Probe 40GHz Tip Distance | 50-250μm |
| GSG Microwave Probe 50GHz Connector Type | 2.4-type |
| GSG Microwave Probe 50GHz Frequency | 0-50GHz |
| GSG Microwave Probe 50GHz Tip Material | Tungsten |
| GSG Microwave Probe 50GHz Tip Material | beryllium copper |
| GSG Microwave Probe 50GHz Tip Distance | 50-250μm |

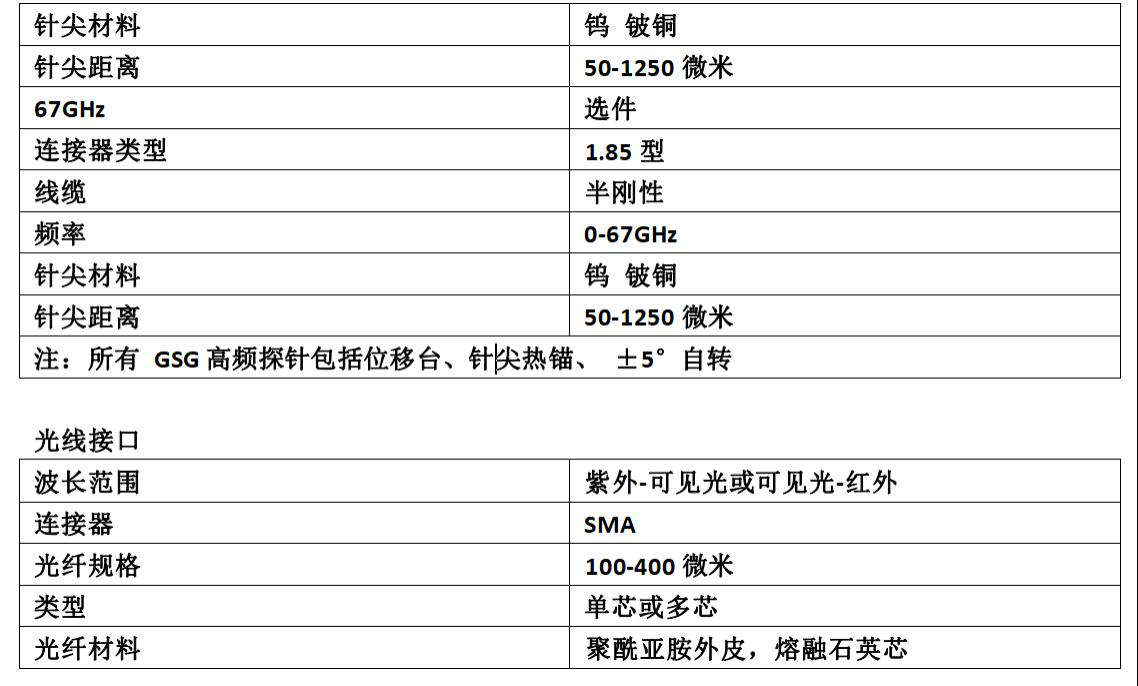

| GSG Microwave Probe 67GHz Connector Type | 1.85-type |
| GSG Microwave Probe 67GHz Frequency | 0-67GHz |
| GSG Microwave Probe 67GHz Tip Material | Tungsten |
| GSG Microwave Probe 67GHz Tip Material | beryllium copper |
| GSG Microwave Probe 67GHz Tip Distance | 50-1250μm |
| Optical Interface Wavelength Range | UV-visible or visible light-infrared |
| Optical Interface Connector | SMA |
| Optical Interface Fiber Specification | 100-400μm |
| Optical Interface Type | Single-core or multi-core |
| Optical Interface Fiber Material | Polyimide cladding |
| Optical Interface Fiber Material | quartz core |

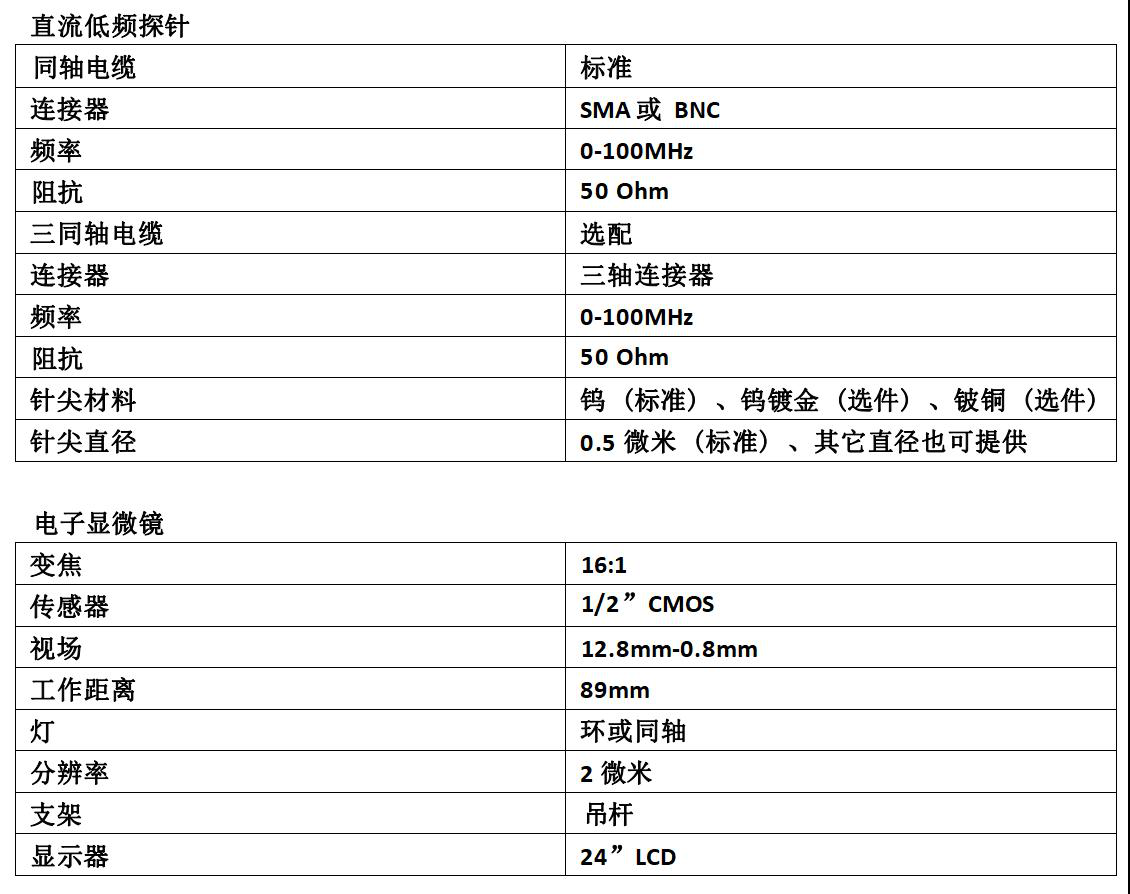

| DC Low-Frequency Probe Coaxial Cable | Standard |
| DC Low-Frequency Probe Connector | SMA or BNC |
| DC Low-Frequency Probe Frequency | 0-100MHz |
| DC Low-Frequency Probe Impedance | 50Ohm |
| DC Low-Frequency Probe Tri-coaxial Cable | Optional |
| Electron Microscope Zoom | 16:1 |
| Electron Microscope Sensor | 1/2” CMOS |
| Electron Microscope Field of View | 12.8mm-0.8mm |
| Electron Microscope Working Distance | 89mm |
| Electron Microscope Light | Ring or coaxial |
| Electron Microscope Resolution | 2μm |
| Electron Microscope Stand | Suspension |
| Electron Microscope Display | 24” LCD |
