MPI TS2000-SE

MPI TS2000-SE

Supplier
Ybsemi-Solution
Part Number
MPI TS2000-SE
Category
Probe Station
Origin
China

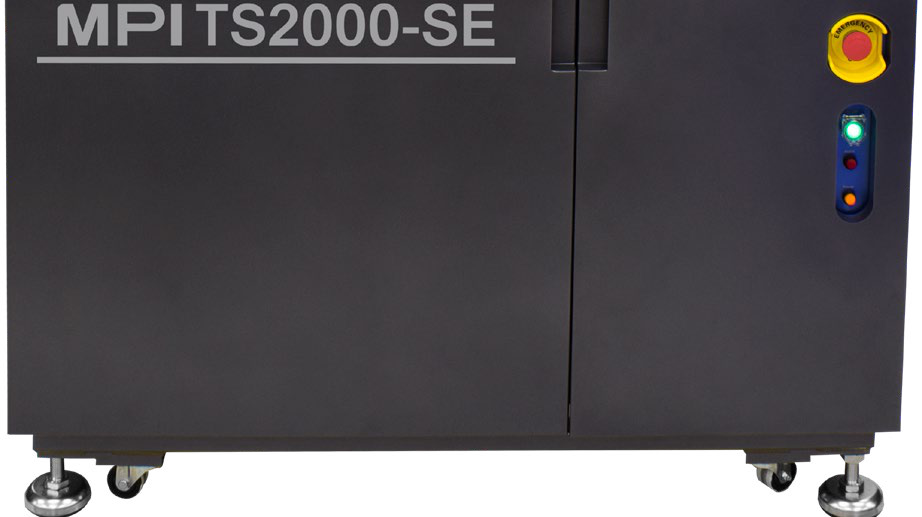

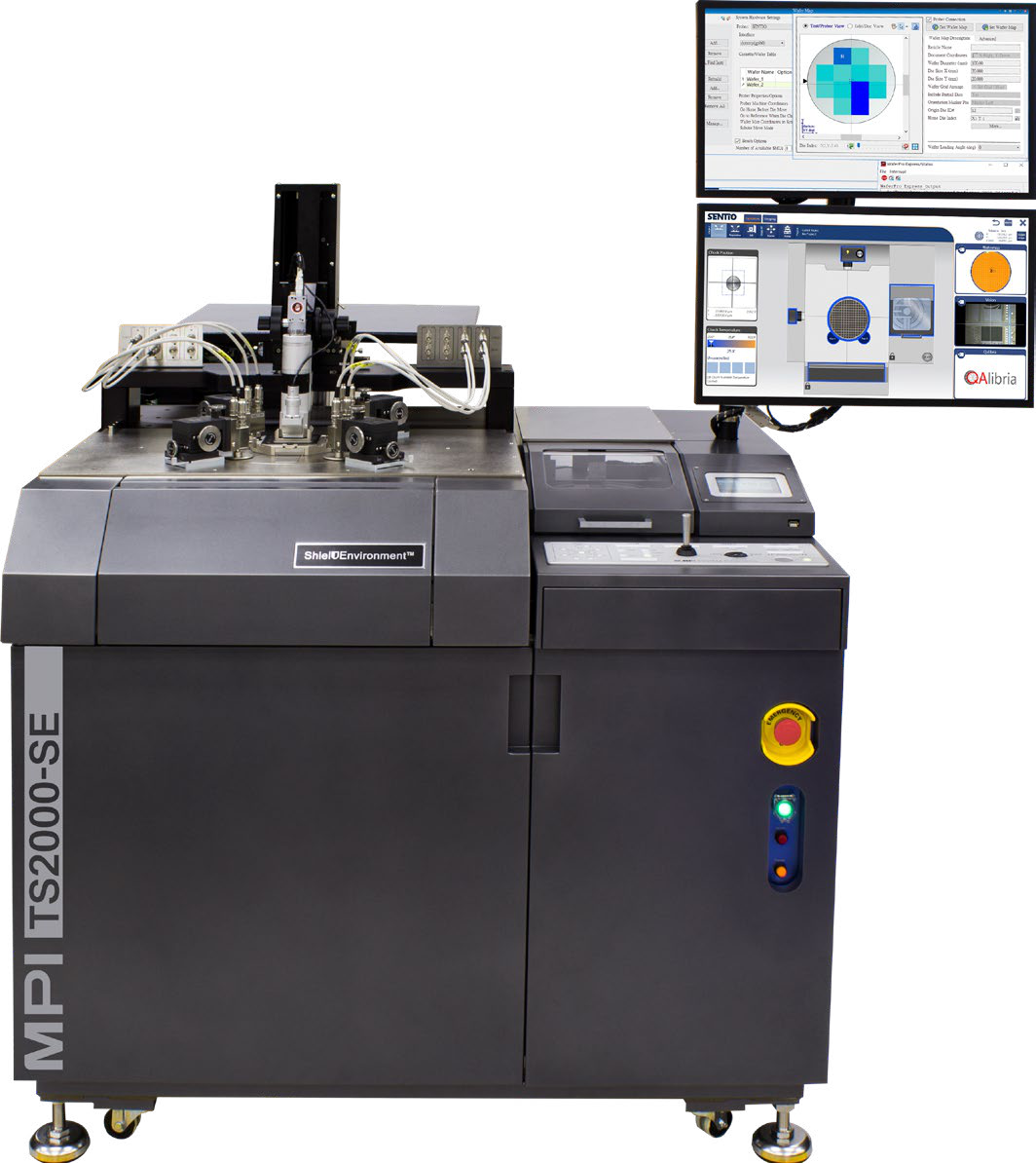

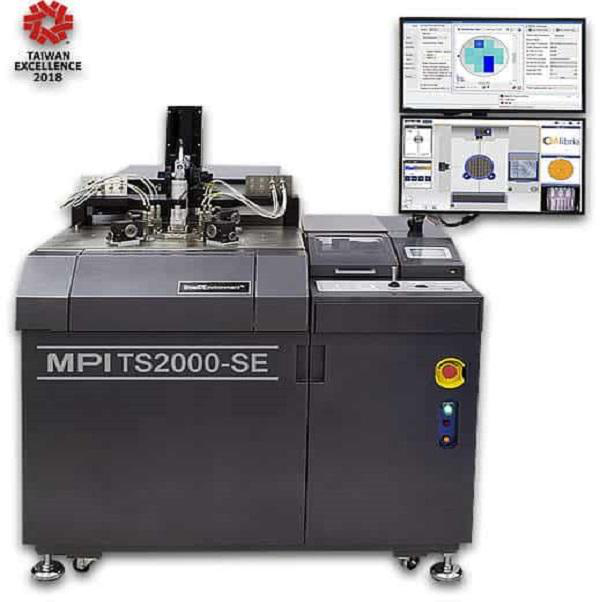

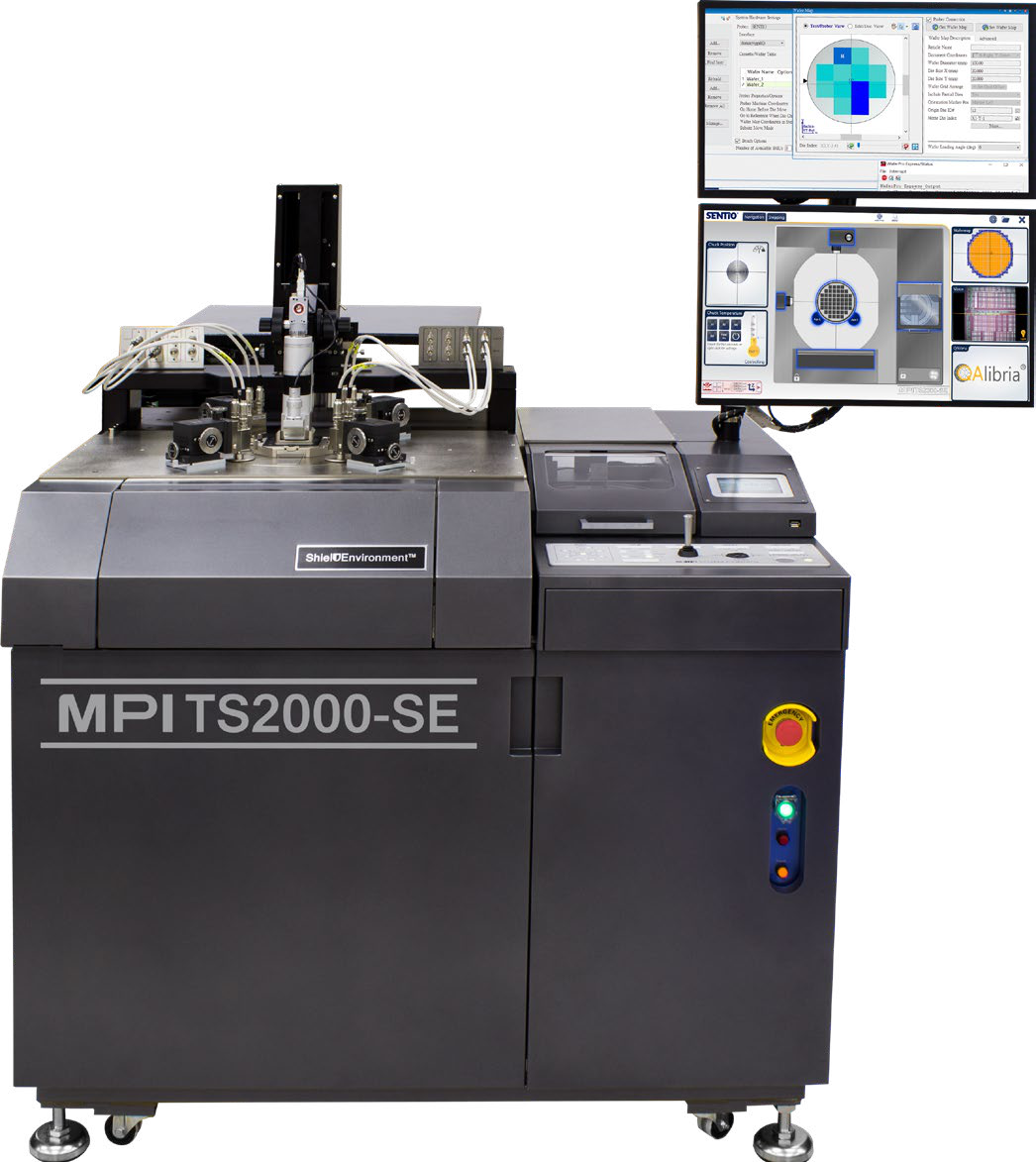

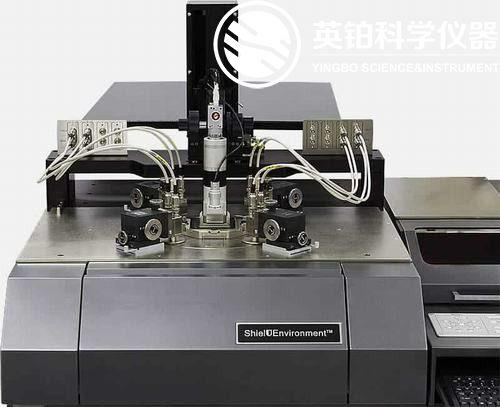

The MPI TS2000-SE is a 200 mm automated probe system designed for accurate and reliable DC/CV, RF, and mmW measurements. It features advanced EMI/RFI shielding, ergonomic design, and integrated software for efficient testing.

Specification Snapshot
Video Camera Sensor Size
7.07mm x 5.3mm
Video Camera Resolution
2048x1536 pixels
Wafer Alignment Camera Sensor Size
7.07mm x 5.3mm
Wafer Alignment Camera Resolution
2048x1536 pixels
Capacitance
<900pF
System Dimensions
1180x970x1450mm (46.5x38.2x57.1in)
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The MPI TS2000-SE is a 200 mm automated probe system designed for accurate and reliable DC/CV, RF, and mmW measurements. It features advanced EMI/RFI shielding, ergonomic design, and integrated software for efficient testing.

Specifications

ParameterValue
Chuck XY Stage Travel Range210x300mm (8.27x11.81in)
Resolution0.0004°
Accuracy<2.0μm
Repeatability<1.0μm
XY Stage DriveHigh resolution stepper motor with linear encoder feedback system
Speed10μm/sec to 4mm/sec
Chuck Z Stage Travel Range50mm (2in)
Z Stage DriveHigh resolution stepper motor with integrated pin drive system
Chuck Theta Stage Travel Range±6.0°
Theta Stage DriveHigh resolution stepper motor with linear encoder feedback system
Video Camera Sensor Type1/1.8'' mono CCD
Video Camera Sensor Size7.07mm x 5.3mm
Video Camera Pixels3MP
Video Camera Resolution2048x1536 pixels
Wafer Alignment Camera Sensor Type1/1.8'' color CCD
Wafer Alignment Camera Sensor Size7.07mm x 5.3mm
Wafer Alignment Camera Pixels3MP
Wafer Alignment Camera Resolution2048x1536 pixels

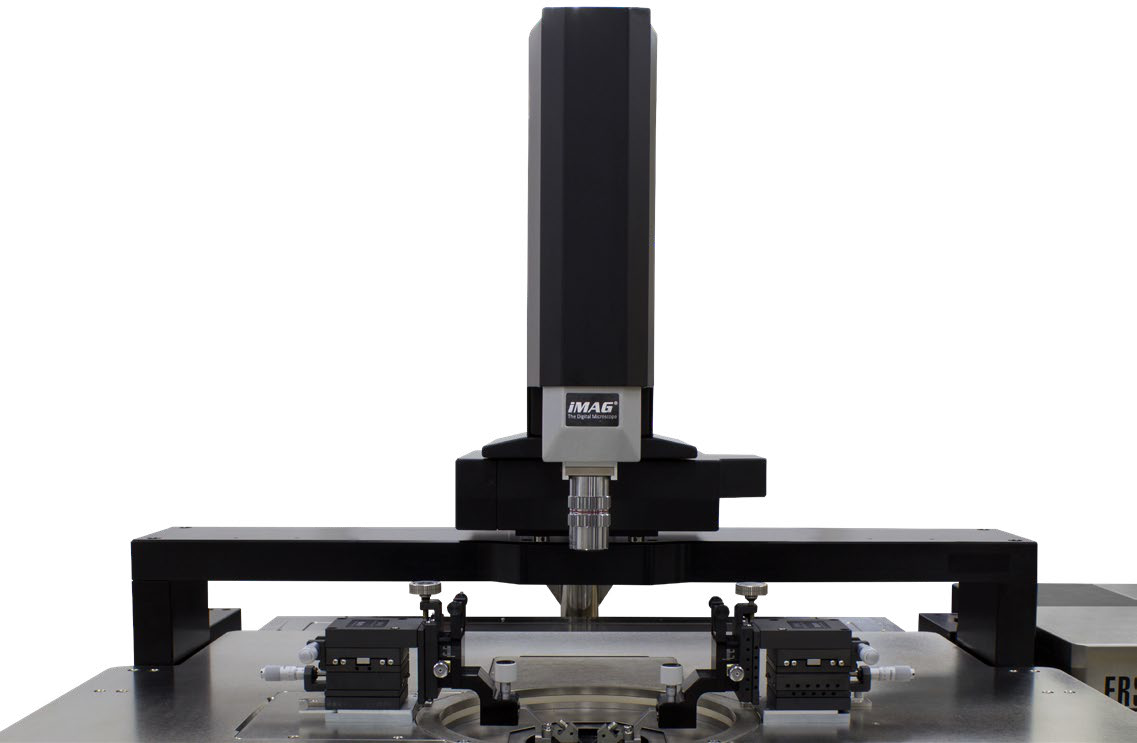

Microscope XYZ Travel Range50x50mm
Microscope Resolution1μm (0.04mils)
Microscope Repeatability<2μm (0.08mils)
Microscope Accuracy<5μm (0.2mils)
Microscope Z Travel Range140mm
Microscope Z Resolution0.05μm (0.002mils)
Microscope Z Repeatability<2μm (0.08mils)
Microscope Z Accuracy<4μm (0.016mils)
Probe Platen MaterialNickel plated steel
Probe Platen Heightmin. 5mm

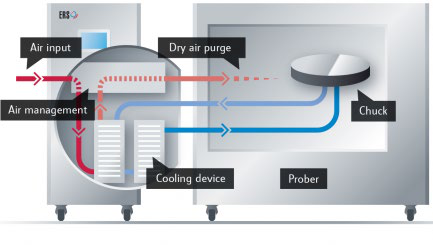

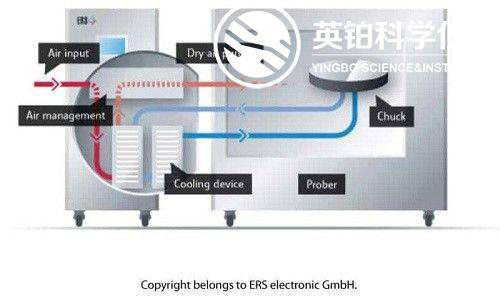

Probe Platen FeatureIntegrated Air-Cool platen control for thermal stability of MicroPositioners

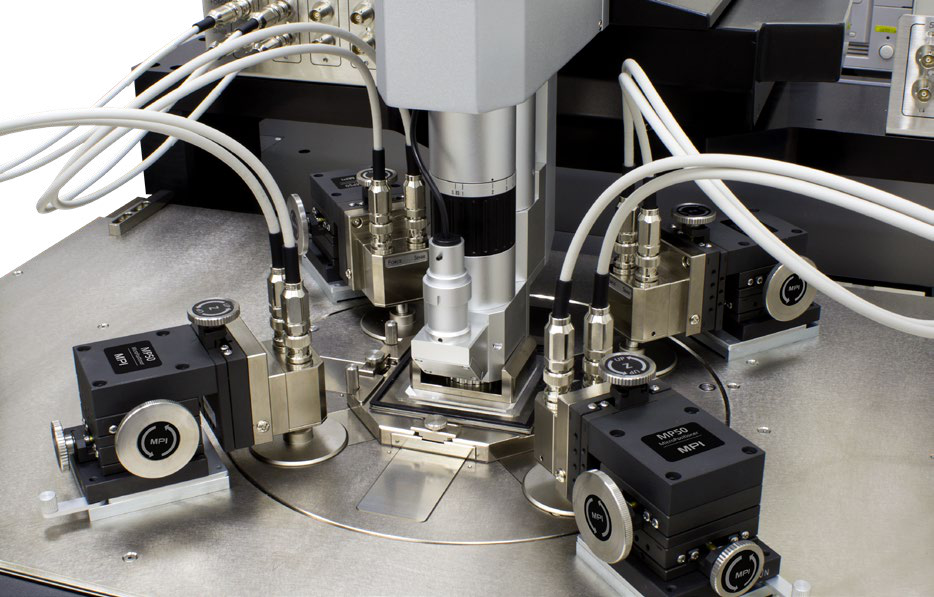

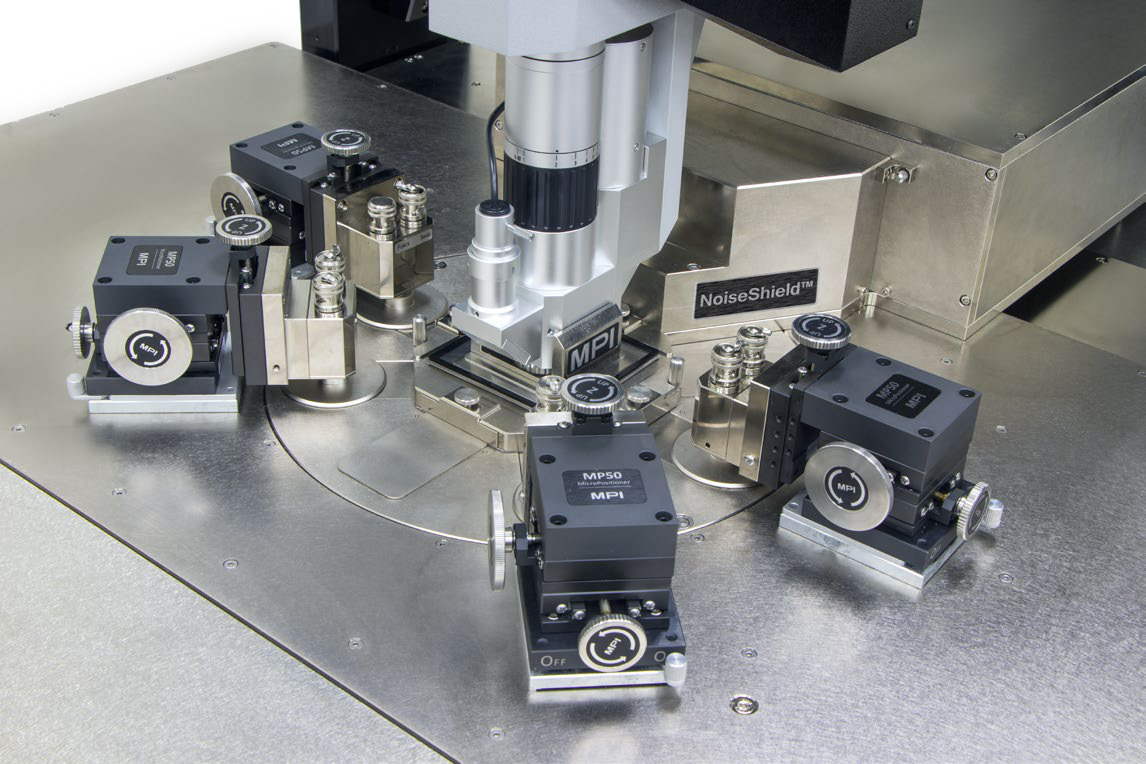

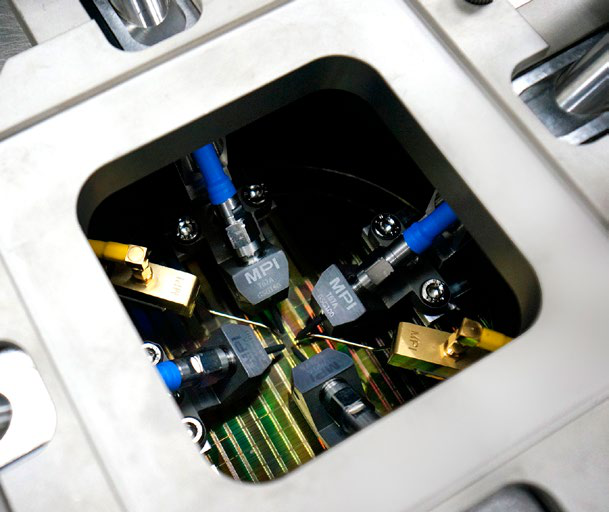

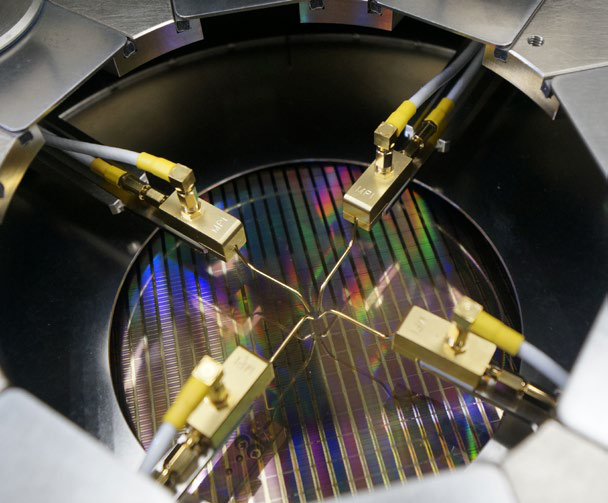

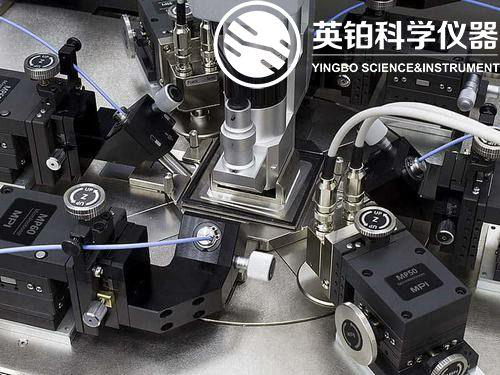

Max. No of MicroPositioners8x DC or 4x DC + 2x RF or 2x DC + 4x RF or 4x DC + 4x RF Setup
EMI Shielding>30dB (typical) @ 1kHz to 1MHz
Light Attenuation≥130dB
Spectral Noise Floor≤-180dBVrms/rtHz (≤1MHz)
System AC Noise≤5mVp-p (≤1GHz)

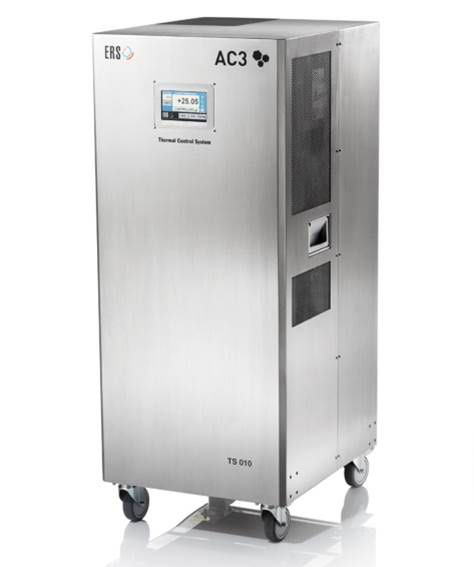

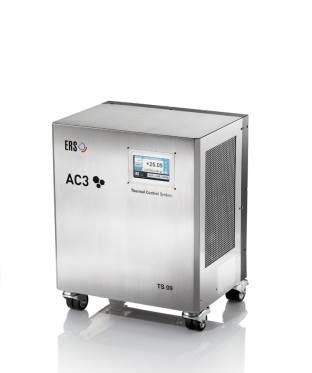

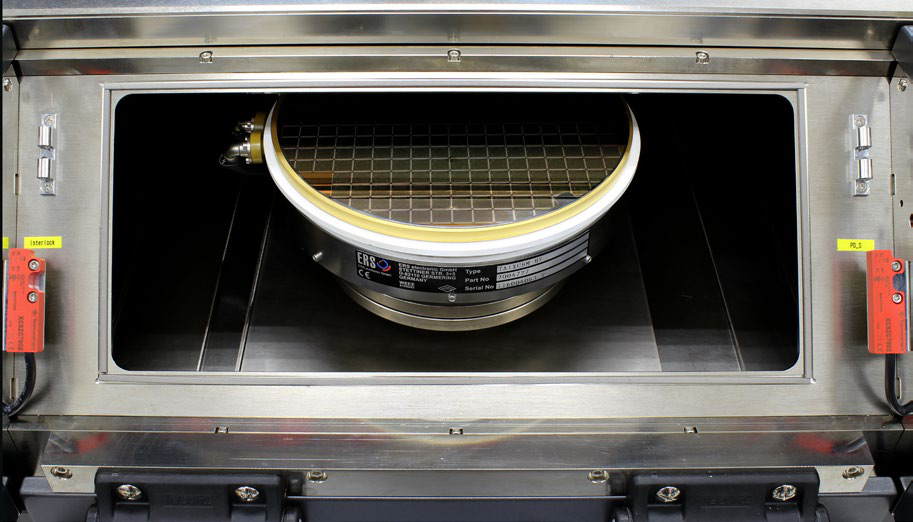

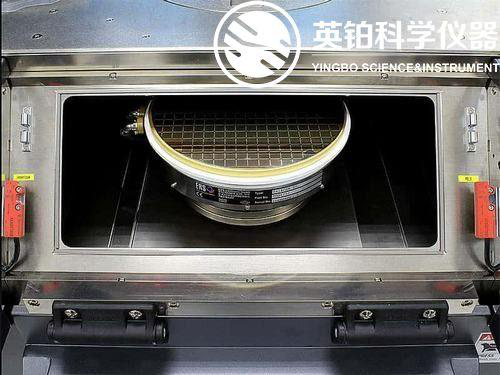

Temperature range-60°C to 300°C
Temperature Stability±0.08°C
Temperature Accuracy±0.1°C
Temperature Uniformity<±0.5°C at 200°C
Surface Flatness and Base Parallelism<±10μm at 200°C
Heating Rates200 to 200°C <20min
Cooling Rates200 to 20°C <20min
Electrical Isolation>10TΩ at 25°C
Leakage Current<15fA at 25°C
Capacitance<900pF
Maximum Voltage500V DC
System Dimensions1180x970x1450mm (46.5x38.2x57.1in)
Weight650kg
System Controller CPUIntel Core i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151(4C/8T)
System Controller RAMDDR4 2400MHz 16GB x1
System Controller Operating SystemWindows 10 Professional (English)
System Controller Power460W
System Controller StorageSSD 500GB
System Controller LANOne internal and one external TCP/IP ports
System Controller USB PortsInternal (on PC) x3, external x1
System Controller GPIB InterfaceOptional
Supported Software PlatformsWaferPro / IC-CAP & EasyEXPERT from Keysight, BSIMPro & NoisePro from ProPlus, ACS from Keithley
Power100-240V AC nominal; 50/60Hz
Vacuum-0.9bar
Compressed Air6.0bar

Applications

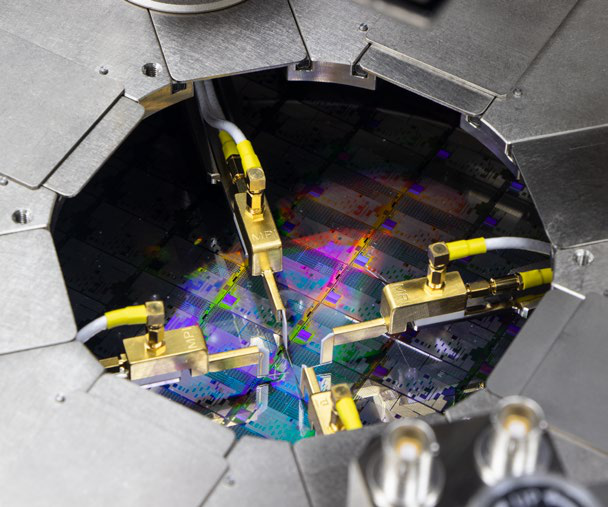

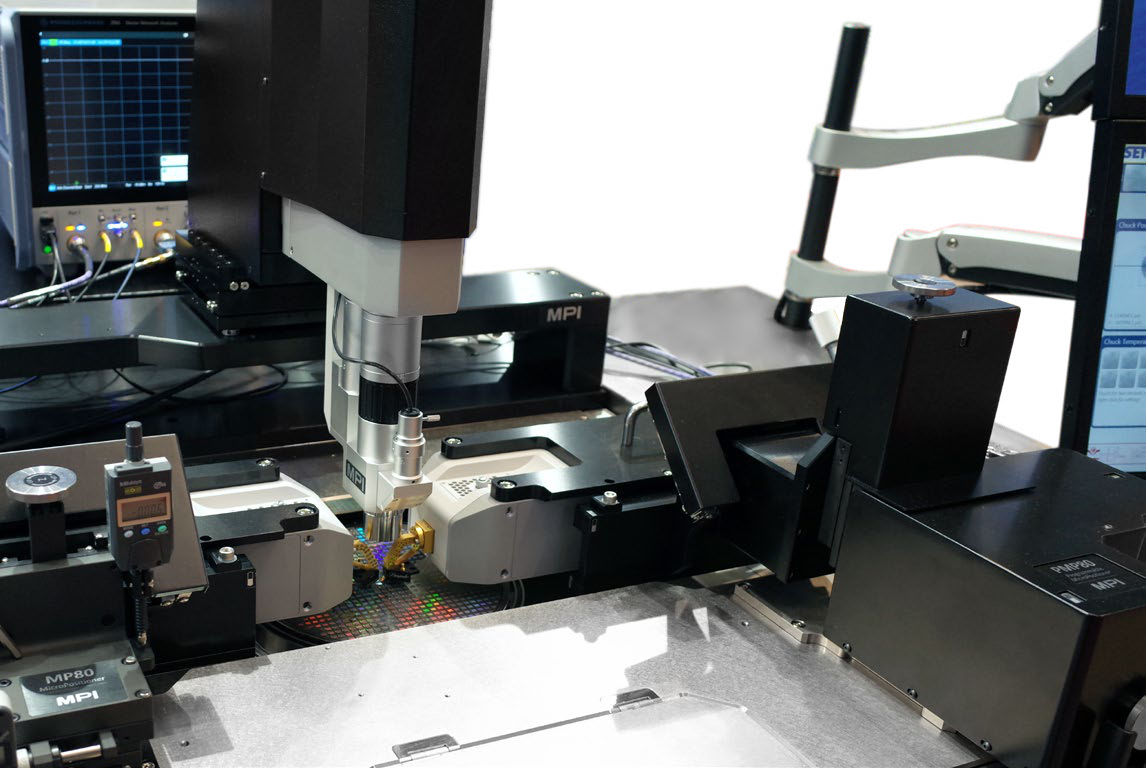

1. Device modeling for DC-IV, DC-CV, and Pulse-IV 2. RF and mmW setup from 26 GHz to 110 GHz and beyond 3. Failure analysis for probe card and internode probing 4. Wafer level reliability testing for hot/cold/long-term tests

Key Features

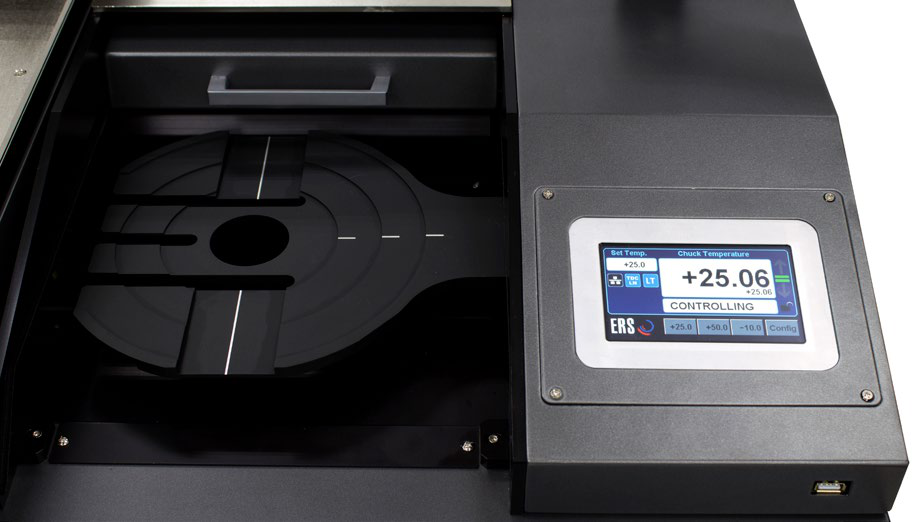

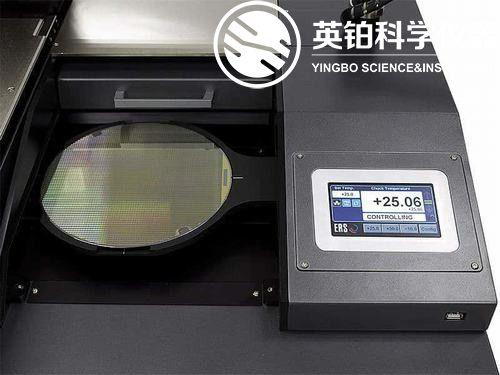

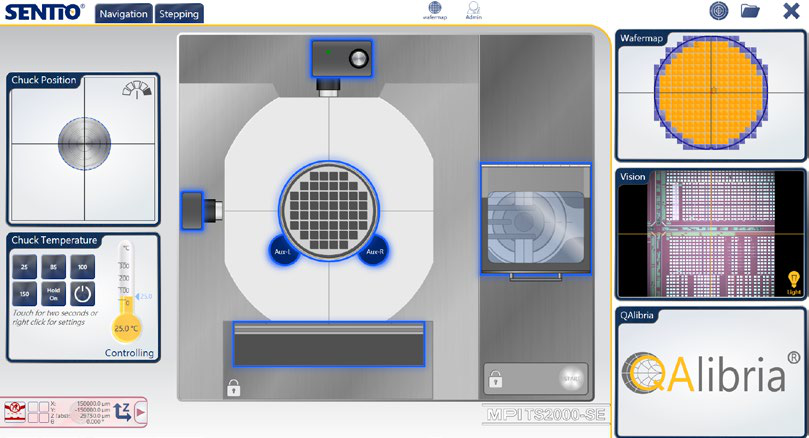

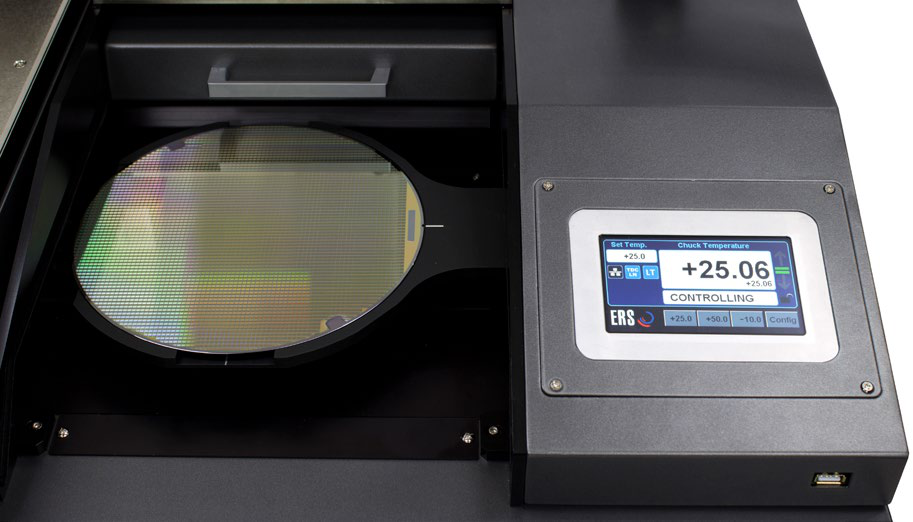

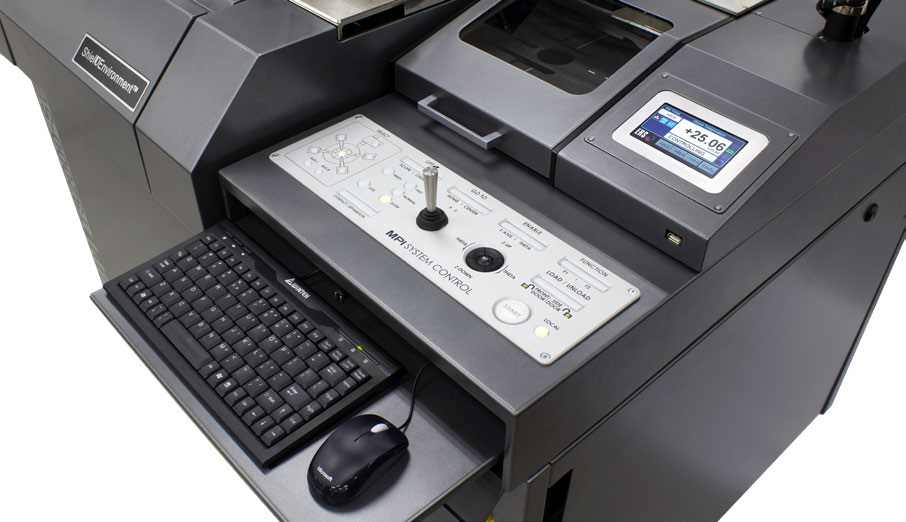

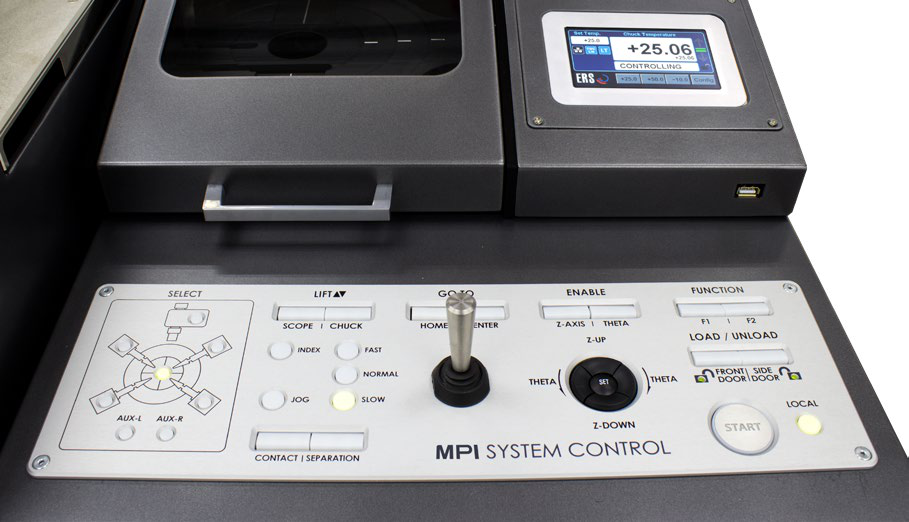

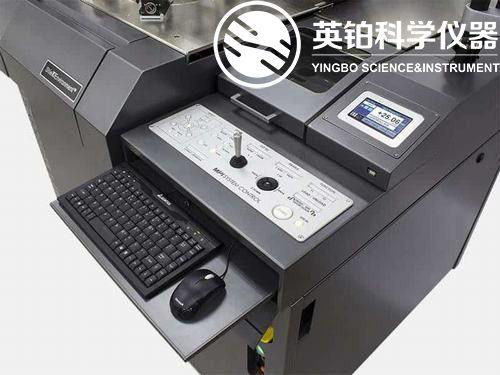

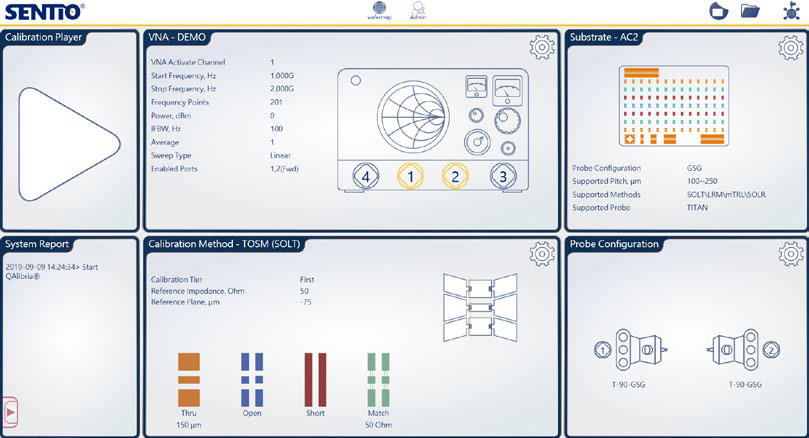

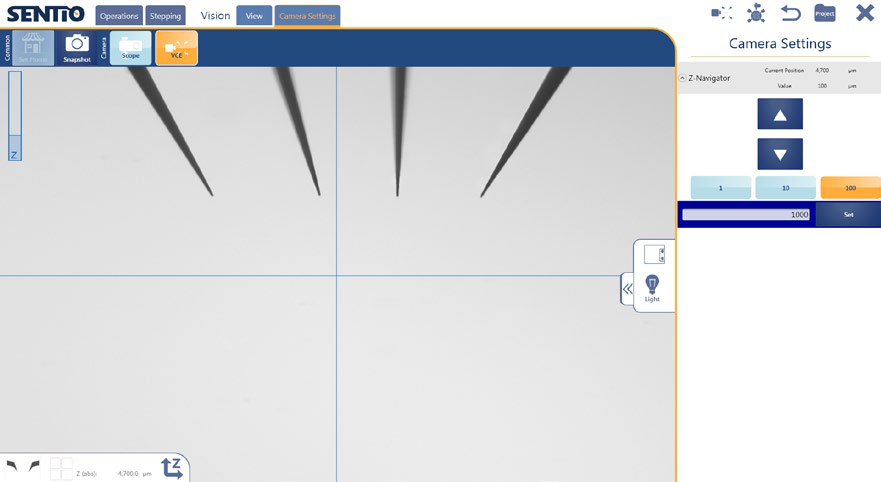

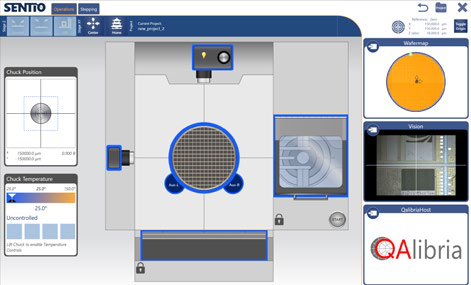

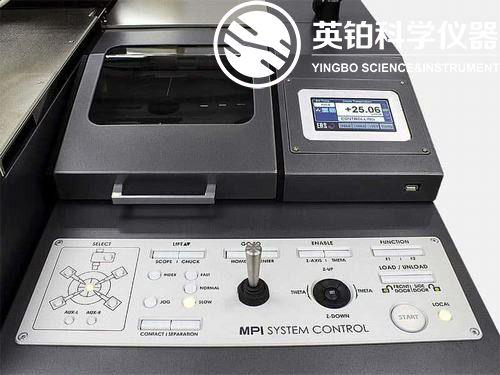

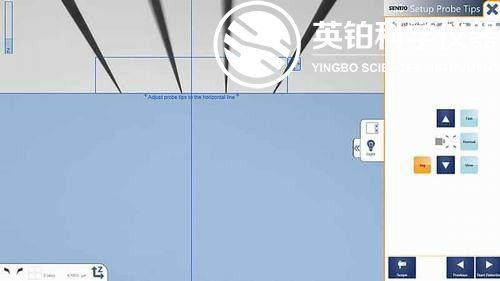

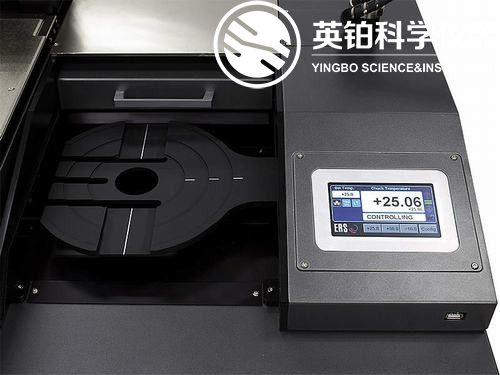

1. Advanced EMI/RFI shielding for accurate measurements 2. Ergonomic design for safe and efficient operation 3. Integrated active vibration isolation system 4. Automated single wafer loader and hot swap capability 5. Multi-touch software suite for intuitive operation
