TS200-THZ

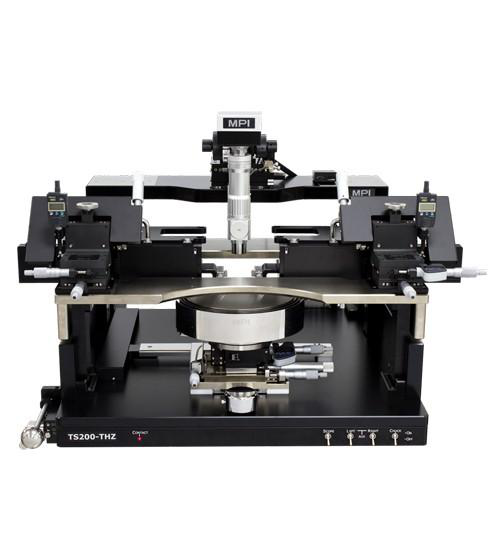

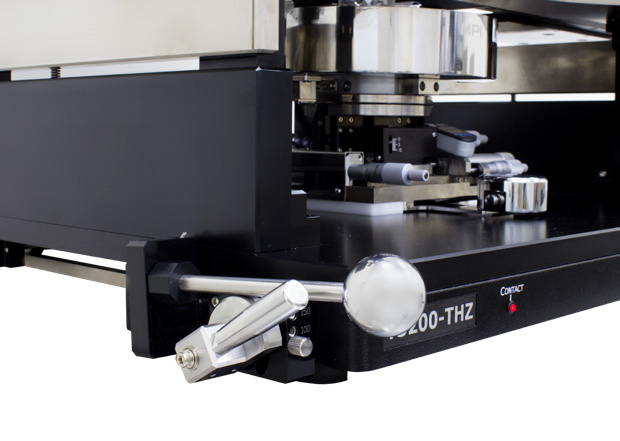

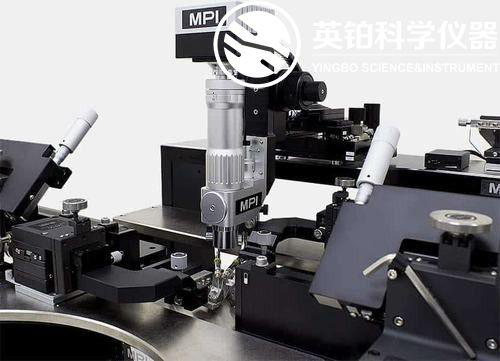

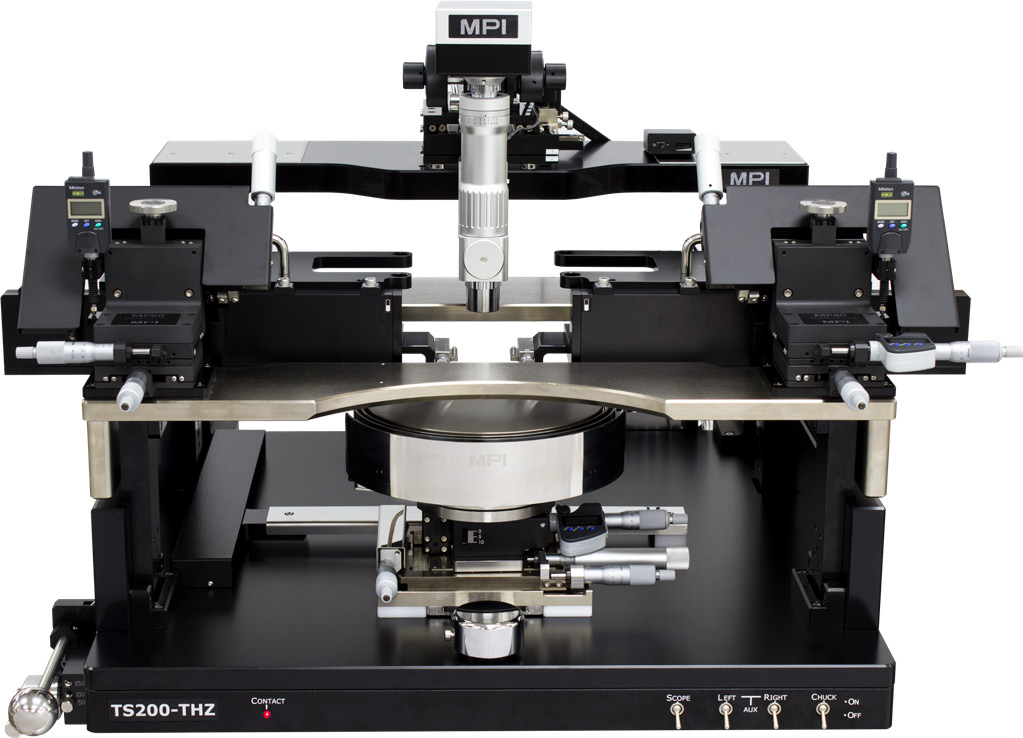

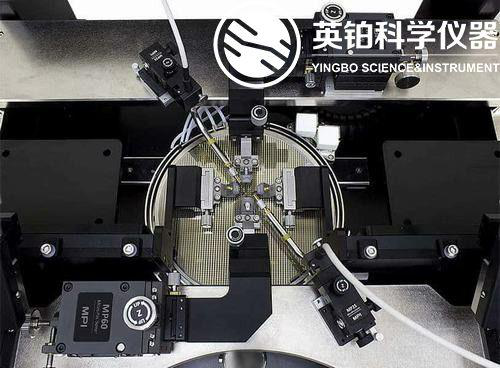

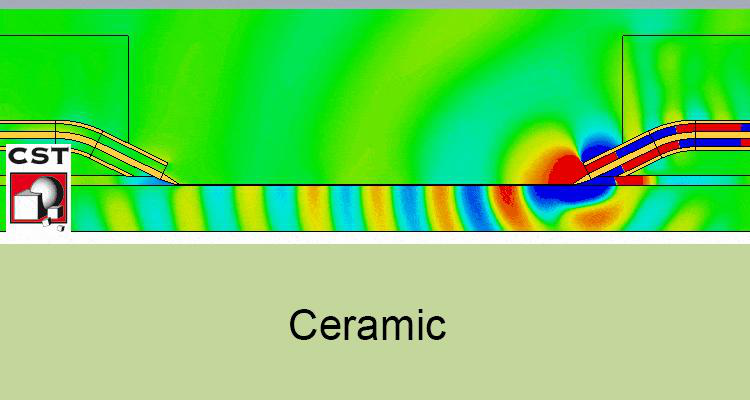

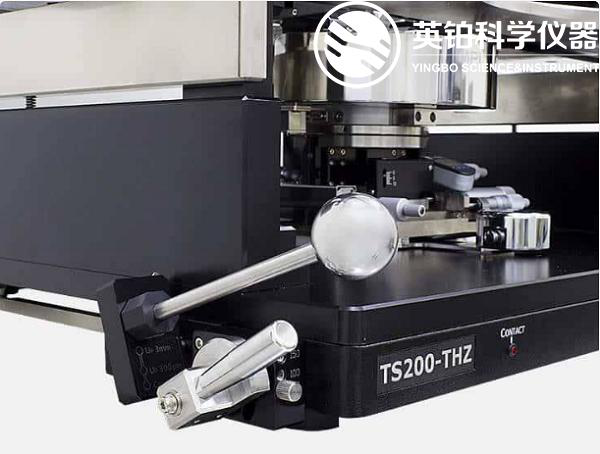

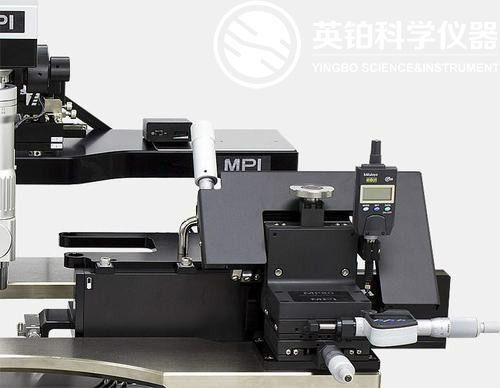

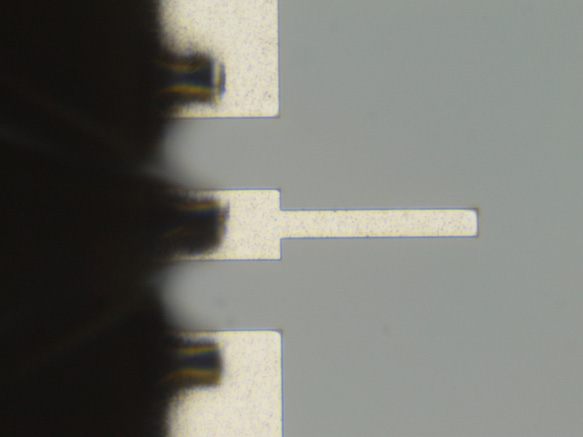

The TS200-THZ is a 200 mm manual probe system designed for precise testing of mm-wave, THz, and automated impedance tuner applications.
Save to Favorites
Overview
Specifications

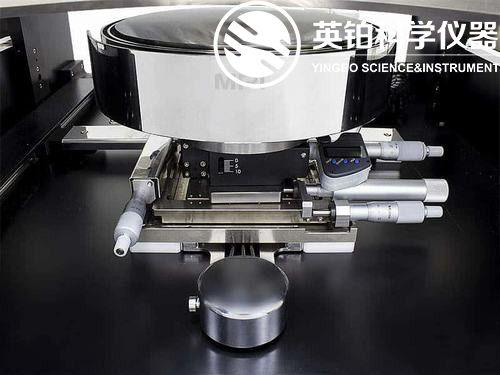

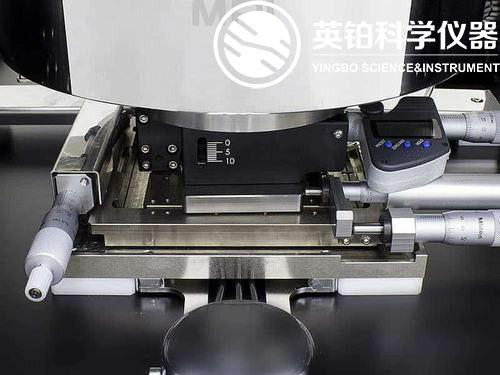

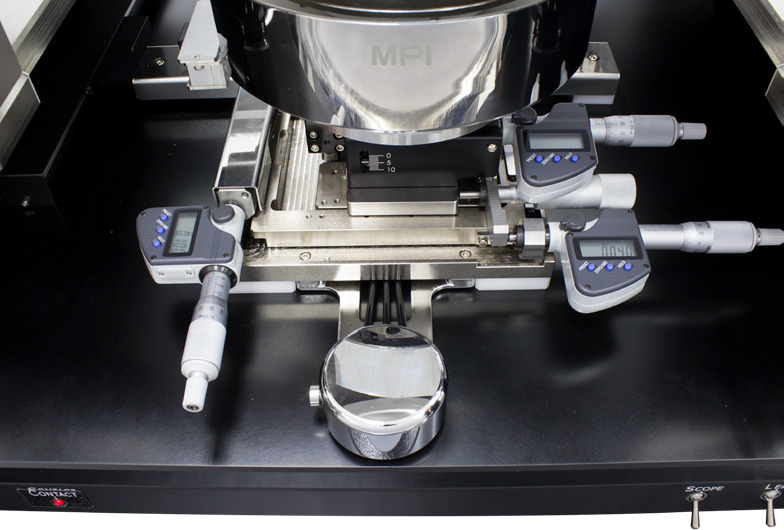

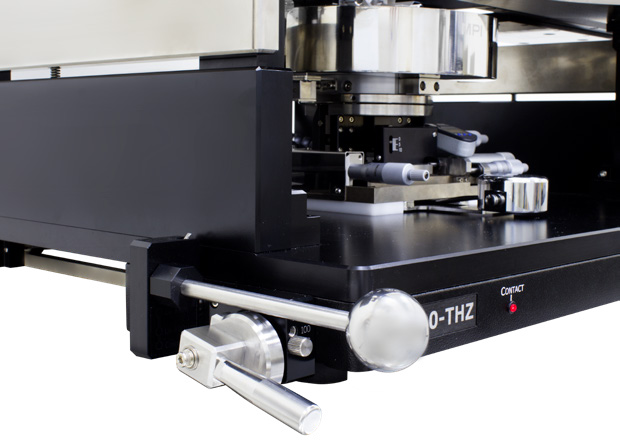

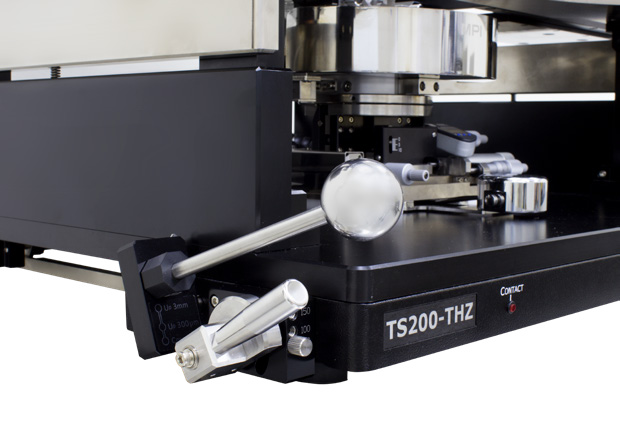

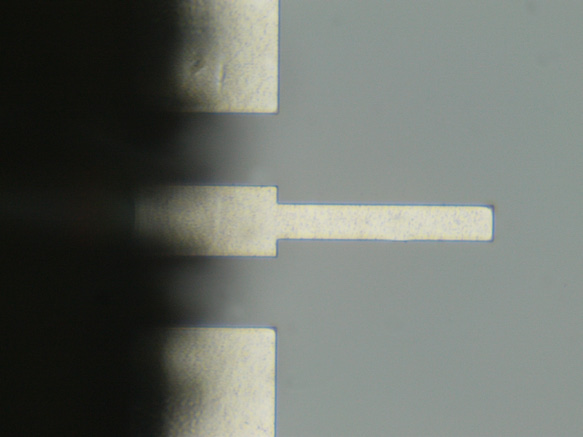

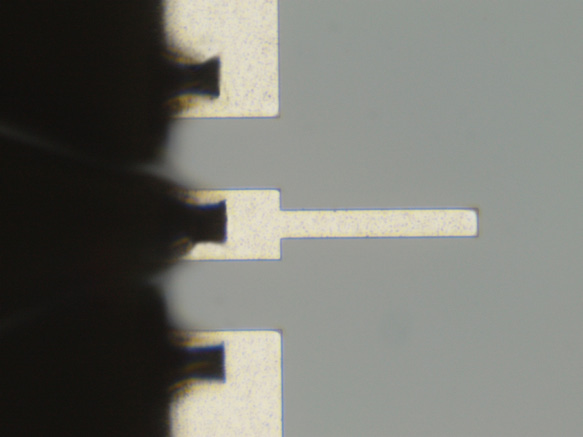

| Parameter | Value |
|---|---|
| Total Travel Range | 255x325mm (10.0x12.8in) |
| Fine Travel Range | 25x25mm |
| Fine Travel Resolution | <1.0μm (0.04mils)@500μm/rev |
| Planarity | <10μm |
| Theta Travel (Standard) | 360° |
| Theta Travel (Fine) | ±5.0° |
| Theta Resolution | 7.5x10⁻³ gradient |
| Chuck Z Stage Travel Range | 10mm (0.4in) |
| Chuck Z Stage Fine Travel Resolution | <1.0μm (0.04mils)@500μm/rev |
| Manual Microscope Stage Movement Range | 50x50mm (2x2in) or 80x80mm (3.15x3.15in) |
| Resolution | <5μm (0.2mils) |
| Scope Lift | Manual; tilt-back or vertical |
| Movement | Independently controlled X and Y movement with locking screws |
| Probe Platen Design | Low profile |
| Probe Platen Design | four pole support |
| Material | Nickel plated steel |
| Separation Repeatability | <1μm (0.04mils) |
| Platen Lift Control | 3 positions - contact (0), separation (300μm), loading (3mm) |

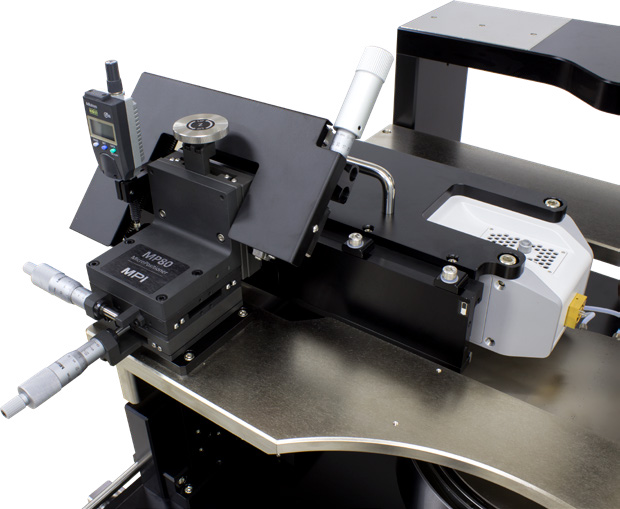

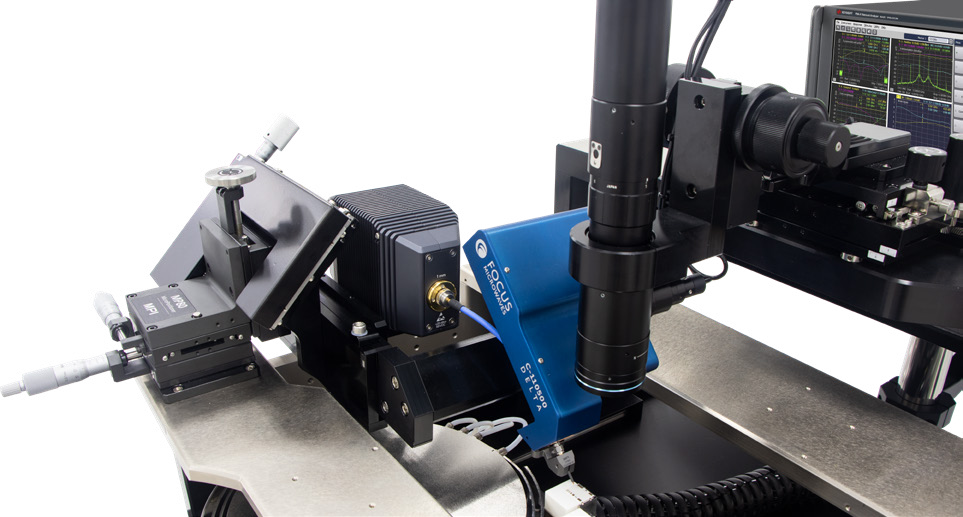

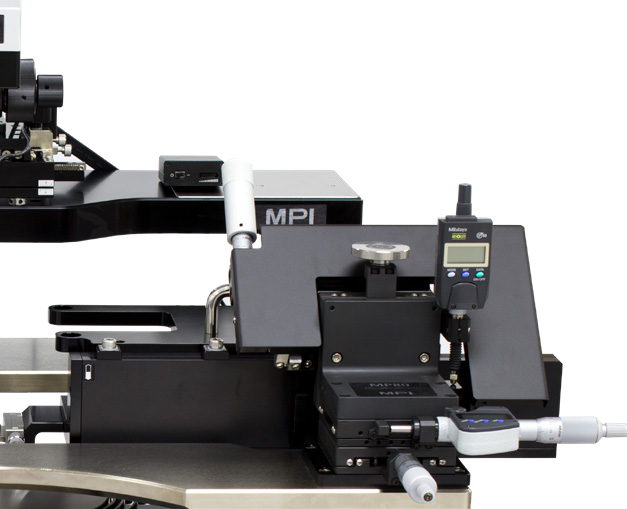

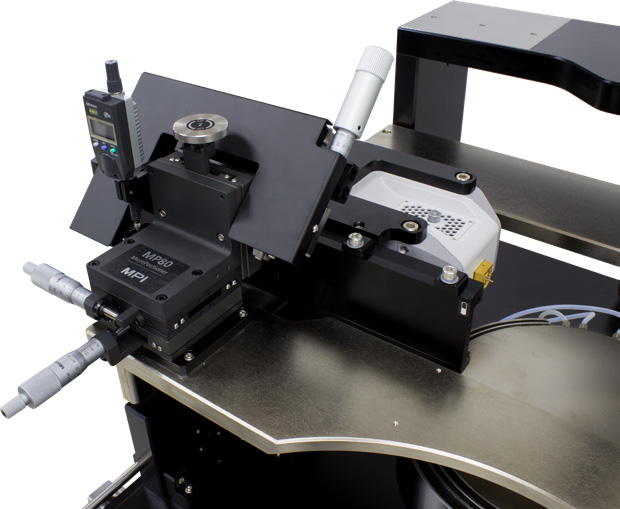

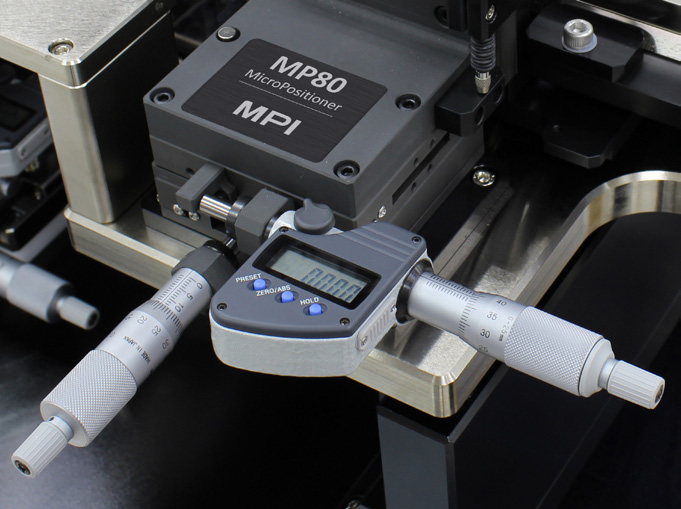

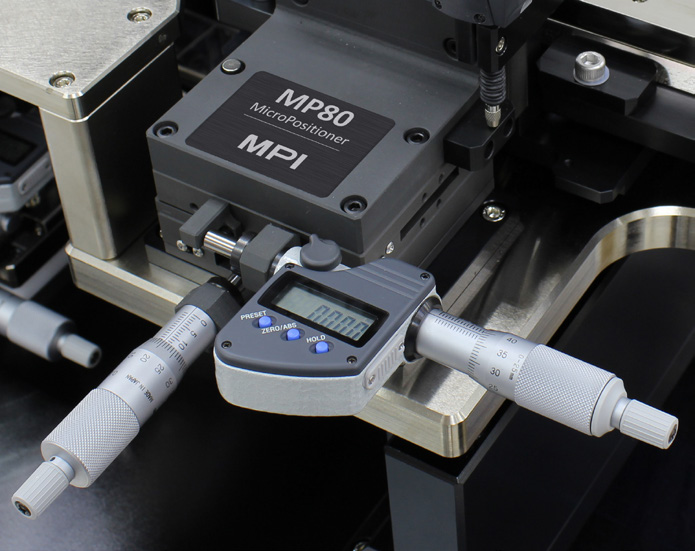

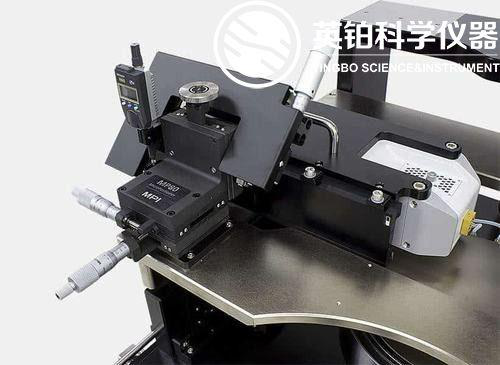

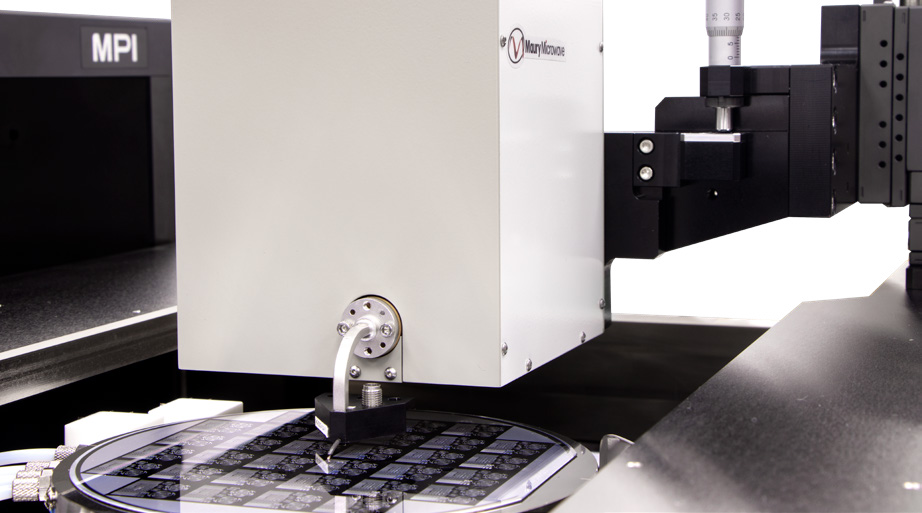

| RF MicroPositioner Mounting | Magnetic with guided rail |
| DC MicroPositioner Mounting | Magnetic |
| RF Wafer Chuck Diameter | 210mm |
| Material | Nickel plated aluminum |
| Surface Planarity | ≤5μm |
| Rigidity | <15μm/10N@edge |
| Electrical Isolation | >2GΩ |
| Temperature range | 35°C to 150°C |
| Temperature Stability | ±0.5°C |
| Temperature Accuracy | ±1°C |
| Surface Flatness | <15μm |
| Heating and Cooling Rates | 35°C to 150°C <12min; 150°C to 35°C <15min |
| Electrical Isolation | >0.5TΩ@25°C |
| Leakage@10V | N/A |
| Capacitance | <750pF |
| Maximum Voltage | 500V DC |
| Vibration Isolation Table Dimensions | 900x800x835mm (35.4x31.5x32.9in) |
| Weight | Approx. 210kg (463lb) |
