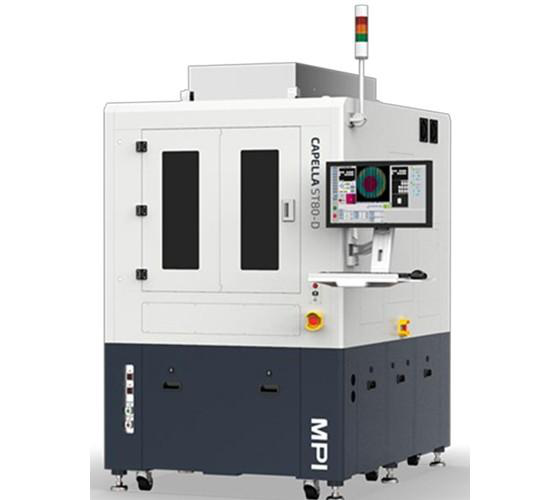

Capella ST80-D
Capella ST80-D is a high-precision die sorting and handling system designed for optical sensing, optical communications, and LED applications. It offers advanced features for efficient and accurate die placement and rotation.
Save to Favorites
Overview
Specifications

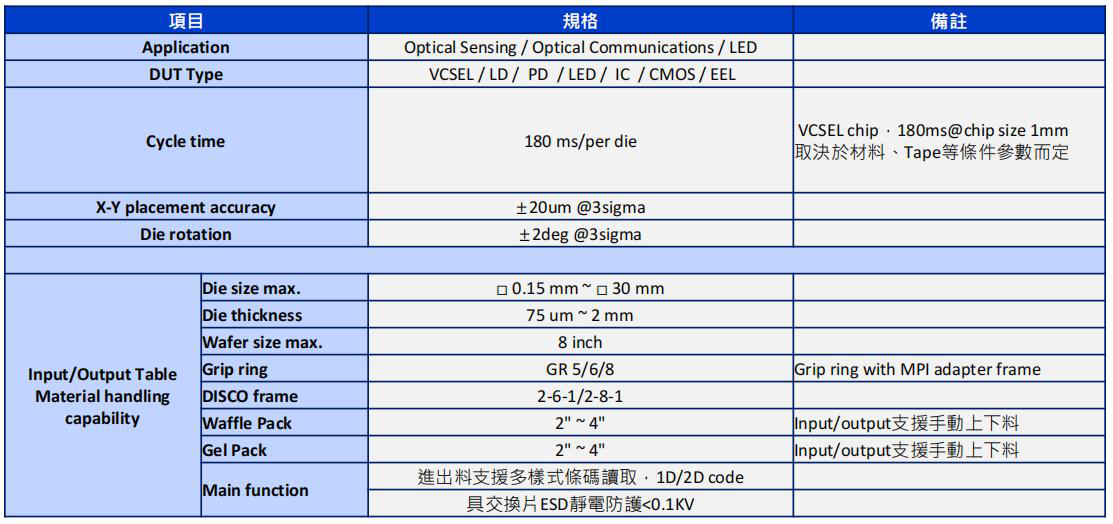

| Parameter | Value |
|---|---|
| Application | Optical Sensing/Optical Communications/LED |
| DUT Type | VCSEL/LD/PD/LED/IC/CMOS/EEL |
| Cycle Time | 180ms/per die |
| X-Y Placement Accuracy | ±20um@3sigma |
| Die Rotation | ±2deg@3sigma |
| Die Size Max | □0.15mm~□30mm |
| Die Thickness | 75um~2mm |
| Wafer Size Max | 8inch |
| Grip Ring | GR5/6/8 |
| DISCO Frame | 2-6-1/2-8-1 |
| Waffle Pack | 2"~4" |
| Gel Pack | 2"~4" |
| OS | Windows 10 x64 (Upgradable to Windows 11 x64) |
| Multilingual Support | Simplified Chinese/Traditional Chinese/English |
| File Input | Supports various wafer map formats |
| File Output | Customized report format output |
| Production Information | Production log/machine log/operation rate log |
| Production System Support | MES/SECS-GEM support |

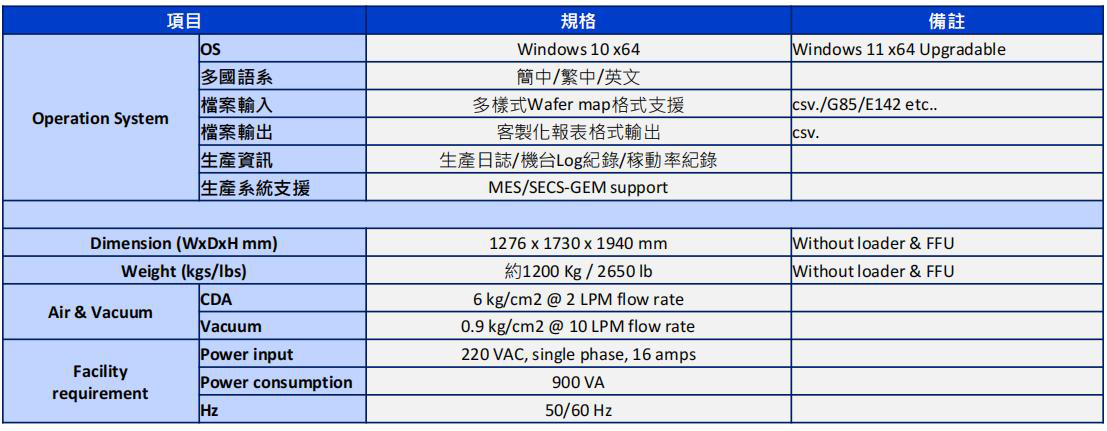

| Dimension (WxDxH mm) | 1276x1730x1940mm |
| Weight (kg/lbs) | Approx. 1200kg/2650lbs |
| CDA | 6kg/cm2@2LPM flow rate |
| Vacuum | 0.9kg/cm2@10LPM flow rate |
| Power Input | 220VAC, single phase, 16amps |
| Power Consumption | 900VA |
| Frequency | 50/60Hz |
