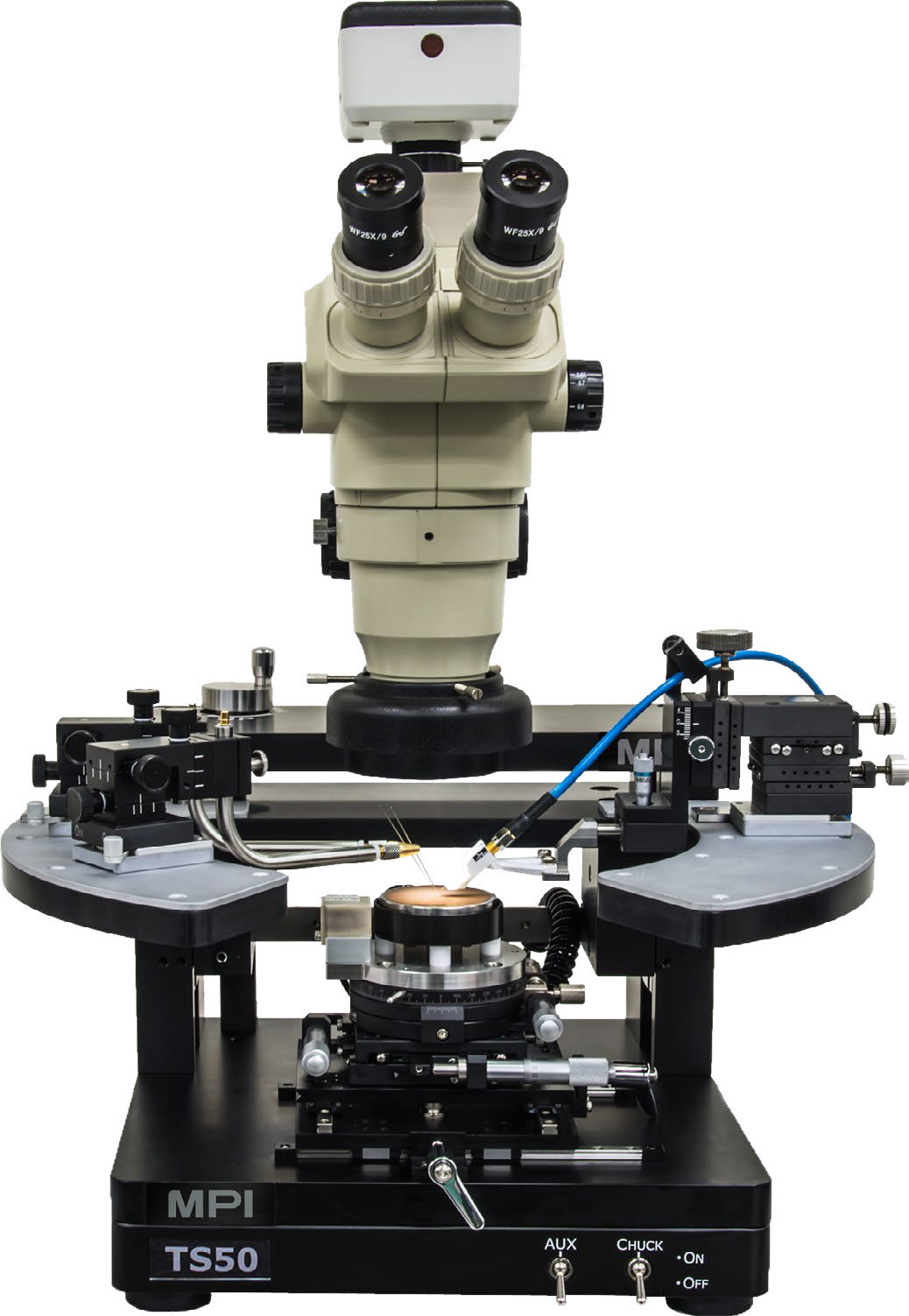

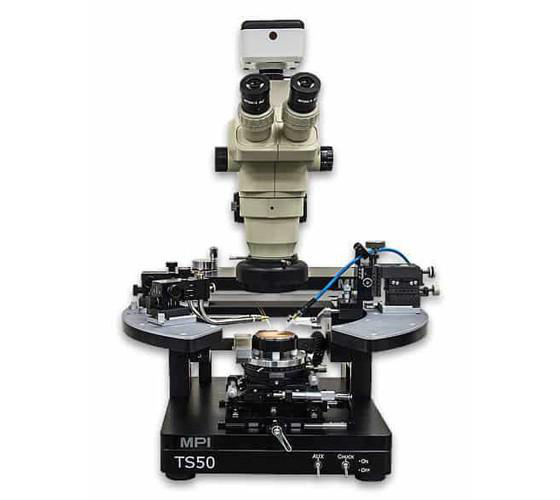

MPI TS50 50 mm Manual Probe System

MPI TS50 50 mm Manual Probe System

Supplier
Ybsemi-Solution
Part Number
MPI TS50 50 mm Manual Probe System
Category
Probe Station
Origin
China

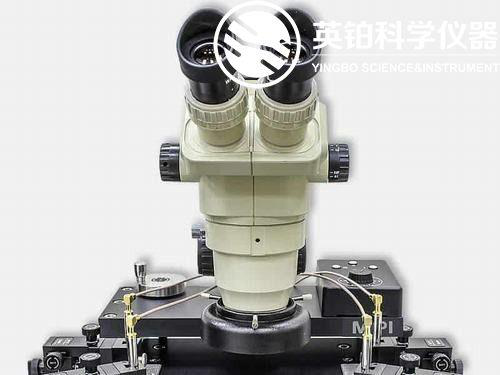

The MPI TS50 is a 50 mm manual probe system designed for accurate and reliable DC/CV and RF measurements, ideal for research, development, and academic use in IC engineering.

Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The MPI TS50 is a 50 mm manual probe system designed for accurate and reliable DC/CV and RF measurements, ideal for research, development, and academic use in IC engineering.

Specifications

ParameterValue
Total Travel Range100×75mm (3.9×3.0in)

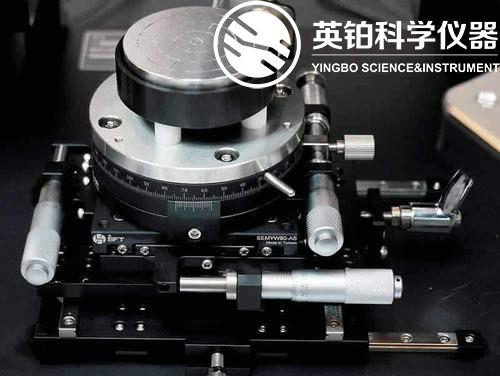

Fine Travel Range25×25mm fine micrometer control
Fine Travel Resolution<2.0μm (0.08mils) @500μm/rev
Planarity<10μm
Theta Travel (Standard)360°
Theta Travel (Fine)±5.0°
Theta Resolution7.5×10^-3 gradient
Movement ControlGuided rail with instant lock mechanism
MaterialSteel
Dimensions250mm (Inside), 408mm (Outside)
Chuck Top to Platen TopMin. 28mm

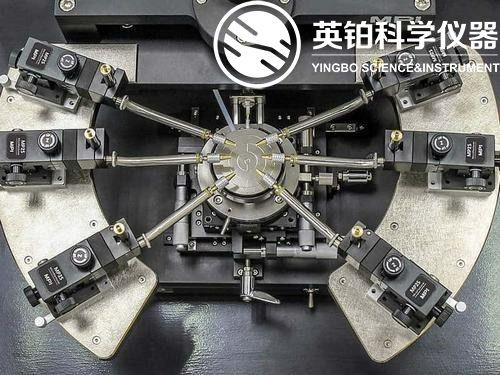

Max. No of MicroPositioners6 DC and 2 RF

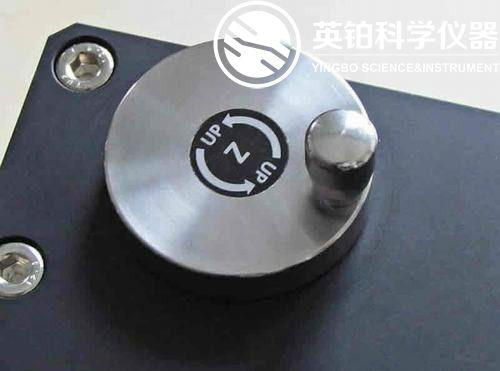

Platen Z-Height MovementHigh resolution screw for fine control
Z-Height Adjustment RangeMax. 25mm (1in)

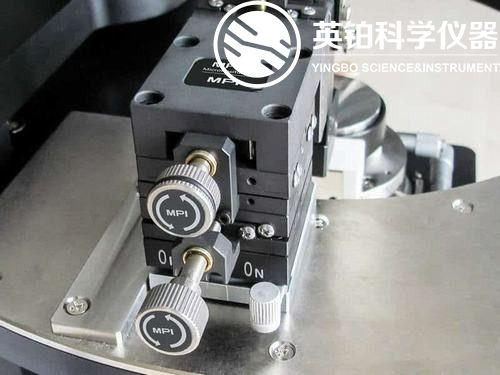

DC Positioner MountingMagnetic
RF Positioner MountingMagnetic with guide rail

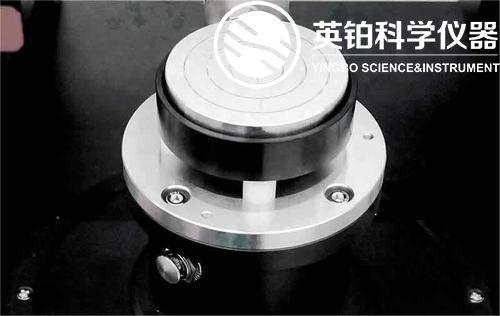

Standard Wafer Chuck Diameter56mm
Standard Wafer Chuck MaterialStainless steel
Standard Wafer Chuck SurfacePlanar with centric engraved vacuum grooves
Vacuum Grooves Sections (Diameter)4, 16, 30, 44mm
Vacuum ActuationMultizone control - All connected in meander shape, center hole in 4mm diameter
Supported DUT SizesSingle DUT 5×5mm size or wafers up to 50mm (2in)
Surface Planarity≤5μm
Rigidity<15μm/10N @edge

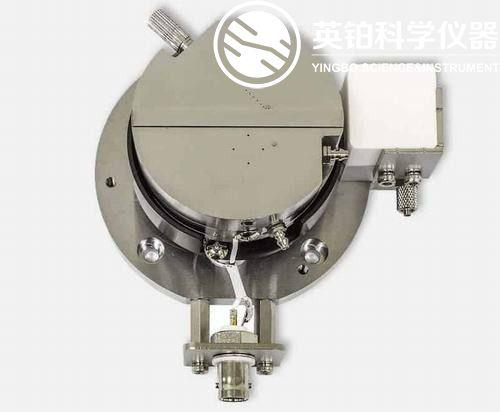

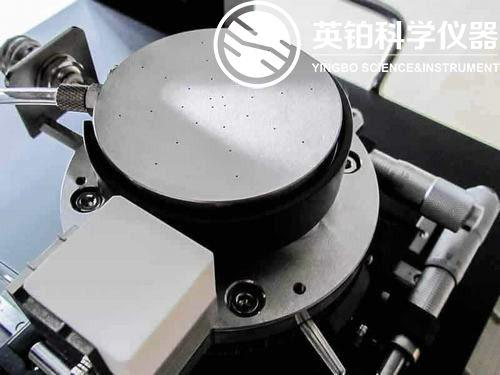

RF Wafer Chuck Diameter50mm with 1 integrated AUX area
RF Wafer Chuck MaterialStainless steel with HF/OPTO surface (flat with 0.5mm holes)
RF Wafer Chuck SurfacePlanar with 0.5mm diameter holes in centric sections
RF Vacuum Holes Sections (Diameter)4, 16, 30, 44mm
RF Vacuum Holes ActuationMultizone control - vacuum hole on top, all connected at bottom in meander shape
RF Supported DUT SizesSingle DUT 5×5mm size or wafers up to 50mm (2in)
RF Surface Planarity≤5μm
RF Rigidity<15μm/10N @edge
Auxiliary Chuck Quantity1 AUX chuck
Auxiliary Chuck PositionIntegrated to rear side of main chuck
Auxiliary Chuck Substrate Size (WxL)Max. 25×25mm (1.0×1.0in)
Auxiliary Chuck MaterialCeramic
Auxiliary Chuck MaterialRF absorbing material for accurate calibration
Auxiliary Chuck Surface Planarity≤5μm
Auxiliary Chuck Vacuum ControlControlled independently
Auxiliary Chuck Vacuum Controlseparate from chucks
Operation VoltageStandard - in accordance with EC 61010, certificates for higher voltages available upon request
Maximum Voltage Between Chuck Top and GND500V DC
Isolation>2GΩ
Power100-240V AC nominal; 50/60Hz for optical accessories only
Vacuum Pressure~0.5bar (for single DUT)/~0.3bar (for wafers)
Compressed Air Pressure0.2-0.7MPa (2.0-7.0bar)
Station Platform Dimensions (WxDxH)300×300×590mm (11.8×11.8×23.2in)
Station Platform Weight~30kg (66lb)

Applications

1. Research and development in IC engineering 2. Academic use for single die probing 3. High frequency noise measurement 4. Load pull measurement

Key Features

1. Designed for research, development, and academic use 2. Solid and stable platform with small footprint 3. Supports up to 6 DC or 2 RF positioners 4. High resolution screw for precise adjustments 5. Multizone vacuum control for enhanced stability
