Cryogenic Probe Station

Cryogenic Probe Station

Supplier
Ybsemi-Solution
Part Number
Cryogenic Probe Station
Category
Probe Station
Origin
China

A high-precision cryogenic probe station designed for advanced optical and electronic testing under extreme conditions.

Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

A high-precision cryogenic probe station designed for advanced optical and electronic testing under extreme conditions.

Specifications

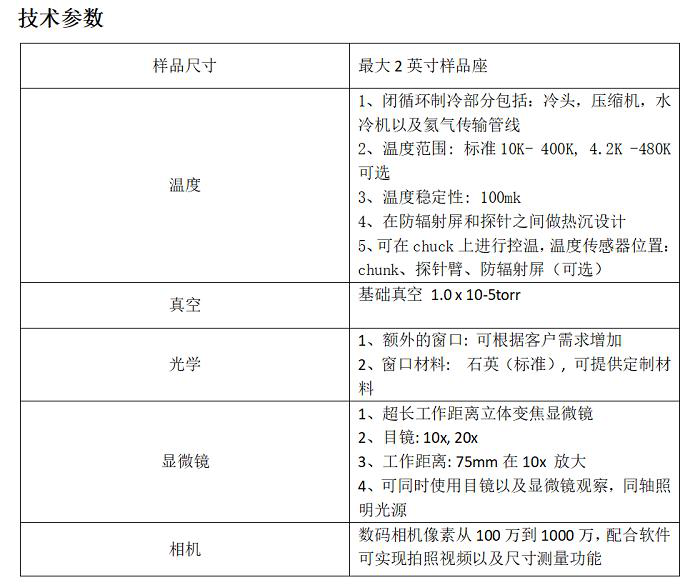

ParameterValue
Sample Size最大2英寸样品座
Temperature range10K-400K, 4.2K-480K
Temperature Stability100mk
Vacuum1.0x10-5torr
Additional Windows可根据客户需求增加
Window Material石英(标准)
Microscope Type超长工作距离立体变焦显微镜
Eyepiece10x, 20x
Working Distance75mm在10x放大
Camera Resolution100万到1000万

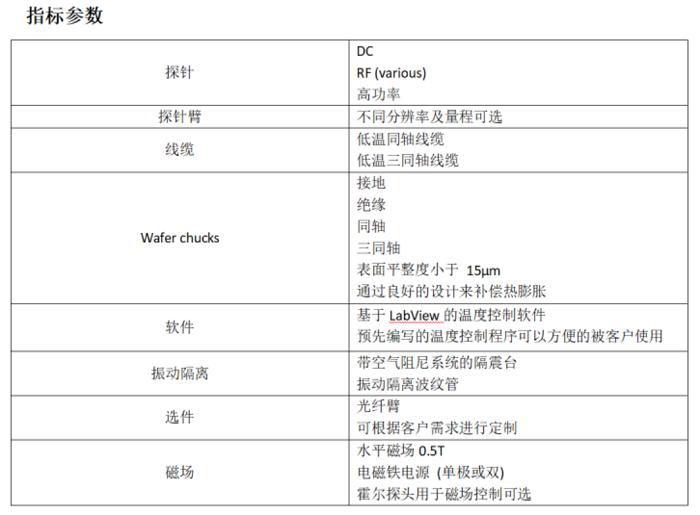

Probe TypeDC, RF (various)
Probe Band不同分辨率及量程可选
Cable type低温同轴线缆, 低温二同轴线缆
Wafer Chucks Surface Flatness小于15μm
Software基于LabView的温度控制软 Items
Vibration Isolation带空气阻尼系统的隔震台
Magnetic Field水平磁场0.5T, 电磁铁类型(单极或双极)

Applications

1. Semiconductor testing 2. Optical material analysis 3. Low-temperature physics research 4. Vacuum environment experiments

Key Features

1. High precision temperature control 2. Advanced vacuum system 3. Flexible optical configurations 4. Integrated microscope and camera system
