Temperature Control Sample Stage
A high-precision temperature control sample stage designed for applications requiring precise temperature regulation and optical observation.
Save to Favorites
Overview

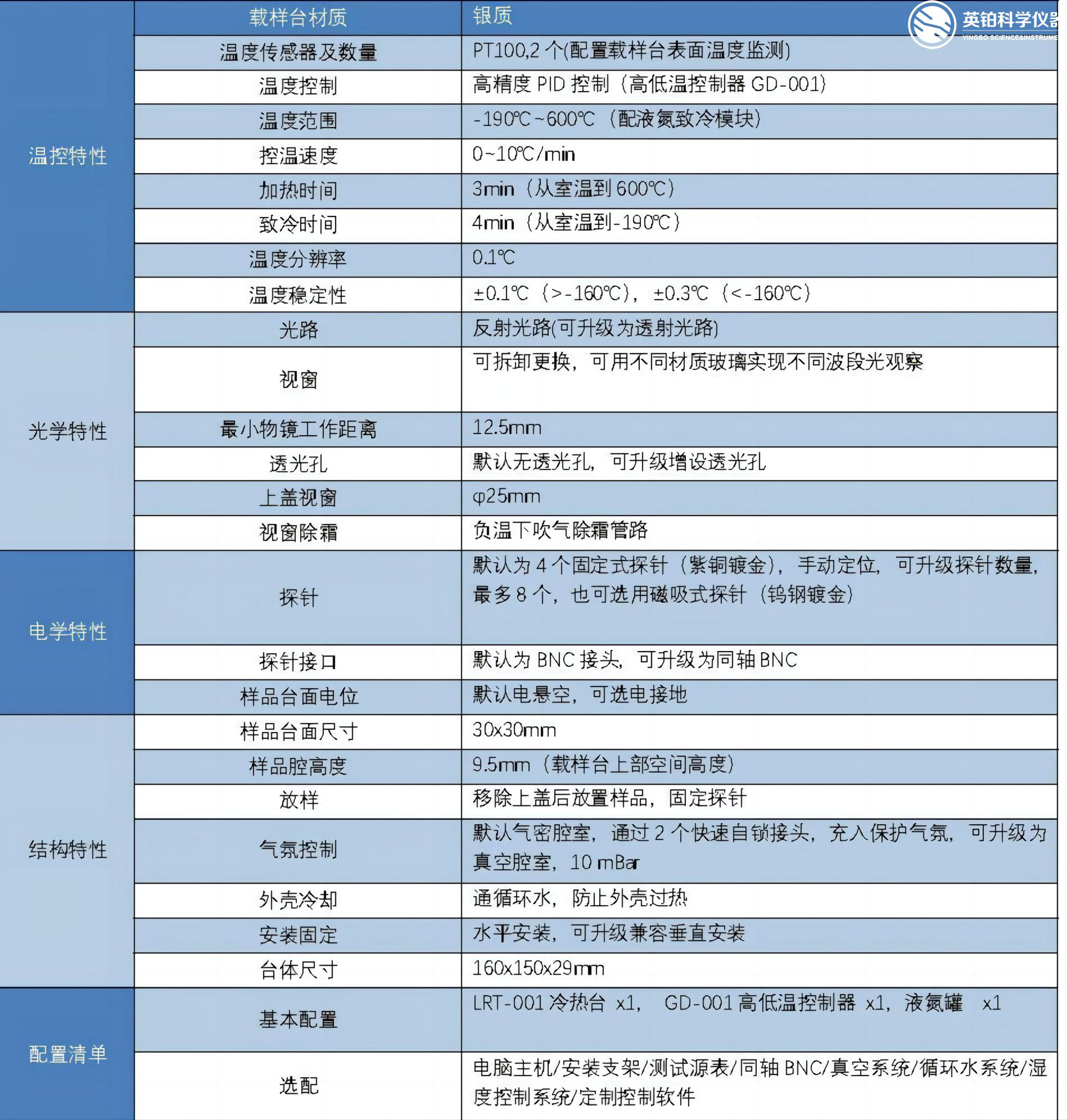

Specifications

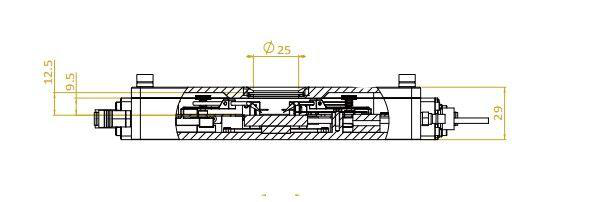

| Parameter | Value |
|---|---|
| Sample Stage Material | Silver |
| Temperature Sensor and Quantity | PT100, 2 sensors for surface temperature monitoring |
| Temperature Control | High precision PID control (high performance temperature controller GD-001) |
| Temperature range | -190°C to 600°C (with optional cooling module) |
| Temperature Control Rate | 0-10°C/min |
| Heating Time | 3min (from room temperature to 600°C) |
| Cooling Time | 4min (from room temperature to -190°C) |
| Temperature Stability | ±0.1°C |
| Temperature Stability (-190°C to -160°C) | ±0.3°C |
| Temperature Stability (>160°C) | ±0.1°C |
| Reflective Optical Characteristics | Anti-reflection coating to reduce stray light and improve observation |
| Minimum Working Distance of Objective | 12.5mm |
| Light Transmission Hole | Default without light transmission hole |
| Light Transmission Hole | upgradeable |
| Upper Cover Lens | φ25mm |
| Window Defrosting | Equipped with 4 fixed heating wires (copper alloy), manual upgradeable, maximum 8 wires (magnetic alloy) |

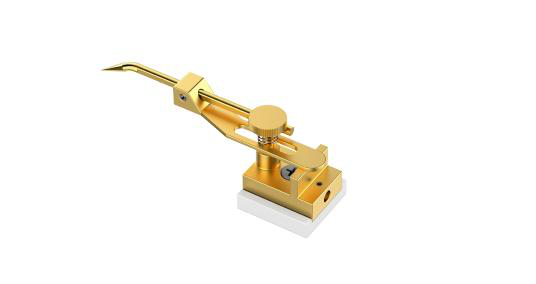

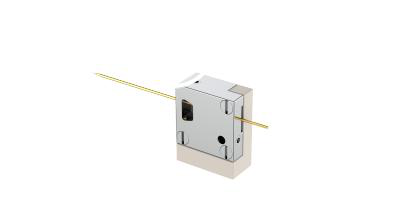

| Probe | Default 4 fixed probes (copper alloy), manual upgradeable, maximum 8 probes (magnetic alloy) |
| Probe Interface | Default BNC interface |
| Probe Interface | upgradeable to coaxial BNC |

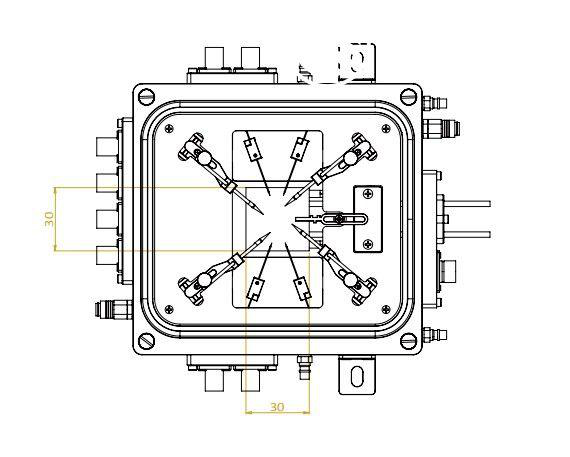

| Sample Stage Area | 30x30mm |
| Sample Stage Height | 9.5mm (including the upper part of the sample stage) |
| Fault | Remove the upper cover to replace the probe |
| Air Tightness | Through 2 sealing rings, fully sealed, vacuum degree ≤10mBar |
| Shell Treatment | Surface anodized |
| Safety Device | Water cooling |
| Safety Device | air cooling |
| Safety Device | and other safety devices |
| Stage Dimensions | 160x150x29mm |
| Basic Configuration | LRT-001 cooling module x1, GD-001 high precision controller x1, liquid nitrogen tank |
| Optional Configuration | Electric heating stage |
| Optional Configuration | electric heating rod |
| Optional Configuration | coaxial BNC interface |
| Optional Configuration | vacuum system |
| Optional Configuration | humidity control system |
