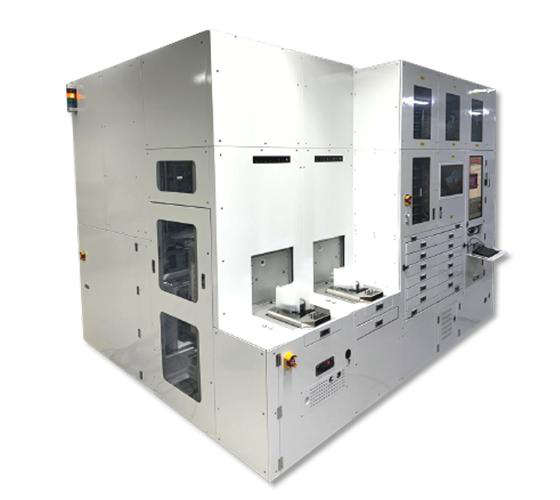

OSTINATO (34 Slots all-in-one-system)
OSTINATO is a high-performance testing system designed for semiconductor devices, offering advanced features for efficient and precise testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | OSTINATO (34 Slots all-in-one-system) |
| Water Size | 6&8 inch |
| Dimension | 3400(W)×2600(D)×2600(H) |
| Test Item | HITGB Burn-in, IGSS, IDSS, VTH |
| Measurement DUT | 2,048 DUT/Slot (Option: 4,096 DUT) |
| VGS Range | -25V~50V (Option: -50V) |
| Temperature range | Ambient~175°C |
