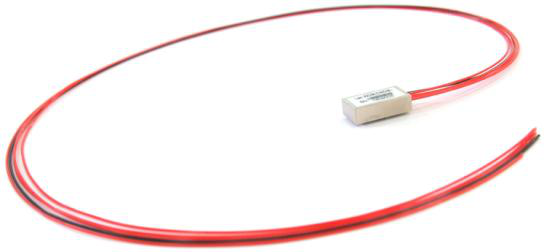

LAN WDM Module
HYC's LAN WDM module is a device based on TFF (thin-film filter) wavelength division multiplexing technology. It adopts a compact structure with free space packaging, ensuring excellent consistency with system-free modules. It meets industrial-grade standards and is suitable for 40G&100G CFP optical modules, widely used in data centers, cloud computing, and other fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) 1271,1291,1311,1331 | 1271,1291,1311,1331nm |
| Operating Wavelength (nm) 1295.56,1300.06,1304.59,1309.14 | 1295.56,1300.06,1304.59,1309.14nm |
| Transmission Bandwidth (nm) 1271,1291,1311,1331 | ±6.5nm |
| Transmission Bandwidth (nm) 1295.56,1300.06,1304.59,1309.14 | ±1.0nm |
| Channel Insertion Loss (dB) 1271,1291,1311,1331 | ≤1.5dB |
| Channel Insertion Loss (dB) 1295.56,1300.06,1304.59,1309.14 | ≤1.5dB |
| Adjacent Channel Isolation (dB) 1271,1291,1311,1331 | ≥30dB |
| Adjacent Channel Isolation (dB) 1295.56,1300.06,1304.59,1309.14 | ≥25dB |
| Non-Adjacent Channel Isolation (dB) 1271,1291,1311,1331 | ≥45dB |
| Non-Adjacent Channel Isolation (dB) 1295.56,1300.06,1304.59,1309.14 | ≥45dB |
| Return Loss (dB) | ≥50dB |
| Transmission Ripple (dB) | ≤0.5dB |
| Operating Temperature (°C) | -40~+85°C |
