CCWDM Module (Demux/Mux)

CCWDM Module (Demux/Mux)

Supplier
Lightel
Category
Wavelength-Division Multiplexing (WDM)
Origin
China
Specification Snapshot
Insertion Loss [4 (OR 4+1) CH; without connector]
≤1.0 dB
Insertion Loss [8 (OR 8+1) CH; without connector]
≤1.5 dB
Return Loss [without connector]
≥45 dB
Directivity [without connector]
≥50 dB
Operating Temperature [without connector]
0~+70 ℃
Fiber Type [without connector]
Corning XB fiber or Corning SMF-28e
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Specifications

ParameterValue
Channel Number [without connector]4 (OR 4+1)
Channel Number [without connector]8 (OR 8+1)
Operating Wavelength Range [without connector]1260--1620 nm
CWDM Channel Spacing [without connector]20 nm
CWDM Channel Center Wavelength [without connector]1270 nm,1290………1550,1590 nm,1610 nm
Insertion Loss [4 (OR 4+1) CH; without connector]≤1.0 dB
Insertion Loss [8 (OR 8+1) CH; without connector]≤1.5 dB
Pass band width [without connector]λc± 6.5
Passband Ripple [without connector]≤0.5 dB
CWDM Adjacent Channel Isolation [without connector]≥30 dB
CWDM Non-Adjacent Channel Isolation [without connector]≥40 dB
EXP Isolation [without connector]≥13 dB
PDL [without connector]≤0.2 dB
Return Loss [without connector]≥45 dB
Directivity [without connector]≥50 dB
Max. Handling Power Handling [without connector]≤300 mW
Operating Temperature [without connector]0~+70 ℃
Storage Temperature [without connector]—40~+85
Fiber Type [without connector]Corning XB fiber or Corning SMF-28e

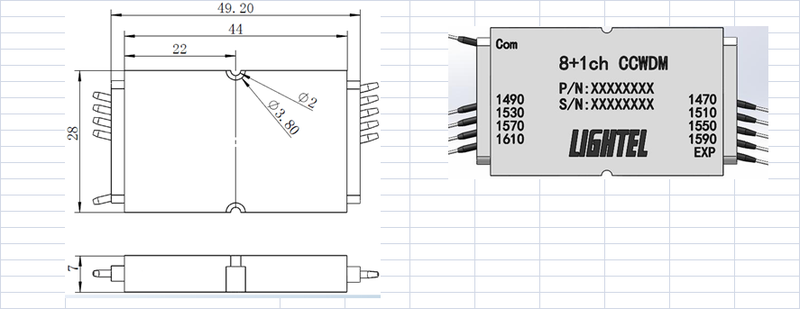

Package Dimension [without connector]44 mm(L)X28 mm(W)X7 mm(H)

Applications

1.Both Add/Drop 2.Telecom networks 3.Metro networks

Key Features

1.The light path without glue 2.Stable and reliable 3.Compact size
