PM DWDM 100GHz 200GHz
The PM Dense Wavelength Division Multiplexer is manufactured toTelcordia standard, based on environmentally stable thin film filter technology. The PM DWDM is designed mainly for signals adding/dropping on OADM, and Mux/Demux DWDM commucation system,with the advantage of high isolation, high extinction ration, low insertion loss, excellent environmental stability, and high power handling capability
Specification Snapshot
Operating Temperature [without connector]
-5 to +70 ℃
Storage Temperature [without connector]
-40 to +85 ℃
Request a Quote
Download Datasheet
Overview
The PM Dense Wavelength Division Multiplexer is manufactured toTelcordia standard, based on environmentally stable thin film filter technology. The PM DWDM is designed mainly for signals adding/dropping on OADM, and Mux/Demux DWDM commucation system,with the advantage of high isolation, high extinction ration, low insertion loss, excellent environmental stability, and high power handling capability

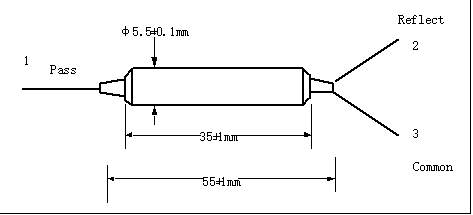

Specifications
| Parameter | Value |
|---|---|
| Filter Type [without connector] | 200 GHz |
| Filter Type [without connector] | 100 GHz |
| Center Wavelength [without connector] | ITU Grid |
| Pass Band-Typ. Bandwidth at 0.5dB [200GHz; 0.5dB; without connector] | 0.7 nm |
| Pass Band-Typ. Bandwidth at 0.5dB [100GHz; 0.5dB; without connector] | 0.4 nm |
| Pass Band-Min. Bandwidth at 0.5dB [200GHz; 0.5dB; without connector] | 0.5 nm |
| Pass Band-Min. Bandwidth at 0.5dB [100GHz; 0.5dB; without connector] | 0.2 nm |
| Pass Band-Typ. Insertion Loss [200GHz; without connector] | 0.8 dB |
| Pass Band-Typ. Insertion Loss [100GHz; without connector] | 1.0 dB |
| Pass Band-Max. Insertion Loss [200GHz; without connector] | 1.0 dB |
| Pass Band-Max. Insertion Loss [100GHz; without connector] | 1.2 dB |
| Pass Band-Typ. Channel Isolation [200GHz; without connector] | 30 dB |
| Pass Band-Typ. Channel Isolation [100GHz; without connector] | 30 dB |
| Pass Band-Min. Channel Isolation [200GHz; without connector] | 25 dB |
| Pass Band-Min. Channel Isolation [100GHz; without connector] | 25 dB |
| Reflection Band-Typ. Insertion Loss [200GHz; without connector] | 0.3 dB |
| Reflection Band-Typ. Insertion Loss [100GHz; without connector] | 0.3 dB |
| Reflection Band-Max. Insertion Loss [200GHz; without connector] | 0.5 dB |
| Reflection Band-Max. Insertion Loss [100GHz; without connector] | 0.5 dB |
| Reflection Band-Typ. Channel Isolation [200GHz; without connector] | 15 dB |
| Reflection Band-Typ. Channel Isolation [100GHz; without connector] | 15 dB |
| Reflection Band-Min. Channel Isolation [200GHz; without connector] | 12 dB |
| Reflection Band-Min. Channel Isolation [100GHz; without connector] | 12 dB |
| Min. Extinction Ratio at 23°C [200GHz; 23°C; without connector] | 20 dB |
| Min. Extinction Ratio at 23°C [100GHz; 23°C; without connector] | 20 dB |
| Min Return Loss [200GHz; without connector] | 45 dB |
| Min Return Loss [100GHz; without connector] | 45 dB |
| Min. Directivity [200GHz; without connector] | 50 dB |
| Min. Directivity [100GHz; without connector] | 50 dB |
| Center Wavelength Stability [without connector] | ≤0.002 nm/℃ |
| Thermal Stability [without connector] | ≤0.005 dB/℃ |
| Max. Optical Power (CW) [without connector] | 500 mW |
| Max. Tensile Load [without connector] | 5 N |
| Fiber Type [without connector] | PM Panda fiber |
| Operating Temperature [without connector] | -5 to +70 ℃ |
| Storage Temperature [without connector] | -40 to +85 ℃ |
| Insertion Loss [For devices with connectors] | 0.3 dB higher |
| Return Loss [For devices with connectors] | 5 dB lower |
| Extinction Ratio [For devices with connectors] | 2 dB lower |
Applications
* High Speed Networks * Coherent Deteching * Fiber Sensors * Research
Key Features
* Low Insertion Loss * High Quality and Reliability
