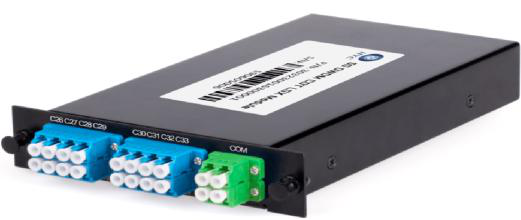

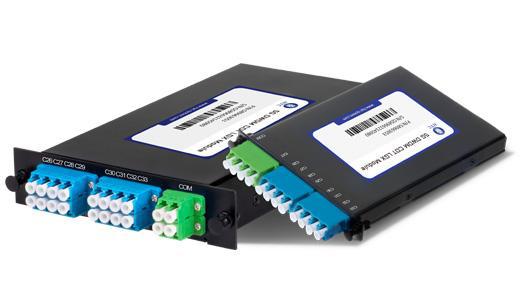

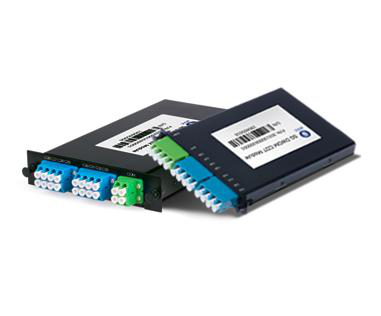

5G DWDM COT&RT LGX Module
The HYC DWDM LGX module is a device based on thin-film filter wavelength division multiplexing technology. It supports multiple packaging sizes and variable wavelengths. With 100GHz and 200GHz channel spacing, it is suitable for telecom networks, ultra-large capacity metro networks, and 5G fronthaul networks. HYC also offers customized solutions for 4G extension (EXT) and OTDR terminals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count 4+Ext | 4+Ext |
| Channel Count 8+Ext | 8+Ext |
| Channel Count 12+Ext | 12+Ext |
| Channel Count 16+Ext | 16+Ext |
| Operating Wavelength (nm) | 1260-1670nm |
| Wavelength Tolerance | ITU±0.11 |
| Extended Band (Ext) (nm) | 1260-1537.5&1562.5-1670 |
| Channel Insertion Loss (dB) DWDM 4+Ext | ≤2.0dB |
| Channel Insertion Loss (dB) Ext 4+Ext | ≤0.6dB |
| Channel Insertion Loss (dB) DWDM 8+Ext | ≤3.0dB |
| Channel Insertion Loss (dB) Ext 8+Ext | ≤0.6dB |
| Channel Insertion Loss (dB) DWDM 12+Ext | ≤3.5dB |
| Channel Insertion Loss (dB) Ext 12+Ext | ≤0.6dB |
| Channel Insertion Loss (dB) DWDM 16+Ext | ≤4.0dB |
| Channel Insertion Loss (dB) Ext 16+Ext | ≤0.6dB |
| Isolation (dB) | ≥30dB |
| Non-Adjacent Channel Isolation (dB) | ≥45dB |
| Extended Band Isolation (dB) | ≥15dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Polarization Dependent Loss (dB) | ≤0.5dB |
| Module Dimensions (mm) Regular | L180×W100×H29 |
| Module Dimensions (mm) Mini | L120×W88×H12 |
| Operating Temperature (°C) | -40~+85°C |
