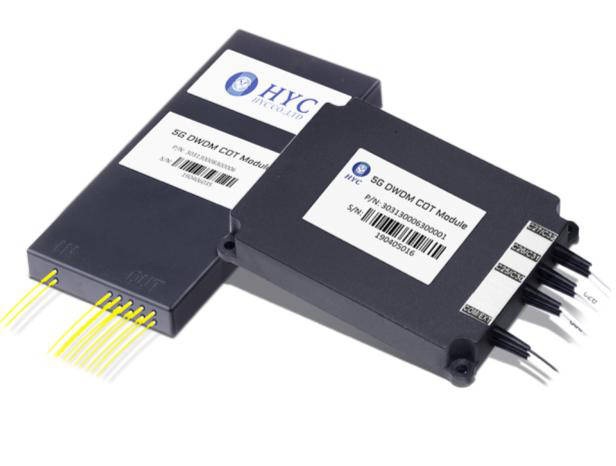

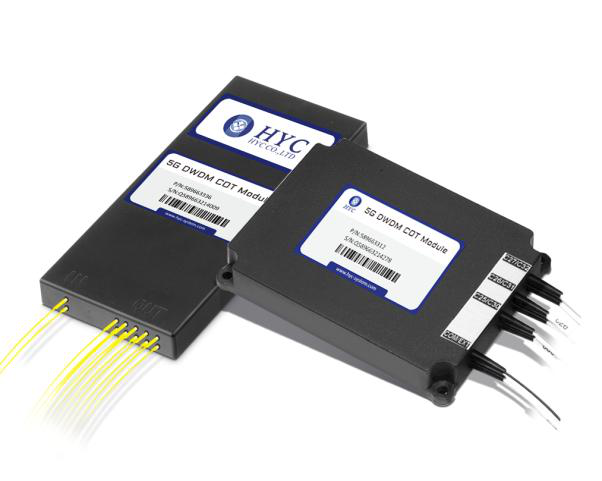

5G DWDM COT&RT ABS Module
HYC's DWDM ABS module is based on TFF (thin-film filter) technology, featuring multiple channel sizes and tunable wavelengths. DWDM supports 100GHz and 200GHz channel spacing, making it suitable for long-distance transmission networks, large-capacity 5G fronthaul networks, or ultra-large capacity data centers. HYC offers a series of products for central office terminals (COT) and remote terminals (RT), which can be customized to meet customer needs for 4G extensions (EXT) and OTDR terminals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count (CH) COT | 4+EXT |
| Channel Count (CH) RT | 8+EXT |
| Operating Wavelength (nm) | 1260-1670nm |
| Central Wavelength (CH) | 100G ITU C25-C42 |
| Wavelength Tolerance (nm) | ITU±0.11nm |
| Extension Port Wavelength (nm) | 1260-1537.5&1562.5-1670 |
| Insertion Loss (dB) DWDM | ≤2.0dB |
| Insertion Loss (dB) EXT | ≤0.6dB |
| Adjacent Channel Isolation (dB) | ≥30dB |
| Non-Adjacent Channel Isolation (dB) | ≥45dB |
| Polarization Dependent Loss (dB) | ≤0.5dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Maximum Power (mW) | 300mW |
| Operating Temperature (°C) | -40~+85°C |
| Package Dimensions (mm) COT | L100xW45xH10mm |
| Package Dimensions (mm) RT | L80xW60xH12mm |
