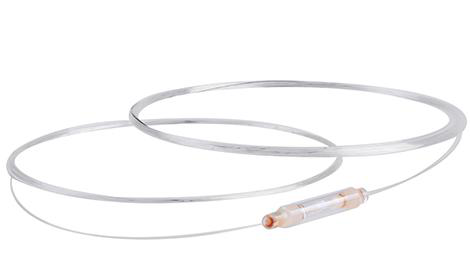

3-Port CWDM
The 3-Port CWDM device is primarily used for wireless backhaul modules. It is a type of TFF (thin-film filter) wavelength division multiplexing device, available in various package sizes with customizable wavelengths. It features three ports: common (COM), pass (Pass), and reflect (Reflect). The device complies with ITU-T G.695 standards and can multiplex and demultiplex different optical signals in wavelength division multiplexing systems. It enhances the transmission rate and communication capacity, making it widely applicable in telecommunications, CATV, enterprise networks, and campus networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1620nm&1460-1620nm |
| Pass Bandwidth (nm) | ±6.5nm, ±7.0nm, ±7.5nm |
| Transmission Insertion Loss (dB) | ≤0.6dB |
| Reflection Insertion Loss (dB) | ≤0.4dB |
| Return Loss (dB) | ≥30dB |
| Polarization Dependent Loss (dB) | ≤0.1dB |
| Reflection Isolation (dB) | ≥15dB |
| Directivity (dB) | ≥50dB |
| Ripple Loss (dB) | ≤0.3dB |
| Operating Temperature (°C) | -40~+85°C |
Applications
Key Features
Datasheet
