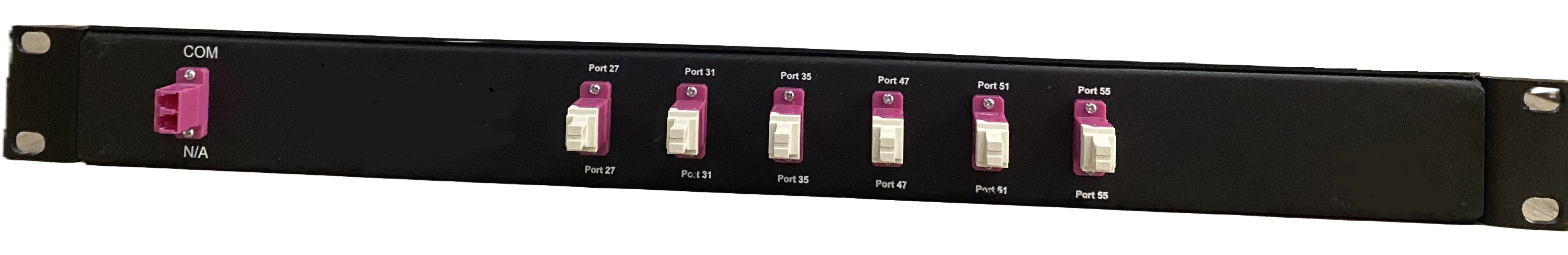

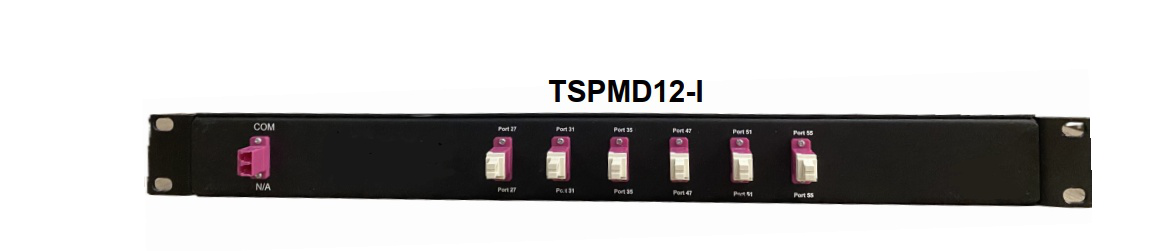

TSPMD12-I and TSPMD12-O

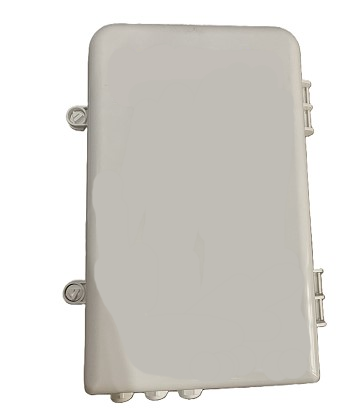

TSPMD12-I and TSPMD12-O are part of our passive CCWDM Mux/Demux series, supporting 12 CWDM channels for single fiber interconnection using wavelengths from 1271-1371nm and 1471-1571nm according to ITU-T G.694.2 grid. TSPMD12-O is designed for harsh outdoor environments with IP55 water and dust resistance, while TSPMD12-I is suitable for indoor applications. Both units are compact, lightweight, and require no power supply or cooling.
Specification Snapshot
Isolation Adjacent Channels
≥30dB
Isolation Non-Adjacent Channels
≥45dB
Polarization Dependant Loss (PDL)
≤0.1dB
Return Loss
≥45dB
Request a Quote
Download Datasheet
Overview
TSPMD12-I and TSPMD12-O are part of our passive CCWDM Mux/Demux series, supporting 12 CWDM channels for single fiber interconnection using wavelengths from 1271-1371nm and 1471-1571nm according to ITU-T G.694.2 grid. TSPMD12-O is designed for harsh outdoor environments with IP55 water and dust resistance, while TSPMD12-I is suitable for indoor applications. Both units are compact, lightweight, and require no power supply or cooling.
Specifications
| Parameter | Value |
|---|---|
| Number of Data Channels | 12 |
| Number of Wavelength | 12 CWDM Channels According ITU-T G.694.2 |
| Transport Media | One strand of Fiber Single Mode Fiber (SMF) |

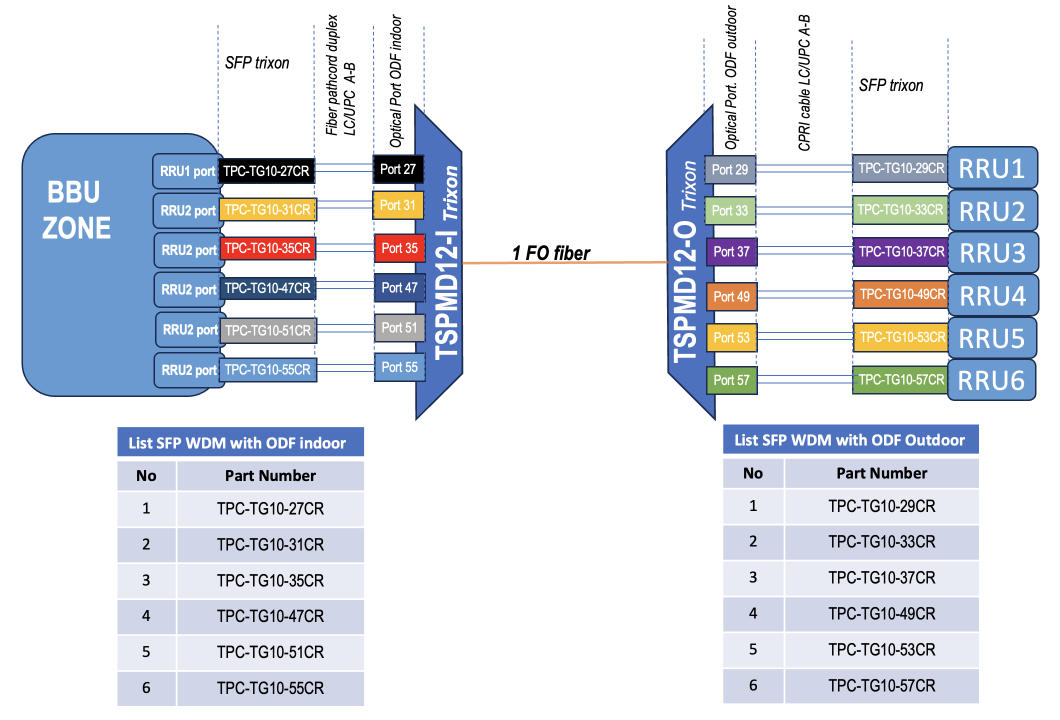

| Operating Wavelengths | Ch1-Tx:1291nm, Ch1-Rx:1271nm; Ch2-Tx:1331nm, Ch2-Rx:1311nm; Ch3-Tx:1371nm, Ch3-Rx:1351nm; Ch4-Tx:1491nm, Ch4-Rx:1471nm; Ch5-Tx:1531nm, Ch5-Rx:1511nm; Ch6-Tx:1571nm, Ch6-Rx:1551nm |
| Filter Technology | CCWDM (Compact CWDM - Free Space Technology) |
| Passband | ±6.5nm |
| Channel Spacing | 20nm |
| Isolation Adjacent Channels | ≥30dB |
| Isolation Non-Adjacent Channels | ≥45dB |
| Channel Passband Ripple | ≤0.5dB |
| Polarization Dependant Loss (PDL) | ≤0.1dB |
| Polarization Mode Dispersion (PMD) | ≤0.1ps/nm |
| Return Loss | ≥45dB |
| Maximum Power Handling | 500mW=26.98dBm maximum power pass |
| Connectors | LC/UPC or customer specified |
| Operating Temperature | -5~+70°C |
| Dimensions (WxHxD) | 77x250x72mm |
| Compliance | ITU-T G.694.2, CE, RoHS, IP55 |
Applications
1. Single fiber CWDM interconnection 2. Telecom pole or wall installation 3. Indoor and outdoor environments 4. Enterprise networks 5. Datacenters
Key Features
1. 12CH CWDM Data services over Single SMF 2. IP55 Water and Dust resistant 3. LC/UPC connectors 4. Rack, telecom pole or wall installation 5. Small size and lightweight 6. Low insertion loss ≤1.8dB 7. Compact CWDM filters 8. Zero configuration or maintenance 9. Fully passive (No Power Supply or Cooling) 10. Protocol & Data Rate neutral 11. MTBF: 100+ years 12. 1 Year Warranty
Datasheet
Product Datasheet
PDF
Supplier Information
Sichuan Trixon Communication Technology Co., Ltd. is a high-tech company established in Chengdu in September 2008. The registered capital is 30 million RMB. The office and production workshop cover an area of more than 5,000 square meters. The company has sales branches in Beijing, Shenzhen, Hangzhou, and Hong Kong.
Since its establishment, Trixon has always adhered to "customer demand-oriented, customer satisfaction as the standard", and with its strong technical strength and professional manufacturing level, it occupies an important place in the fierce competition in the optical module industry.
The company's main products include Copper, SGMII, SFP, SFP+, XFP, CWDM, DWDM, 25G SFP28, 100G QSFP28, 100G CFP and other full series of 5G fronthaul solutions, data center solutions, and transmission solutions optical module products.
The company has an experienced management team and an independent intellectual property R&D team, composed of senior people with rich experience in business management, technology development, marketing, and production operations; focusing on the independent research and development, production, and sales of high-performance optical communication and mobile communication modules. Up to now, Trixon has a number of related patents, and its products have passed UL/FDA/TUV safety certifications, as well as ISO9001 quality management system certification and ISO14001:2015 environmental management system certification. With perfect production processes, strict management, and skilled operations, the company has built a professional production line of "automated assembly line operation", with an annual production capacity of more than 3 million units.
With the continuous evolution of the information age, Trixon always keeps up with market development, adheres to independent innovation, takes customers as the center, customer satisfaction as the standard, market demand as the orientation, quality as the foundation, and adheres to the company philosophy of "high quality, low cost, quick response, attention to details, and strong improvement". Trixon will surely ride the wind and waves and move forward bravely.
