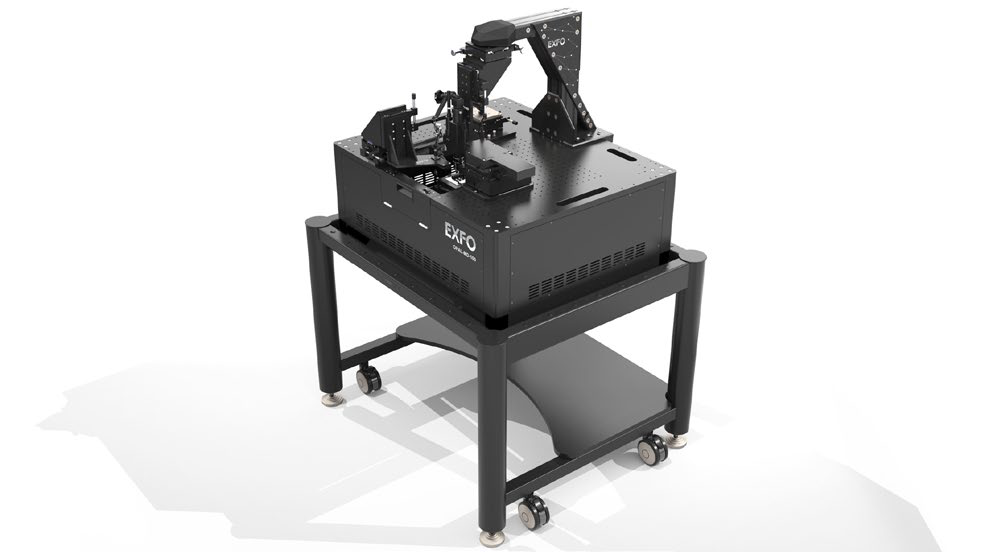

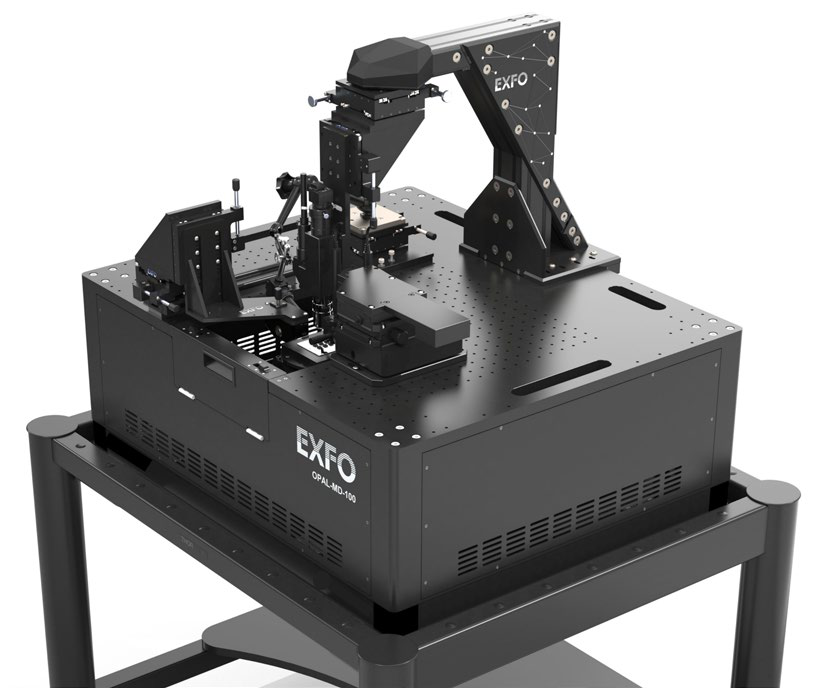

OPAL-MD Multi-die Testing Station

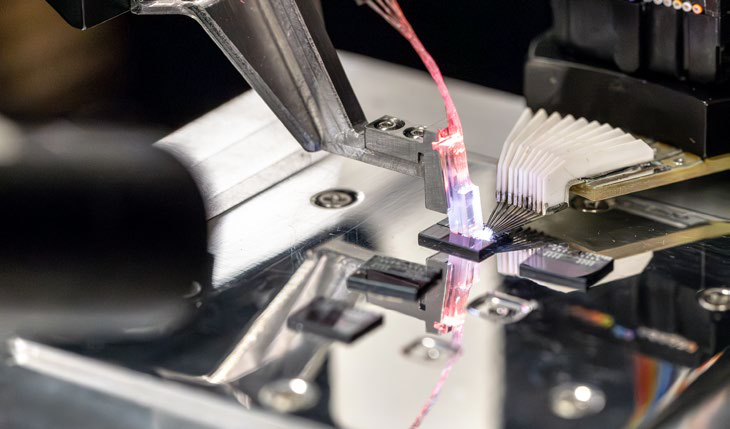

The OPAL-MD is an automated test station designed for precise and repeatable testing of photonic integrated circuits (PICs). It offers high-throughput, automated navigation, alignment, and measurements, making it ideal for R&D, production, and prototyping.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

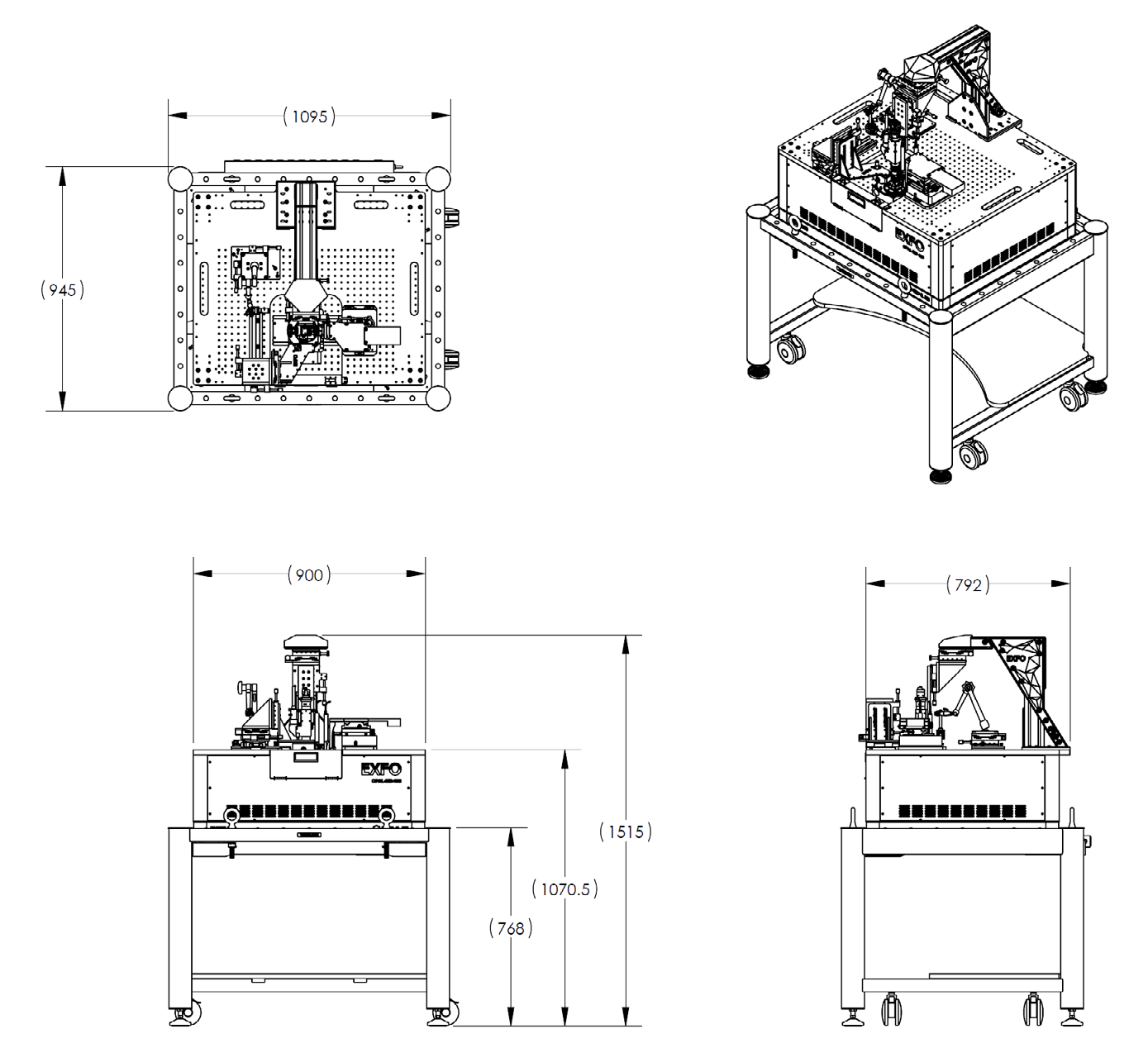

| Size (H×W×D) | 1500mm×1095mm×945mm |
| Weight (kg) | 350kg |
| Operating Environment | Clean environment |
| Operating Environment | avoid temperature variations |
| Operating Environment | vibrations |
| Operating Environment | humidity |
| Operating Environment | and dust |
| Base | Passive vibration isolation |
| Base | canisters |
| Base | and feet |
| Maximum Number of Electrical or Optical Heads | Up to 4 |
| Optical Breadboard | Grid of M6 threaded mounting holes, 25mm hole spacing, black anodized |

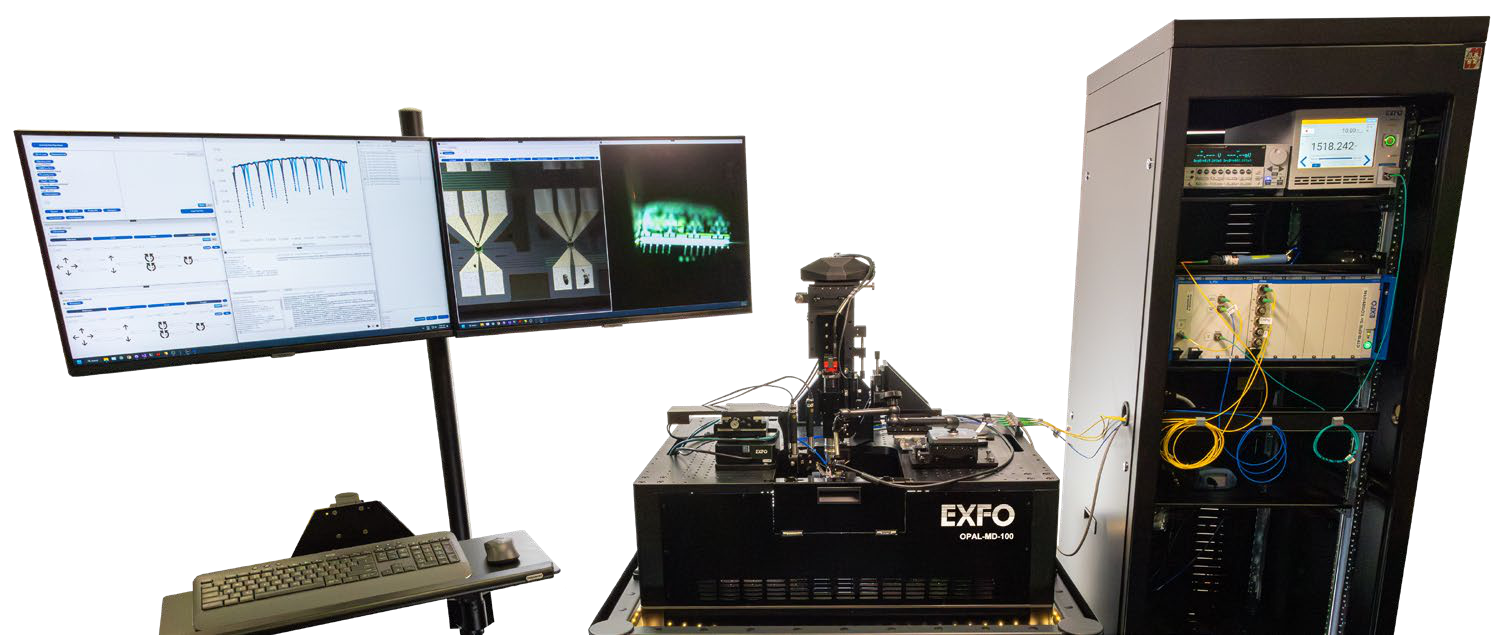

| Workstation Computer | 3U rackmount industrial, Intel i7 CPU, 2×16GB RAM DDR5, 1TB SSD, Nvidia RTX 5060 GPU, 3 Ethernet ports, multiple USB ports, additional PCIe slots, Windows 11 Pro, mouse and keyboard included |
| Monitor | 1×27-inch |
| Cables, Power Supply, Drive, Controllers | All included |
| Additional Information | Ethernet Cat 6 RJ54, USB-A 3.0 |
| X, Y Axis Travel Range (mm) | 100 |
| X, Y Axis Resolution (μm) | 0.15 |
| X, Y Axis Accuracy (μm) | 1 |
| X, Y Axis Bidirectional Repeatability (μm) | 1 |
| X, Y Axis Maximum Process Speed (mm/s) | 20 |
| Z Axis Travel Range (mm) | 4.8 |
| Z Axis Resolution (μm) | 0.06 |
| Z Axis Accuracy (μm) | 0.6 |
| Z Axis Bidirectional Repeatability (μm) | 0.1 |
| Z Axis Maximum Process Speed (mm/s) | 5 |
| Rz Axis Travel Range (°) | 15 |
| Rz Axis Resolution (arcsec) | 0.04 |
| Rz Axis Accuracy (arcsec) | 36arcsec,0.01° |
| Rz Axis Bidirectional Repeatability (arcsec) | 20 |
| Rz Axis Maximum Process Speed (degree/s) | 20 |
| Rz Axis Motor Type | Crossed roller bearings |
| Rz Axis Motor Type | stepper motor |
| Work Area (mm) | 100×100 |
| Range | Ambient, Dew-point (0°C) to 150°C |
| Resolution | 0.01°C (0.018°F) |
| Stability | 0.05°C (0.09°F) |
| Heating Rate | 20°C/min (36°F/min) |
| Cooling Rate | -10°C/min (-18°F/min) |

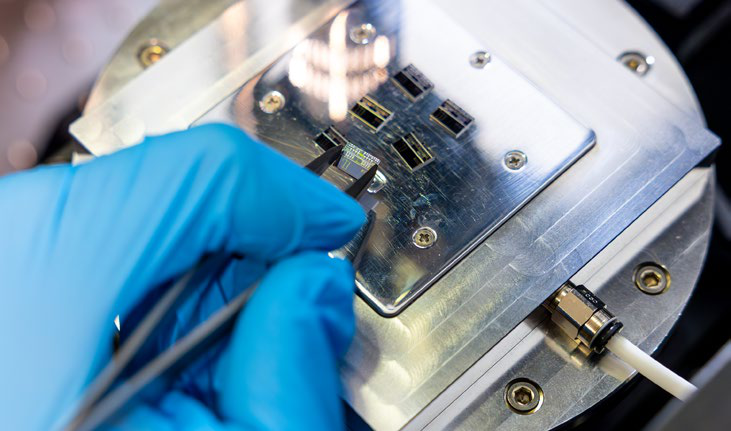

| Vacuum Zones | 4 independent zones |
| Electrical Connection | Floating (F), Grounded (G) |
| Magnification (X) | 3 |
| Numerical aperture | 0.093 |
| Depth of Field (μm) | 3.6 |
| Horizontal Field of View (mm) | 0.88 |
| Working Distance (mm) | 65 |
| Resolution (MP) | 2.9 |
| Maximum Frame Rate (fps) | 144 |
| Sensor Format (inch) | 2/3 |
| Sensor Type | Color, global shutter, 12 bit |
| Wavelength | Visible |
| Illumination Type | In-line video microscope unit, LED illuminator |
| Lens Type | Telecentric |
| Field of View (mm) | 2.9×2.2 |
| X Axis Travel (mm) | 20 |
| Z Axis Travel (mm) | 11 |
| X Axis Resolution (nm) | 1 |
| Z Axis Resolution (nm) | 1 |
| X Axis Repeatability (nm) | Unidirectional:50 |
| Z Axis Repeatability (nm) | Unidirectional:50 |
| Rx Axis Travel (°) | 38 |
| Rz Axis Travel (°) | 38 |
| Rx Axis Resolution (arcsec) | 0.04 |
| Rx Axis Repeatability (arcsec) | Unidirectional:1.5 |
| Rz Axis Repeatability (arcsec) | Unidirectional:1.5 |
| Full Virtual Pivot Point | Yes |
| Single Fiber Holder Injection Angle (°) | 8,10,0 |
| Fiber Array Holder Injection Angle (°) | 8,10,0 |
| Fiber Array Width (mm) | <4.5,2.5-6,6-20 |
