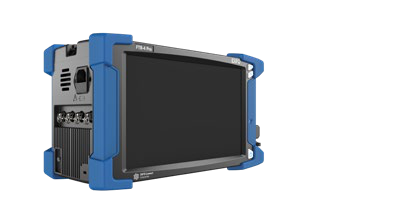

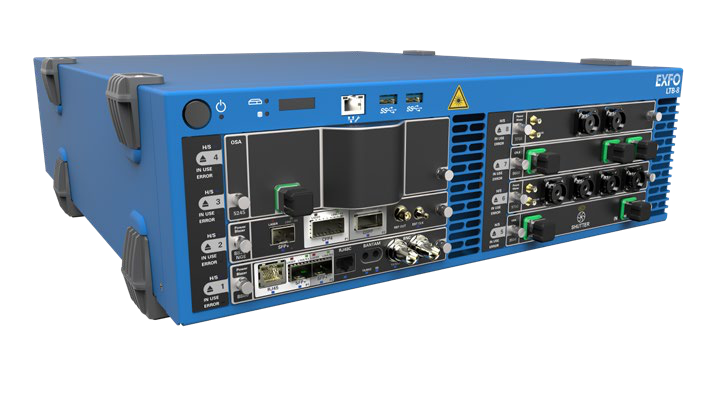

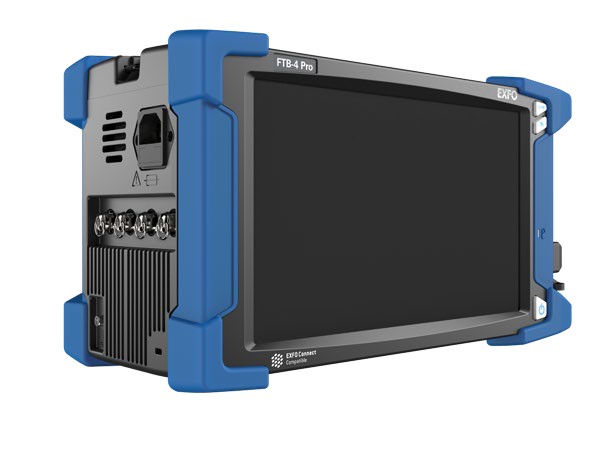

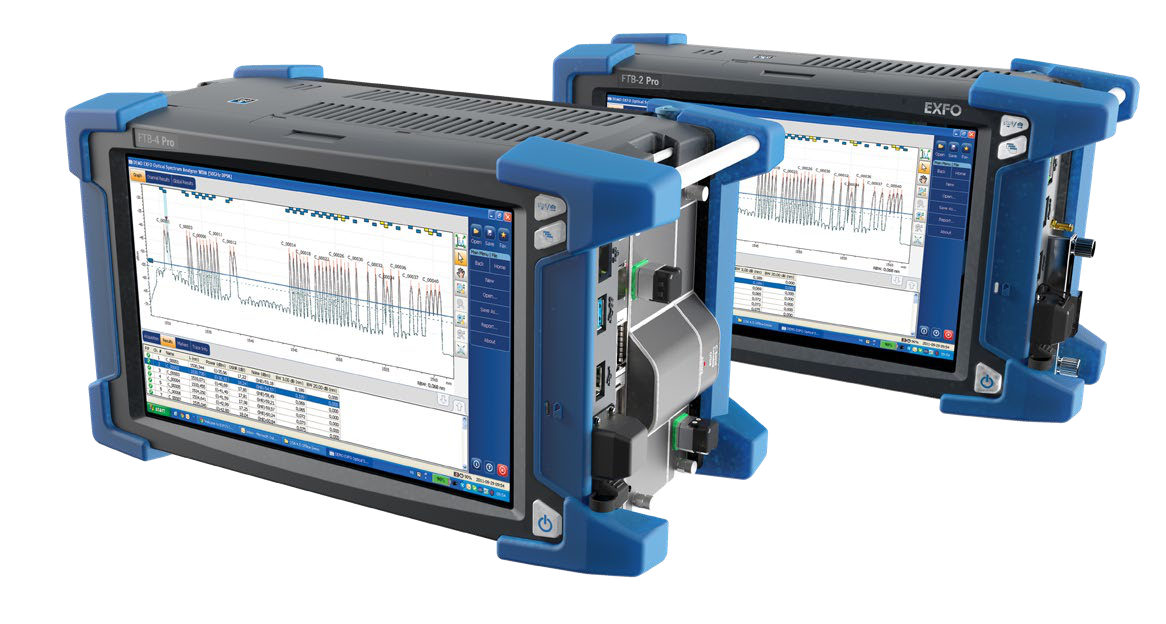

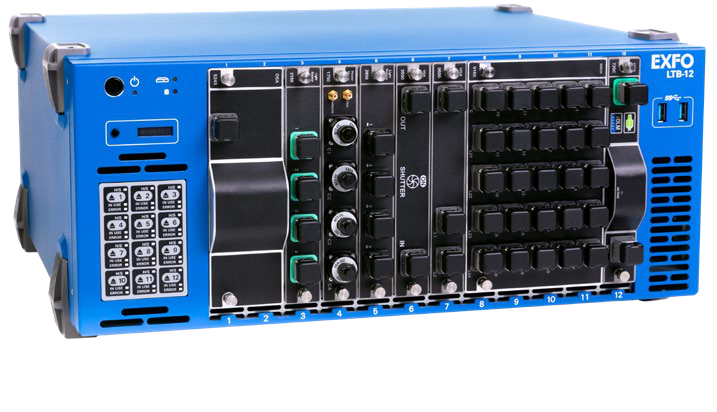

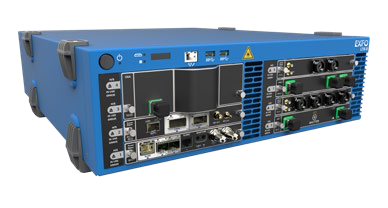

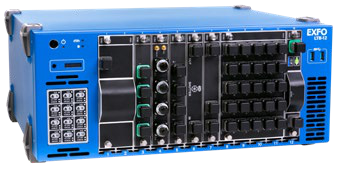

FTBx-5245/5255 Optical Spectrum Analyzers (OSAs)
Highly accurate and easy-to-use intelligent optical spectrum analyzers designed for CWDM and DWDM network analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) FTBx-5245 | 1250 to 1650 |
| Wavelength Range (nm) FTBx-5255 | 1250 to 1650 |
| Wavelength Uncertainty (nm) FTBx-5245 | ±0.05 |
| Wavelength Uncertainty (nm) FTBx-5255 | ±0.025 |
| Reference | Internal |
| Resolution Bandwidth (RBW) (nm) FTBx-5245 | 0.065 |
| Resolution Bandwidth (RBW) (nm) FTBx-5255 | 0.035 |
| Wavelength Linearity (nm) | ±0.01 |
| Wavelength Repeatability 2σ (nm) | ±0.003 |
| Analysis Mode FTBx-5245 | WDM |
| Analysis Mode FTBx-5245 | EDFA |
| Analysis Mode FTBx-5245 | drift |
| Analysis Mode FTBx-5245 | spectral transmittance |
| Analysis Mode FTBx-5245 | DFB |
| Analysis Mode FTBx-5245 | FP |
| Analysis Mode FTBx-5255 | WDM |
| Analysis Mode FTBx-5255 | EDFA |
| Analysis Mode FTBx-5255 | drift |
| Analysis Mode FTBx-5255 | spectral transmittance |
| Analysis Mode FTBx-5255 | DFB |
| Analysis Mode FTBx-5255 | FP |
| Dynamic Range (dBm) per channel FTBx-5245 | -80 to 18 |
| Dynamic Range (dBm) per channel FTBx-5255 | -80 to 18 |
| Dynamic Range (dBm) per channel HPW option | -75 to 23 |
| Maximum Total Safe Power (dBm) FTBx-5245 | 23 |
| Maximum Total Safe Power (dBm) FTBx-5255 | 23 |
| Maximum Total Safe Power (dBm) HPW option | 29 |
| Absolute Power Uncertainty (dB) FTBx-5245 | ±0.5 |
| Absolute Power Uncertainty (dB) FTBx-5255 | ±0.5 |
| Absolute Power Uncertainty (dB) HPW option | ±0.5 |
| Power Repeatability 2σ (dB) FTBx-5245 | ±0.02 |
| Power Repeatability 2σ (dB) FTBx-5255 | ±0.02 |
| Power Repeatability 2σ (dB) HPW option | ±0.02 |
| Optical Rejection Ratio (dB) at 0.2nm (25GHz) FTBx-5245 | 35 (40 typical) |
| Optical Rejection Ratio (dB) at 0.2nm (25GHz) FTBx-5255 | 45 (50 typical) |
| Optical Rejection Ratio (dB) at 0.2nm (25GHz) HPW option | 45 (50 typical) |
| Optical Rejection Ratio (dB) at 0.4nm (50GHz) FTBx-5245 | 45 (50 typical) |
| Optical Rejection Ratio (dB) at 0.4nm (50GHz) FTBx-5255 | 50 (55 typical) |
| Optical Rejection Ratio (dB) at 0.4nm (50GHz) HPW option | 50 (55 typical) |
| Channel Spacing (GHz) FTBx-5245 | 25 to 200 |
| Channel Spacing (GHz) FTBx-5255 | 12.5 to 200 |
| PDL (dB) FTBx-5245 | ±0.08 |
| PDL (dB) FTBx-5255 | ±0.06 |
| PDL (dB) HPW option | ±0.1 |
| ORL (dB) | ≥40 |
| Measurement Time (s) FTBx-5245 | <1.0 |
| Measurement Time (s) FTBx-5255 | <1.0 |
| OSNR Dynamic Range (dB) FTBx-5245-P only | ≥35 |
| OSNR Dynamic Range (dB) FTBx-5255 | ≥35 |
| OSNR Measurement Uncertainty (dB) FTBx-5245-P only | ±0.5 |
| OSNR Measurement Uncertainty (dB) FTBx-5255 | ±0.5 |
| OSNR Repeatability (dB) FTBx-5245-P only | ±0.2 |
| OSNR Repeatability (dB) FTBx-5255 | ±0.2 |
| Data Signals FTBx-5245-P only | Up to 100Gbit/s |
| Data Signals FTBx-5255 | Up to 100Gbit/s |
| OSNR Dynamic Range (dB) Pol-Mux OSNR | 30 |
| OSNR Measurement Uncertainty (dB) Pol-Mux OSNR | ±0.5 |
| OSNR Repeatability (dB) Pol-Mux OSNR | ±0.3 |
| Size (H×W×D) | 51mm×159mm×185mm |
| Weight | 1.2kg (2.6lb) |
| Temperature Operating | 0°C to 40°C (32°F to 104°F) |
| Temperature Storage | -40°C to 50°C (-40°F to 122°F) |
| Relative Humidity | 0% to 95% noncondensing |
| Connectors | EI (EXFO UPC universal interface), EA (EXFO APC universal interface) |
