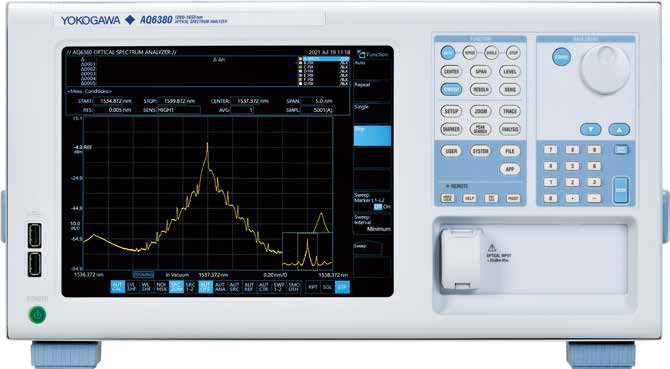

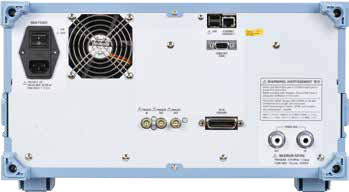

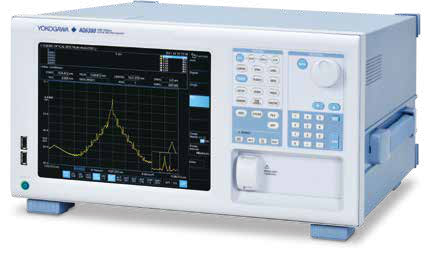

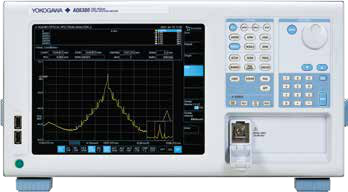

AQ6380 Optical Spectrum Analyzer
The AQ6380 Optical Spectrum Analyzer is a next-generation device designed for precise optical performance, offering high resolution, dynamic range, and advanced features for optical signal analysis.
Save to Favorites

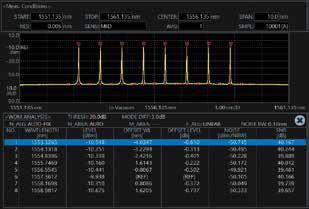

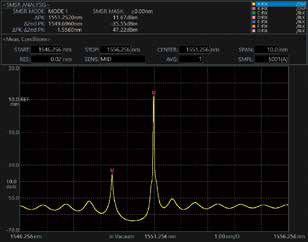

Overview
Specifications

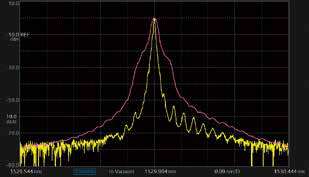

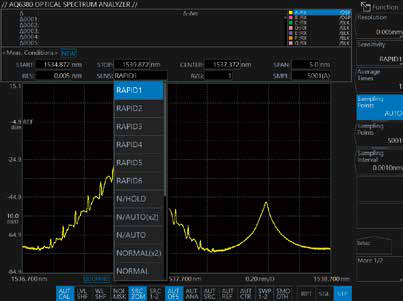

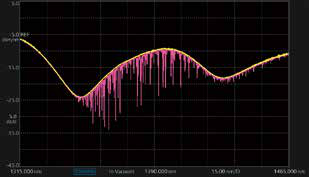

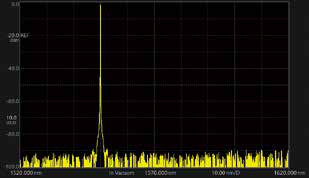

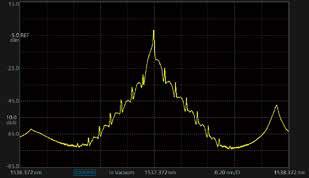

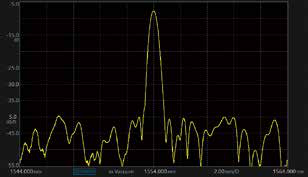

| Parameter | Value |
|---|---|
| Applicable Fiber | SM(9.5/125μm) |
| Wavelength Range | 1200-1650nm |
| Wavelength Accuracy | ±0.005nm (1520-1570nm), ±0.008nm (1450-1520nm, 1570-1620nm), ±0.01nm (全范围) |
| Wavelength Repeatability | ±0.001nm (1520-1570nm), ±0.008nm (1450-1520nm, 1570-1620nm) |
| Resolution Bandwidth Accuracy | ±5% (1450-1620nm, 分辨率: 0.1-2nm) |
| Sampling Points | 101-200001, AUTO |
| Minimum Wavelength Resolution | 0.005nm (0.5pm) |
| Power Sensitivity | -85dBm (1200-1600nm, 配置: RAPID6) |
| Dynamic Range | 72dB (1200-1600nm, 配置: RAPID6) |
| Power Linearity | ±0.05dB (1310 & 1550nm, 输入功率: -20dBm, 配置: MID, HIGH1-3 and RAPID4-6) |
| Power Accuracy | ±0.2dB (1520-1570nm, 输入功率: -20dBm, 配置: HIGH1-3) |
| Near-End Stray Dynamic Range | RES 0.05nm: 45dB (信号在0.05nm) RES 0.2nm: 55dB (信号在1.0nm) |
| Optical Return Loss | 30dB |
| Fiber input connector | FC/PC或SC/PC |
| Measurement Speed | 0.23s (配置: RAPID1, 分辨率: 10nm, 采样点数: 100001, 平均次数: 1) |
| Display | 10.4英寸彩色LCD, 分辨率: 1024×768像素 |
| Dimensions | 约426mm×221mm×459mm (宽×高×深, 不包括橡胶脚 and 提手) |
| Weight | 约15kg |
| Power Requirements | 100-240VAC, 50/60Hz, 100VA或以下 |
| Operating Temperature | +5°C至+35°C |
| Storage Temperature | -20°C至+60°C |
| Humidity | 20-80%RH (None凝结) |
| Safety Standards | EN 60825-1:2014, IEC 60825-1:2007, GB 7247.1-2012 Class 1 |
| EMC | EN 61326-1 Class A, EN 55011 Class A Group 1, EN 61000-3-2, EN 61000-3-3, RCM EN 55011 Class A Group 1, 低电磁辐射 |
| Immunity | EN 61326-1 Table 2 |
