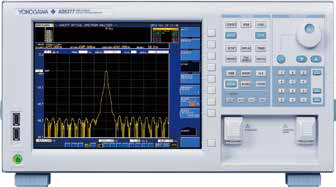

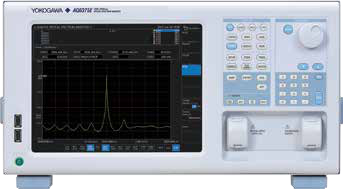

AQ6370 Series Optical Spectrum Analyzer
The AQ6370 series optical spectrum analyzer is designed to meet the needs of research and production centers in various industries, offering high precision and reliable optical measurement capabilities.
Save to Favorites
Overview
Specifications

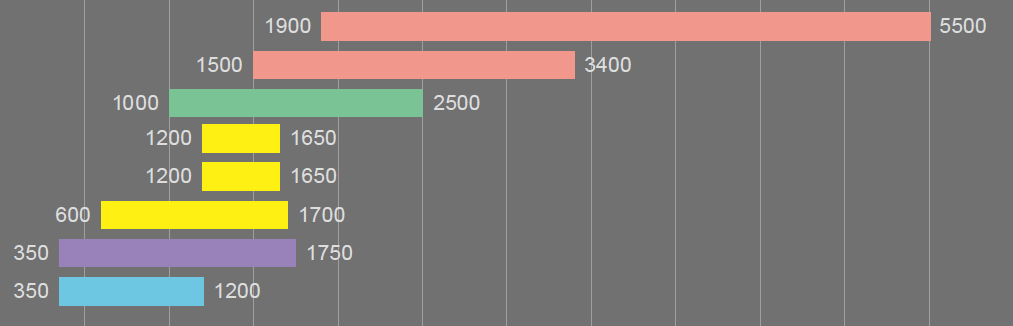

| Parameter | Value |
|---|---|
| Wavelength Range AQ6370E | 600-1700nm |
| Wavelength Range AQ6373E | 350-1200nm |
| Wavelength Range AQ6374E | 350-1750nm |
| Wavelength Range AQ6375E | 1000-2500nm |
| Wavelength Range AQ6376E | 1500-3400nm |
| Wavelength Range AQ6377 | 1900-5500nm |
| Wavelength Resolution Setting AQ6370E | 20pm-2nm |
| Wavelength Resolution Setting AQ6373E | 0.01-10nm |
| Wavelength Resolution Setting AQ6374E | 0.05-10nm |
| Wavelength Resolution Setting AQ6375E | 0.05-2nm |
| Wavelength Resolution Setting AQ6376E | 0.1-2nm |
| Wavelength Resolution Setting AQ6377 | 0.2-5nm |
| Dynamic Range AQ6370E | 78dB |
| Dynamic Range AQ6373E | 60dB |
| Dynamic Range AQ6374E | 60dB |
| Dynamic Range AQ6375E | 55dB |
| Dynamic Range AQ6376E | 55dB |
| Dynamic Range AQ6377 | 50dB |
| Wavelength Accuracy AQ6370E | ±0.008nm |
| Wavelength Accuracy AQ6373E | ±0.05nm |
| Wavelength Accuracy AQ6374E | ±0.05nm |
| Wavelength Accuracy AQ6375E | ±0.05nm |
| Wavelength Accuracy AQ6376E | ±0.5nm |
| Wavelength Accuracy AQ6377 | ±0.5nm |
| Power Measurement Range AQ6370E | -90 to +20dBm |
| Power Measurement Range AQ6373E | -80 to +20dBm |
| Power Measurement Range AQ6374E | -80 to +20dBm |
| Power Measurement Range AQ6375E | -70 to +20dBm |
| Power Measurement Range AQ6376E | -65 to +13dBm |
| Power Measurement Range AQ6377 | -60 to +13dBm |
