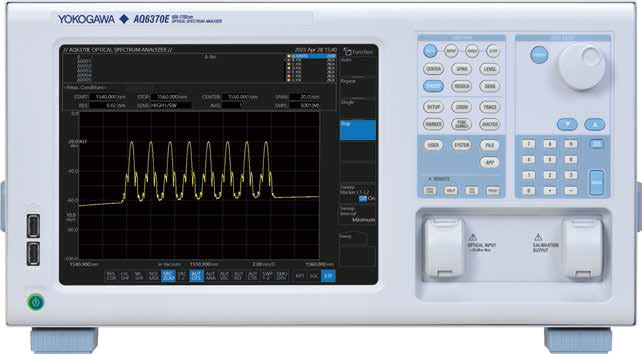

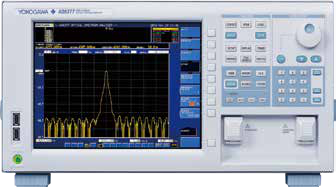

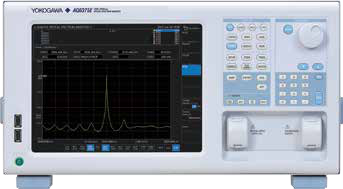

AQ6370 Series Optical Spectrum Analyzer
The AQ6370 series optical spectrum analyzer is designed for high-precision optical measurement across various industries, including telecommunications, environmental monitoring, and medical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

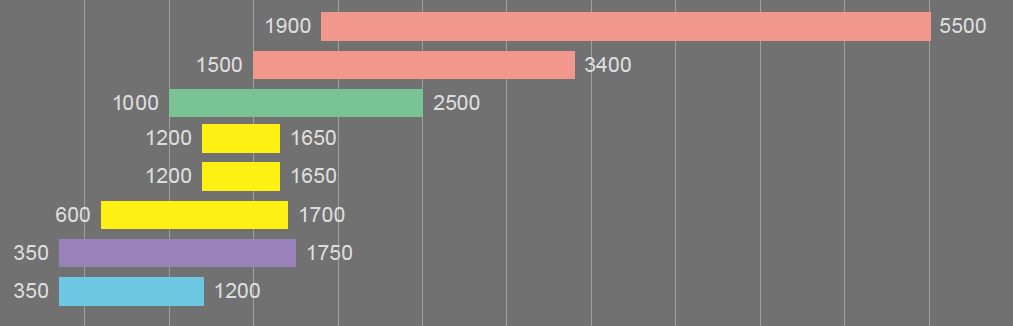

| Wavelength Range AQ6370E | 600-1700nm |
| Wavelength Range AQ6373E | 350-1200nm |
| Wavelength Range AQ6374E | 350-1750nm |
| Wavelength Range AQ6375E | 1000-2500nm |
| Wavelength Range AQ6376E | 1500-3400nm |
| Wavelength Range AQ6377 | 1900-5500nm |
| Wavelength Resolution Setting AQ6370E | 20pm-2nm |
| Wavelength Resolution Setting AQ6373E | 0.01-10nm |
| Wavelength Resolution Setting AQ6374E | 0.05-10nm |
| Wavelength Resolution Setting AQ6375E | 0.05-2nm |
| Wavelength Resolution Setting AQ6376E | 0.1-2nm |
| Wavelength Resolution Setting AQ6377 | 0.2-5nm |
| Dynamic Range AQ6370E | 78dB |
| Dynamic Range AQ6373E | 60dB |
| Dynamic Range AQ6374E | 60dB |
| Dynamic Range AQ6375E | 55dB |
| Dynamic Range AQ6376E | 55dB |
| Dynamic Range AQ6377 | 50dB |
| Wavelength Accuracy AQ6370E | ±0.008nm |
| Wavelength Accuracy AQ6373E | ±0.05nm |
| Wavelength Accuracy AQ6374E | ±0.05nm |
| Wavelength Accuracy AQ6375E | ±0.05nm |
| Wavelength Accuracy AQ6376E | ±0.5nm |
| Wavelength Accuracy AQ6377 | ±0.5nm |
| Maximum Measurable Power Range AQ6370E | -90 to +10dBm |
| Maximum Measurable Power Range AQ6373E | -80 to +20dBm |
| Maximum Measurable Power Range AQ6374E | -80 to +20dBm |
| Maximum Measurable Power Range AQ6375E | -70 to +20dBm |
| Maximum Measurable Power Range AQ6376E | -65 to +13dBm |
| Maximum Measurable Power Range AQ6377 | -60 to +13dBm |
