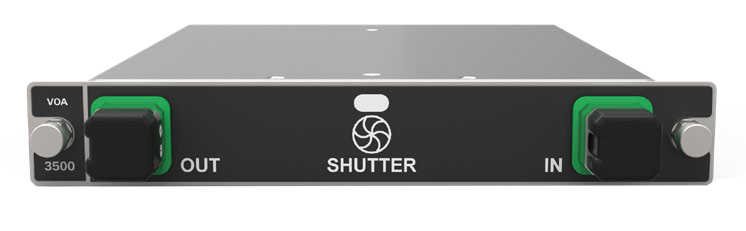

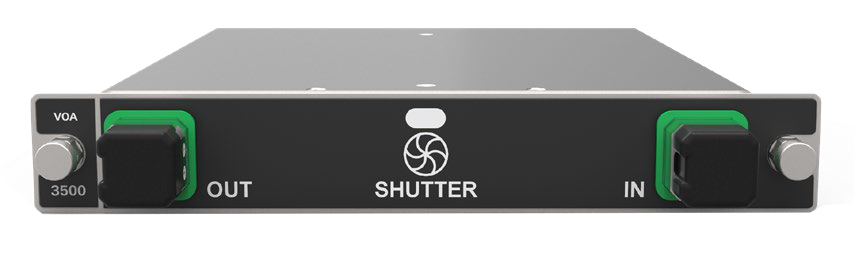

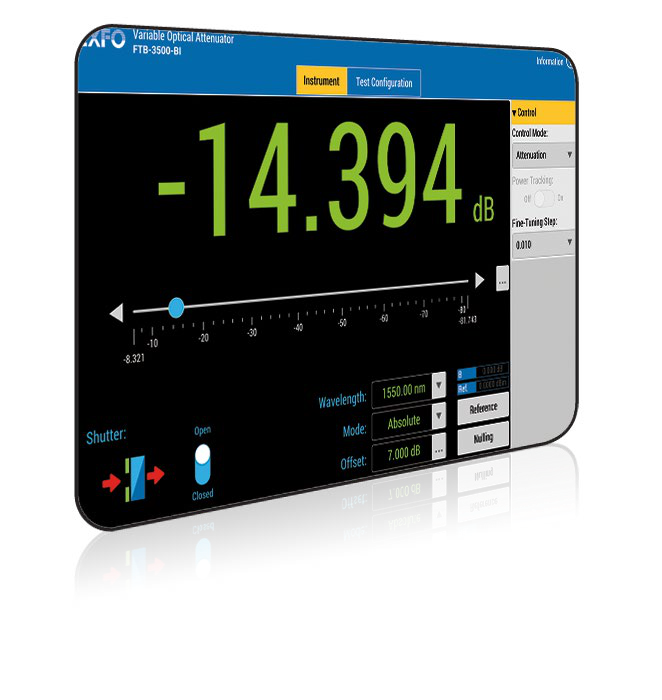

FTBx-3500 Variable Attenuator

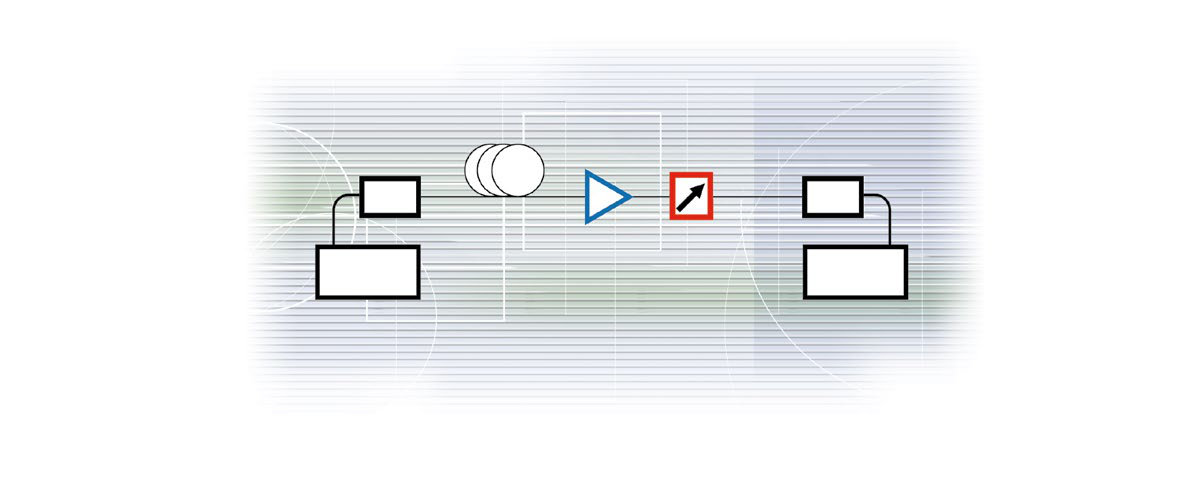

The FTBx-3500 is a fully programmable variable attenuator designed for transceiver testing and system verification in demanding 24/7 production environments. It offers outstanding spectral uniformity and integrated power monitoring options for both singlemode and multimode applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | 9/125, 50/125, 62.5/125 |
| Wavelength Range (nm) | 1250 to 1650 (singlemode), 700 to 1350 (multimode) |
| Maximum Attenuation (dB) | ≥65 (singlemode), ≥60 (multimode) |
| Insertion Loss (dB) | 1.0 typical, 1.5 maximum (singlemode without power monitoring); 1.5 typical, 2.2 maximum (singlemode with power monitoring); 1.3 typical, 2.0 maximum (multimode without power monitoring); 1.5 typical, 2.2 maximum (multimode with power monitoring) |
| Attenuation Setting Resolution (dB) | 0.002 |
| Attenuation Linearity (dB) | ±0.1 |
| Attenuation Repeatability (dB) | ±0.01 |
| Spectral Uniformity (1510 nm to 1605 nm) (dB) | ±0.05 |
| Spectral Uniformity (1450 nm to 1630 nm) (dB) | ±0.09 |
| Power Meter Linearity (dB) | N/A (without power monitoring), ±0.03 (with power monitoring) |
| Power Setting Repeatability (dB) | N/A (without power monitoring), ±0.035 (with power monitoring) |
| PDL (dB) | 0.2 |
| Return Loss (dB) | ≥60 (singlemode), ≥40 (multimode) |
| Max Input Power (dBm) | 23 (singlemode), 20 (multimode) |
| Transition Speed (ms) 1 dB | ≤160 |
| Transition Speed (ms) 10 dB | ≤515 |
| Shutter Isolation (dB) | >100 |
| Size (H x W x D) | 25mm x 159mm x 175mm |
| Weight | 0.67kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 80% non-condensing |
| Remote Control | With LTB-8 GPIB (IEEE 488.1, IEEE 488.2) and Ethernet |
