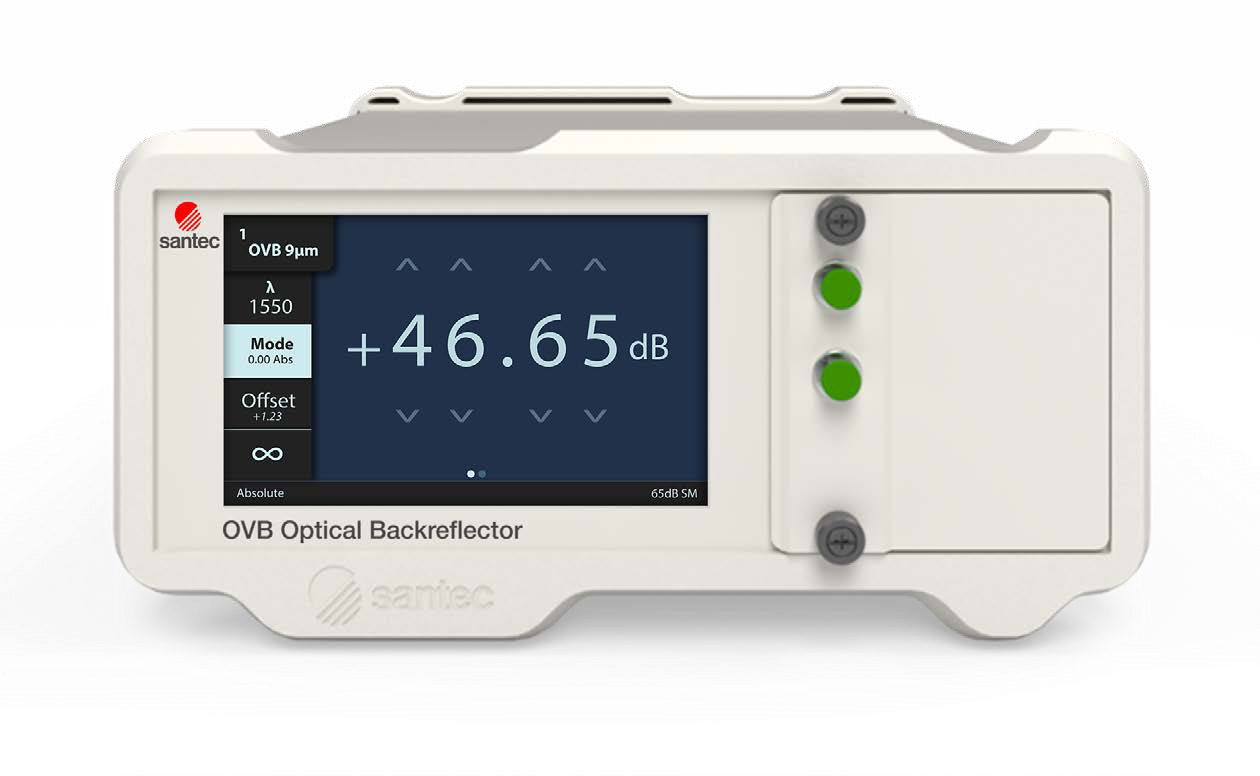

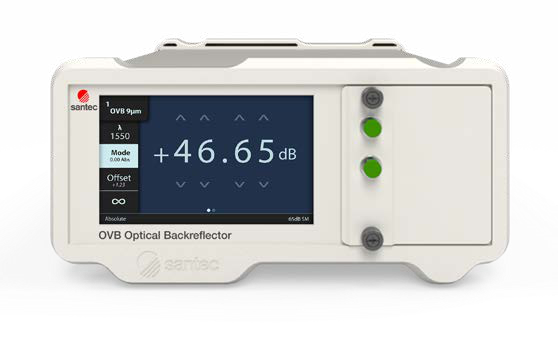

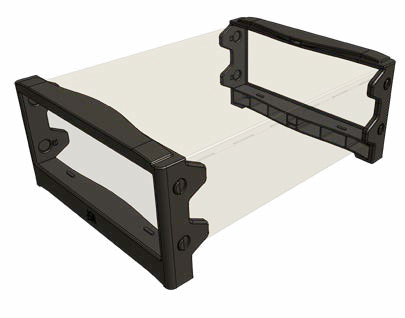

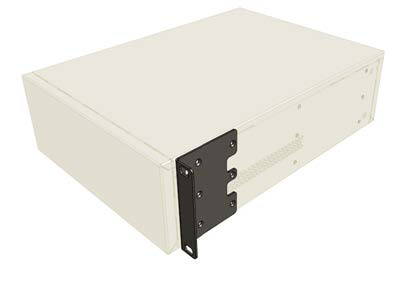

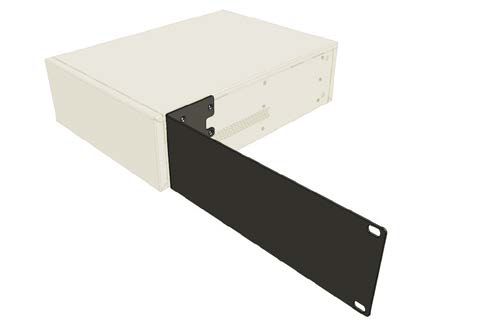

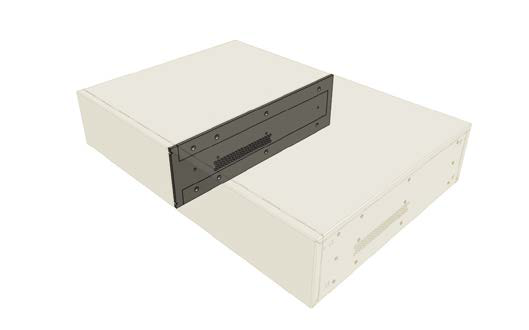

OVB-100 Optical Variable Backreflector
Santec's OVB-100 Optical Variable Backreflector enables precise backreflection control and superior repeatability in a benchtop or rackmount form factor. It offers ±0.02 dB repeatability with a 60 dB adjustment range in single-mode (1200 to 1700 nm) and a 35 dB range in multimode (750 to 1700 nm). The instrument can be operated via its front-panel 5-inch touch screen or remotely through USB and Ethernet, and an optional 50/50 coupler can be added to bypass the variable backreflector for input signal monitoring. It is ideal for lab and production applications including transceiver testing, QA testing, laser production and automated test systems, and complies with UL/CSA 61010, IEC 61010, FCC Part 15 (Class A) and EN 61326 (Class A) standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type (µm) Single-mode | 9/125 |
| Wavelength Range (nm) Single-mode | 1200 to 1700 |
| Range (dB) Single-mode | 0 to 60 |
| Range with Monitor Output (dB) Single-mode | 9.5 to 60 |
| IL with Monitor Output (dB) Single-mode | <4.0 |
| Resolution (dB) Single-mode | 0.01 |
| Relative Mode Accuracy (dB) Single-mode | ±0.2 |
| Repeatability (dB) Single-mode | ±0.02 |
| Maximum Input Power (dBm) Single-mode | 23 |
| Fiber Type (µm) Multimode | 50/125 or 62.5/125 |
| Wavelength Range (nm) Multimode | 750 to 1700 |
| Range (dB) Multimode | 0 to 35 |
| Range with Monitor Output (dB) Multimode | 9.5 to 35 |
| IL with Monitor Output (dB) Multimode | <4.0 |
| Resolution (dB) Multimode | 0.01 |
| Relative Mode Accuracy (dB) Multimode | ±0.2 |
| Repeatability (dB) Multimode | ±0.02 |
| Maximum Input Power (dBm) Multimode | 23 |
| Remote Interface | USB or Ethernet |
| Display | 5" touch screen |
| Input Voltage | 100 - 240 V AC, 50 - 60 Hz |
| Power Consumption (VA) | 60 maximum |
| Unit Dimension W x H x D (cm) | 23.5 x 12 x 32.5 |
| Shipping Box Dimensions W x H x D (cm) | 36.5 x 39 x 53 |
| Unit Weight (kg) | 8 |
| Total Shipment Weight (kg) | 9 |
| Operating Temperature (°C) | 0 to 55 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 0 to 40 °C |
| Compliance | UL/CSA 61010, IEC 61010, FCC Part 15 (Class A), EN 61326 (Class A) |
