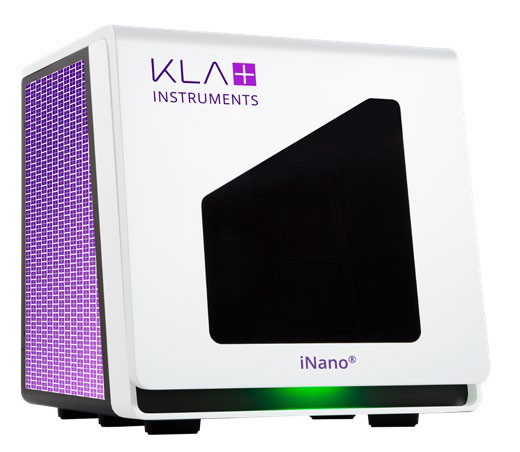

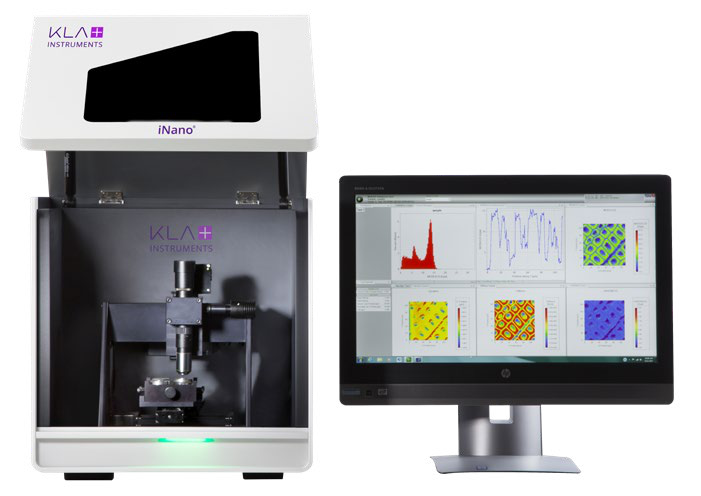

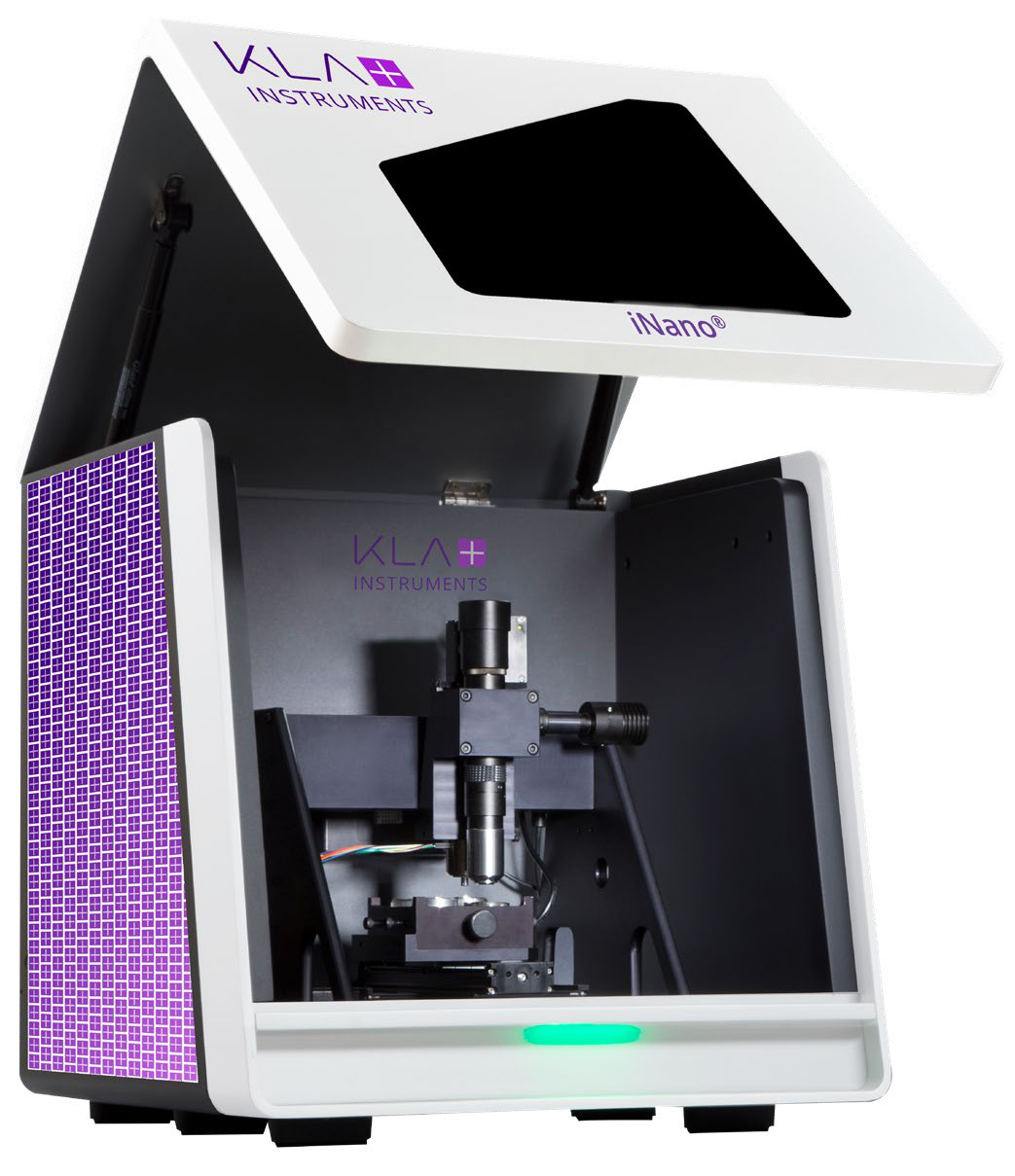

iNano®

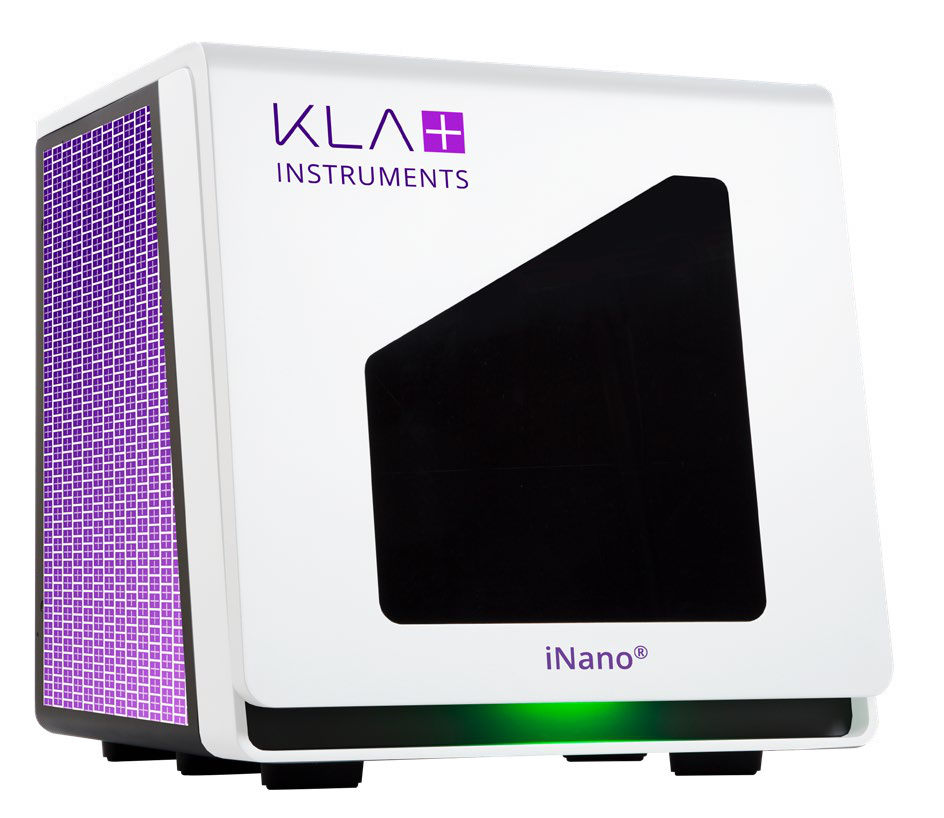

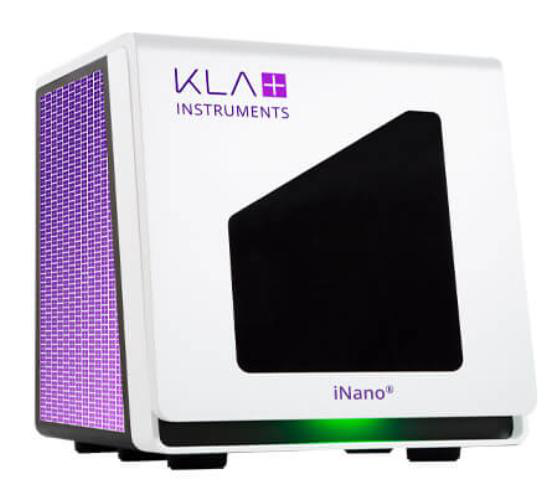

iNano® is a compact and user-friendly nano-mechanical testing system designed for thin films, coatings, and bulk materials. It offers high precision and flexibility for various applications, including material characterization and mechanical property analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Indentation Force | 50mN |
| Indentation Depth Resolution | 0.01nm |
| Force Resolution | 50nN |
| Compliance Standards | ISO 14577 |

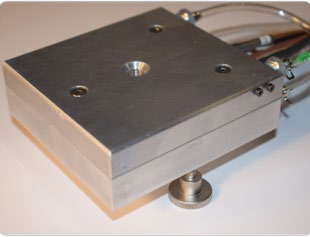

| Sample Heating Temperature | 300°C |
Applications
Key Features
Datasheet
