PHEMOS-X

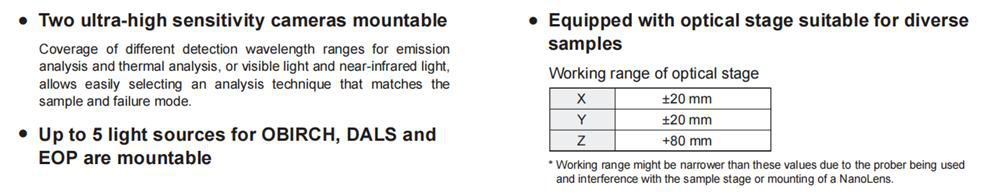

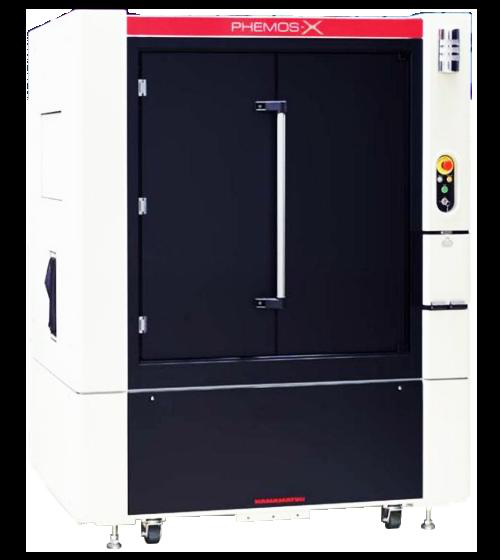

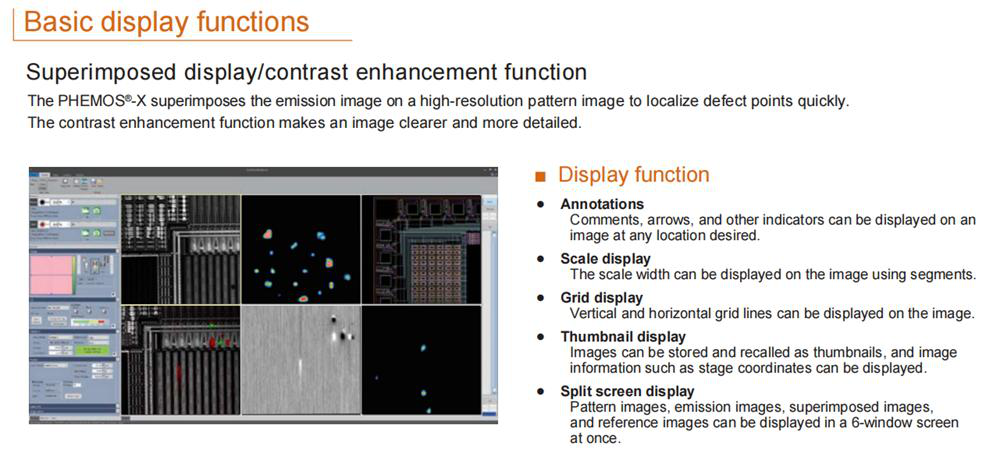

PHEMOS-X is a high-performance emission analysis system designed for detecting low-light emissions from semiconductor devices with high sensitivity and precision. It features advanced cameras, display functions, and optical stage capabilities.
Save to Favorites
Overview
Specifications

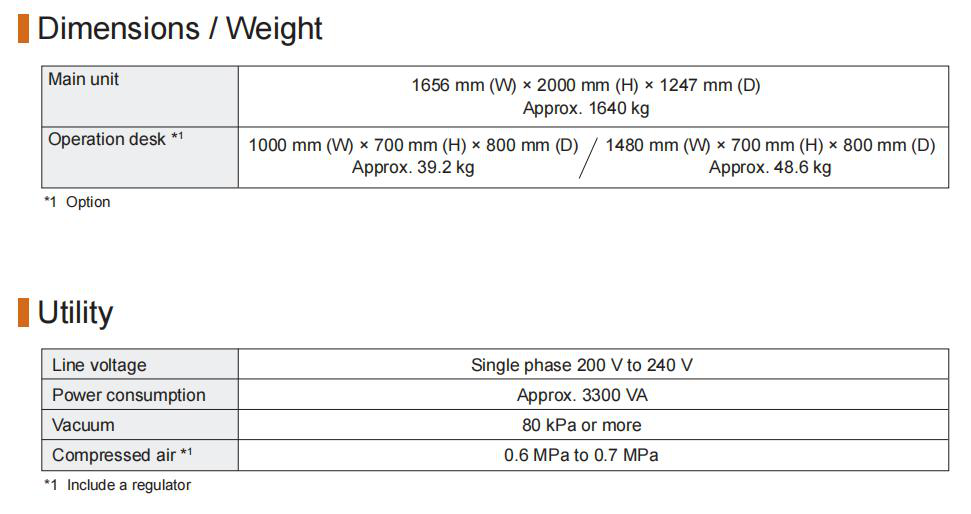

| Parameter | Value |
|---|---|
| Main Unit Dimensions | 1656mm(W)×2000mm(H)×1247mm(D) |
| Main Unit Weight | Approx.1640kg |
| Operation Desk Dimensions 1 | 1000mm(W)×700mm(H)×800mm(D) |
| Operation Desk Weight 1 | Approx.39.2kg |
| Operation Desk Dimensions 2 | 1480mm(W)×700mm(H)×800mm(D) |
| Operation Desk Weight 2 | Approx.48.6kg |
| Line Voltage | Single phase 200V to 240V |
| Power Consumption | Approx.3300VA |
| Vacuum | 80kPa or more |
| Compressed Air | 0.6MPa to 0.7MPa |
| Optical Stage Working Range X | ±20mm |
| Optical Stage Working Range Y | ±20mm |
| Optical Stage Working Range Z | +80mm |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
SU8600 Series Scanning Electron Microscope
Material Analysis and Forensics
Ybsemi-Solution
Secondary Electron Resolution: 0.6nm@15kV, 0.7nm@1kV Magnification: 20-2,000,000× Electron Gun: 冷阴极场发射枪, 支持技术间活动Function, Includes 低噪声模块系统
The SU8600 series scanning electron microscope offers high-resolution imaging and advanced analytical capabilities, suitable for various applications in materials science, semiconductor inspection, and biological research.
-
SU5000 Scanning Electron Microscope
Material Analysis and Forensics
Ybsemi-Solution
Resolution 1.2nm@30kV(SE): 1.2nm Resolution 3.0nm@1kV(SE): 3.0nm Resolution 2.0nm@1kV(SE): 2.0nm
The SU5000 Scanning Electron Microscope (SEM) offers advanced imaging capabilities with intuitive operation, enabling users to achieve high-quality images efficiently.
-
IM4000 II & ArBlade 5000
Material Analysis and Forensics
Ybsemi-Solution
Gas Source: 氩气 Gas Flow Control Method: 质量流量控制 Acceleration Voltage: IM4000 II: 0.0~6.0kV, ArBlade 5000: 0.0~8.0kV
IM4000 II and ArBlade 5000 are advanced ion milling systems designed for precise surface preparation and analysis. They offer high-speed milling capabilities and versatile applications for various materials.
-
Unknown
Material Analysis and Forensics
Kyky
Unknown Parameter: Unknown
This is a high-precision optical device designed for specialized applications, offering advanced performance and reliability.
